PVI PD064VT5N1 6.4 inch LCD Display Screen For Industrial

Name: PVI PD064VT5N1 6.4 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: PD064VT5N1
Price: 95 USD
Availability: InStock

SKU: PD064VT5N1

Model P/N: PD064VT5N1
Diagonal Size: 6.4"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 640 × 480 (VGA)
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $95.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

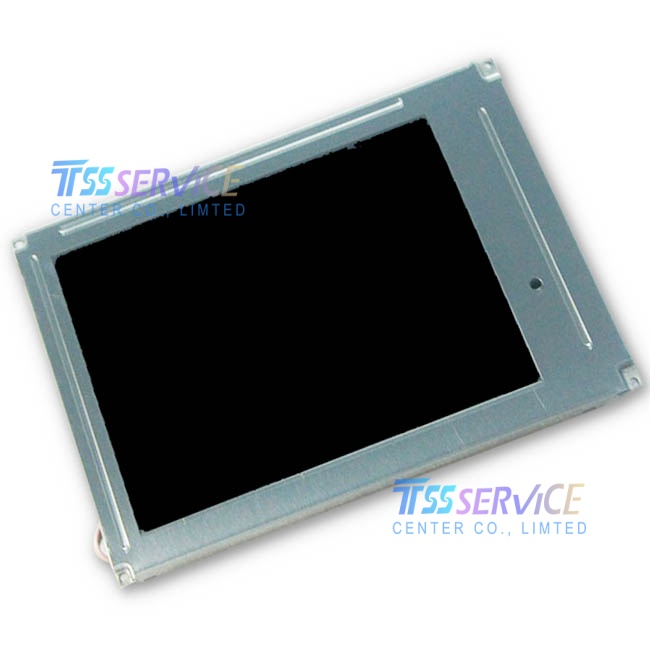

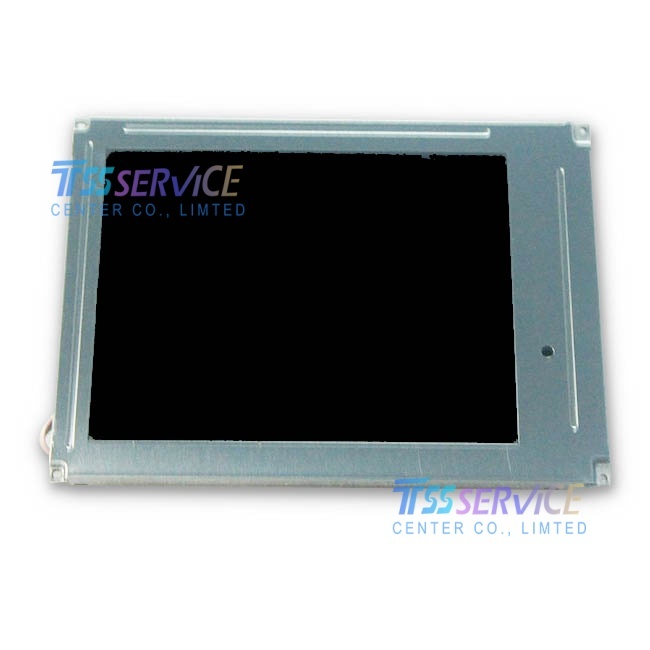

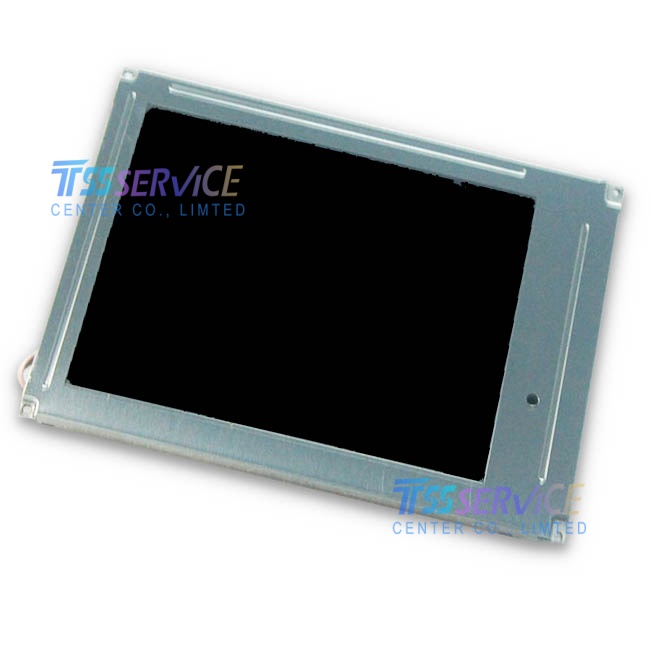

PVI PD064VT5N1 6.4 inch LCD Display Screen For Industrial

Parameter	Specification	Unit
Brand	PVI (Prime View International)	—
Model	PD064VT5N1	—
Screen Size	6.4 (diagonal)	inch
Display Type	a-Si TFT-LCD, TN, Normally White, Transmissive	—
Resolution	640 × 480 (VGA)	dots
Active Area	129.6 (H) × 97.44 (V)	mm
Outline Dimension	175.0 (H) × 126.5 (V) × 12.0 (D)	mm
Brightness	400 (Typ.)	cd/m²
Contrast Ratio	400 : 1 (Typ.)	—
Viewing Angle	50/50/15/35 (Typ., CR≥10)	deg
Display Colors	262,144 (18-bit RGB)	colors
Pixel Configuration	RGB Vertical Stripe	—
Dot Pitch	0.0675 (H) × 0.203 (V)	mm
Pixel Pitch	0.203 (H) × 0.203 (V)	mm
Response Time	15 (tr) / 25 (td) (Typ.)	ms
Backlight	CCFL (2 lamps), 20,000 hours	—
Interface	Parallel RGB (1-ch 6-bit), 31 pins, TTL level	—
Input Voltage	5.0 (Typ.)	VDC
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +70	°C
Weight	340 ± 10	g

Applications

Industrial Automation: Factory HMIs, PLC panels, CNC machinery, and robotic control interfaces
Medical Equipment: Patient monitors, diagnostic devices, and portable medical instruments
Outdoor & Marine Displays: Weather stations, navigation systems, and outdoor kiosks (with protective enclosures)
Retail POS & Kiosks: Point-of-sale terminals, self-service checkout systems, and information kiosks
Embedded Computing: Industrial PCs, thin clients, and legacy display upgrade projects
