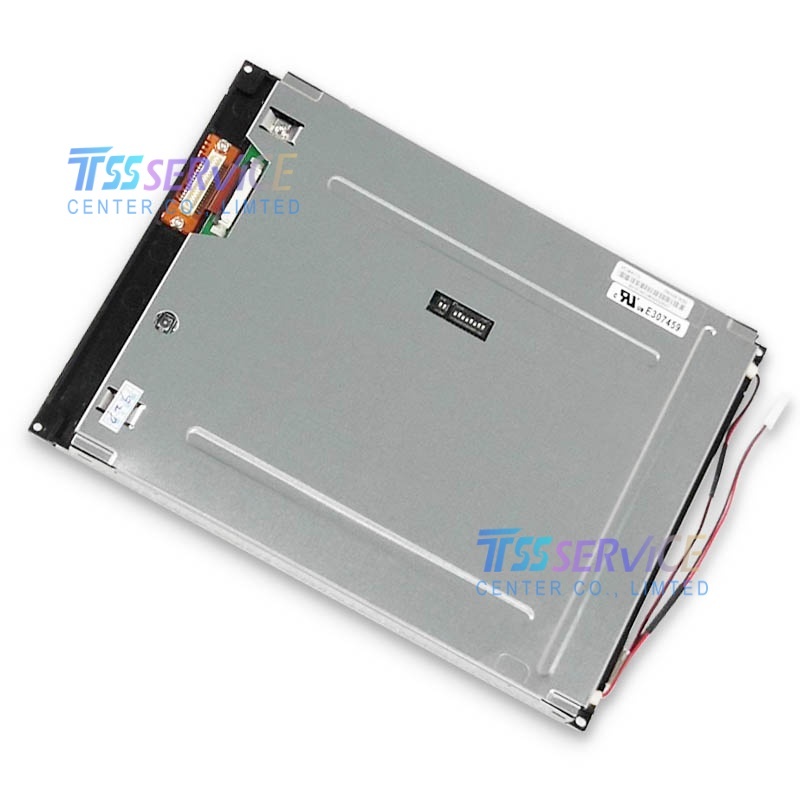

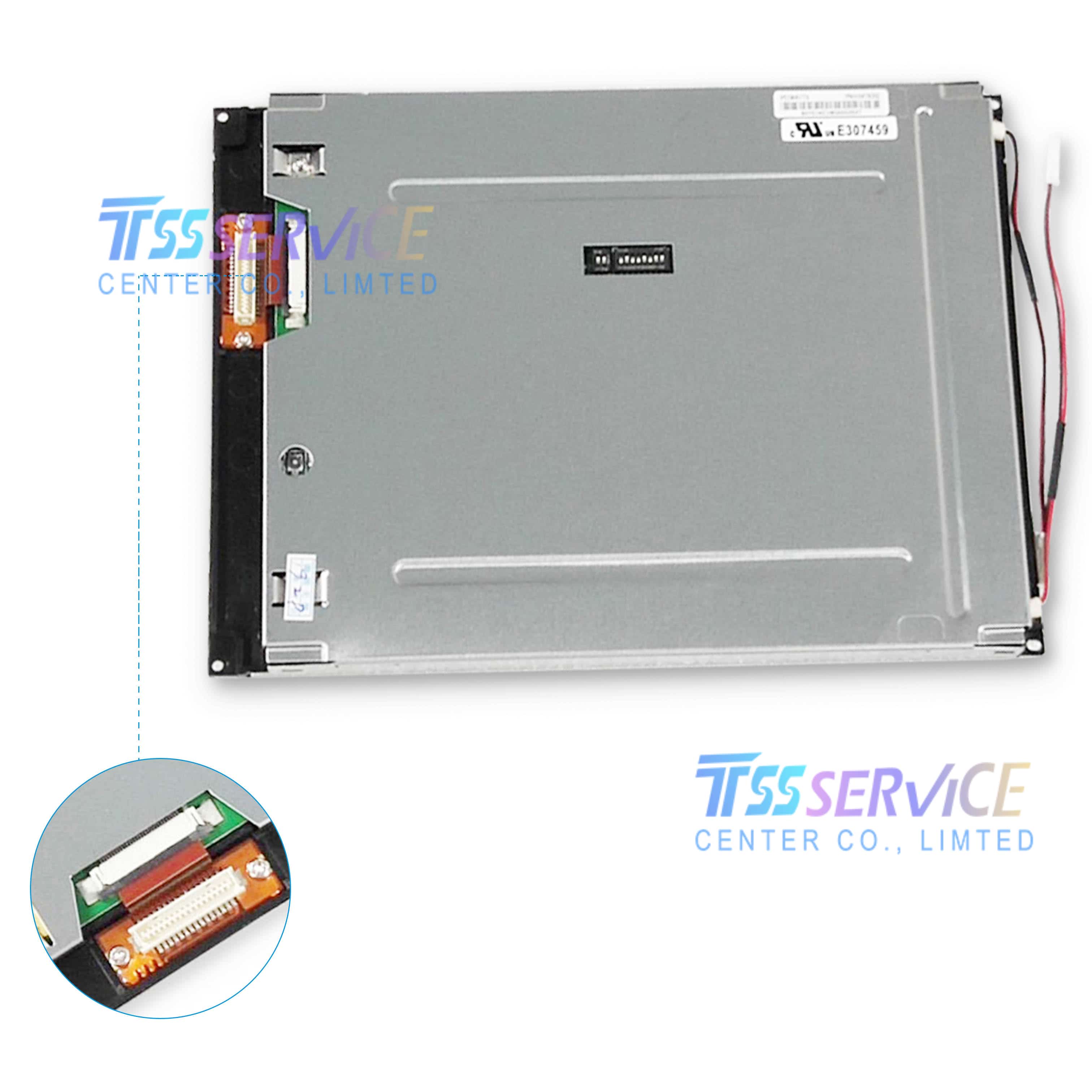

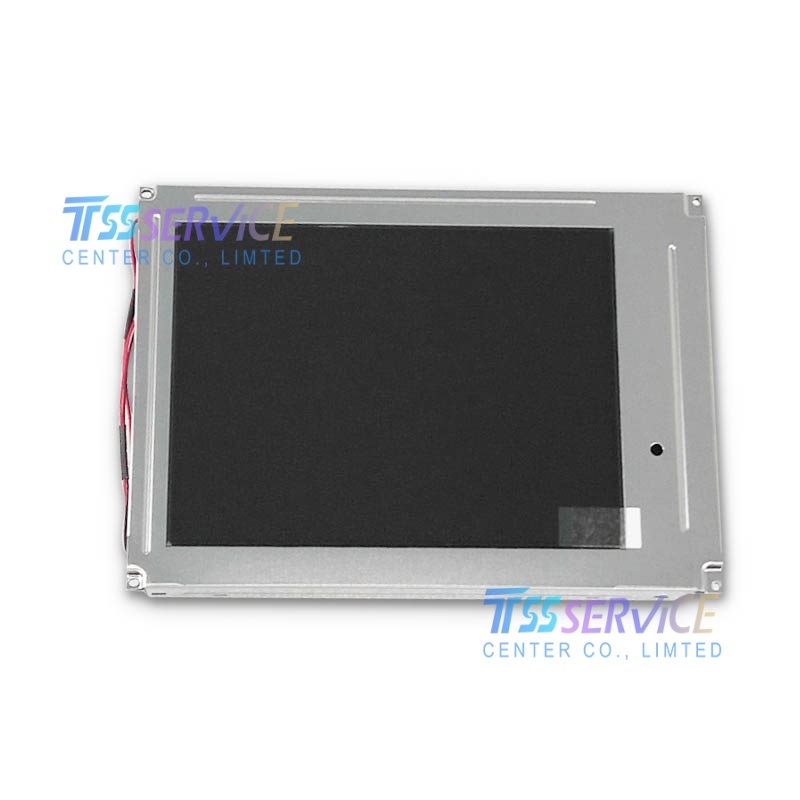

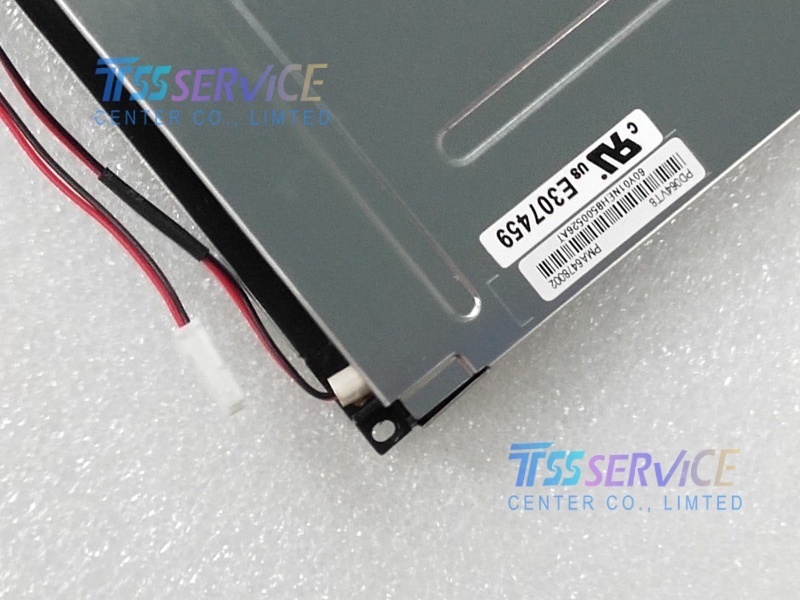

PD064VT8 6.4inch 640×480 Lcd Panel for PVI

Name: PD064VT8 6.4inch 640×480 Lcd Panel for PVI
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: PD064VT8
Price: 90 USD
Availability: InStock

SKU: PD064VT8

Model P/N: PD064VT8
Diagonal Size: 6.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480, VGA 125PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$92.00~~ $90.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The PVI PD064VT8 is a 6.4-inch a-Si TFT-LCD module engineered by PVI (Prime View International, now part of E Ink Holdings) for demanding industrial applications . This model is recognized as a reliable industrial-grade display solution, featuring robust construction, wide temperature operation, and proven performance in factory automation, industrial control systems, and other professional environments .

Parameter	Specification
Brand	PVI
Model P/N	PD064VT8
Diagonal Size	6.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 125PPI
Pixel Format	RGB Vertical Stripe
Active Area	129.6(W)×97.44(H) mm
Bezel Opening	134.8(W)×101.8(H) mm
Outline Dim.	175.4(H)×126.9(V) ×13(D) mm
Treatment	Antiglare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/25 (Typ.)(Tr/Td)
Viewing Angle	60/60/40/55 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED [3S8P×2CN], 30K hours, W/O Driver
Weight	321±15g
Designed For	Without
Touch Panel	Without

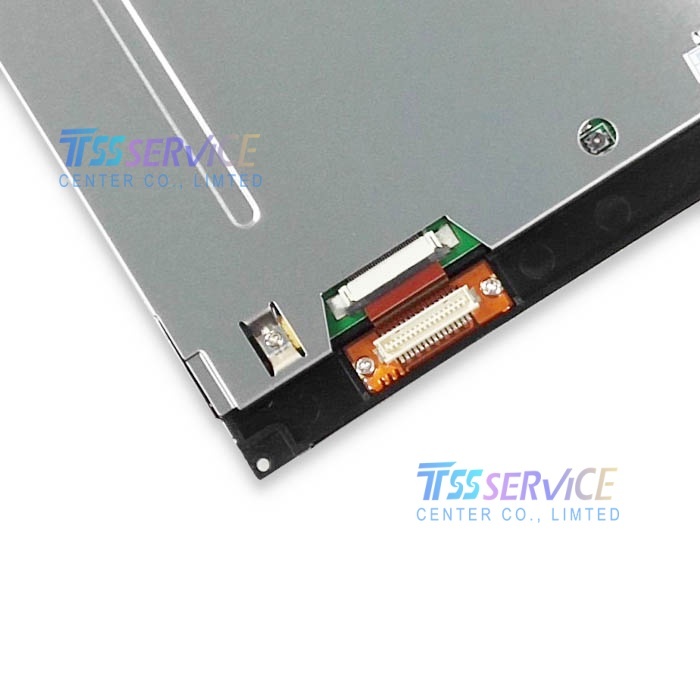

Interface Type	TTL (1 ch, 6-bit), 31 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C; Storage Temperature: -30 ~ 80 °C

Applications:
With its wide temperature range, robust industrial design, and standardized TTL interface, the PVI PD064VT8 is particularly well-suited for industrial control panels, factory automation equipment, medical devices, test and measurement instrumentation, avionics displays, marine equipment, and other embedded systems requiring a durable and reliable display solution in demanding environmental conditions . The TTL interface is especially valuable for legacy system upgrades and applications designed around older display technologies .
