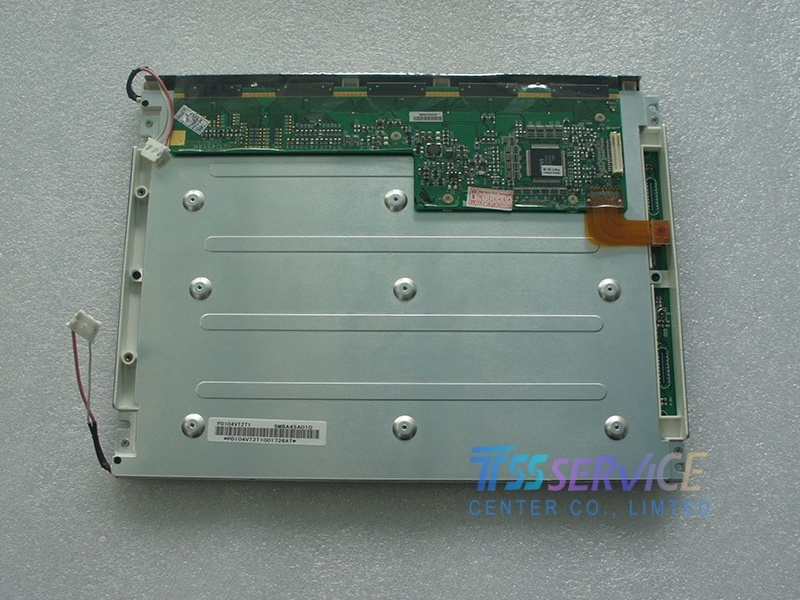

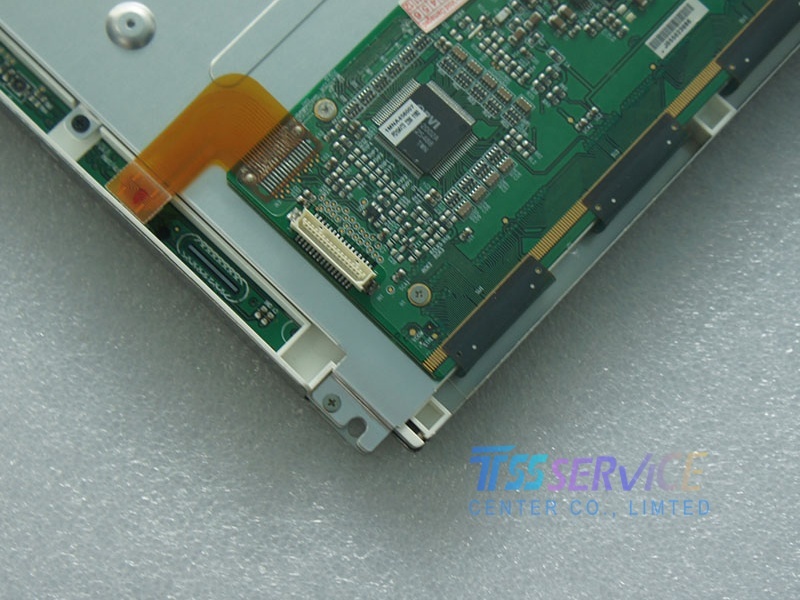

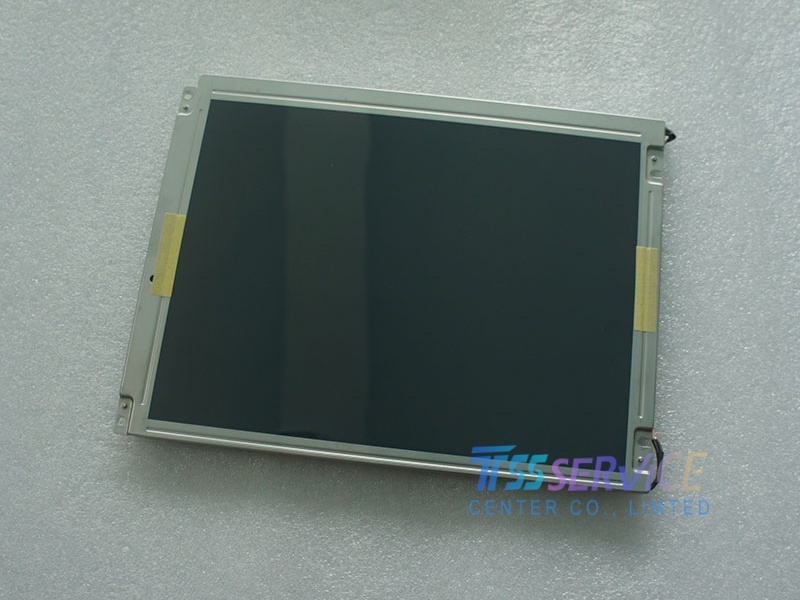

| Brand | PVI |
| Model P/N | PD104VT2T1 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.2(W)×162.4(H) mm |
| Outline Dim. | 243(H)×185.1(V)×13(D) mm |
| Treatment | Antiglare, Hard coating |
| Luminance | 330 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/40 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | CCFL [2 pcs], 30K hours, W/O Driver |
| Weight | 516g (Typ.) |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6-bit), 31 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -10 ~ 60 °C; Storage Temperature: -10 ~ 70 °C |
This display panel is ideal for:
Industrial control panels and HMI (Human-Machine Interface)
Medical devices and diagnostic equipment
Legacy system retrofits and equipment repairs
Test and measurement instruments
Factory automation systems
CNC machines and industrial equipment requiring 4:3 display replacement
