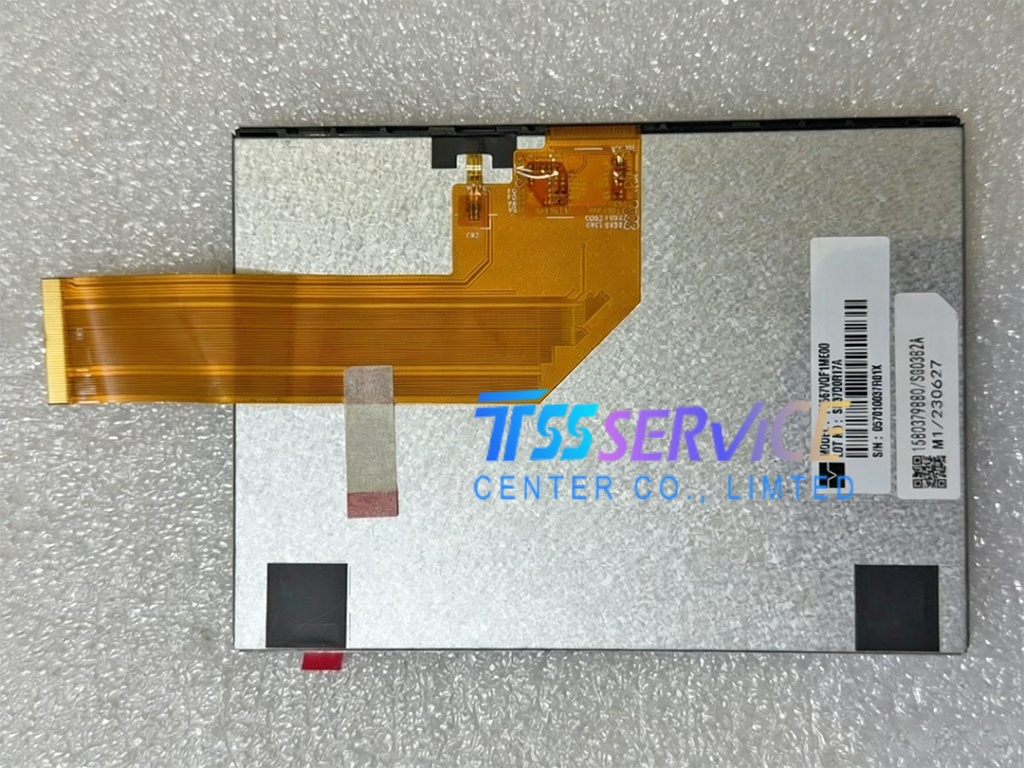

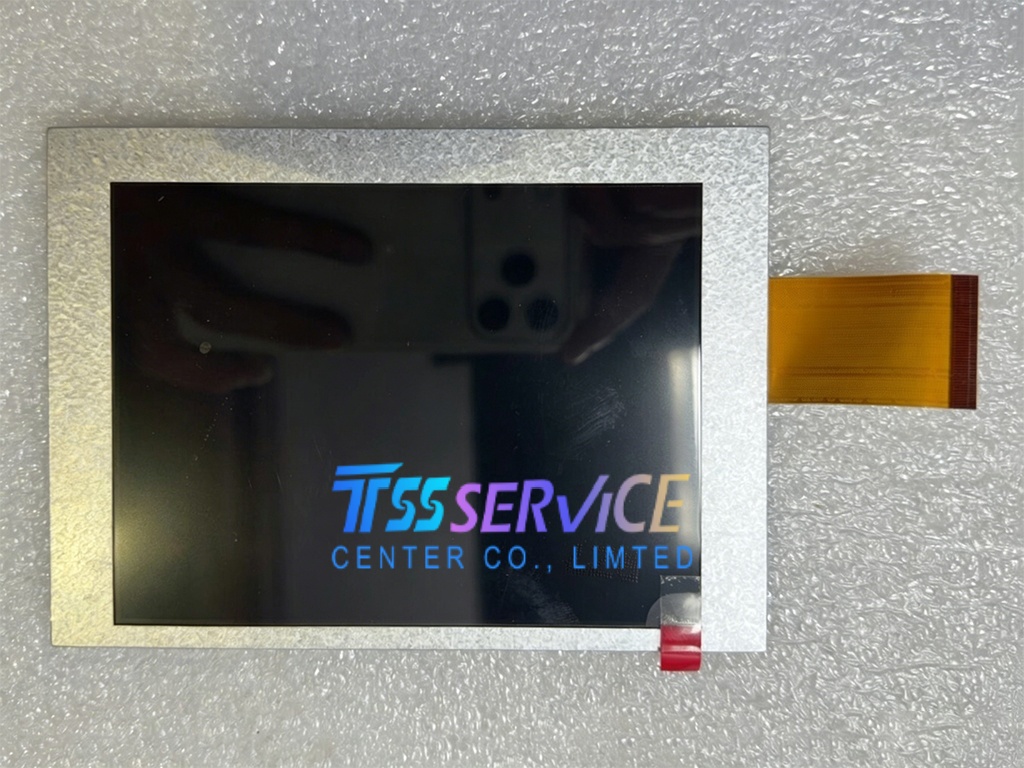

P0567VQF1ME00 | TIANMA 5.7” QVGA TFT-LCD Module
P0567VQF1ME00 is a 5.7-inch QVGA color a-Si TFT-LCD module by Tianma, featuring 320×240 resolution, 500 cd/m² high brightness, 1000:1 contrast, 85° wide viewing angle (SFT), WLED backlight, and 8-bit parallel RGB interface for industrial, medical, and high-reliability embedded applications.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Part Number |
P0567VQF1ME00 |
| Manufacturer |
Tianma Micro-electronics |
| Display Size |
5.7 inch, landscape, 4:3 |
| Resolution |
320 (RGB) × 240 pixels (QVGA) |
| Technology |
a-Si TFT-LCD, color, transmissive, SFT (Super Fine TFT) |
| Active Area |
115.2 mm (W) × 86.4 mm (H) |
| Outline Dimension |
144.0 × 104.6 × 5.1 mm |
| Brightness |
500 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) |
| Viewing Angle |
85°/85°/85°/85° (L/R/U/D, CR≥10) |
| Display Colors |
16.7M (24-bit RGB) |
| Backlight |
WLED, long life, integrated driver |
| Interface |
1-channel 8-bit parallel RGB (TTL, 50 pins) |
| Supply Voltage |
3.3 VDC (logic, typ.) |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-25°C ~ +80°C |
| Touch Screen |
Without touch |
| Surface Treatment |
Anti-Glare (AG) |
| Weight |
Approx. 0.45 kg |
| Certifications |
RoHS compliant |
| Status |
In production |
