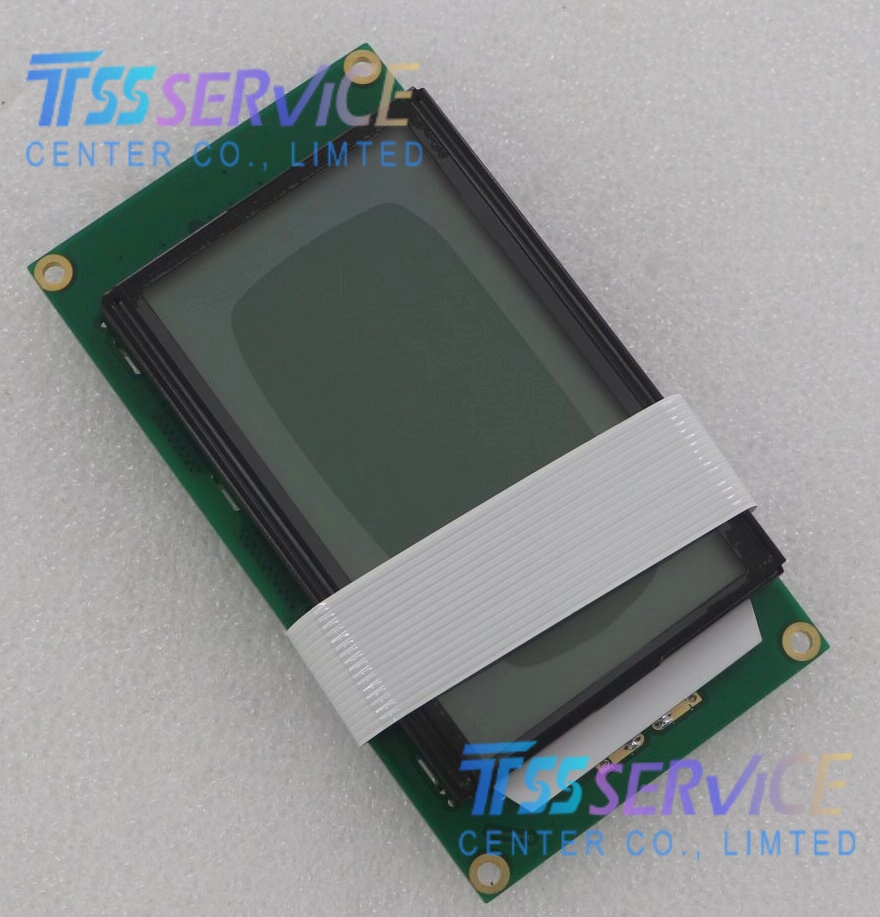

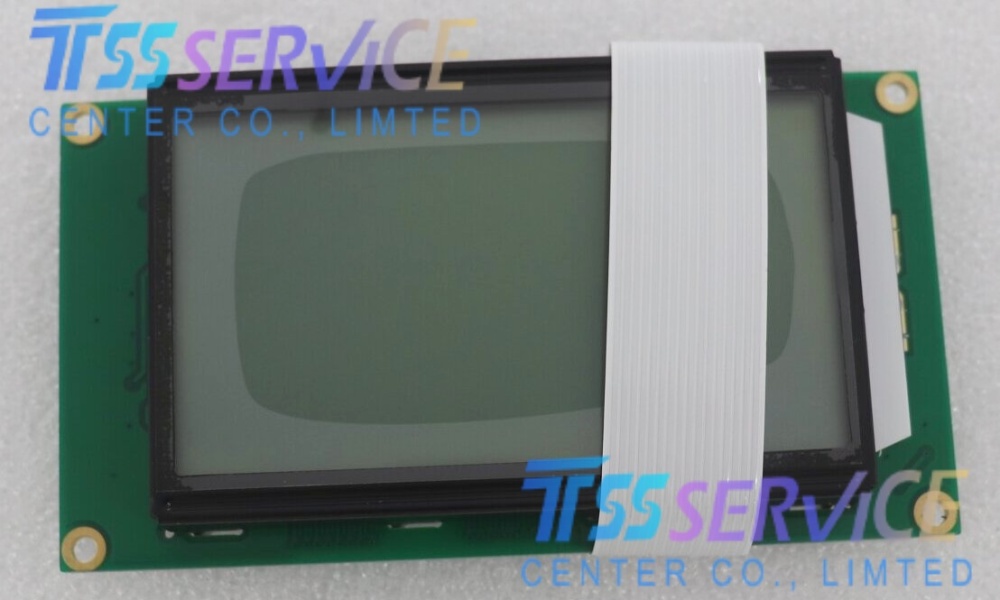

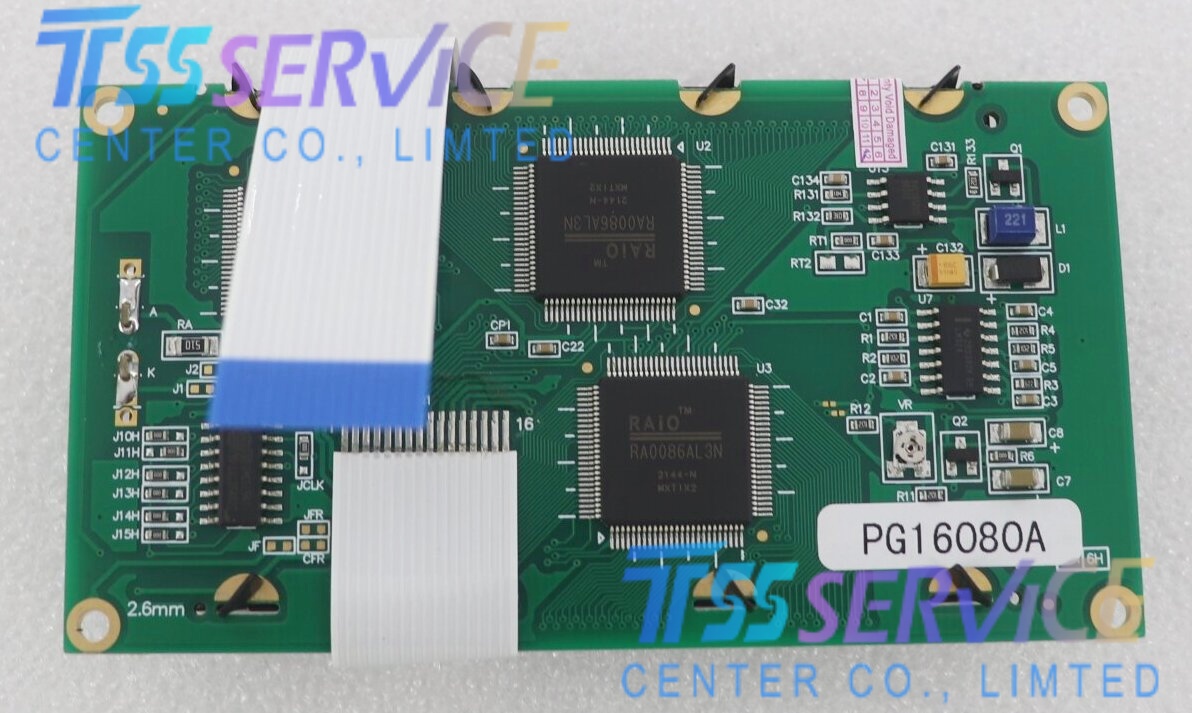

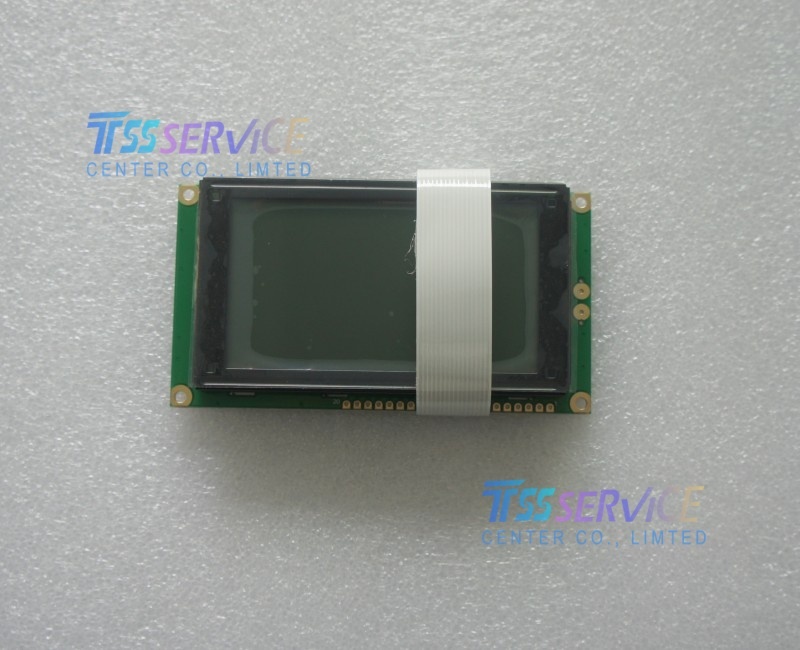

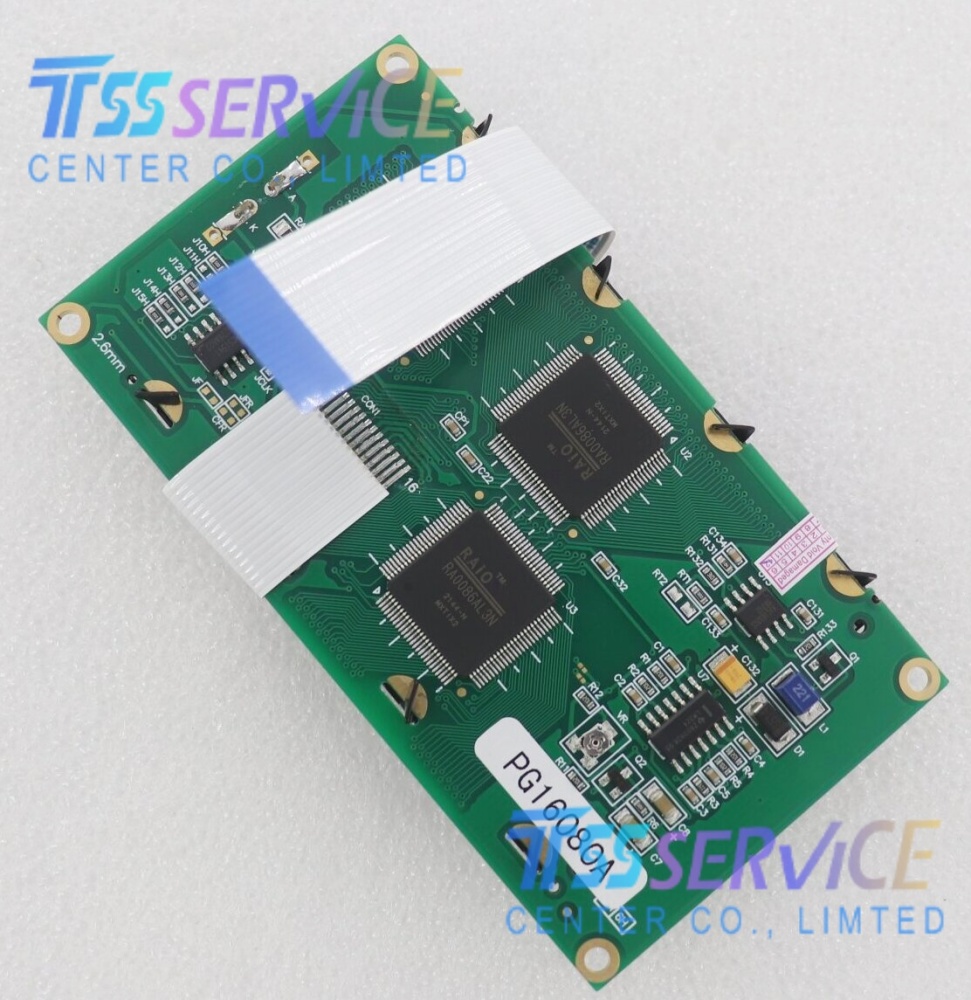

PG16080A 160*80 LCD Dispaly Panel For Industrial

Name: PG16080A 160*80 LCD Dispaly Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: PG16080A
Price: 128 USD
Availability: InStock

SKU: PG16080A

Model: PG16080A (160×80 dot matrix)
Display Size: 3.2 inch (diagonal)
Panel Type: STN (Super Twisted Nematic), Monochrome

0.0 (0 Reviews)

0 Sold

~~$130.00~~ $128.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

PG16080A 160*80 LCD Dispaly Panel For Industrial

Parameter	Details
Model	PG16080A (160×80 dot matrix)
Display Size	3.2 inch (diagonal)
Panel Type	STN (Super Twisted Nematic), Monochrome
Resolution	160 (W) × 80 (H) pixels
Display Mode	Transmissive, Positive (Black on White/Green)
Brightness	100–150 cd/m² (typical)
Contrast Ratio	20:1 (typical)
Viewing Angle	40°/40°/40°/40° (CR≥2)
Backlight	White LED (low power, long life)
Interface	4-bit/8-bit Parallel (MCU interface: 8080/6800)
Controller	Built-in (compatible with LC7981)
Operating Voltage	3.3 V (typical, logic) / 5 V optional
Operating Temp	0 °C ~ +70 °C
Storage Temp	-20 °C ~ +80 °C
Dimensions (W×H×D)	~98 × 60 × 10 mm
Weight	~100 g
Touch Panel	Without touch (optional)

Typical Applications

Industrial Control Panels
Factory automation, PLC/HMI, sensor data display, and machinery control interfaces (e.g., injection molding machines).
Medical Devices
Portable diagnostic equipment, patient monitors, and medical instruments requiring low power and stable performance.
Consumer & Home Appliances
Smart ovens, HVAC controllers, industrial refrigerators, and kitchen equipment with graphical UI.
POS & Kiosk Systems
Compact payment terminals, vending machines, and self-service kiosks (text/menu display).
Handheld & Portable Devices
Rugged data collectors, test meters, and battery-powered embedded systems.
Marine & Automotive (Basic)
Low-cost instrument clusters, navigation aux displays, and marine equipment (non-direct sunlight).
