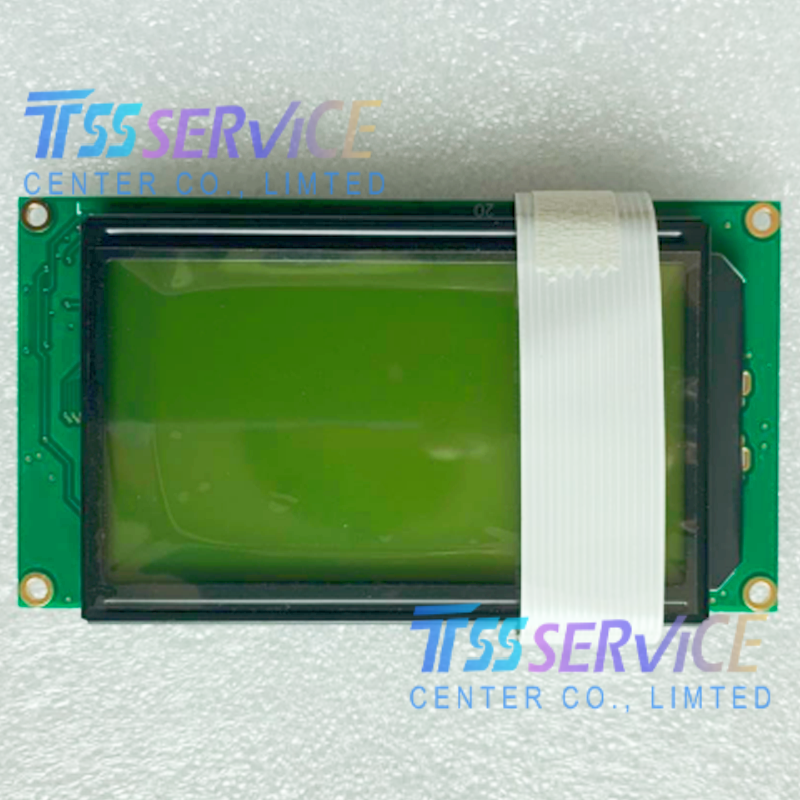

PG16080WRF-ANN-HC1 LCD Display Screen For Industrial

SKU: PG16080WRF-ANN-HC1
Model: PG16080WRF‑ANN‑HC1
Display Type: STN Graphic LCD, Monochrome, Transflective
Resolution: 160 × 80 dots
Display Size: 3.2 inches (diagonal)
0.0 (0 Reviews)
0 Sold
$250.00 $245.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • PG16080WRF-ANN-HC1 LCD Display Screen For Industrial
  • PG16080WRF-ANN-HC1 LCD Display Screen For Industrial
  • PG16080WRF-ANN-HC1 LCD Display Screen For Industrial
  • PG16080WRF-ANN-HC1 LCD Display Screen For Industrial
  • PG16080WRF-ANN-HC1 LCD Display Screen For Industrial
  • PG16080WRF-ANN-HC1 LCD Display Screen For Industrial
1/1
  • PG16080WRF-ANN-HC1 LCD Display Screen For Industrial
  • PG16080WRF-ANN-HC1 LCD Display Screen For Industrial
  • PG16080WRF-ANN-HC1 LCD Display Screen For Industrial
  • Description
PG16080WRF-ANN-HC1 LCD Display Screen For Industrial
Parameter Details
Model PG16080WRF‑ANN‑HC1
Display Type STN Graphic LCD, Monochrome, Transflective
Resolution 160 × 80 dots
Display Size 3.2 inches (diagonal)
Active Area 70.0 × 38.0 mm (approx.)
Outline Dimension 92.0 × 48.0 × 10.5 mm (approx.)
Brightness 150 cd/m² (Typ.)
Contrast Ratio 20:1 (Typ.)
Viewing Angle 40°/40°/40°/40° (L/R/U/D, CR≥2)
Backlight LED (Yellow/Green or White)
Controller LC7981 (compatible)
Interface 8‑bit Parallel / Serial SPI
Operating Voltage 5V (logic & backlight)
Operating Temperature −20°C ~ +70°C
Storage Temperature −30°C ~ +80°C
Weight ~45 g
RoHS Compliance Yes

Applications

  • Industrial Control: HMI, PLC terminals, factory automation, test & measurement equipment
  • Medical Devices: Portable diagnostic instruments, patient monitors, lab analyzers
  • Smart Terminals: POS, vending machines, access control panels
  • Automotive & Transportation: Vehicle dashboards, marine displays, heavy machinery cabins
  • Consumer & Home Appliance: Industrial printers, energy meters, smart home control panels
