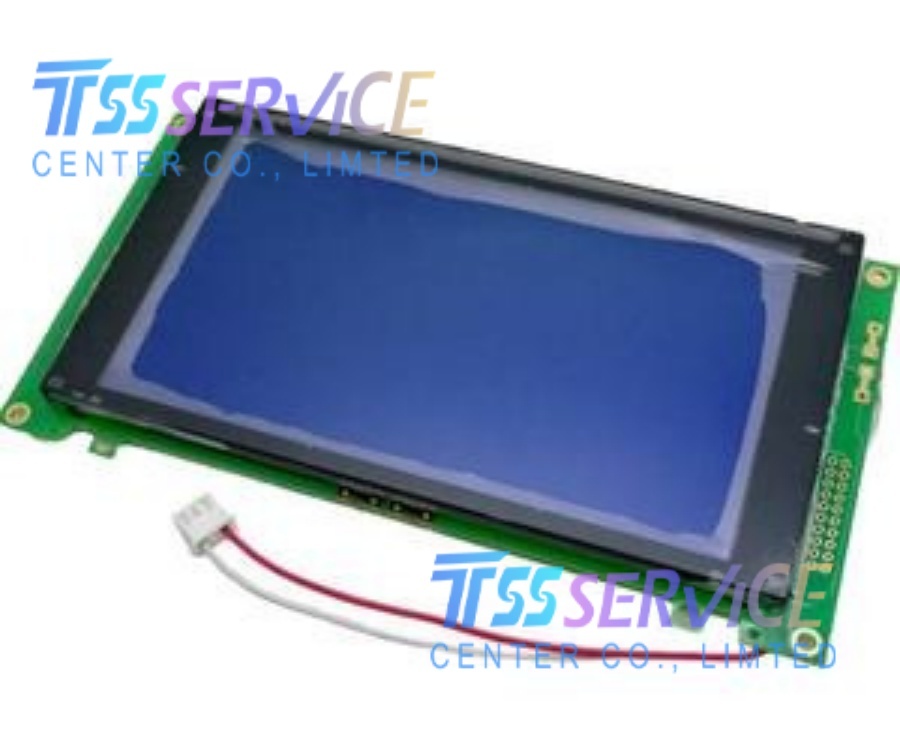

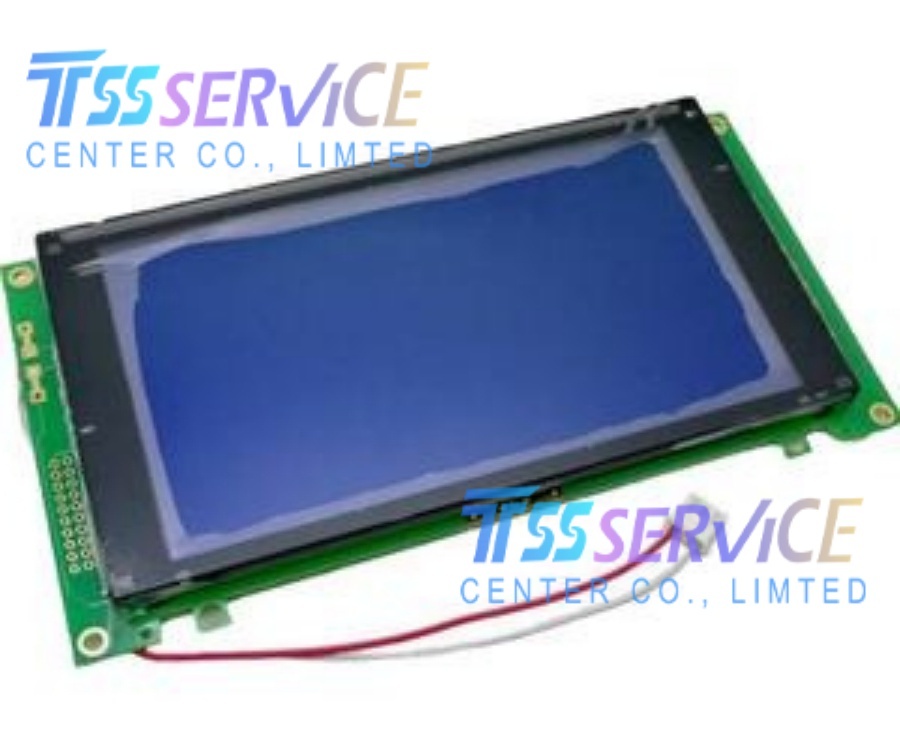

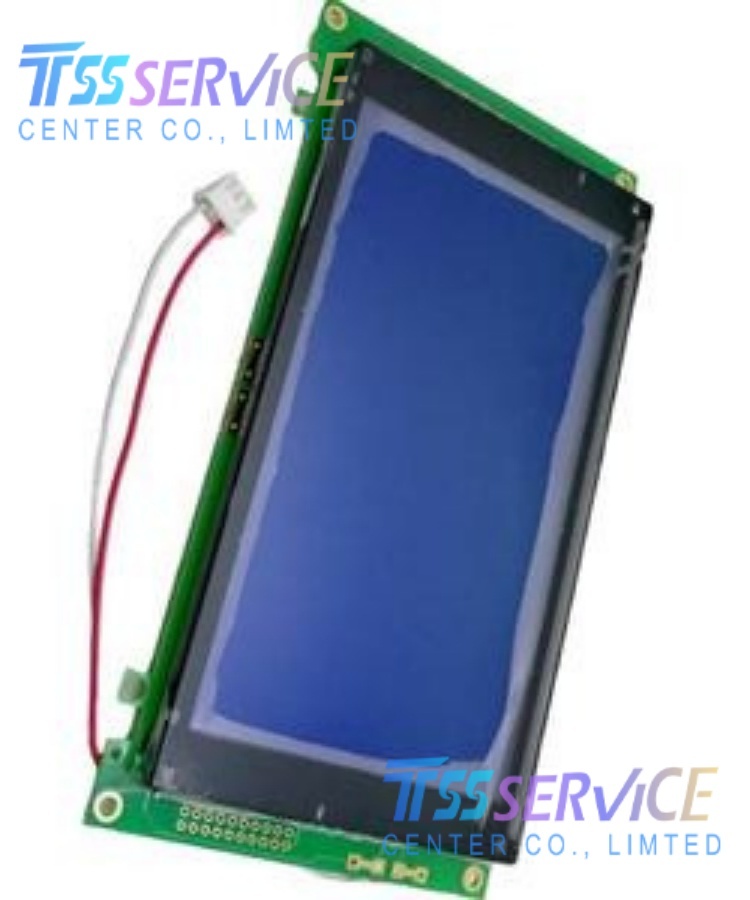

PG240128X-P2 LCD Display Screen For Industrial

SKU: PG240128X-P2
Model: PG240128X-P2
Display Size: 4.7-inch STN Graphic LCM
Resolution: 240 × 128 dots
0.0 (0 Reviews)
0 Sold
$75.00 $73.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • PG240128X-P2 LCD Display Screen For Industrial
  • PG240128X-P2 LCD Display Screen For Industrial
  • PG240128X-P2 LCD Display Screen For Industrial
  • PG240128X-P2 LCD Display Screen For Industrial
  • PG240128X-P2 LCD Display Screen For Industrial
  • PG240128X-P2 LCD Display Screen For Industrial
1/1
  • PG240128X-P2 LCD Display Screen For Industrial
  • PG240128X-P2 LCD Display Screen For Industrial
  • PG240128X-P2 LCD Display Screen For Industrial
  • Description
PG240128X-P2 LCD Display Screen For Industrial
Parameter Details
Model PG240128X-P2
Brand Powertip Technology
Display Size 4.7-inch STN Graphic LCM
Resolution 240 × 128 dots
Display Mode STN Positive, Transflective, Gray
Viewing Angle 6 o’clock
Controller T6963C (built-in)
Interface 8-bit parallel (8080-series MPU)
Active Area (W×H) 107.95 × 57.55 mm
Viewing Area (W×H) 114.0 × 64.0 mm
Outline (W×H×D) 144.0 × 104.0 × 15.0 mm (max)
Dot Size 0.40 × 0.40 mm
Dot Pitch 0.45 × 0.45 mm
Power Supply VDD 5.0 V (4.5–5.5 V)
Backlight Yellow-Green LED
Operating Temp. −20°C ~ +70°C
Storage Temp. −30°C ~ +80°C
Weight ~200 g

Applications

  • Industrial Control Systems: PLC panels, factory automation HMI, CNC machinery displays
  • Medical Equipment: Patient monitors, portable diagnostic devices, medical instrument panels
  • Test & Measurement: Oscilloscopes, data loggers, spectrum analyzers, industrial meters
  • Marine & Outdoor Instruments: Navigation systems, weather stations, rugged outdoor terminals
  • Embedded Systems: Industrial terminals, POS devices, ATM displays, handheld communication equipment
  • Consumer & Commercial Devices: Smart home control panels, vending machines, elevator displays
