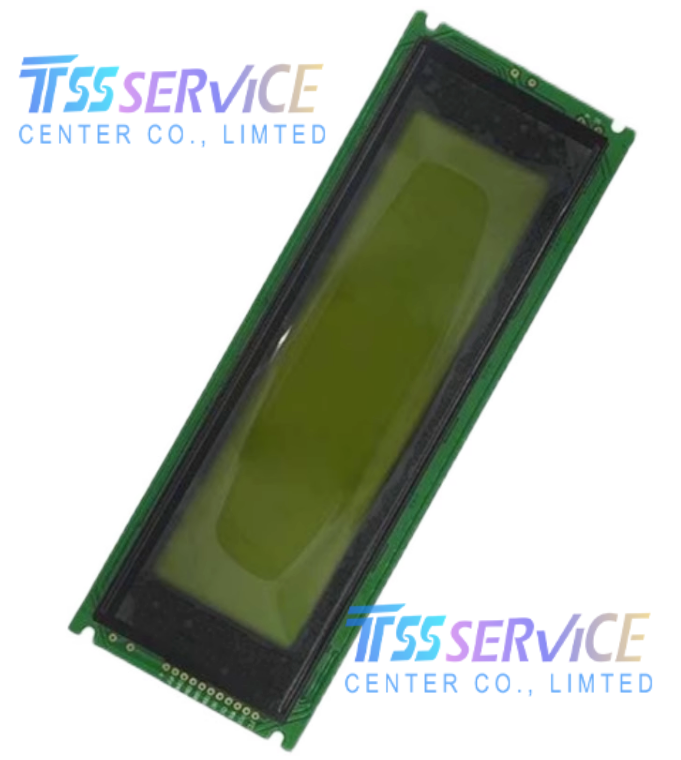

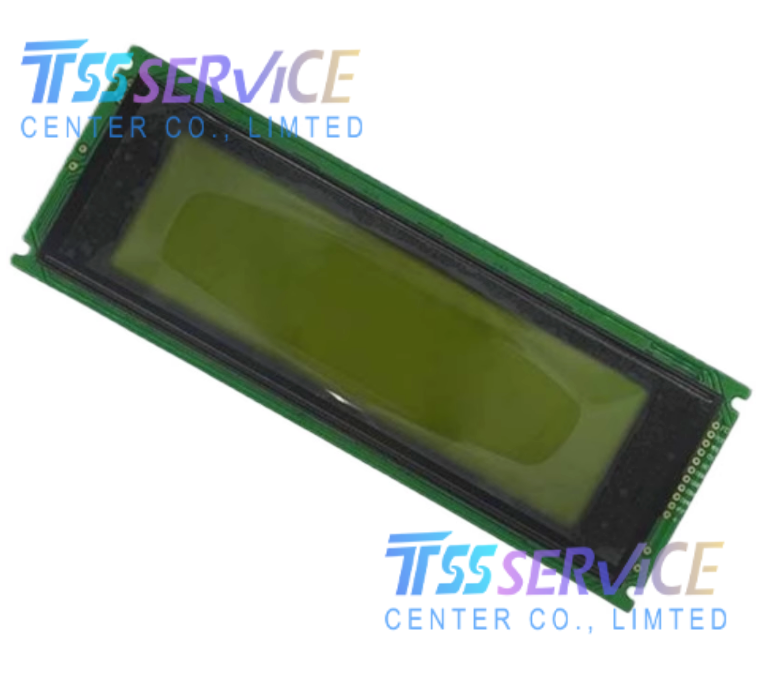

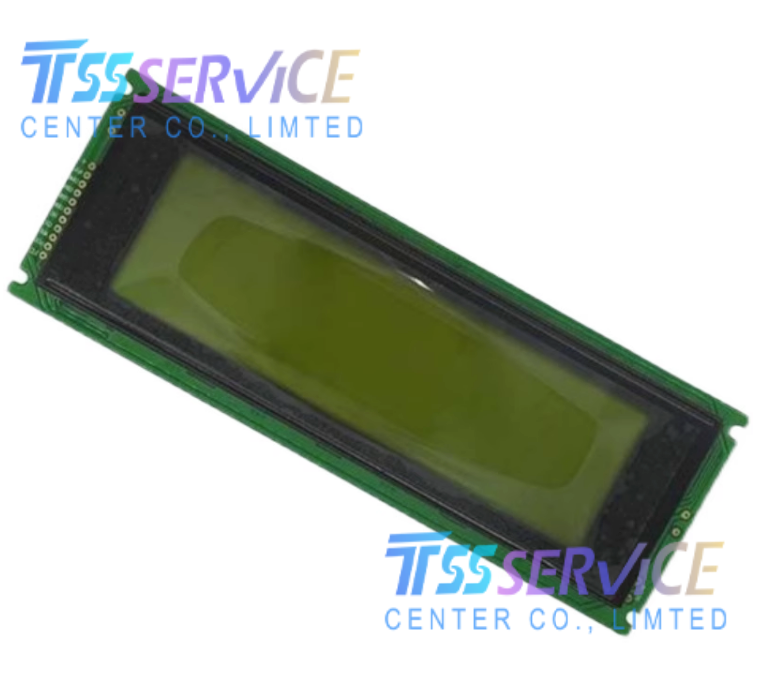

PG24064LRU-EGAHJ1Q 240 × 64 dots LCD Display Screen For Industrial

SKU: PG24064LRU-EGAHJ1Q
Model: PG24064LRU‑EGAHJ1Q
Display Size: 5.2 inch
Resolution: 240 × 64 dots (47 PPI)
Display Type: STN‑LCD, Transmissive, Positive, Monochrome
0.0 (0 Reviews)
0 Sold
$80.00 $78.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • PG24064LRU-EGAHJ1Q 240 × 64 dots LCD Display Screen For Industrial
  • PG24064LRU-EGAHJ1Q 240 × 64 dots LCD Display Screen For Industrial
  • PG24064LRU-EGAHJ1Q 240 × 64 dots LCD Display Screen For Industrial
  • PG24064LRU-EGAHJ1Q 240 × 64 dots LCD Display Screen For Industrial
  • PG24064LRU-EGAHJ1Q 240 × 64 dots LCD Display Screen For Industrial
  • PG24064LRU-EGAHJ1Q 240 × 64 dots LCD Display Screen For Industrial
1/1
  • PG24064LRU-EGAHJ1Q 240 × 64 dots LCD Display Screen For Industrial
  • PG24064LRU-EGAHJ1Q 240 × 64 dots LCD Display Screen For Industrial
  • PG24064LRU-EGAHJ1Q 240 × 64 dots LCD Display Screen For Industrial
  • Description
PG24064LRU-EGAHJ1Q LCD Display Screen For Industrial
Parameter Details
Model PG24064LRU‑EGAHJ1Q
Display Size 5.2 inch
Resolution 240 × 64 dots (47 PPI)
Display Type STN‑LCD, Transmissive, Positive, Monochrome
Active Area 127.16 × 33.88 mm
Outline Dimension 176.0 × 64.0 × 13.3 mm (approx.)
Dot Pitch 0.53 × 0.53 mm
Brightness 45 cd/m² (WLED Backlight)
Contrast Ratio 3:1 (Typ.)
Viewing Angle 30° Min. (CR≥2, L/R/U/D)
Response Time 140 ms (Tr) / 300 ms (Td) (Typ.)
Interface 8‑bit Parallel (Compatible with T6963C)
Backlight White LED (WLED), Side‑entry
Operating Voltage Logic: 5.0 V (Typ.); LCD: 12.5 V (Typ.)
Operating Temp −20 °C ~ +70 °C
Storage Temp −30 °C ~ +80 °C
RoHS Compliance Yes (2011/65/EU)
Touch Panel Without Touch

Applications

  • Industrial Control Panels: PLC HMIs, factory automation displays, CNC machine interfaces
  • Medical Equipment: Patient monitors, diagnostic devices, infusion pumps, laboratory analyzers
  • Automotive & Transportation: Vehicle dashboards, GPS navigation, fleet management terminals
  • Smart Home & Appliances: High‑end oven/microwave displays, HVAC control panels, smart refrigerators
  • Marine & Outdoor Devices: Boat instrument panels, outdoor monitoring systems, rugged handheld terminals
  • Retail & POS: Industrial POS terminals, ticket/vending machines, self‑service kiosks
