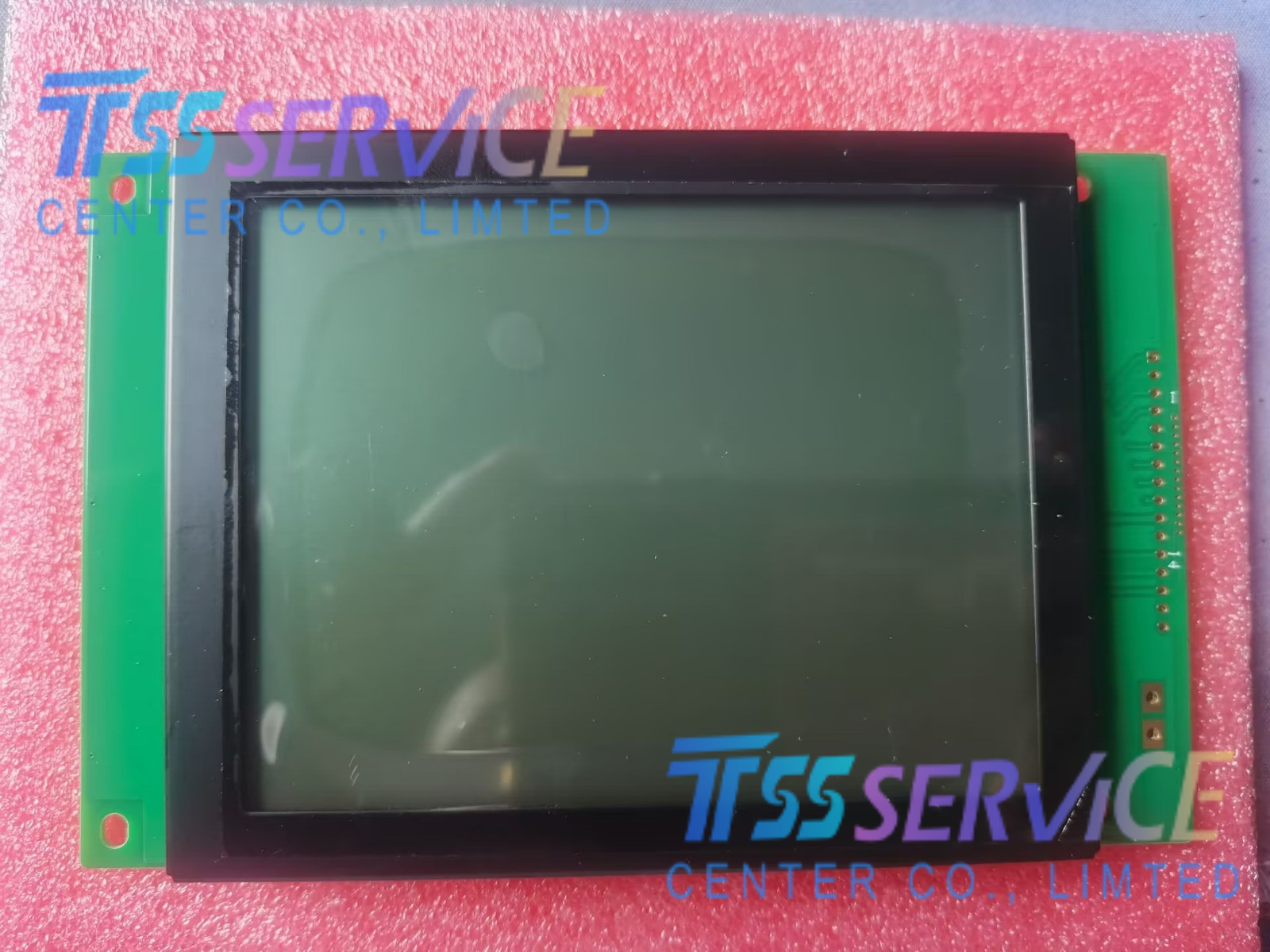

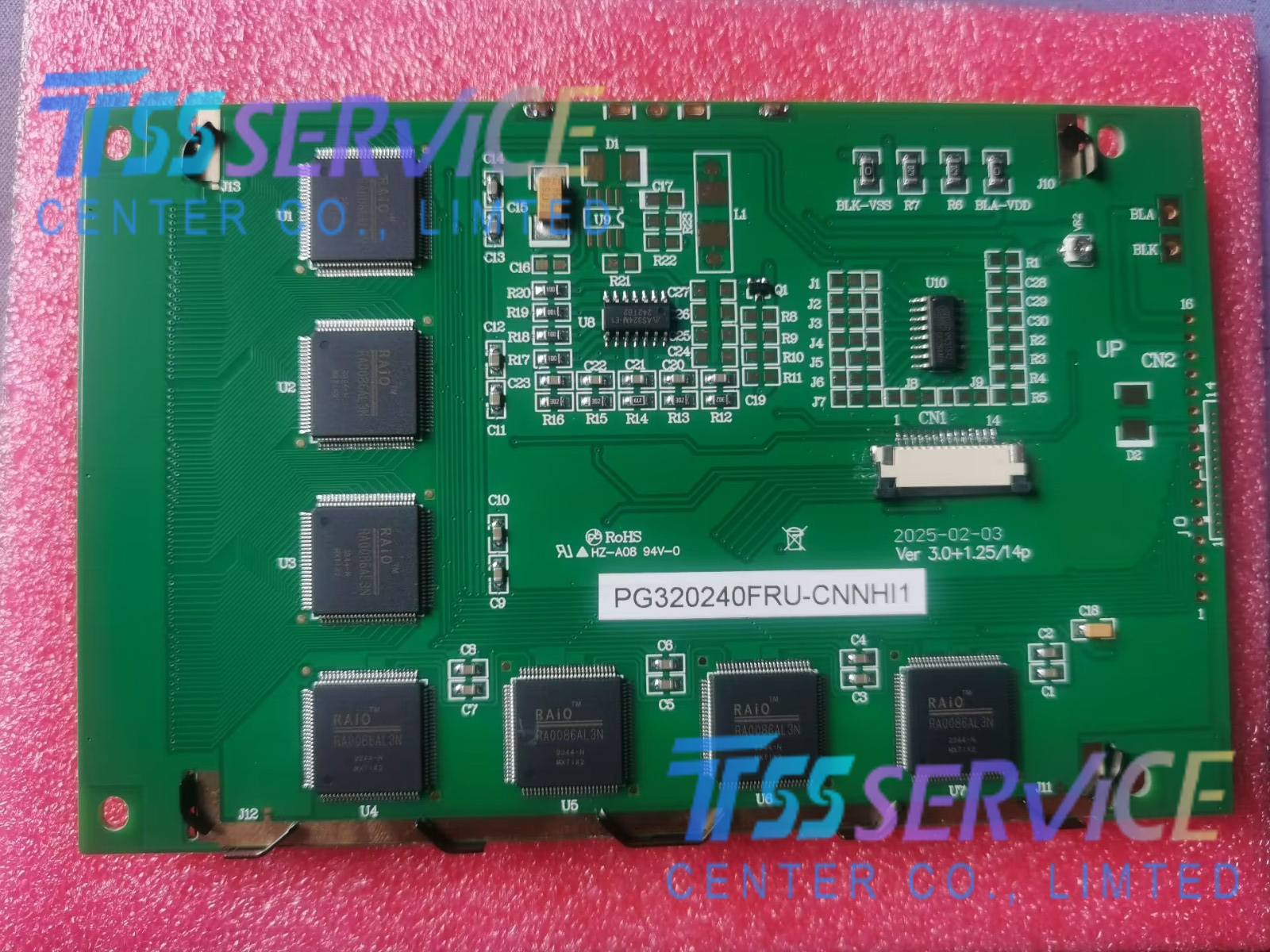

PG320240C RVE.A PG320240FRU-CNNHI1 Replacement LCD Panel For Industrial
| Parameter |
Specification |
| Panel Type |
FSTN, Positive, Transflective |
| Size |
5.7" (Diagonal) |
| Resolution |
320 × 240 (QVGA, 70 PPI) |
| Active Area |
115.17 × 86.37 mm |
| Outline Dimension |
148.02 × 120.24 mm (Typ.) |
| Brightness |
~11 cd/m² (Typ.) |
| Contrast Ratio |
3:1 (Typ.) |
| Viewing Angle |
30°/30°/30°/30° (L/R/U/D, CR≥2) |
| Response Time |
130/280 ms (Tr/Td, Typ.) |
| Display Colors |
Monochrome |
| Backlight |
WLED (White LED), Edge-lit |
| Interface |
8-bit Parallel (8080/6800 series), 20 pins |
| Input Voltage |
5.0 V DC (Typ.) |
| Operating Temp. |
0 ~ 50 °C |
| Storage Temp. |
-30 ~ 80 °C |
| Surface Treatment |
Standard |
| Touch Screen |
Optional |
| Weight |
~280 g |
- Industrial Control: PLC HMI panels, machine tool controllers, factory automation terminals
- Medical Equipment: Patient monitors, diagnostic instruments, portable medical devices
- Instrumentation: Data loggers, multimeters, oscilloscopes, test measurement devices
- Consumer Electronics: Audio-visual control panels, smart home devices
- Automotive: On-board diagnostics (OBD) terminals, vehicle auxiliary displays
- Marine/Rugged: Transflective design for low-light/indoor-outdoor transition environments
