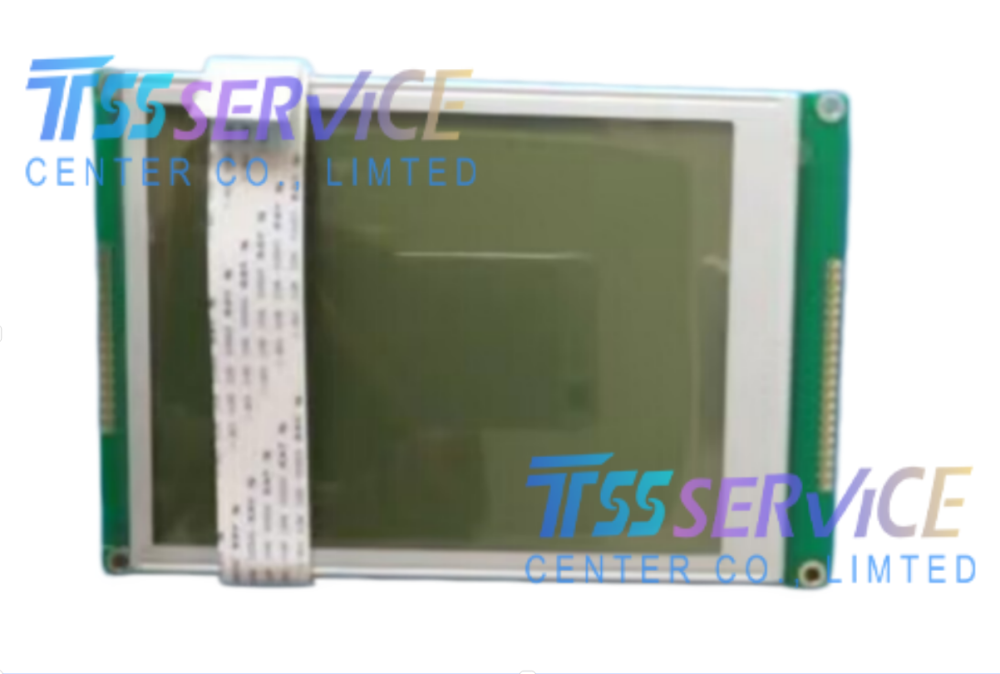

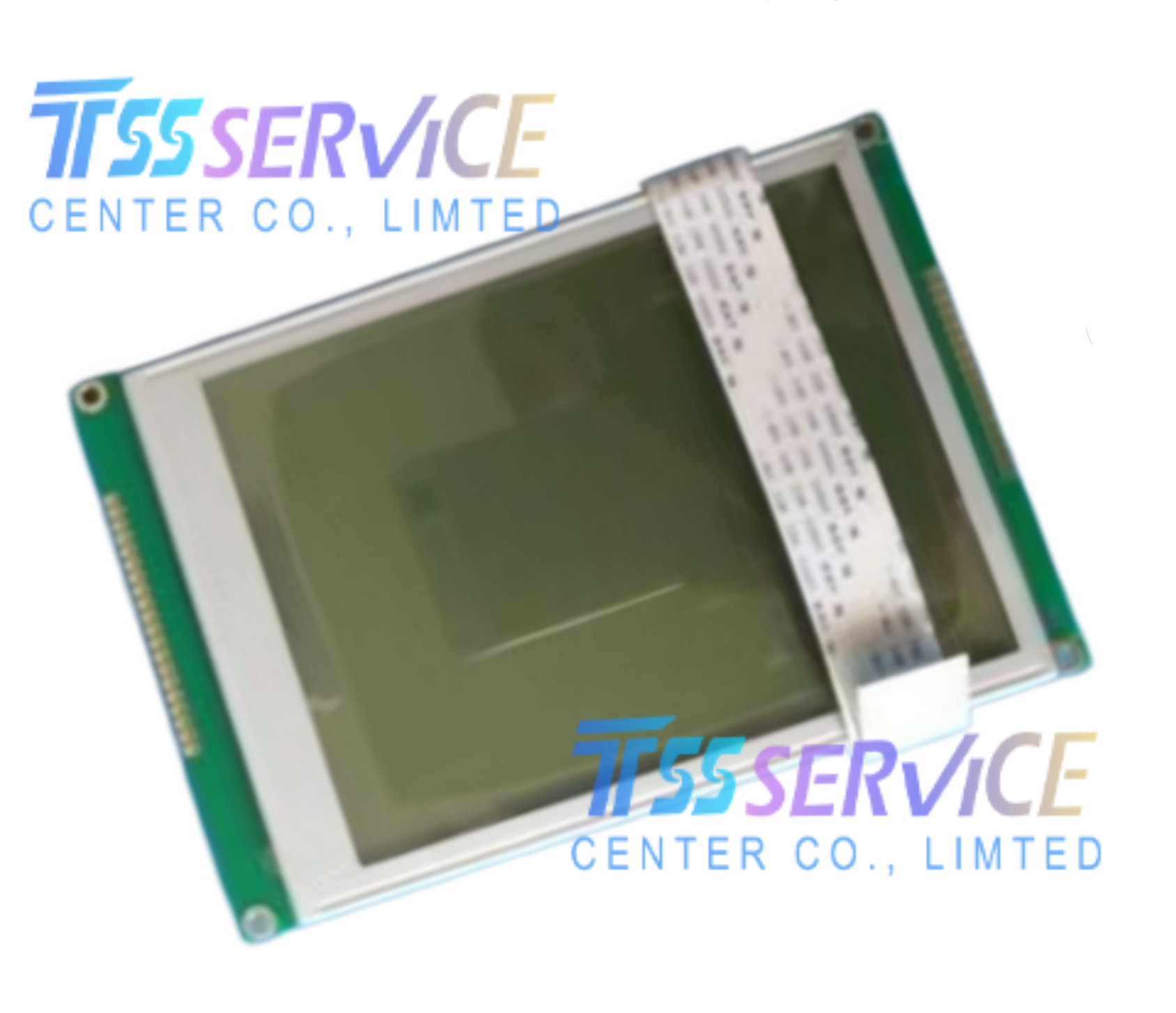

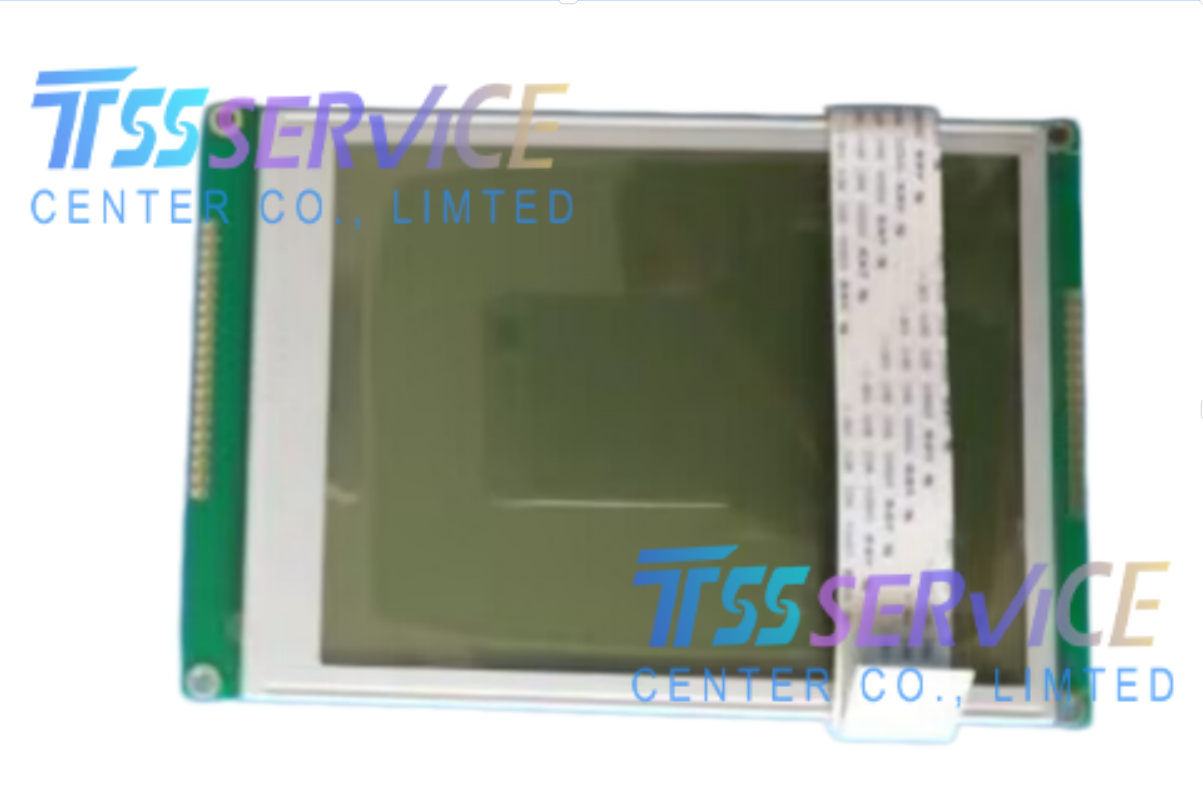

PG320240WRFMNNHL1Q Compatible LCD Display Screen For Industrial

Name: PG320240WRFMNNHL1Q Compatible LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: PG320240WRFMNNHL1Q
Price: 161 USD
Availability: InStock

SKU: PG320240WRFMNNHL1Q

Model: PG320240WRFMNNHL1Q
Diagonal Size: 5.7 inch
Resolution: 320×240 (QVGA), 141 PPI
Display Mode: FSTN, Positive, Transflective

0.0 (0 Reviews)

0 Sold

~~$168.00~~ $161.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

PG320240WRFMNNHL1Q Compatible LCD Display Screen For Industrial

Parameter	Specification
Model	PG320240WRFMNNHL1Q
Diagonal Size	5.7 inch
Resolution	320×240 (QVGA), 141 PPI
Display Mode	FSTN, Positive, Transflective
Aspect Ratio	4:3 (Landscape)
Active Area	115.2 (W) × 86.4 (H) mm
Pixel Pitch	0.36 × 0.36 mm
Outline Dimension	160 (W) × 109 (H) × 13.0 (D) mm
Luminance	250 cd/m² (Typ.)
Contrast Ratio	200:1 (Typ.)
Color Depth	Monochrome (Yellow-Green / Gray / Blue)
Backlight	White LED, long lifespan
Interface	8-bit Parallel (6800/8080 compatible)
Operating Temp.	-20 ~ +70 °C
Storage Temp.	-30 ~ +80 °C
Controller IC	RA8835A or equivalent
RoHS	Compliant

Applications

Industrial HMI: Factory automation panels, PLC interfaces, and machine control stations.
Medical Devices: Patient monitors, diagnostic equipment, and portable medical instruments.
Point-of-Sale (POS): Retail terminals, self-service kiosks, and vending machines.
Portable Industrial Equipment: Handheld terminals, data loggers, and field measurement devices.
Automotive & Marine: Vehicle dashboards, navigation systems, and marine control panels.
