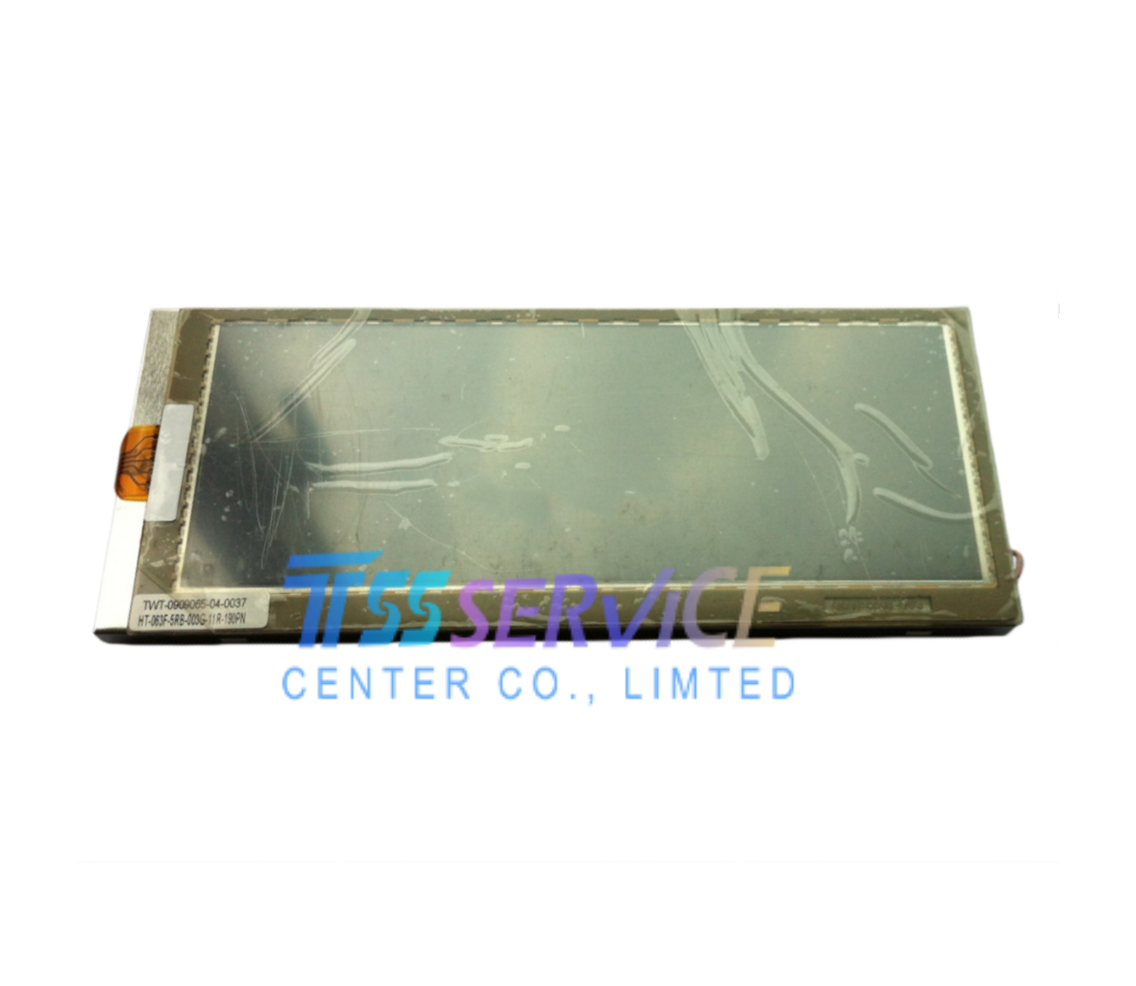

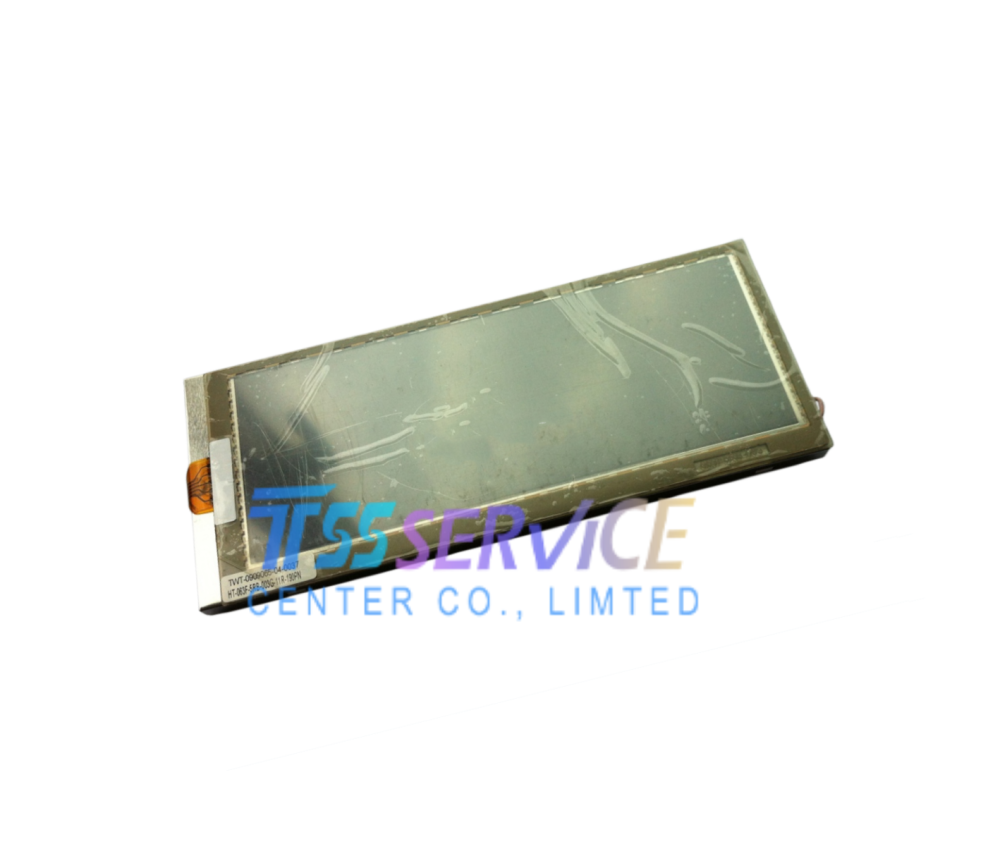

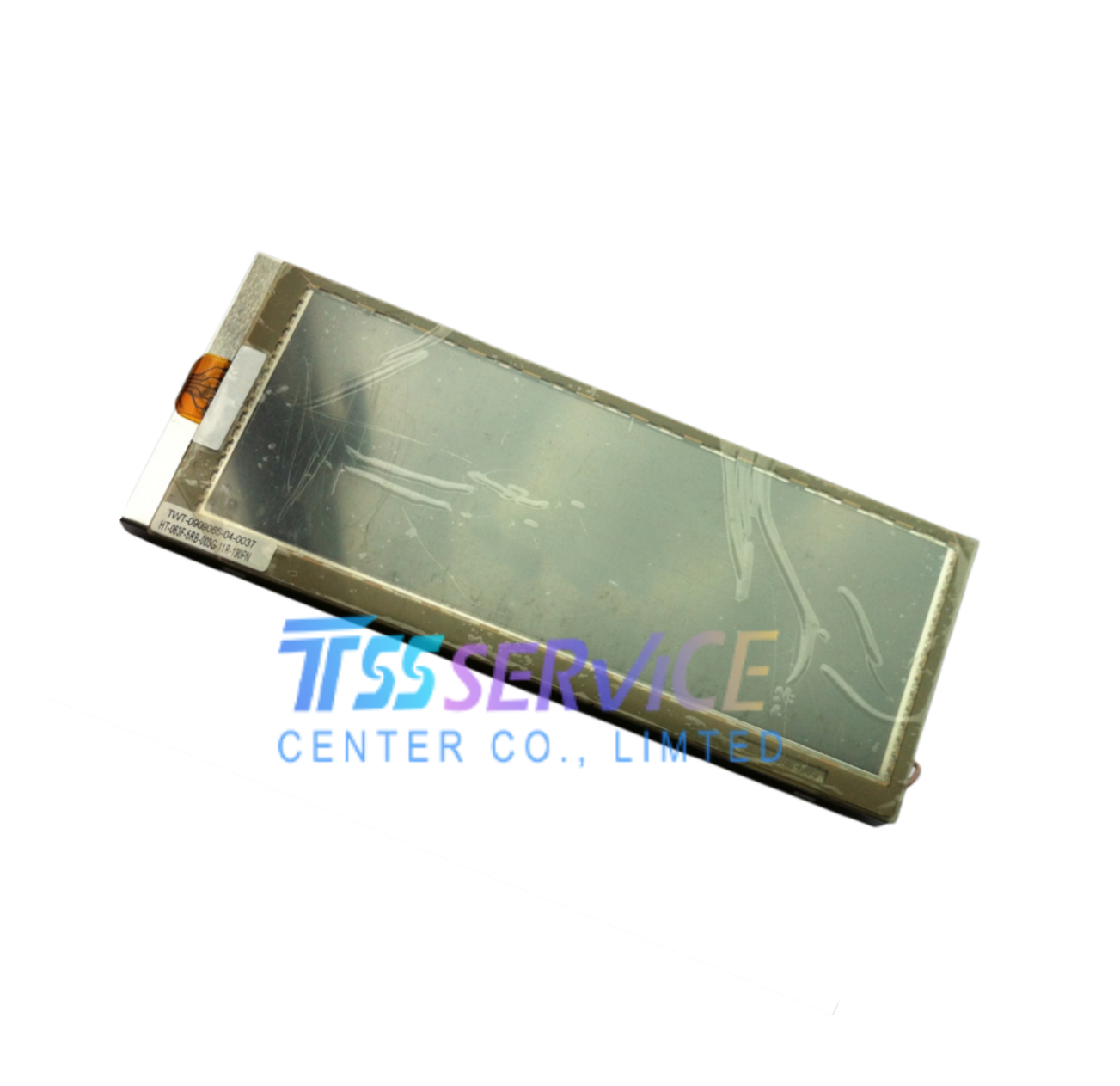

E Ink 6.2 inch 640×240 PM062HT1 LCD Display Screen For Industrial

Name: E Ink 6.2 inch 640×240 PM062HT1 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: PM062HT1
Price: 125 USD
Availability: InStock

SKU: PM062HT1

Model P/N: PM062HT1
Diagonal Size: 6.2"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 640(RGB)×240, HVGA, 8:3
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$127.00~~ $125.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

E Ink 6.2 inch 640×240 PM062HT1 LCD Display Screen For Industrial

Parameter	Value	Unit
Model	PM062HT1	-
Brand	PVI (Prime View International)	-
Panel Type	a-Si TFT-LCD, LCM	-
Diagonal Size	6.2	inch
Resolution	640 (RGB) × 240 (HVGA)	pixels
Pixel Arrangement	RGB Vertical Stripe	-
Active Area	148.8 × 53.76	mm
Outline Dimension	173(H)×70(V)×8.9(D)	mm
Brightness (Typ.)	280	cd/m²
Contrast Ratio (Typ.)	600:1	-
Display Colors	262K (6-bit)	-
Viewing Angle (Typ.)	75/75/50/60 (L/R/U/D)	degrees
Response Time (Typ.)	15/25 (Tr/Td)	ms
Display Mode	TN, Normally White, Transmissive	-
Backlight	CCFL (1 lamp)	-
Interface	TTL (6-bit)	-
Input Voltage	3.3	V
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
RoHS Compliance	Yes	-

Applications

Industrial Control Panels: For factory automation, PLC interfaces, and industrial displays.
Medical Devices: Portable medical equipment, patient monitors, and diagnostic instruments.
Automotive Displays: In-vehicle infotainment, instrument clusters, and rear-seat entertainment.
Consumer Electronics: Portable GPS, industrial handheld terminals, and POS systems.
Embedded Systems: Industrial HMI, smart home devices, and IoT terminals.
