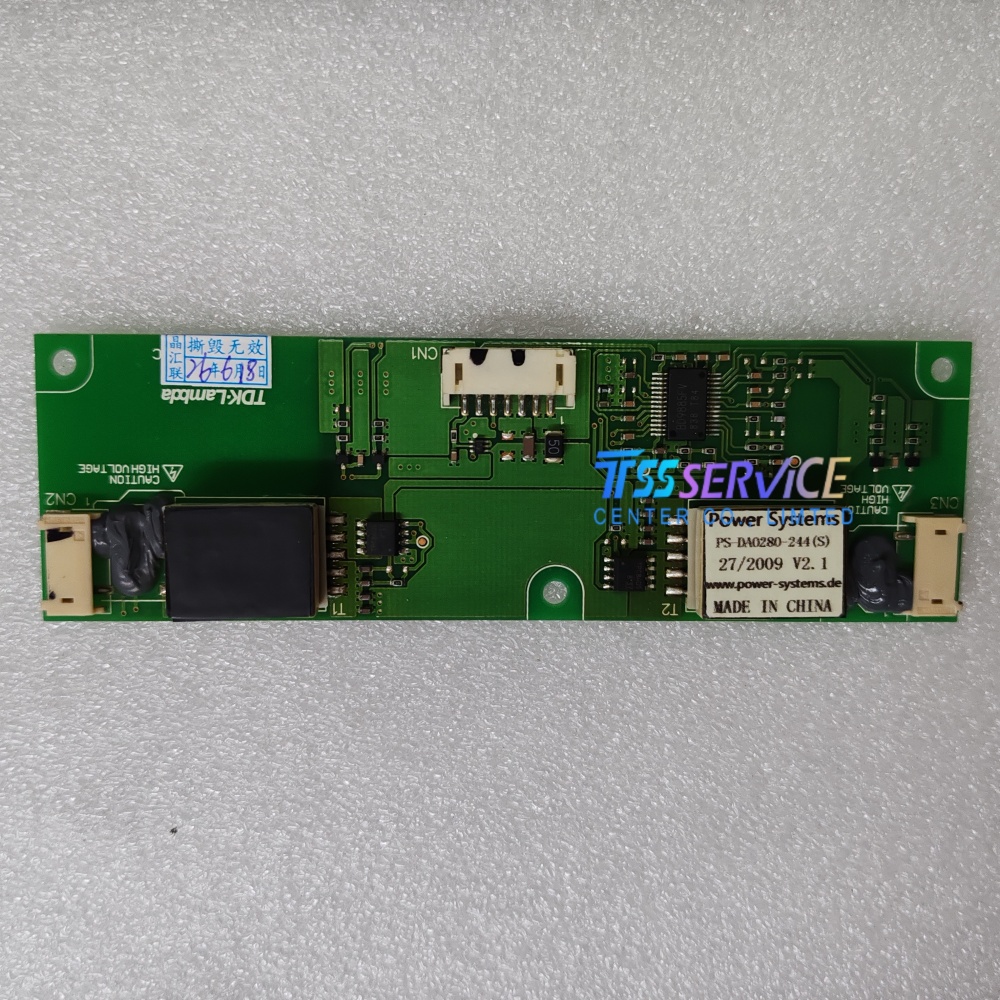

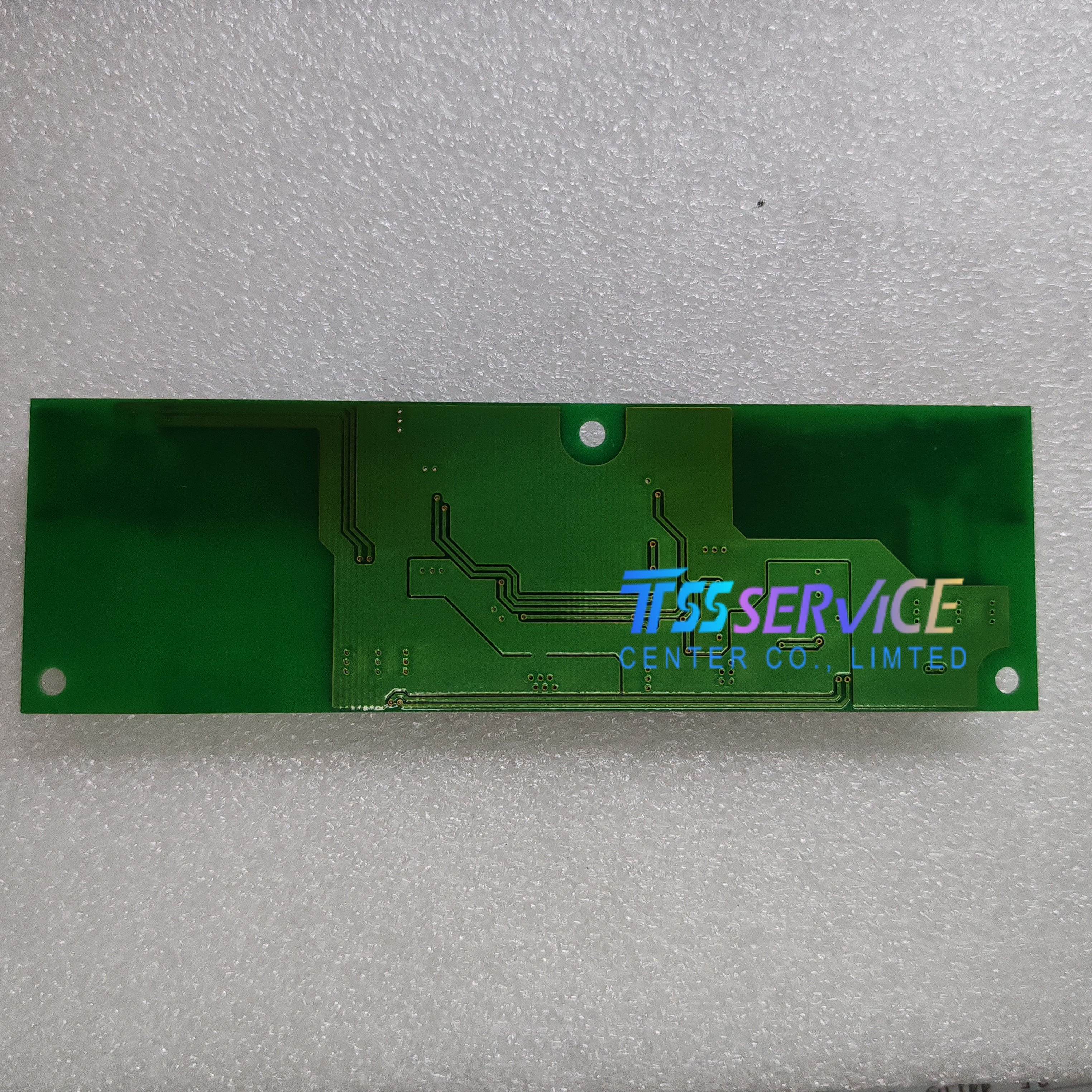

PS-DA0280-244(S) TDK CCFL Backlight Inverter Board

SKU: PS-DA0280-244(S)67180

Item:  TDK PS-DA0280-244(S)  LCD INVERTER BOARD
Condition: NEW ORIGINAL A GRADE

Warranty : 6 Months
Lead time : STOCK
Shipping : DHL/FEDEX EXPRESS

0.0 (0 Reviews)
0 Sold
$0.00 $80.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • PS-DA0280-244(S) TDK CCFL Backlight Inverter Board
  • PS-DA0280-244(S) TDK CCFL Backlight Inverter Board
  • PS-DA0280-244(S) TDK CCFL Backlight Inverter Board
  • PS-DA0280-244(S) TDK CCFL Backlight Inverter Board
1/1
  • PS-DA0280-244(S) TDK CCFL Backlight Inverter Board
  • PS-DA0280-244(S) TDK CCFL Backlight Inverter Board
  • Description
PS-DA0280-244(S) TDK CCFL Backlight Inverter Board

Specifications

1. Basic Information
  • Model:PS-DA0280-244(S)
  • Brand & Origin: TDK
    • Alternative Siemens PN: A5E02267180
    • Product Type: DC-AC CCFL high voltage inverter board
    • Revision: DA0280 REV1.0
    • Net Weight: Approx. 50g
    • Version S: Industrial enhanced version for harsh environment
    • Backlight Type: DC-AC CCFL high voltage inverter board

2. Electrical Specifications

Input Side

  • Input Voltage: 10.8 ~ 13.2 VDC (nominal 12VDC)
  • Input Connector: S7B-PH-SM3 (JST PH series)
  • Rated Input Power: Max 10W

Output Side

  • Output Channel: 2 channels (supports dual CCFL tubes)
  • Output Current: 6 ~ 7 mA RMS per channel
  • Output Connector: SM02(8.0)B-BHS-1-TB (JST)
  • Dimming Control: 0~3VDC analog voltage dimming / external PWM dimming selectable
  • Tube Compatibility: Quad CCFL backlight panels

3. Environmental & Reliability

  • Operating Temperature: 0 ℃ ~ +60 ℃
  • Storage Temperature: -20 ℃ ~ +70 ℃
  • Protection Functions: Over-current, over-voltage, short-circuit auto shut-off
  • Service Warranty: 24 months factory warranty
  • Compliance: Industrial EMC standard, RoHS compliant

Typical Applications

                    • Siemens industrial touch screen / HMI operator panel
                    • CNC machine tool control display
                    • Injection molding machine industrial monitor
                    • Medical diagnostic TFT display equipment
                    • Automated production line control terminals
                    • Marine & workshop industrial CCFL LCD screens
                    • Testing & measuring instruments with 12V DC power supply
