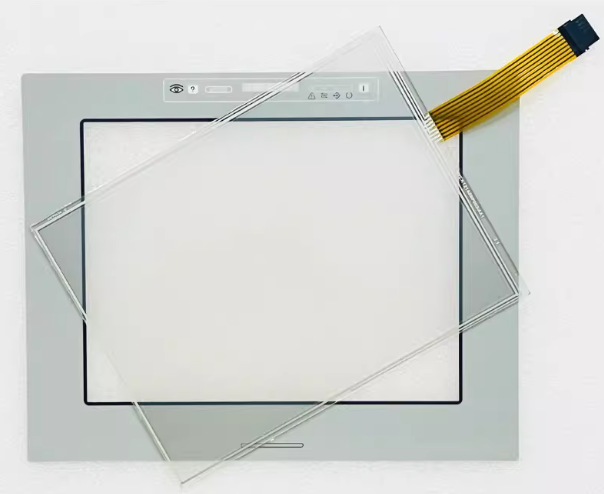

New Touch Screen R8217-01 12209
1. Display Specifications
Parameter Specification Notes
Display Size 17.0 inches Diagonal measurement
Display Type TFT LCD Thin Film Transistor active matrix
Resolution 1280 × 1024 SXGA (Standard eXtended Graphics Array)
Aspect Ratio 5:4 Standard for 17" monitors
Brightness 300 cd/m² Typical for industrial use
Contrast Ratio 1000:1
Viewing Angle 85°/85°/80°/80° Left/Right/Up/Down (typical)
Response Time 5 ms
Backlight Type LED Long-life LED backlight
Backlight Lifetime 50,000 hours
2. Touch Screen Specifications
Parameter Specification Notes
Touch Technology Analog Resistive 5-wire or 4-wire typical
Touch Interface USB (most common) or RS-232
Touch Resolution 4096 × 4096 Typical for industrial resistive touch
Touch Method Finger, gloved hand, stylus
Touch Durability 35 million touches Minimum actuations for 5-wire resistive
Surface Hardness 3H pencil hardness
3. Physical Specifications
Parameter Specification Notes
Dimensions (W × H × D) 403 × 335 × 68 mm (typical for 17" industrial monitor)
Weight Approx. 5.0 - 6.5 kg Varies by mounting configuration
Housing Material Metal (steel/aluminum) Industrial-grade enclosure
Mounting Options Panel mount, rack mount, VESA mount 75/100mm VESA pattern typical
Cooling Method Fanless or integrated low-noise fans Depends on configuration
4. Electrical Specifications
Parameter Specification Notes
Power Supply DC 12V or AC 100-240V with external adapter
Power Consumption < 30W
Signal Interface VGA + DVI Standard analog and digital inputs
Optional Interfaces HDMI, DisplayPort, BNC May vary by configuration
5. Environmental Specifications
Parameter Specification Notes
Front Panel Protection IP65 / NEMA4 Dust-tight and protected against water jets
Operating Temperature 0°C to +50°C
Storage Temperature -20°C to +60°C
Operating Humidity 10% to 90% RH (non-condensing)
Vibration Resistance 1G, 10-500Hz
Shock Resistance 15G, 11ms
6. Certifications & Compliance
Parameter Specification Notes
Certifications CE, FCC, RoHS
EMC Compliance EN55022, EN55024
7. Series Features
Based on the manufacturer's R82 series information, the R8217-01 12209 likely includes:
Feature Description
Industrial Design Rugged construction for 24/7 continuous operation
Resistive Touch Technology Reliable operation with gloves, in dusty or wet environments
Multiple Mounting Options Panel mount, VESA mount, or rack mount flexibility
Wide Temperature Support Extended temperature range for industrial environments
Auto-sync VGA/DVI Inputs Automatic adjustment to input signals
On-Screen Display (OSD) Front or rear controls for brightness, contrast, and geometry
8. Typical Applications
Industry Application Example
Industrial Automation HMI operator stations, machine control interfaces
Process Control SCADA system displays, plant floor monitoring
Medical Equipment Patient monitoring, diagnostic imaging workstations
Transportation Control room displays, depot management terminals
Security & Surveillance Video monitoring stations, security control rooms
Digital Signage Information displays in industrial facilities
9. Related Models in Series
Model Key Differences
R8215-01 15-inch version, 1024×768 resolution
R8217-01 17-inch version, 1280×1024 resolution (base model)
R8219-01 19-inch version, 1280×1024 resolution
R8222-01 22-inch version, 1680×1050 resolution
