1. Display Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Display Type | 10.4" TFT Color LCD | |
| Resolution | 640 × 480 pixels | VGA resolution |

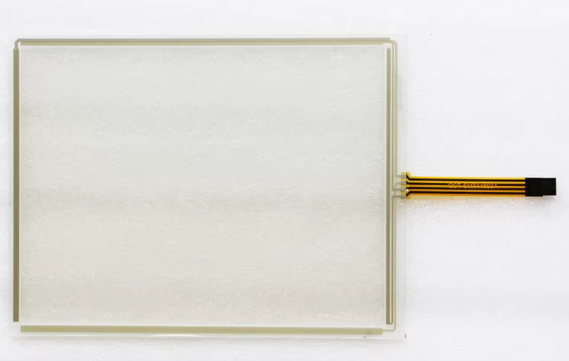

| Touch Screen Type | Analog Resistive | Durable, can be operated with gloved hands |
| Front Protection | IP65 | Dust-tight and protected against water jets |
2. Physical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Dimensions (W × H × D) | 365 × 291 × 55 mm | |
| Weight | 3800 g (3.8 kg) | |
| Housing Material | Metal | Durable construction for industrial environments |
| Cooling Method | Fanless | Reduces maintenance and enhances system longevity |
3. Interface & Connectivity
| Interface | Type | Notes |
|---|---|---|
| Automation Panel Link | Yes | For connection to B&R Link systems and expansion modules |
| USB Ports | Yes (number not specified) | For peripheral connectivity |
| Upgrade Options | Link cards, system expansions | Flexible configuration options |
4. Mounting Options
| Option | Description | Notes |
|---|---|---|
| Panel Mount | Standard mounting | Flush mounting in control cabinets |
| Arm Mount | Optional mounting | For flexible positioning |
| VESA Mount | Optional mounting | Standard 75/100 mm pattern likely supported |
5. Electrical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Input Power | 24 VDC | Standard industrial voltage |
| Power Consumption | Not specified |
6. Environmental Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Front Panel Protection | IP65 | Dust-tight and protected against water jets |
| Rear Panel Protection | IP20 | Typical for industrial panels |
| Operating Temperature | Not specified | Typical for B&R panels: 0°C to +50°C |
| Storage Temperature | Not specified |
7. Key Features & Benefits
| Feature | Benefit |
|---|---|
| 10.4" VGA TFT Display | Clear 640×480 resolution for detailed visualization |
| Analog Resistive Touch | Reliable operation with gloved hands in industrial settings |
| Fanless Operation | No moving parts for enhanced reliability and reduced maintenance |
| IP65 Front Protection | Withstands dust, water spray, and harsh industrial environments |
| Metal Housing | Rugged construction for demanding applications |
| Multiple Mounting Options | Flexible installation: panel, arm, or VESA mount |
| Automation Panel Link | Seamless integration with B&R Link systems |
| Compact Depth (55 mm) | Space-saving design for control panels |
