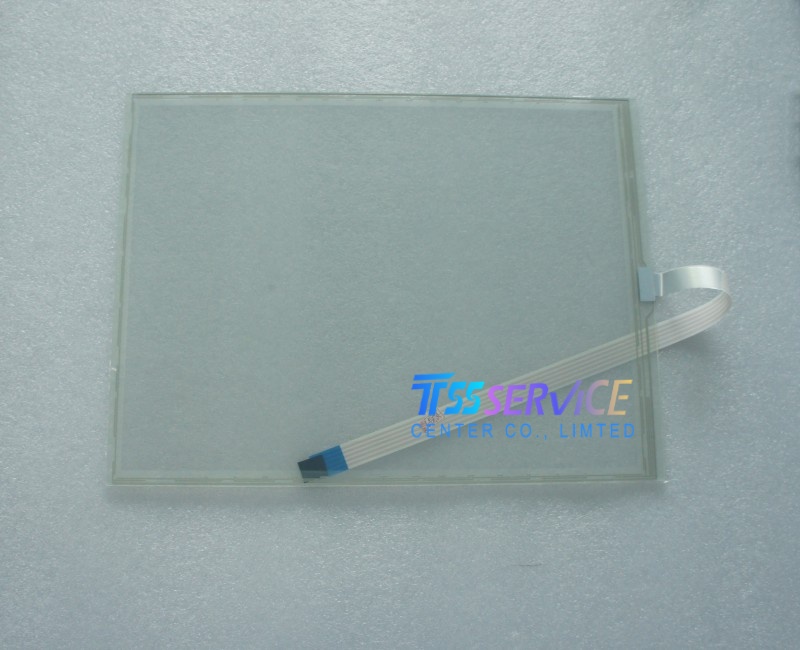

SCN-AT-FLT15.0-Z01-0H1- R 5-wire analog resistive touch glass
Specifications
1. Basic Identification
- Model: SCN-AT-FLT15.0-Z01-0H1-R
- Touch Technology: 5-wire analog resistive touch panel
- Diagonal Size: 15 inch, standard 4:3 aspect ratio
- Part alias: E212465 (Elo internal factory part number)
- Structure: Hard glass top layer + ITO conductive film bottom layer, FPC flat cable output
2. Electrical Touch Parameters
- Wiring layout: 5-wire resistive (higher stability & longer lifespan than 4-wire)
- Axis resistance range: X / Y axis 300–900 Ω
- Compatible controller voltage: 3.3 V / 5 V Elo USB/RS232 control boards
- Operating activation force: 15–110 g; supports finger, plastic stylus, gloved hand operation
- Position linearity error: ≤ 1.0% full active area
- Service life: ≥ 5,000,000 single-point taps
- Light transmittance: ≥ 85% visible light transmission
- Surface hardness: 3H tempered scratch-resistant glass surface
3. Mechanical Dimensions
- Active touch area: Matches standard 15-inch 4:3 TFT LCD active display region
- Total panel thickness: ~1.4 mm (glass substrate main body)
- Connector: Standard Elo proprietary FPC pinout, single-side flat ribbon tail
- Outline shape: Rectangular flat overlay, no integrated LCD or backlight
- Weight: ~220 g per touch glass assembl
Typical Applications
-
-
-
-
-
-
-
- Factory Automation HMI Terminals
Replacement touch glass for Allen‑Bradley, Siemens Simatic, Pro-face, Mitsubishi, Fanuc CNC operator panels
- Plastic & Injection Molding Machine Controls
Primary touch interface for mold parameter adjustment, cycle monitoring, fault alarm display
- Packaging & Conveyor Line Equipment
Filling, sealing, labeling, sorting machine touch operation screens
- Medical Diagnostic & Lab Instruments
Patient auxiliary monitors, analytical testing hardware, clinical lab control units
- Retail Kiosks & Self-Service Terminals
Industrial payment kiosks, factory self-check stations, warehouse inventory touch consoles
- Heavy Machinery & Marine Cabin Monitors
Excavator, forklift, small vessel engine status dashboards
