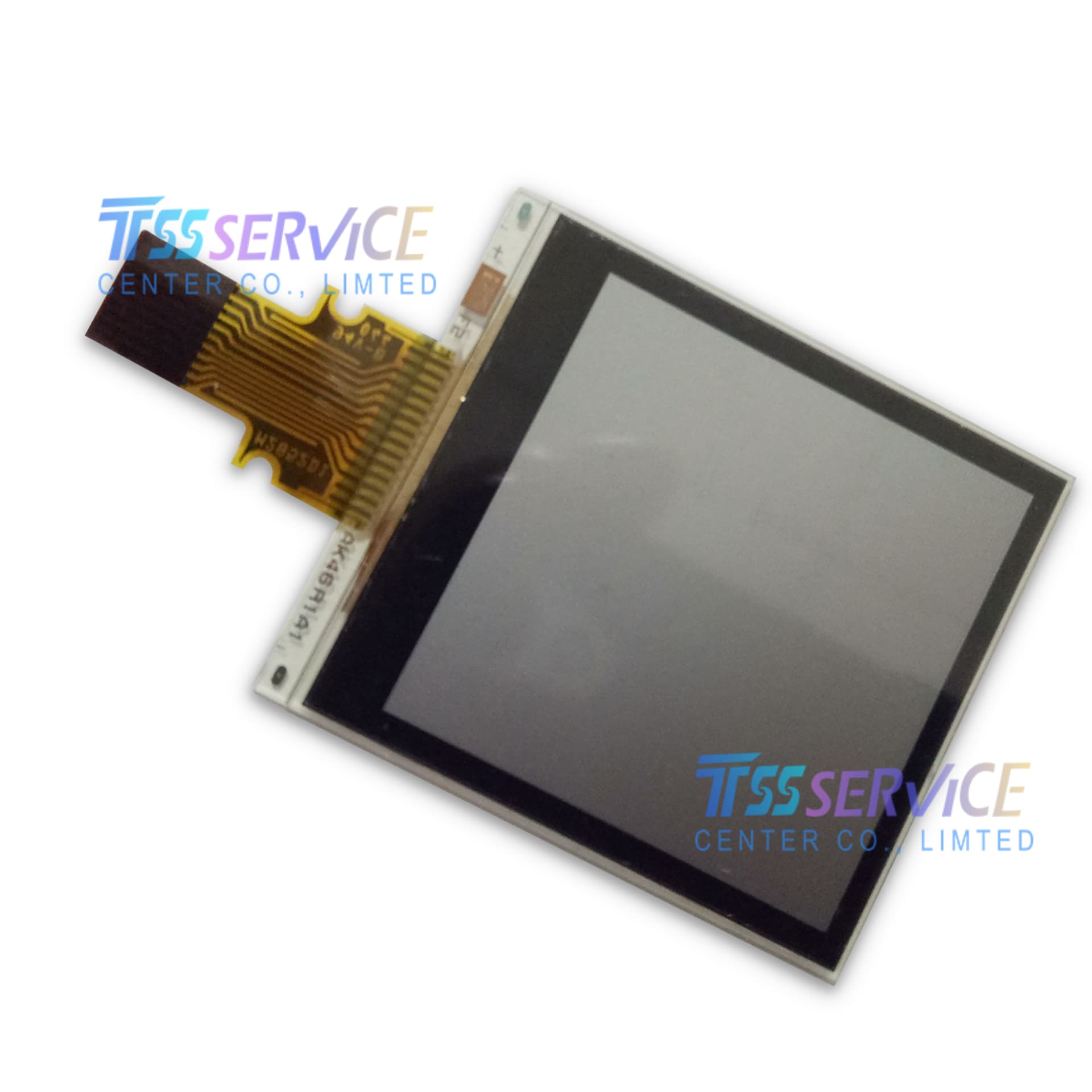

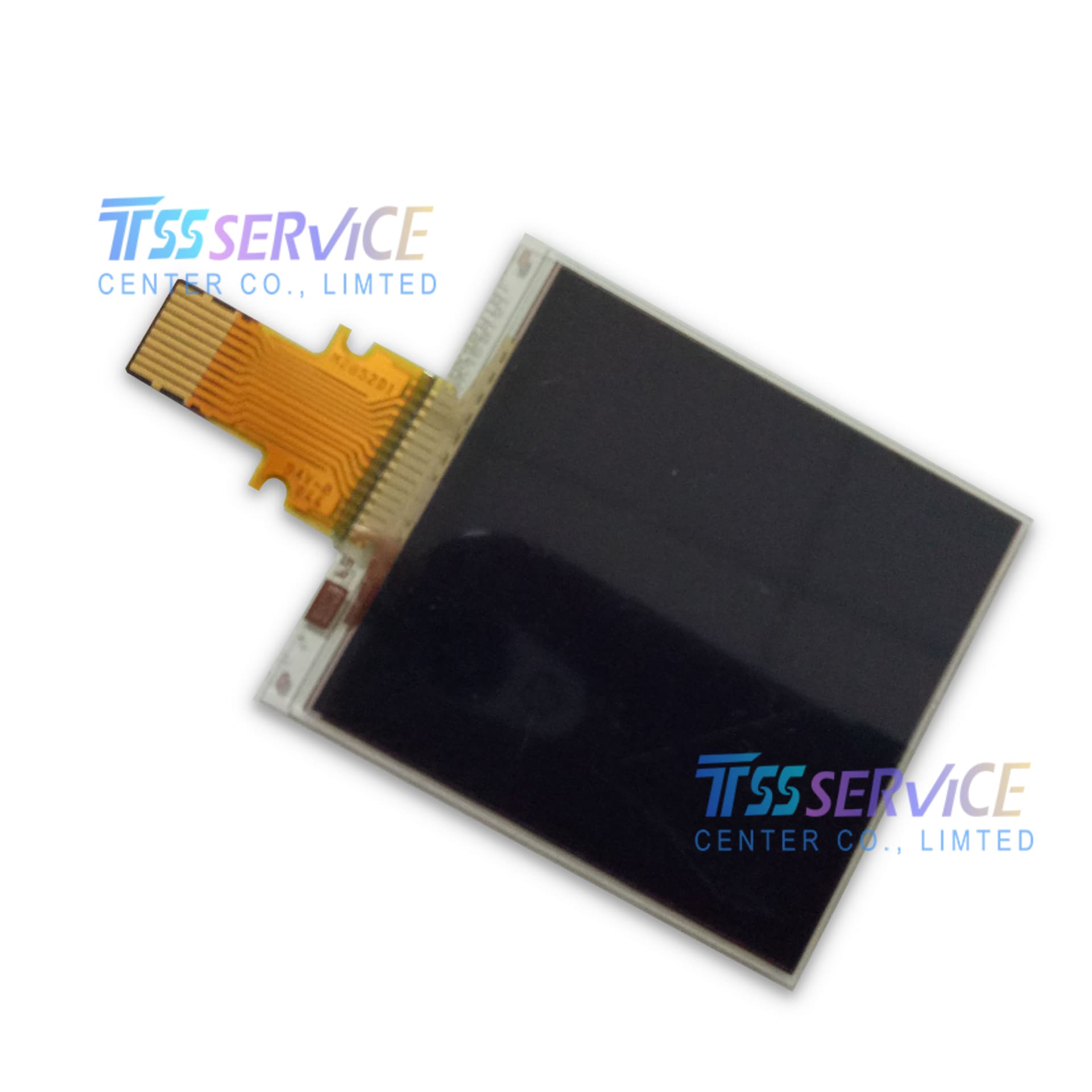

Part no : LS013B7DH05
Brand : Sharp
INCH : 1.26 Inch
Resolution 144×168
LCD Panel for Industrial Machine
| Parameter | Specification |
|---|---|
| Model Number | LS013B7DH05 |
| Display Type | Reflective Memory LCD (MIP) |
| Screen Size | 1.28 inches (diagonal) |
| Resolution | 128 × 128 pixels |
| Pixel Density | ~140 PPI |
| Color Depth | 1-bit (Black & White) |
| Viewing Area | Approx. 23.4 × 23.4 mm |
| Outline Dimensions | Approx. 26.0 × 26.0 × 1.2 mm (varies slightly by FPC) |
| Interface | SPI (Serial Peripheral Interface) |
| Supply Voltage (VDD) | 1.2 V to 3.3 V (Typical 3.0V) |
| Power Consumption | ~0.8 µW/cm² (static), extremely low dynamic power |
| Operating Temperature | -20°C to +70°C (Standard) / -30°C to +85°C (Wide) |
| Storage Temperature | -30°C to +85°C |
| Backlight | None (Reflective type) |
| Special Features | Internal frame memory, partial update support, wide viewing angle |
