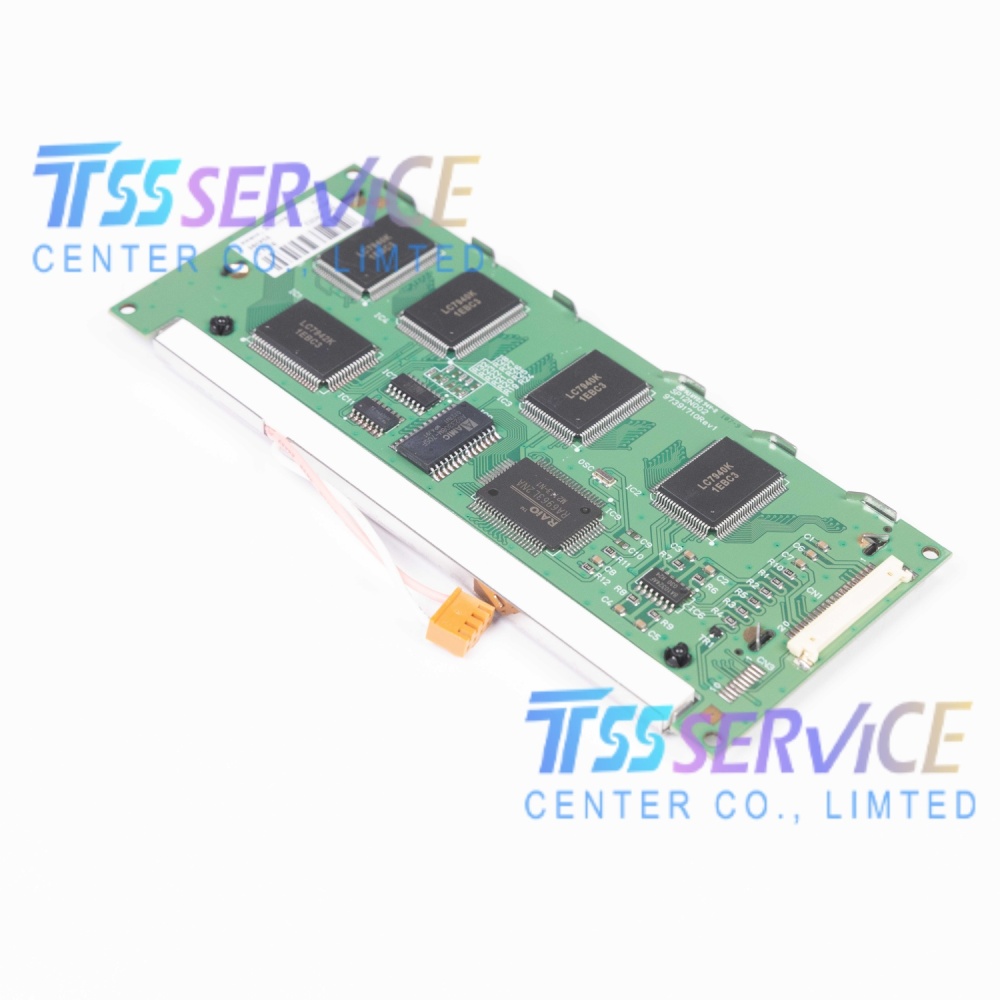

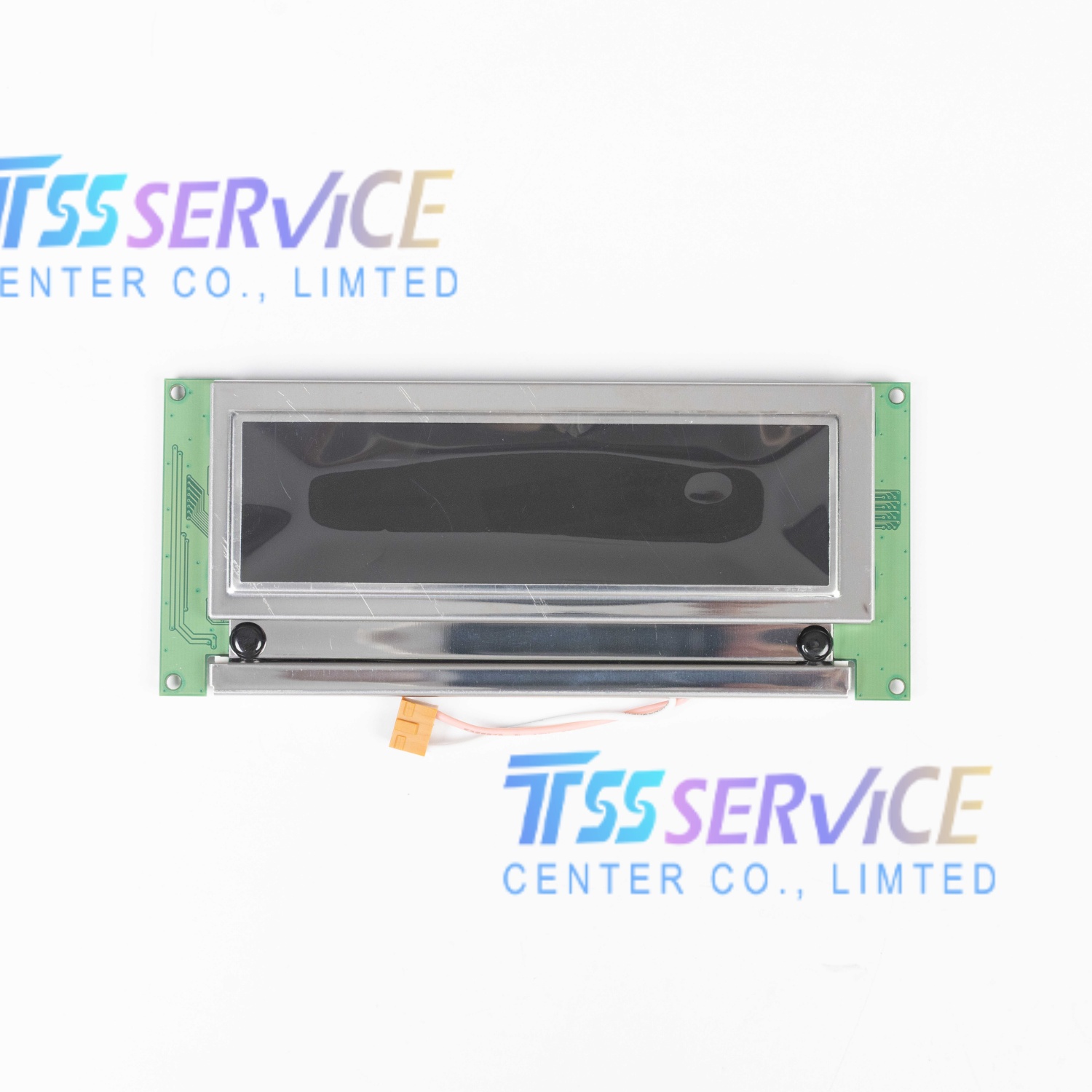

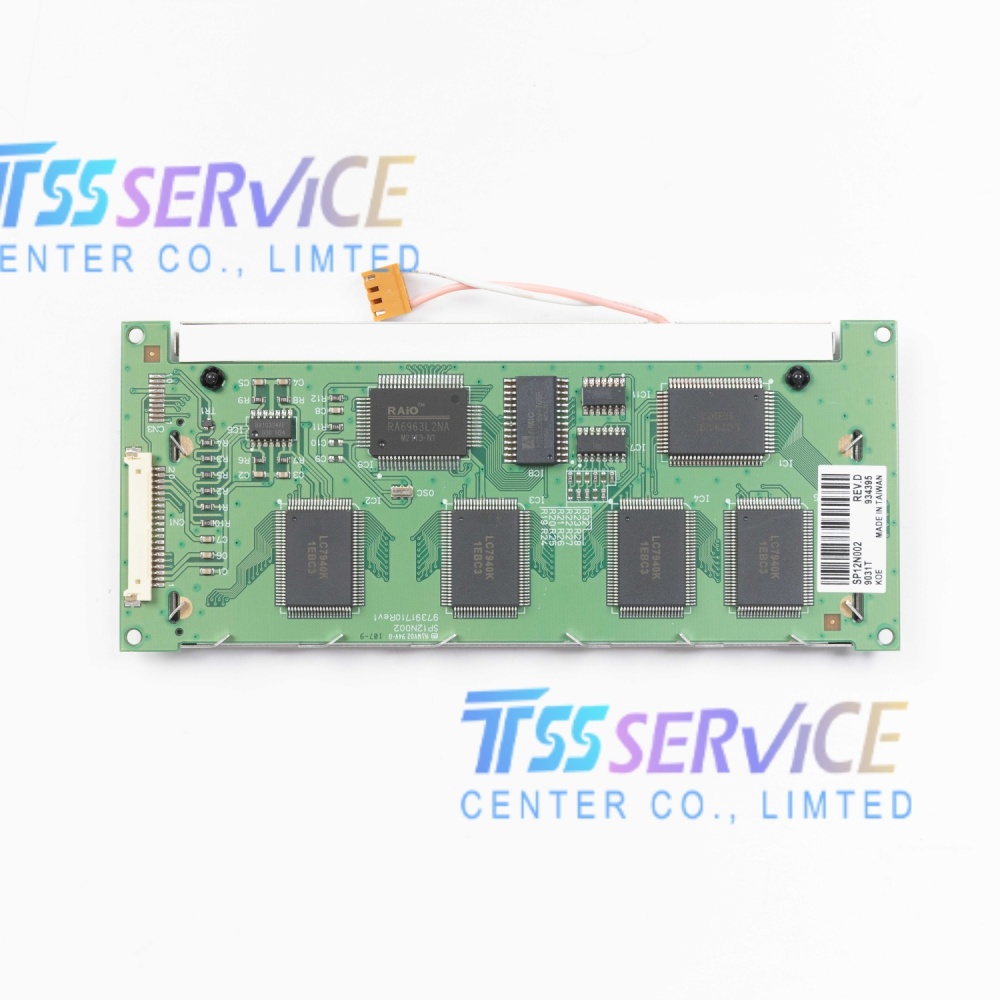

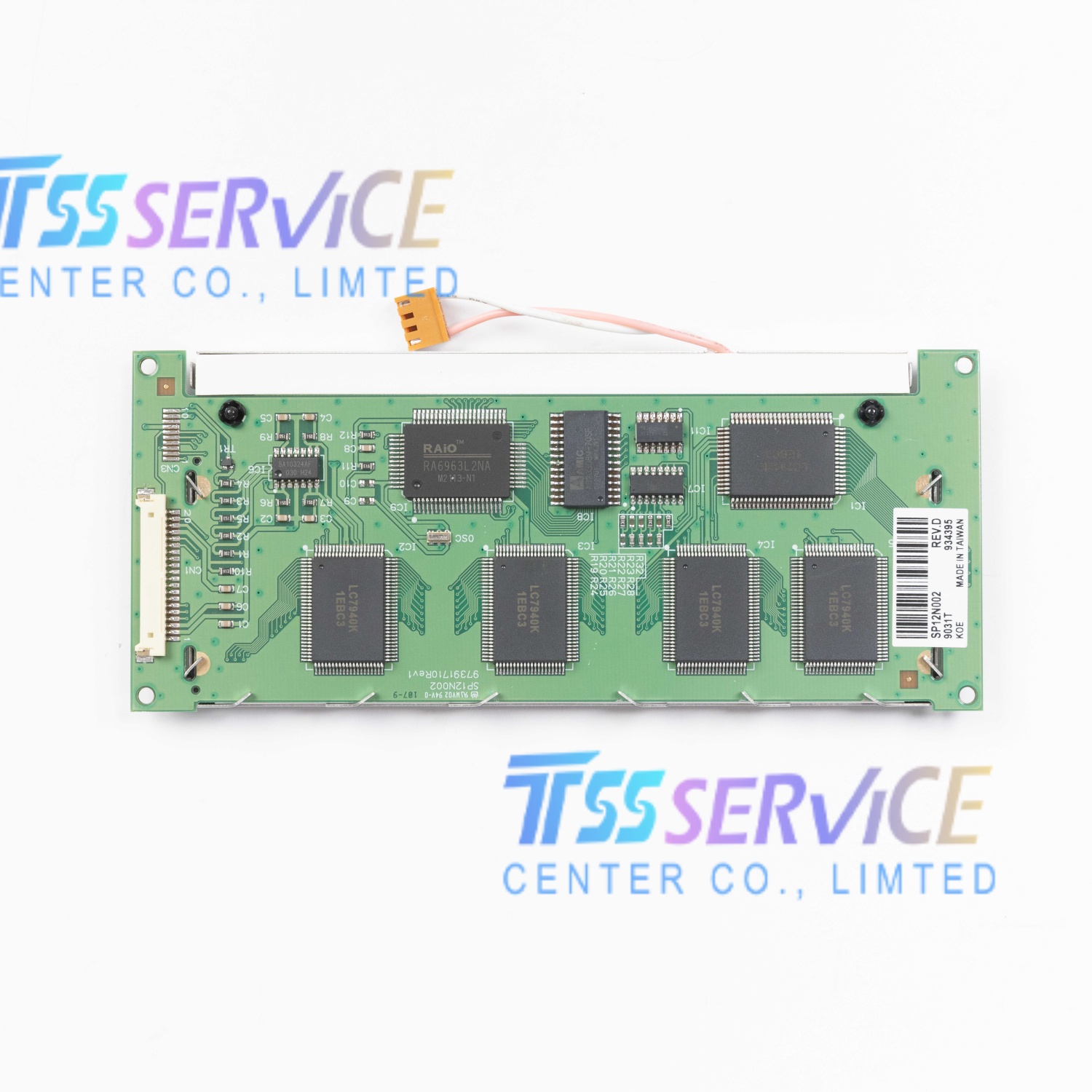

SP12N002 REV.D KOE 4.8 inch 256x64 FSTN-LCD Panel
| Parameter Category |
Item |
Value/Description |
| Basic Info |
Manufacturer |
Kaohsiung Opto‑Electronics Inc. (KOE/JDI Group, formerly Hitachi) |
|
Model |
SP12N002 REV.D |
|
Panel Type |
Monochrome FSTN‑LCD Graphic Module (LCM) |
|
Diagonal Size |
4.8 inches |
|
Aspect Ratio |
~4:1 (W:H, wide landscape bar) |
|
Display Mode |
FSTN, Black on White, Transflective, 6 o’clock viewing |
| Resolution & Pixel |
Resolution |
256 (W) × 64 (H) dots |
|
Dot Pitch |
0.470 × 0.470 mm (W×H) |
|
Dot Size |
0.440 × 0.440 mm (W×H) |
|
Pixel Density |
54 PPI |
|
Duty Cycle |
1/64 |
| Optical |
Brightness |
90 cd/m² (Typ., with CCFL backlight) |
|
Contrast Ratio |
20:1 (Typ., CR≥2) |
|
Viewing Angle |
40° (Typ., CR≥2, Φ2‑Φ1) |
|
Surface |
Antiglare Hard Coating (3H) |
|
Response Time |
110 ms (Tr) / 160 ms (Td) (Typ.) |
| Mechanical |
Active Area |
120.29 × 30.05 mm (W×H) |
|
Outline Dimension |
160.0 × 68.0 × 12.0 mm (W×H×T, Max.) |
|
Weight |
~150 g (Typ., industry standard for this form factor) |
|
Mounting |
Through‑hole / panel cutout (per mechanical drawing) |
| Electrical |
Controller IC |
RA6963 (REV.D specific) |
|
Signal Interface |
8‑bit Parallel (T6963C/RA6963 compatible), 20‑pin Molex 53780‑2090 |
|
Backlight |
Edge‑lit CCFL (JAE IL‑G‑4S‑S3C2‑SA connector) |
|
Backlight Lifetime |
≥ 50,000 hrs (Typ., at 25°C) |
|
Supply Voltage |
Logic: 5.0 V (4.75–5.25 V); LCD Drive: −15.0 V (−14.5 to −15.5 V) |
|
Supply Current |
Logic (IDD): 11.0 mA (Typ.); LCD Drive (IEE): 1.9 mA (Typ.) |
|
Frame Frequency |
75 Hz |
| Environmental |
Operating Temp |
0°C to +50°C |
|
Storage Temp |
−20°C to +60°C |
|
Humidity |
≤ 85% RH (Ta ≤ 40°C, non‑condensing) |
|
Vibration |
2.0 G (19.6 m/s², 5–100 Hz, non‑resonant) |
|
Shock |
50 G (490 m/s², X/Y/Z axes) |
|
Compliance |
RoHS |
SP12N002 REV.D is a 4.8‑inch wide‑aspect monochrome FSTN‑LCD graphic module optimized for industrial and embedded systems, featuring the RA6963 controller (REV.D) for reliable text/graphics rendering and a transflective FSTN panel with 6 o’clock viewing—ideal for panel‑mounted HMI and status displays. Key applications include:
- Industrial Control & Automation: PLC operator interfaces, factory floor HMI panels, process controller status displays, and equipment fault annunciators.
- Test & Measurement Instruments: Benchtop DMMs, signal generators, data loggers, and portable test equipment for numeric/ waveform readouts.
- Medical & Healthcare: Non‑critical medical devices (e.g., infusion pumps, blood pressure monitors) and laboratory equipment user interfaces.
- Transportation & Marine: Vehicle‑mounted diagnostic terminals, marine electronics (GPS/chartplotter aux displays), and railway control panels.
- Rugged Embedded Systems: Handheld industrial scanners, field service tools, and legacy equipment upgrades requiring T6963C/RA6963 compatibility.
- Commercial & Retail: POS system status bars, kiosk auxiliary displays, and vending machine control interfaces.
It is preferred for its
wide landscape format,
3H antiglare hard coating,
industrial‑grade temperature tolerance, and
long‑life CCFL backlight, making it a robust choice for cost‑sensitive, monochrome graphic display applications.
