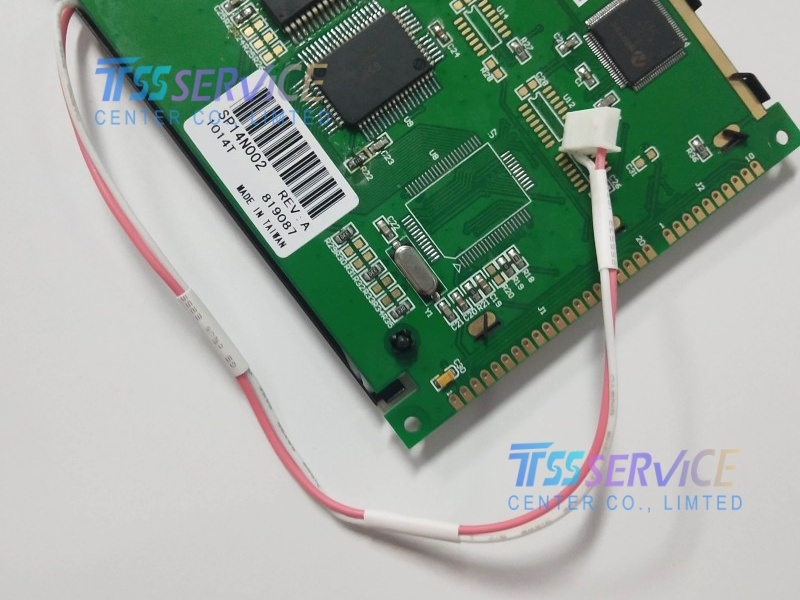

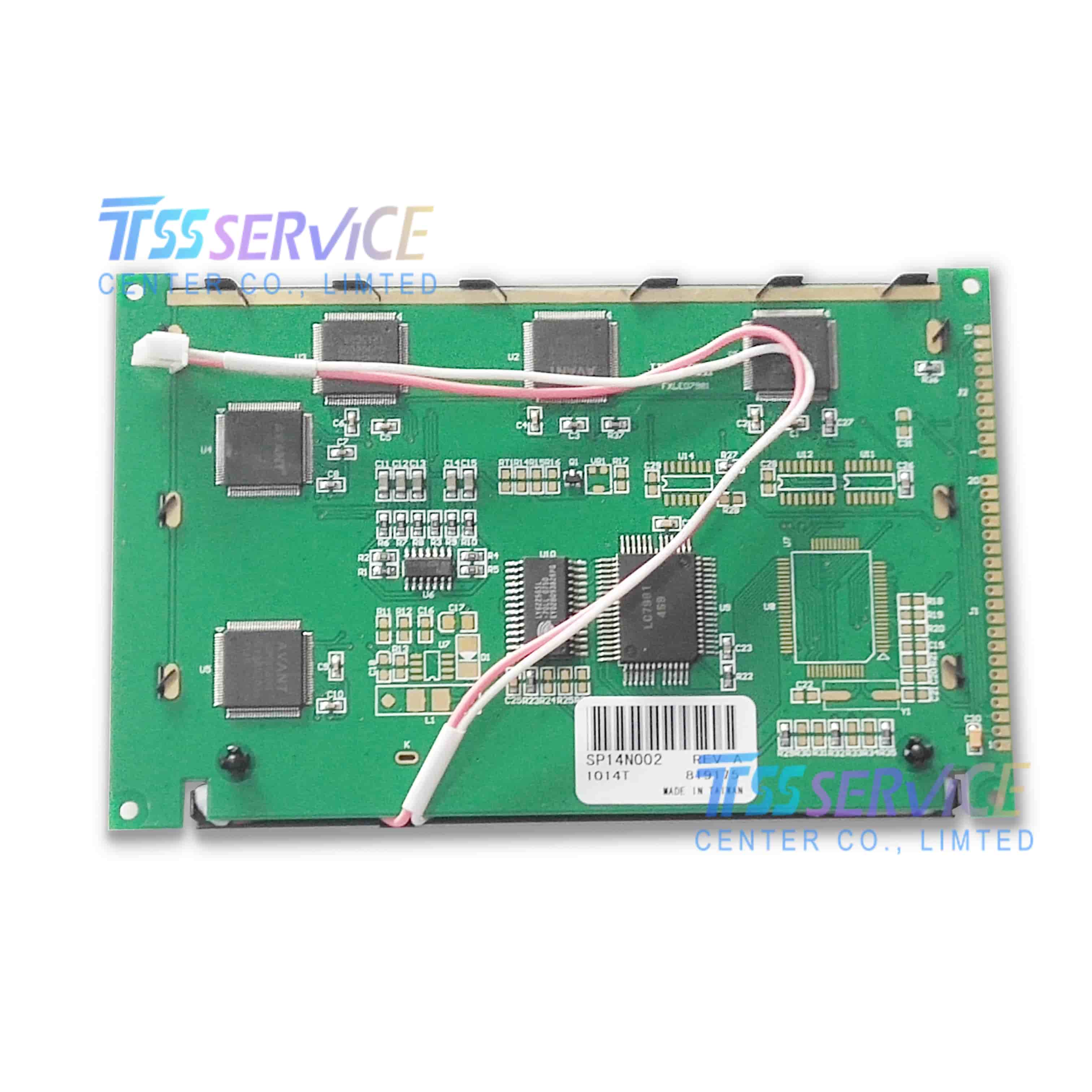

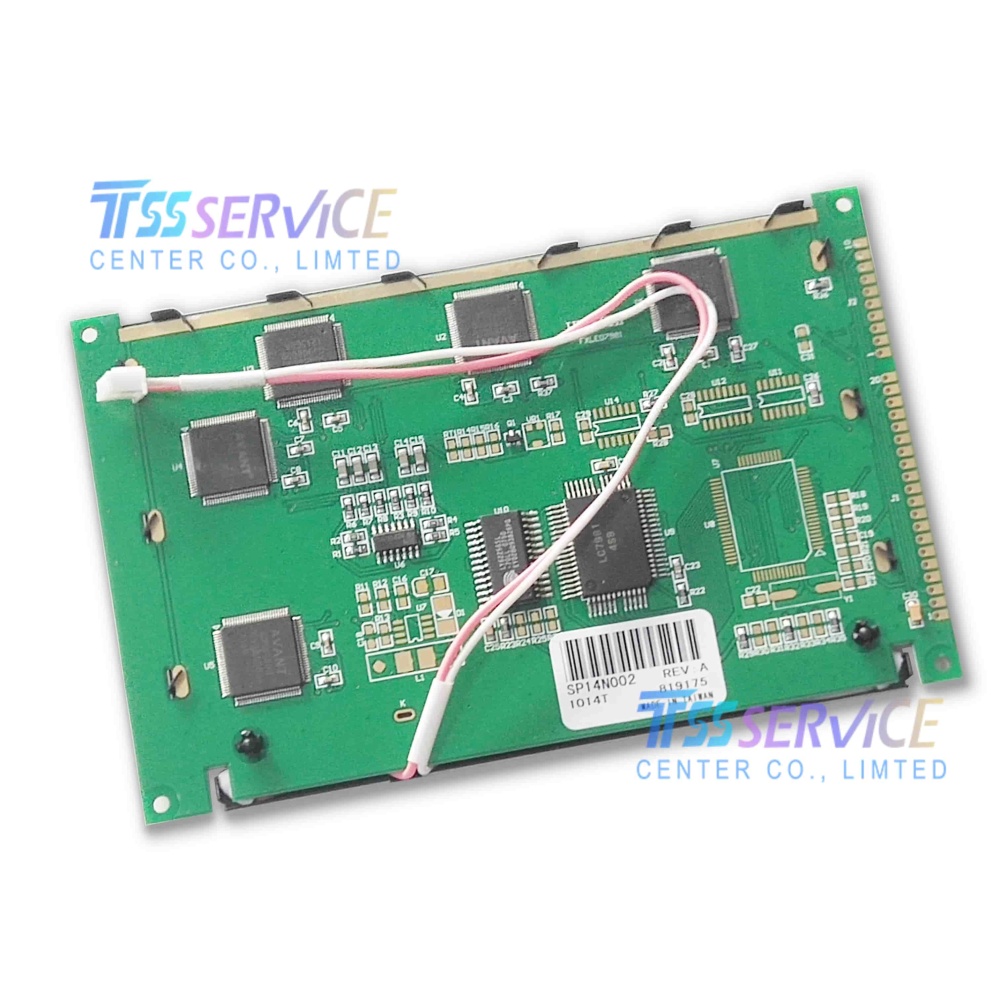

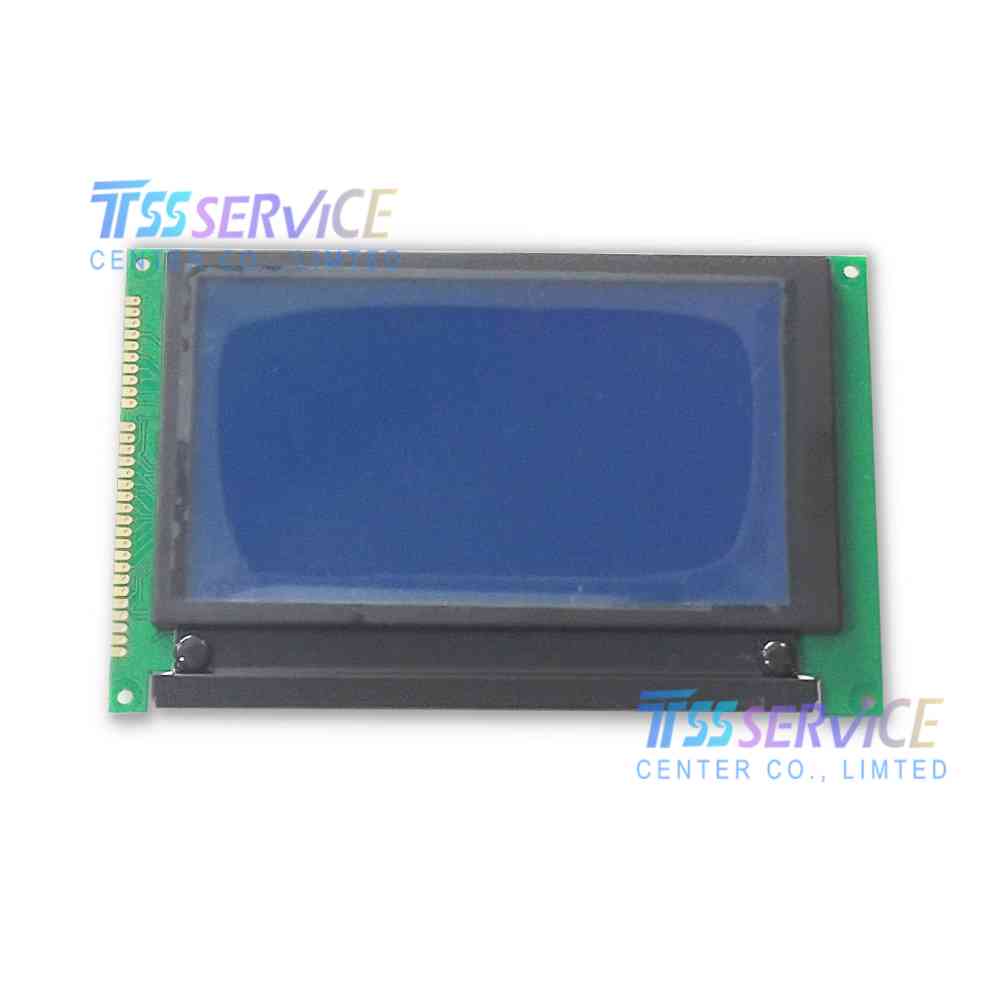

SP14N002 5.1inch 240*128 FSTN-LCD PANEL

Name: SP14N002 5.1inch 240*128 FSTN-LCD PANEL
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: SP14N002
Price: 73 USD
Availability: InStock

SKU: SP14N002

Model P/N:SP14N002
Diagonal Size: 5.1"
Panel Type: FSTN-LCD, LCM
Resolution：240×128 50PPI
Pixel Format: Rectangle

0.0 (0 Reviews)

0 Sold

~~$75.00~~ $73.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The SP14N002 is a compact-format 5.1-inch monochrome FSTN (Film Super-Twisted Nematic) LCD panel designed for applications requiring a clear, wide-format display area with moderate resolution. It features a character-oriented screen resolution of 240 x 128 pixels, making it ideal for displaying detailed text, numerical data, and simple graphics in industrial instruments, handheld devices, and control systems.

Parameter	Specification
Model Number	SP14N002
Display Type	Monochrome FSTN-LCD
Screen Size	5.1 inches
Active Area	119.97(W)×63.97(H) mm
Resolution	240×128 50PPI
Viewing Direction	40 (Typ.)(CR≥2, Φ2-Φ1)
Interface	8-bit parallel , 20 pins Pad
Backlight	CCFL
Operating Temperature	-20°C to +70°C (typical)
Storage Temperature	-30°C to +80°C (typical)
Supply Voltage (Logic)	3.3V or 5.0V (depends on version)
