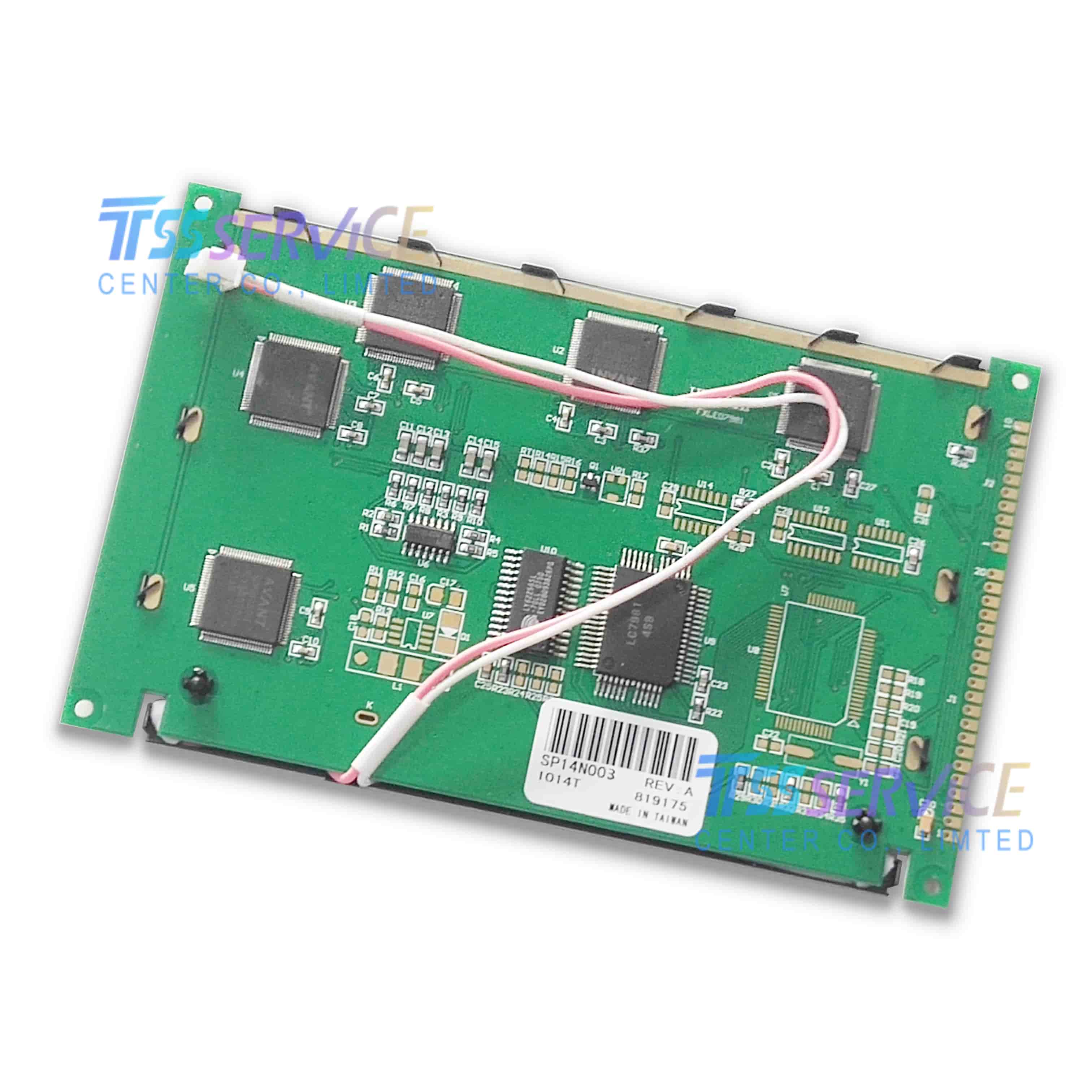

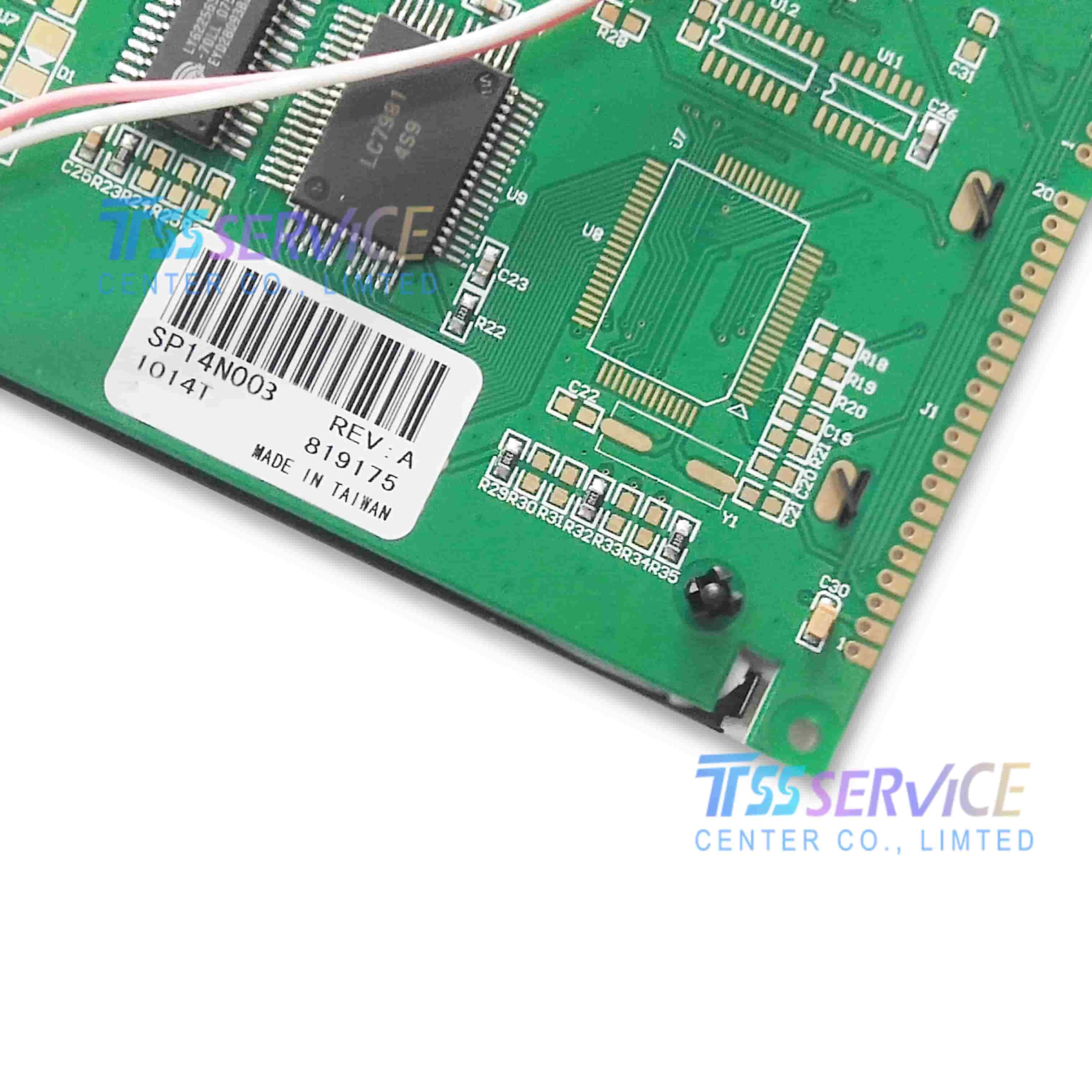

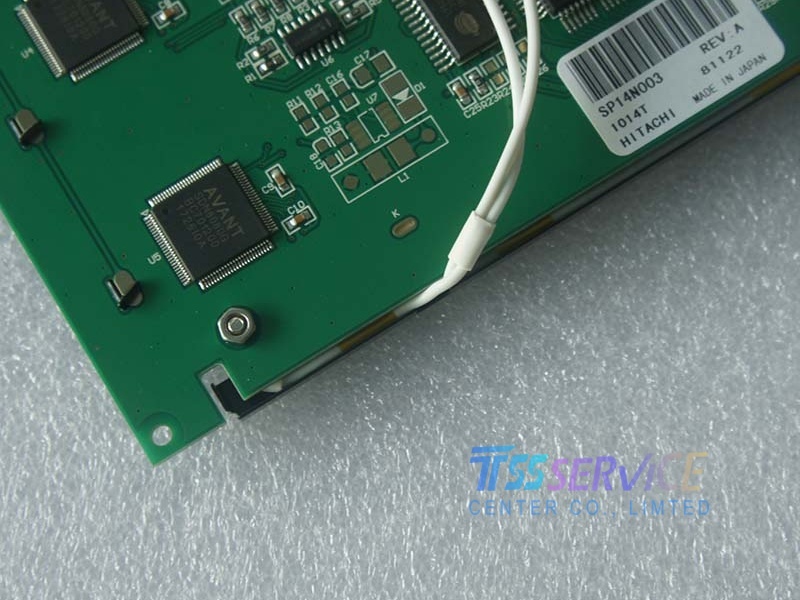

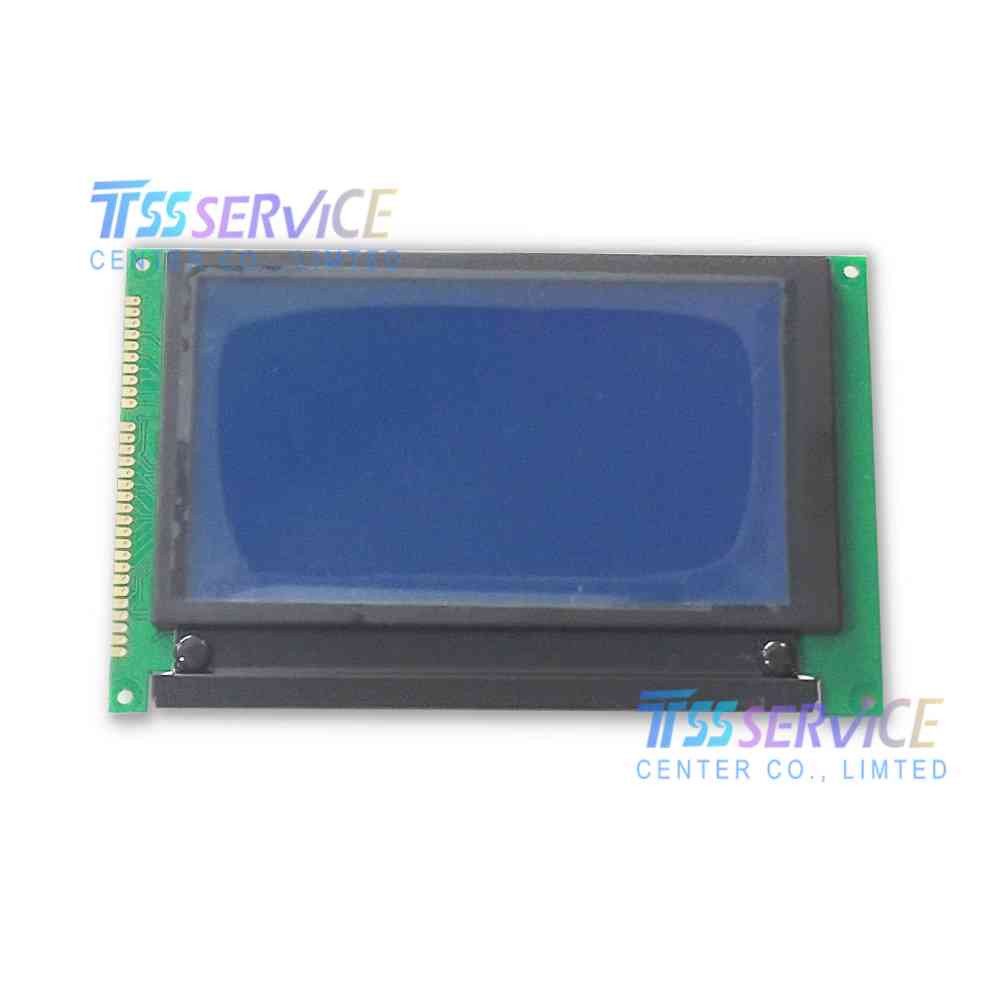

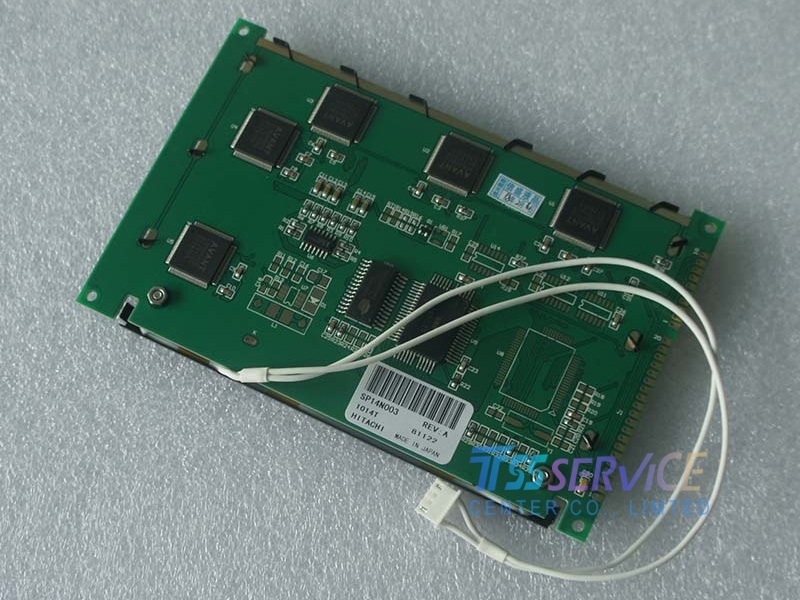

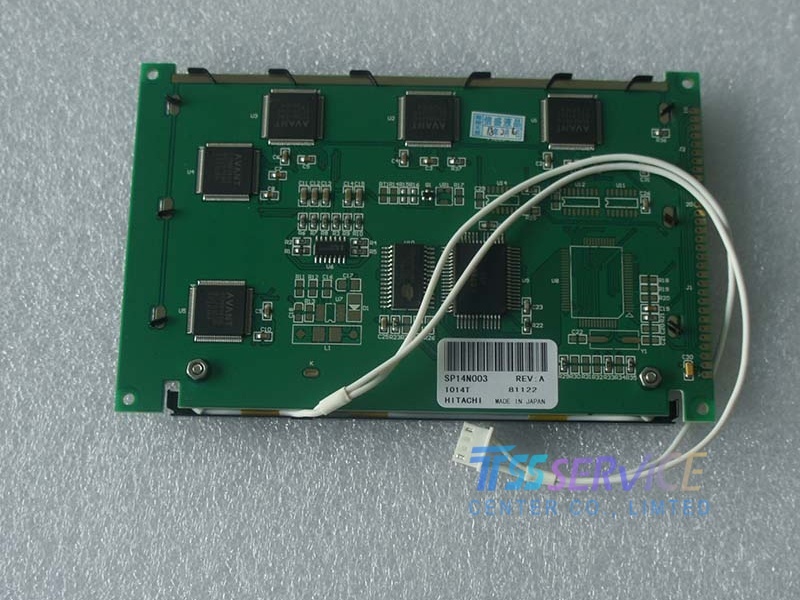

The SP14N003 is a cost-effective 5.1-inch monochrome STN (Super-Twisted Nematic) LCD panel, offering a reliable and functional display solution for applications with fundamental visual information requirements. It delivers a standard level of contrast and readability, making it a practical choice for industrial, commercial, and consumer devices where display performance is essential but does not demand the premium characteristics of higher-tier technologies like FSTN or TFT.
| Parameter |
Specification |
| Model Number |
SP14N003 |
| Display Type |
STN-LCD |
| Screen Size |
5.1 inches |
| Active Area |
119.97(W)×63.97(H) mm |
| Resolution |
240×128 50PPI |
| Viewing Direction |
40 (Typ.)(CR≥2, Φ2-Φ1) |
| Interface |
8-bit parallel , 20 pins Pad |
| Backlight Type |
CCFL backlight |
| Operating Temperature |
0°C to +50°C or -10°C to +60°C |
| Storage Temperature |
-20°C to +70°C (typical). |
| Supply Voltage |
5.0V or 3.3V for logic. |
Applications
The SP14N003 is suitable for :
-
Industrial Control Systems – PLC interfaces, factory automation panels, HMI terminals
-
Medical Equipment – Diagnostic devices, patient monitoring systems
-
Test & Measurement Instruments – Oscilloscopes, signal analyzers, data loggers
-
Security and Surveillance Systems
-
Audio and Video Equipment
-
Legacy System Replacements – For maintaining existing equipment
