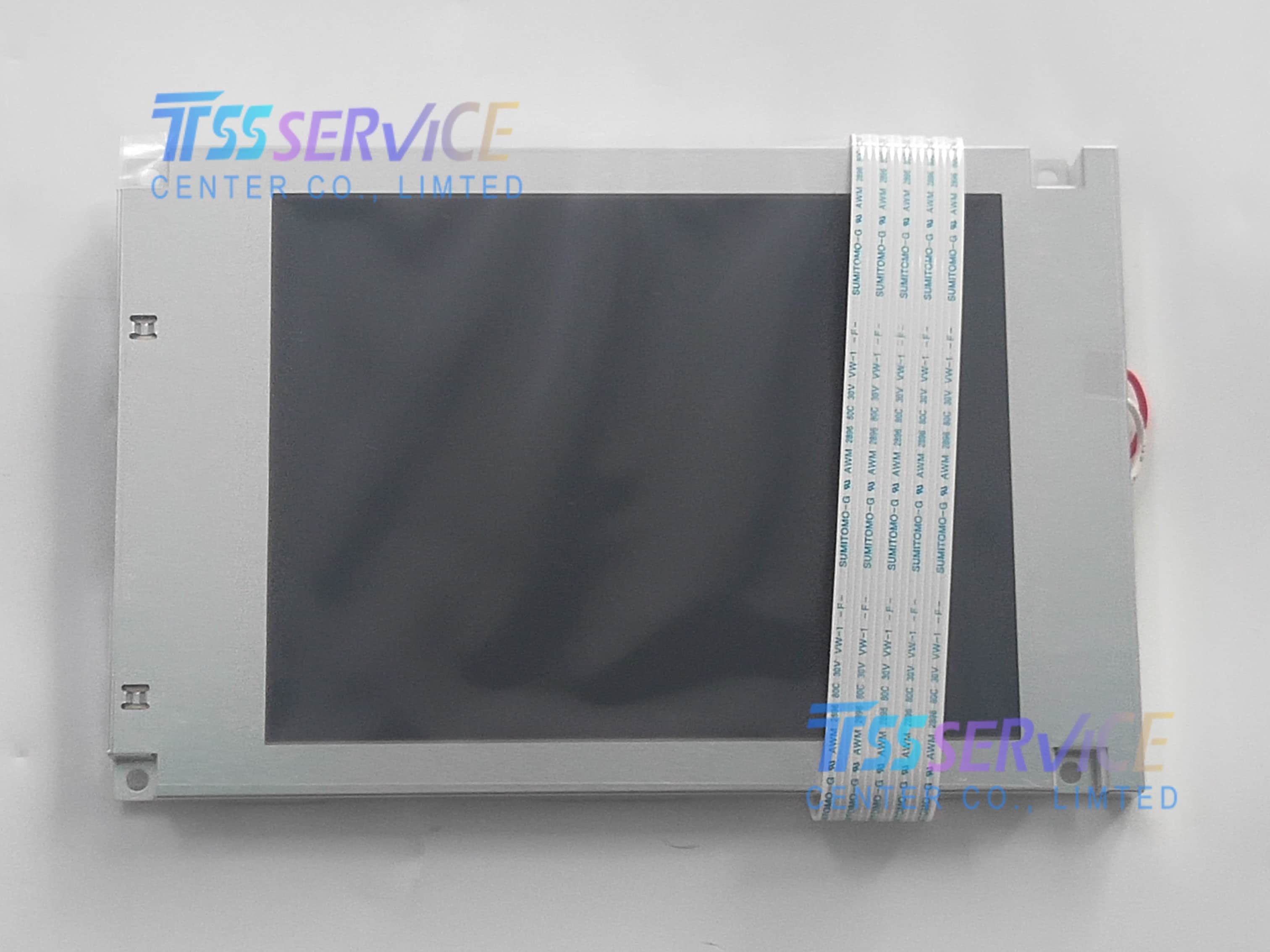

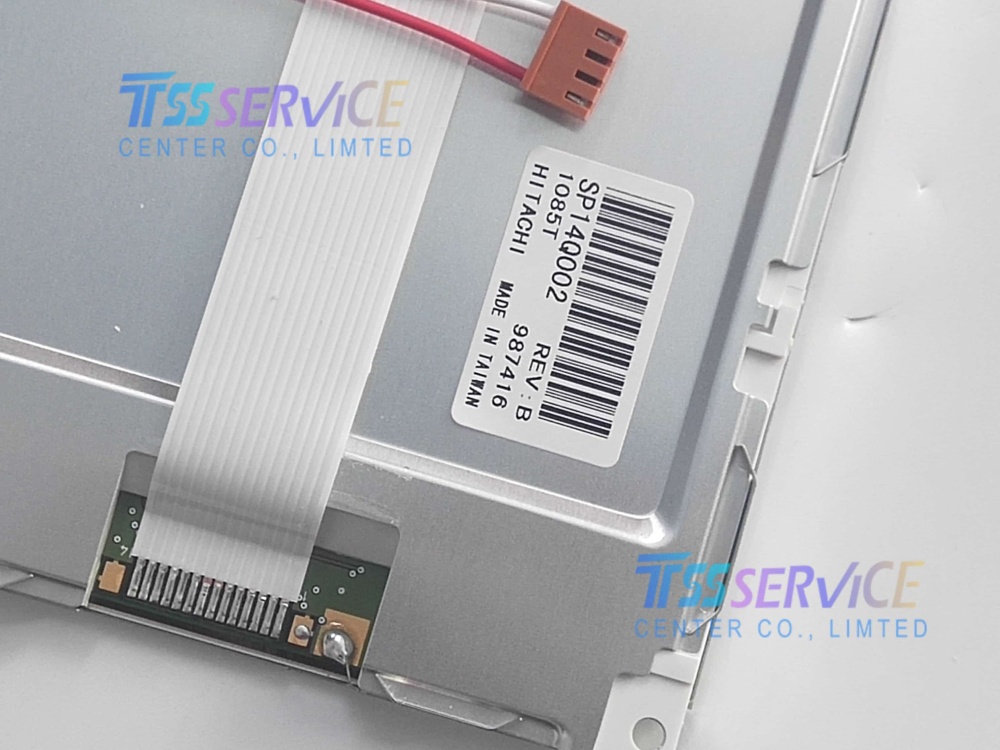

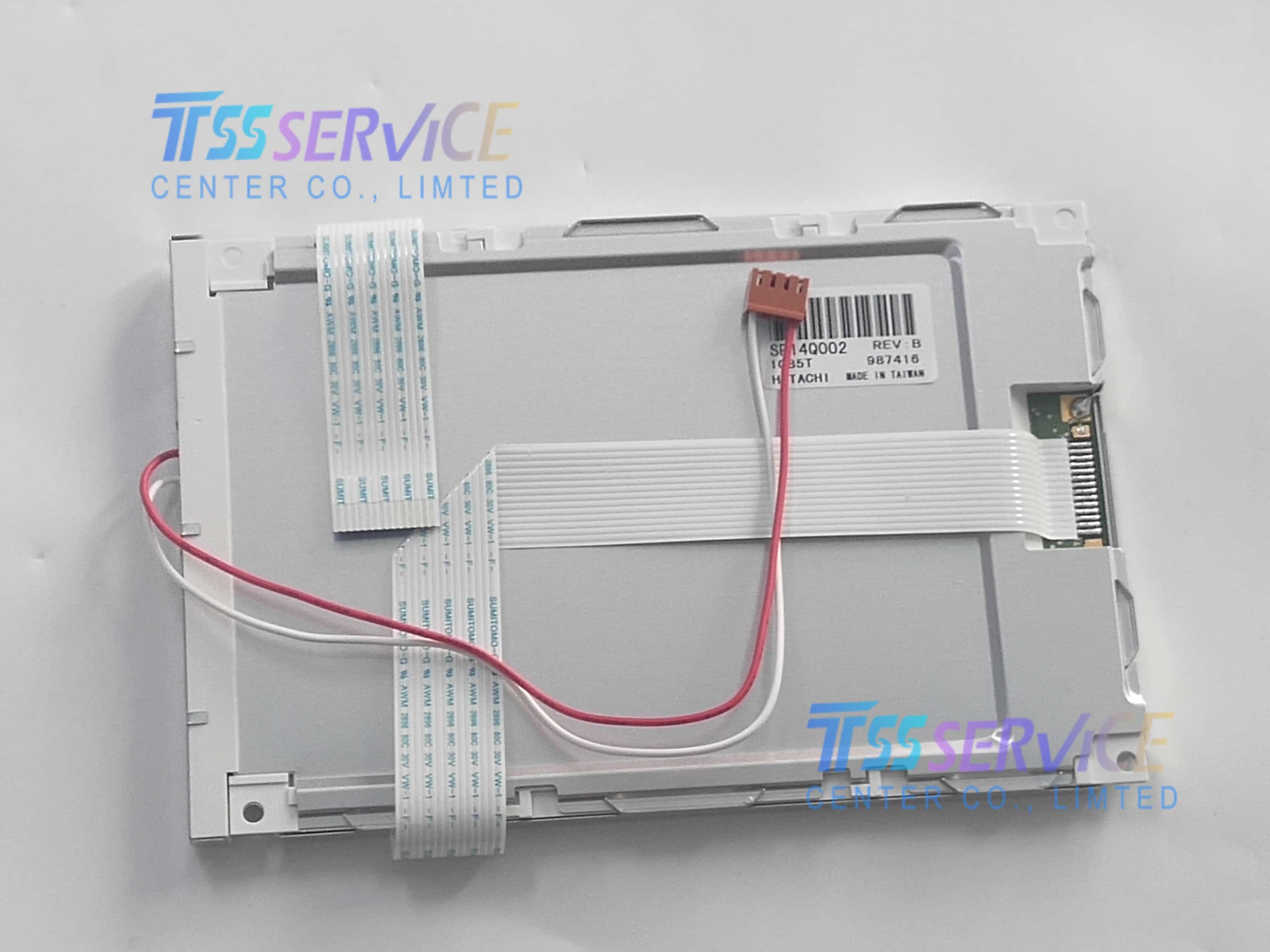

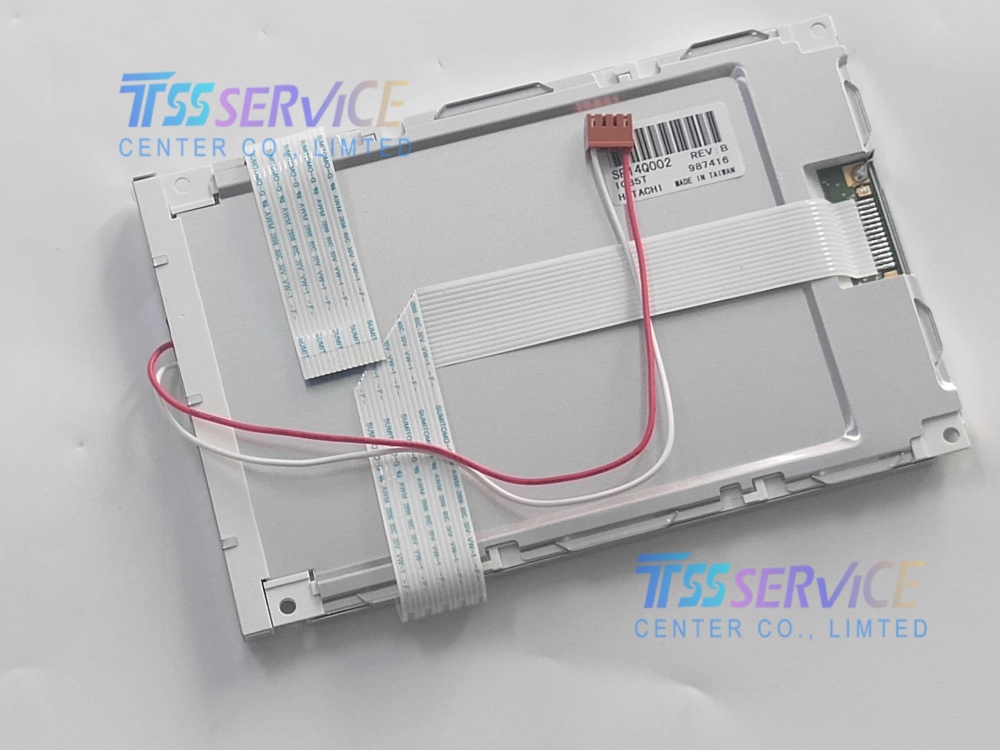

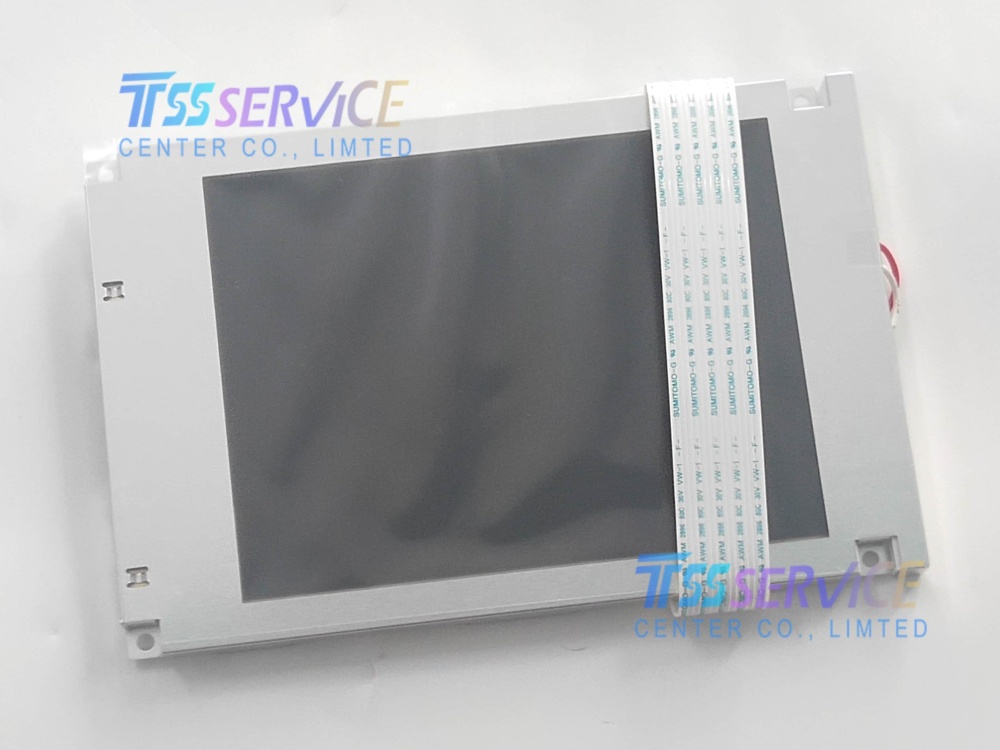

The SP14Q002 series is a 5.7-inch monochrome FSTN-LCD display module manufactured by Kaohsiung Hitachi Electronics Co., Ltd. Designed specifically for industrial and medical applications, this QVGA-resolution panel offers proven reliability, excellent readability, and straightforward system integration.
| Parameter | Value |
|---|---|
| Manufacturer | HITACHI |
| Model No. | SP14Q002 |
| Screen Size | 5.7 inch |
| Screen Type | FSTN-LCD, LCM |
| Number of dots | 320×240, QVGA, 4:3 |
| Dot Layout | Rectangle |
| Active Area | 115.185×86.385 mm (H×V) |
| Outline Area | 167×109×10 mm (H×V×D) |
| Weight | 160g (Typ.) |
| Luminance | 80 cd/m² (Typ.) |
| Contrast Ratio | 20 : 1 (Typ.) (TM) |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) |
| Good View at | 6 o'clock |
| Display Type | STN, Black/White (Negative), Transmissive |
| Display Colors | Monochromatic |
| Response (ms) | 120/150 (Typ.)(Tr/Td) |
| Refresh Rate | 75Hz |

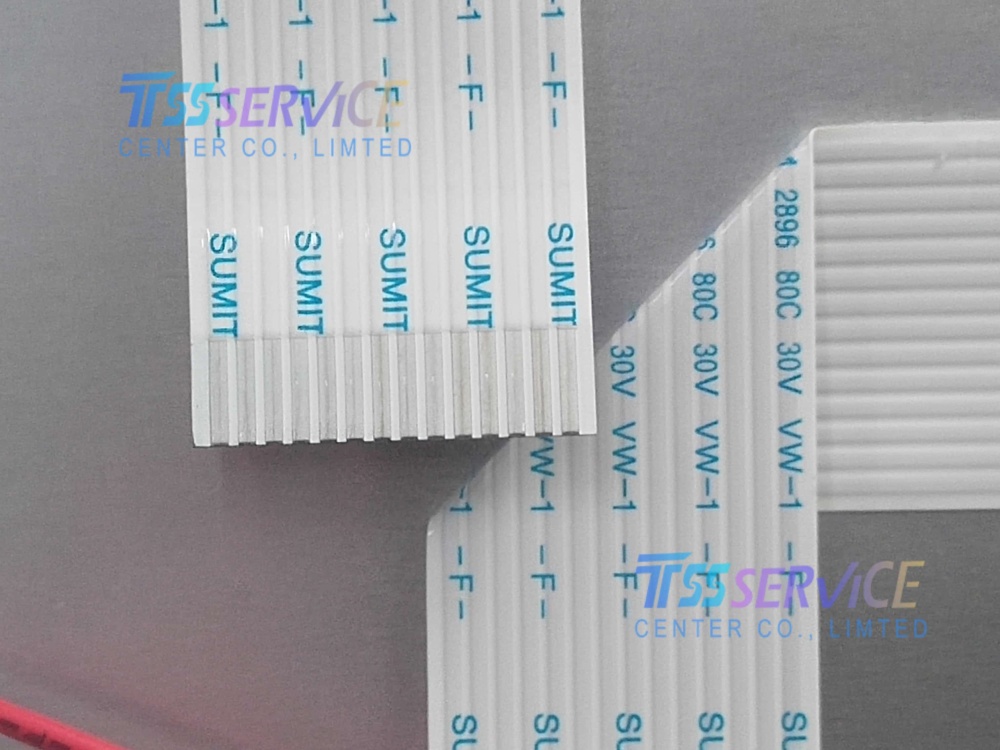

| Signal Type | Parallel Data (1ch, 4-bit), 14 pins FPC |
| Voltage Supply | 5.0V (Typ.) |
| Used for | Backlight: 1 pcs CCFL, 20K hrs, No Driver |
| Touchscreen | Without |
| Max. Ratings | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Ideal for:
Industrial Control Panels and HMIs
Medical Equipment and Patient Monitors
Heavy Machinery and Excavator Displays
Test and Measurement Instruments
Factory Automation Systems
