SP14Q003-C1 5.7INCH 320*240 STN-LCD FOR Hitachi（KOE）

Name: SP14Q003-C1 5.7INCH 320*240 STN-LCD FOR Hitachi（KOE）
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: SP14Q003-C1
Price: 135 USD
Availability: InStock

SKU: SP14Q003-C1

1，Condition: New，Grade A

2，Description: SP14Q003-C1 5.7INCH LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$138.00~~ $135.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

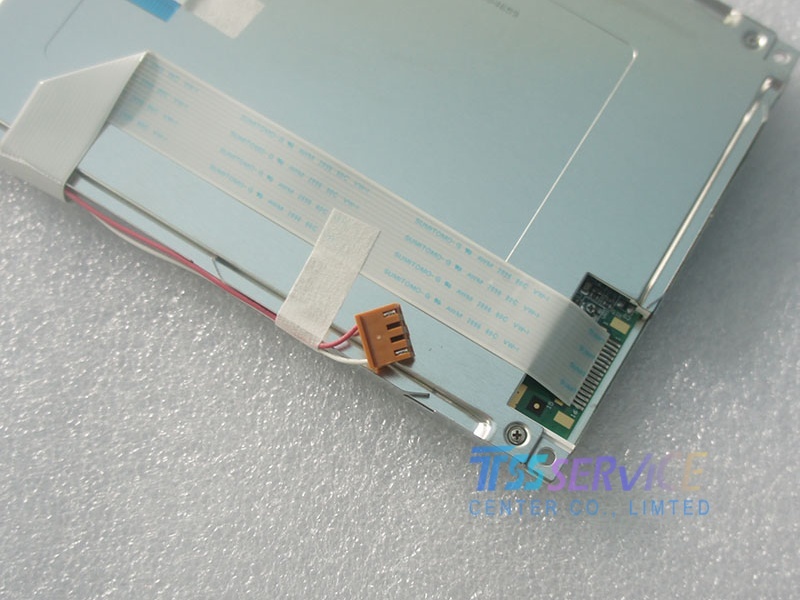

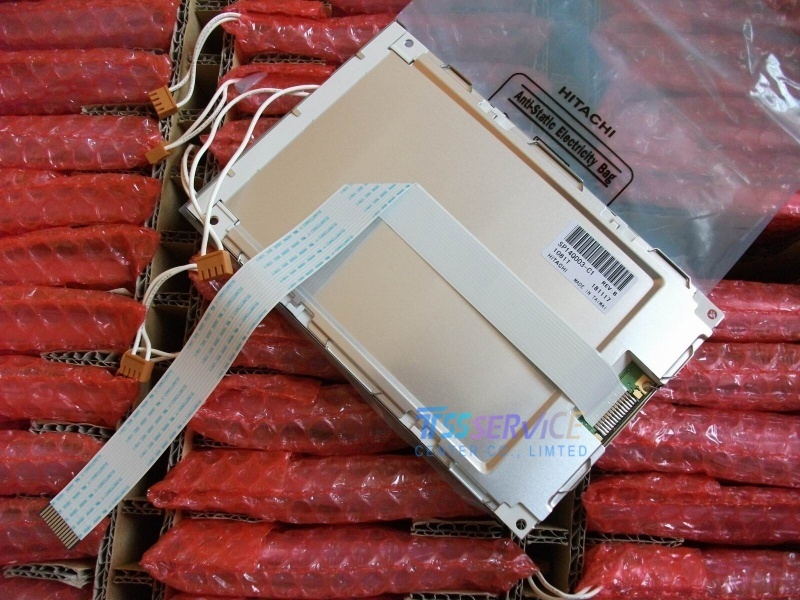

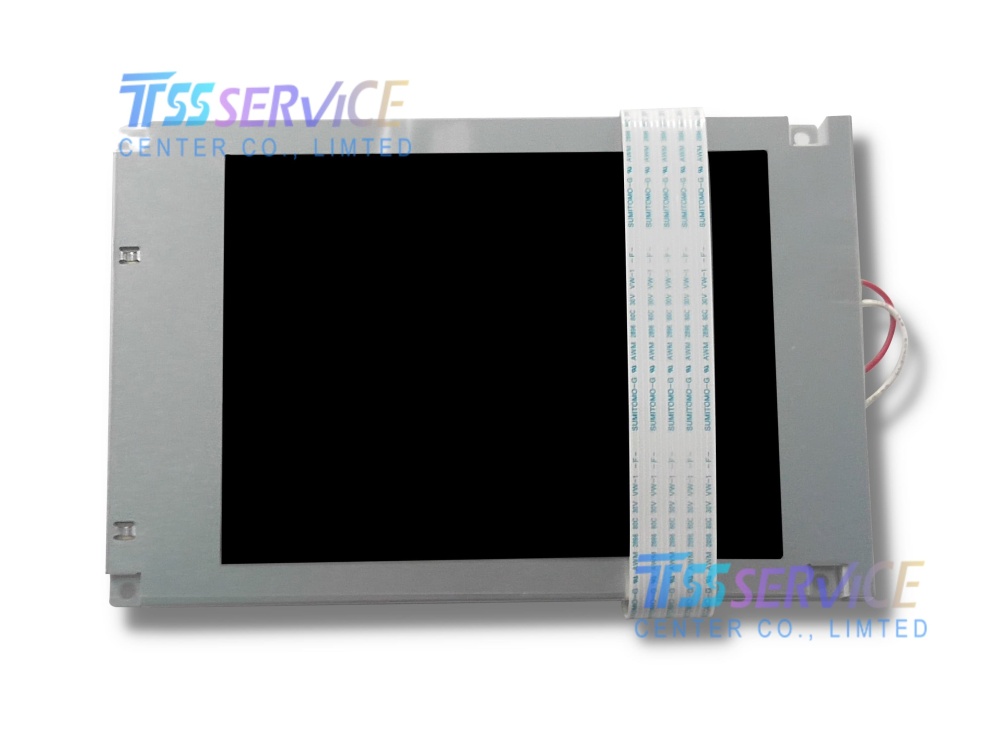

The SP14Q003-C1 is a 5.7-inch monochrome STN-LCD module manufactured by KOE (Kaohsiung Opto-Electronics Inc.), a subsidiary of Hitachi. This transmissive display features a blue-mode negative design and is optimized for industrial applications requiring reliable performance in demanding environments.

Parameter	Value
Brand	KOE (Hitachi)
Model	SP14Q003-C1
Display Size	5.7 inch
Panel Type	STN-LCD, LCM
Resolution	320 × 240 (QVGA)
Pixel Pitch	0.360 × 0.360 mm
Display Area	115.185 (W) × 86.385 (H) mm
Outline Size	167 (W) × 109 (H) × 10 (D) mm
Display Mode	STN, Blue mode - Negative, Transmissive
Brightness	100 cd/m² (Typ.)
Contrast Ratio	6:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	120/150 (Typ.)(Tr/Td) ms
Display Colors	Monochrome
Frequency	75Hz
Light Source	1 pc CCFL, 50K hrs, Without Driver
Interface	Parallel Data (4-bit), 14 pins FPC
Input Voltage	3.3/5.0V (Typ.)(VDD)
Surface	Matte
Touch Screen	Without
Operating Temperature	-20 ~ +70 °C-1 -3
Storage Temperature	-30 ~ +80 °C

Target Applications

Industrial control panels

Medical diagnostic equipment

Embedded test & measurement instruments

Legacy system maintenance/upgrades
