T-51382D064-FW-P-AA 6.4 inch 640×480 LCD Display Screen For Industrial

Name: T-51382D064-FW-P-AA 6.4 inch 640×480 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51382D064-FW-P-AA
Price: 100 USD
Availability: InStock

SKU: T-51382D064-FW-P-AA

Model P/N: T-51382D064-FW-P-AA
Diagonal Size: 6.4"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 640(RGB)×480, VGA, 4:3
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$103.00~~ $100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

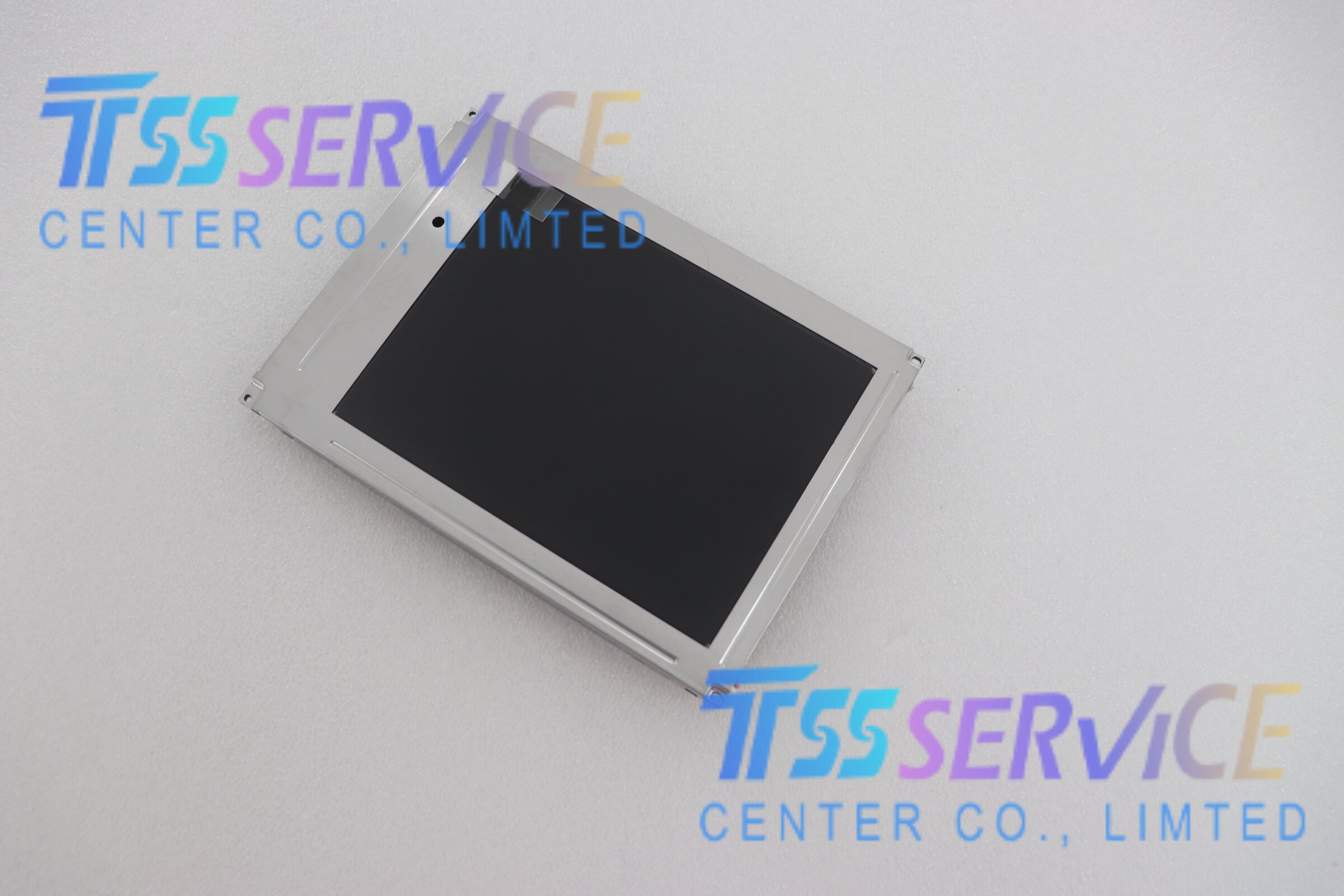

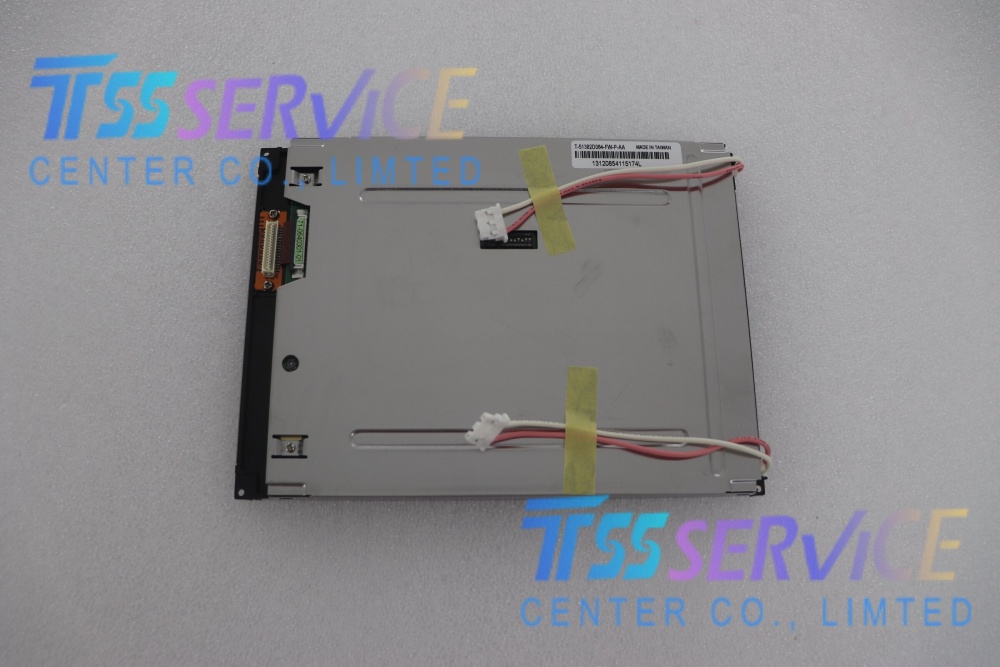

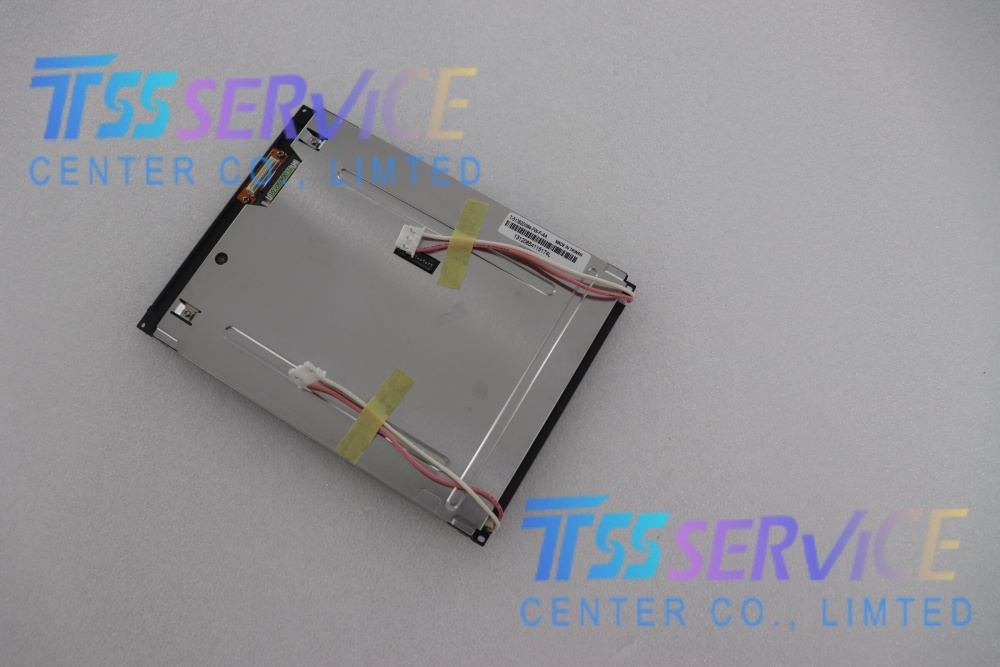

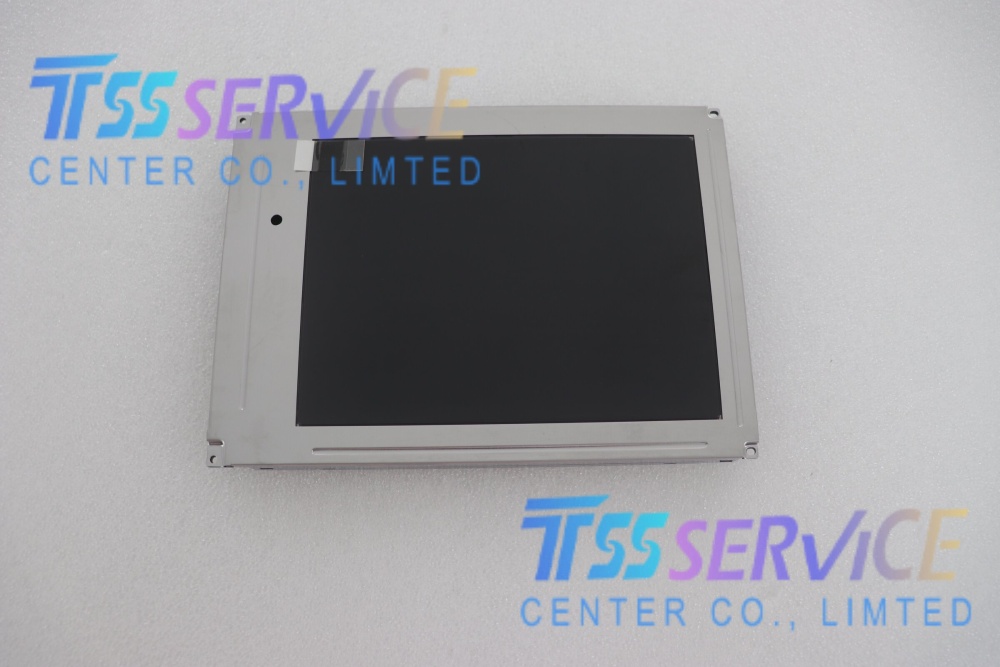

Kyocera T-51382D064-FW-P-AA 6.4 inch 640×480 LCD Display Screen For Industrial

Parameter	Specification	Unit
Brand	OPTREX (Kyocera)	—
Model	T-51382D064-FW-P-AA	—
Screen Size	6.4 (diagonal)	inch
Display Type	a-Si TFT-LCD, TN, Normally White, Transmissive	—
Resolution	640 × 480 (VGA)	dots
Active Area	129.6 (H) × 97.44 (V)	mm
Outline Dimension	175 (H) × 126.5 (V) × 12.5 (D)	mm
Brightness	300 (Typ.)	cd/m²
Contrast Ratio	120 : 1 (Typ.)	—
Viewing Angle	55/55/15/35 (Typ., CR≥10)	deg
Display Colors	262,144 (18-bit RGB)	colors
Pixel Configuration	RGB Vertical Stripe	—
Dot Pitch	0.0675 (H) × 0.203 (V)	mm
Pixel Pitch	0.203 (H) × 0.203 (V)	mm
Response Time	30 (tr) / 50 (td) (Max.)	ms
Backlight	CCFL (2 lamps), 20,000 hours	—
Interface	Parallel RGB (1-ch 6-bit), 31 pins, TTL level	—
Input Voltage	5.0 (Typ.)	VDC
Operating Temperature	0 ~ +55	°C
Storage Temperature	-25 ~ +70	°C
Weight	335 ± 10	g

Applications

Industrial Control Systems: Factory automation HMIs, PLC panels, and CNC machinery displays
Medical Equipment: Patient monitors, diagnostic devices, and portable medical instruments
Marine & Outdoor Displays: Navigation systems and weather stations (with protective enclosures)
Retail POS & Kiosks: Point-of-sale terminals and self-service kiosks
Embedded & Computing: Industrial PCs, thin clients, and legacy display upgrades
