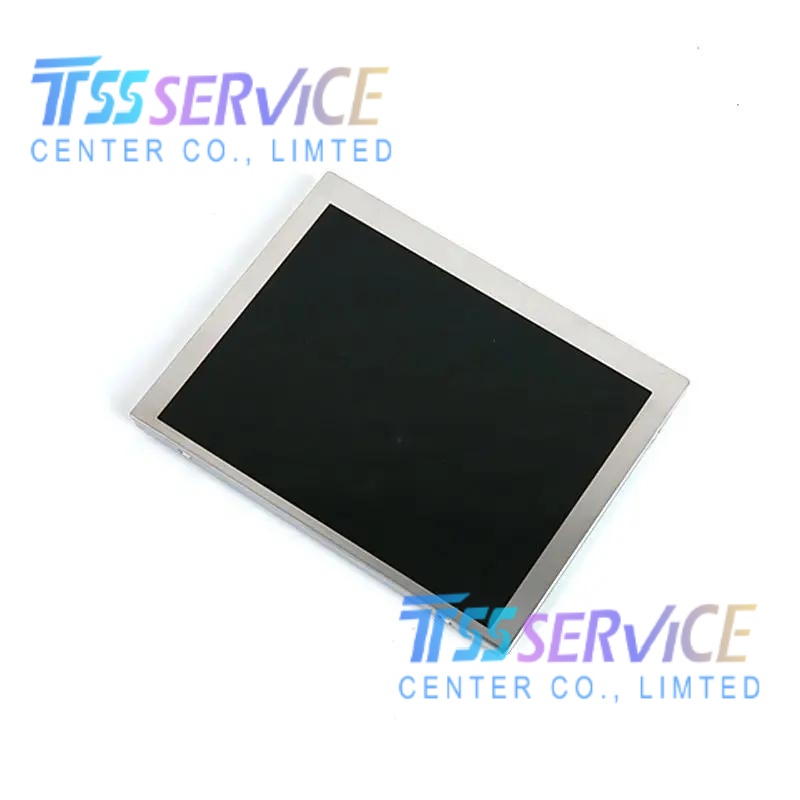

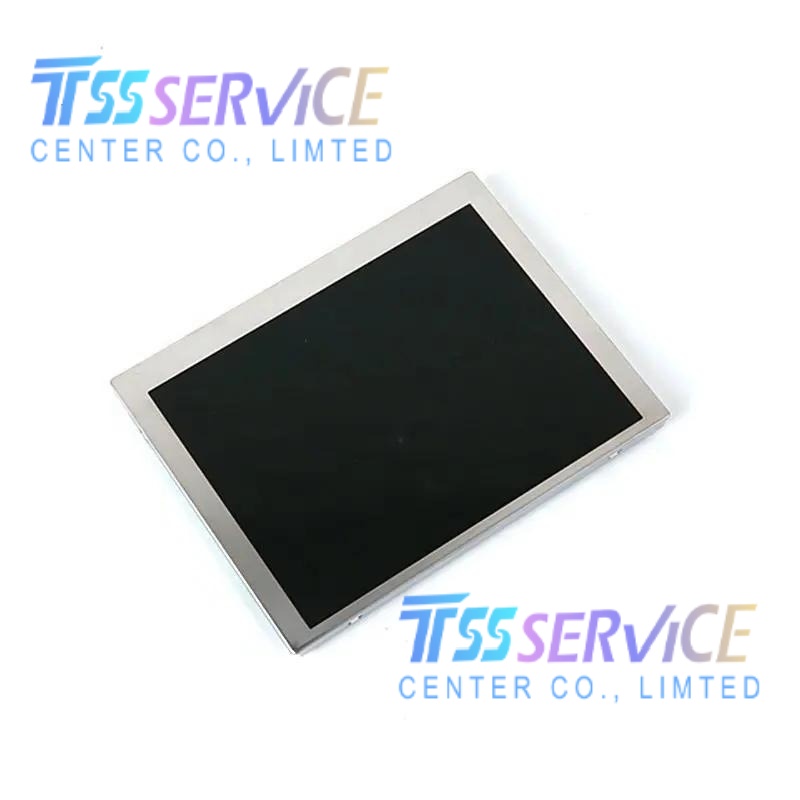

Kyocera T-51382D064-FW-P-AD 6.4 inch LCD Display Screen For Industrial

Name: Kyocera T-51382D064-FW-P-AD 6.4 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51382D064-FW-P-AD
Price: 88 USD
Availability: InStock

SKU: T-51382D064-FW-P-AD

Model P/N: T-51382D064-FW-P-AD
Diagonal Size: 6.4"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 640(RGB)×480, VGA, 4:3
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $88.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera T-51382D064-FW-P-AD 6.4 inch LCD Display Screen For Industrial

Parameter	Specification	Unit
Brand	OPTREX (Kyocera)	—
Model	T-51382D064-FW-P-AD	—
Screen Size	6.4 (diagonal)	inch
Display Type	a-Si TFT-LCD, TN, Normally White, Transmissive	—
Resolution	640 × 480 (VGA)	dots
Active Area	129.6 (H) × 97.44 (V)	mm
Outline Dimension	175 (H) × 126.5 (V) × 12.5 (D)	mm
Brightness	400 (Typ.)	cd/m²
Contrast Ratio	180 : 1 (Typ.)	—
Viewing Angle	60/60/40/55 (Typ., CR≥10)	deg
Display Colors	262,144 (18-bit RGB)	colors
Pixel Configuration	RGB Vertical Stripe	—
Dot Pitch	0.0675 (H) × 0.203 (V)	mm
Pixel Pitch	0.203 (H) × 0.203 (V)	mm
Response Time	30 (tr) / 50 (td) (Max.)	ms
Backlight	CCFL (2 lamps), 20,000 hours	—
Interface	Parallel RGB (1-ch 6-bit), 31 pins, TTL level	—
Input Voltage	5.0 (Typ.)	VDC
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +70	°C
Weight	335 ± 10	g

Applications

Industrial Control Panels: For factory automation, PLC HMIs, and CNC machinery.
Medical Devices: Used in patient monitors, diagnostic equipment, and portable medical instruments.
Automotive Displays: Suitable for in-vehicle infotainment, dashboards, and rear-seat entertainment systems.
Marine & Outdoor Equipment: For navigation systems, weather stations, and outdoor kiosks (with proper enclosure).
Retail & POS Systems: Applied in point-of-sale terminals, self-service kiosks, and digital signage.
Embedded & Computing: For industrial PCs, thin clients, and legacy display upgrades.
