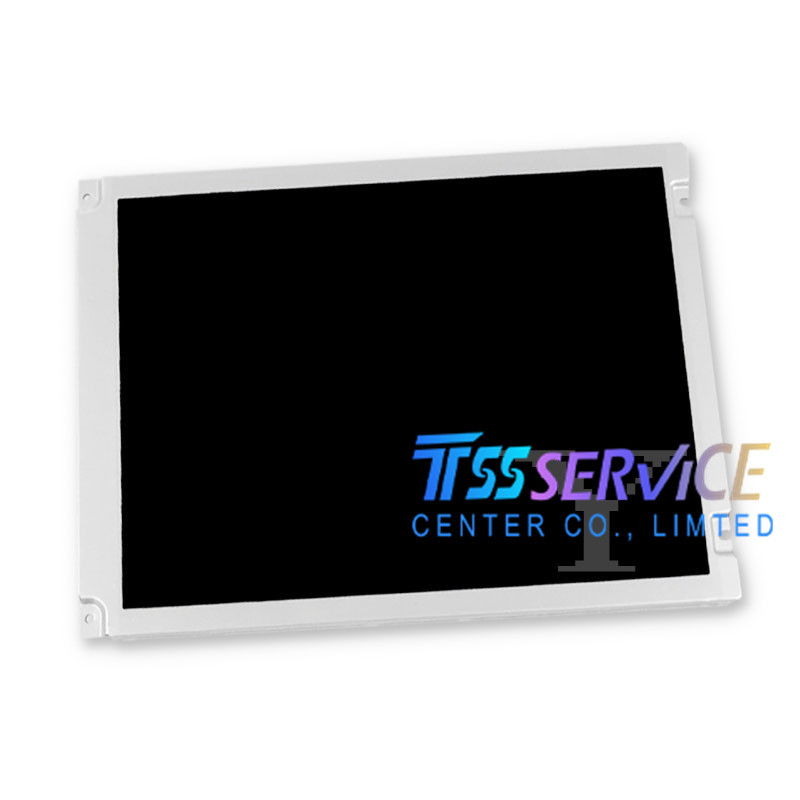

10.4 Inch Kyocera /Optrex T-51513D104J-FW-A-AKN 640×480 Industrial TFT LCD Screen

Name: 10.4 Inch Kyocera /Optrex T-51513D104J-FW-A-AKN 640×480 Industrial TFT LCD Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51513D104J-FW-A-AKN
Price: 70 USD
Availability: InStock

SKU: T-51513D104J-FW-A-AKN

Model Number: T-51513D104J-FW-A-AKN
Brand: KYOCERA / OPTREX
Diagonal Size: 10.4 Inch
Native Resolution: 640(RGB) × 480 VGA, 4:3 Aspect Ratio, 76 PPI
Panel Technology: a-Si TN TFT-LCD, Normally White Transmissive

0.0 (0 Reviews)

0 Sold

~~$78.00~~ $70.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

10.4 Inch Kyocera /Optrex T-51513D104J-FW-A-AKN 640×480 Industrial TFT LCD Screen

Item	Specification Parameter
Model Number	T-51513D104J-FW-A-AKN
Brand	KYOCERA / OPTREX
Diagonal Size	10.4 Inch
Native Resolution	640(RGB) × 480 VGA, 4:3 Aspect Ratio, 76 PPI
Panel Technology	a-Si TN TFT-LCD, Normally White Transmissive
Backlight	Dual CCFL Cold Cathode Lamps, 50,000 Hours Lifespan, No Built-in Driver
Typical Brightness	380 cd/m²
Contrast Ratio	400:1 (Typical)
Viewing Angle L/R/U/D (CR≥10)	80° / 80° / 70° / 80°
Color Depth	262K Colors (6-bit Single Channel)
Response Time Tr/Td	9ms / 16ms
Refresh Rate	60Hz
Signal Interface	Single Channel CMOS TTL 6-bit, 31Pin FPC Connector
Logic Supply Voltage	3.3V Industrial Standard
Active Display Area	211.2 (W) × 158.4 (H) mm
Overall Outline Dimension	215.4 (W) × 161.8 (H) × 12.5 (T) mm
Net Weight	Approx 570g
Surface Treatment	2H Hard Anti-Reflection Coating, Anti-scratch
Touch Function	Without touch digitizer
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-20℃ ~ +80℃

Applications

Legacy Industrial HMI & CNC Automation Equipment
Vintage CNC machine operation panels, discontinued PLC control terminals, old injection molding machine display screens, packaging machinery HMI, robotic controller monitors, assembly line industrial monitoring consoles.
Medical Diagnostic & Monitoring Instruments
Legacy patient bedside monitors, clinical lab analyzers, vintage ECG diagnostic devices, medical infusion control terminals, veterinary medical testing equipment.
Laboratory Precision Test & Measuring Instruments
Oscilloscope auxiliary displays, spectrum analyzers, power quality monitoring testers, optical inspection equipment, environmental gas detection analyzers, industrial pipeline inspection monitors.
Construction & Agricultural Engineering Machinery Displays
Forklift parameter dashboards, tractor control panels, mini excavator operation screens, engineering vehicle secondary monitoring terminals, agricultural spraying machine display modules.
Industrial Self-service & Special Monitoring Devices
Old industrial vending machine control screens, factory access control monitoring panels, mining safety parameter displays, marine miniature instrument terminals, fixed industrial environmental monitoring equipment.
