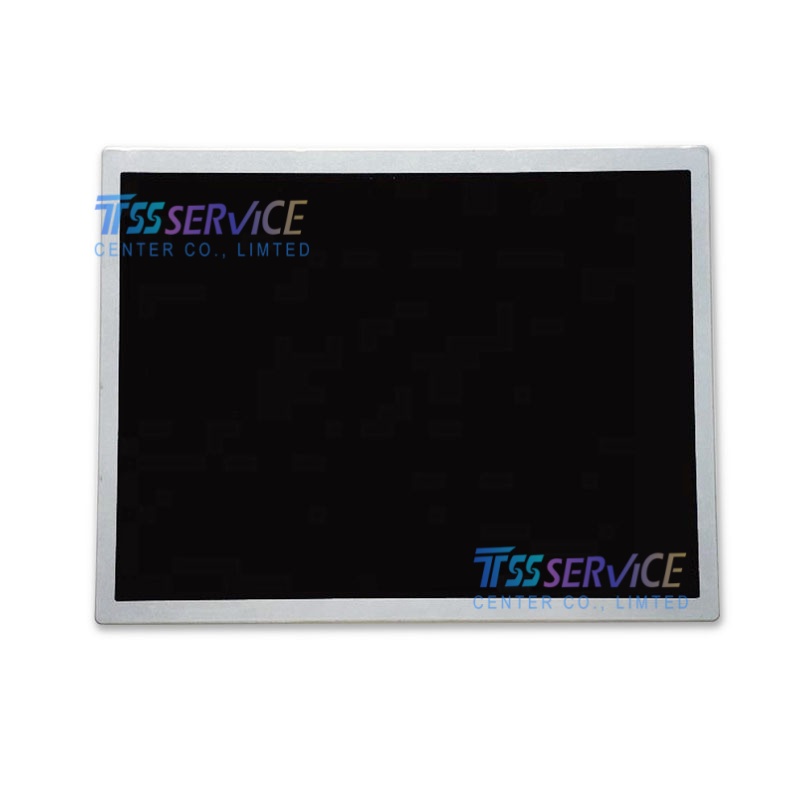

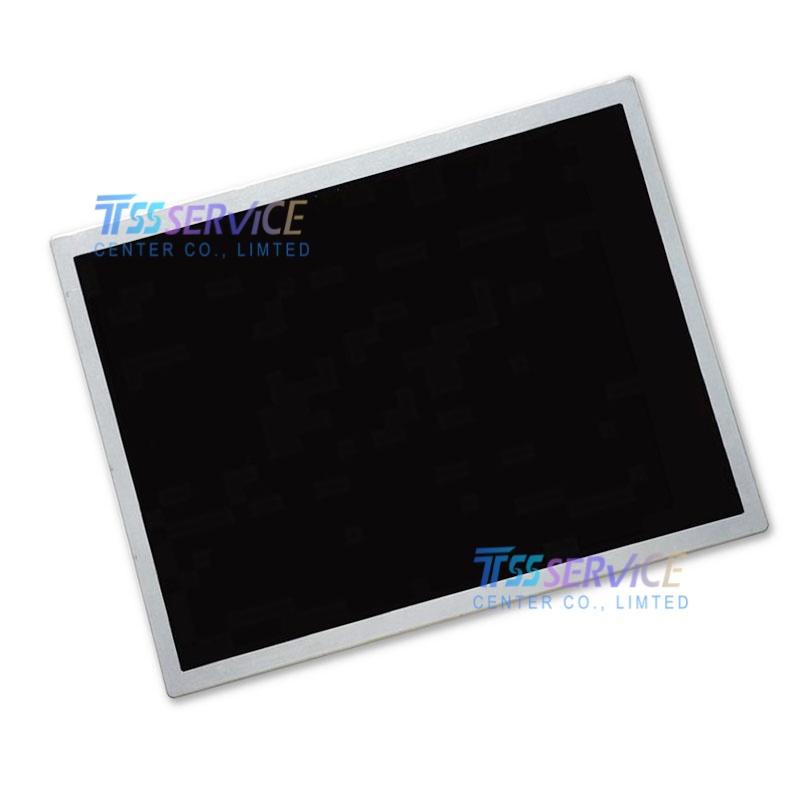

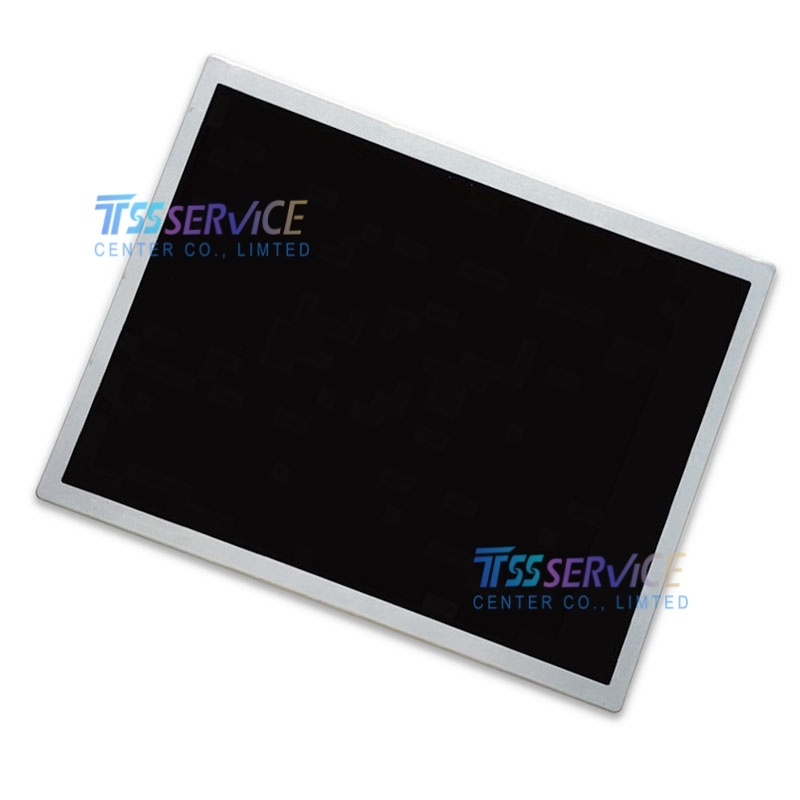

T-51513D104J-LW-A-ANN OPTREX 10.4 Inch LCD Panel Screen For Industrial

Name: T-51513D104J-LW-A-ANN OPTREX 10.4 Inch LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51513D104J-LW-A-ANN
Price: 300 USD
Availability: InStock

SKU: T-51513D104J-LW-A-ANN

Model P/N: T-51513D104J-LW-A-ANN
Diagonal Size: 10.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA 96PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$310.00~~ $300.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

T-51513D104J-LW-A-ANN OPTREX 10.4 Inch LCD Panel Screen For Industrial

Parameter Category	Parameter Name	Specification	Unit
Basic Information	Model	T-51513D104J-LW-A-ANN	-
	Brand	Kyocera (OPTREX)	-
	Panel Type	a‑Si TFT‑LCD, TN Mode, Normally Black, Transmissive	-
	Diagonal Size	10.4	Inch
	Resolution	800 (RGB) × 600 (SVGA)	Pixels
	Aspect Ratio	4:3	-
	Pixel Pitch	0.264 × 0.264	mm
	Pixel Format	RGB Vertical Stripe	-
	PPI	96	-
Optical Performance	Brightness	600 (Min.)	cd/m²
	Contrast Ratio	1000:1 (Typ.)	-
	Response Time	10/30 (Typ.) (Tr/Td)	ms
	Viewing Angle (L/R/U/D)	85°/85°/85°/85° (Typ., CR≥10)	-
	Color Depth	16.7M Colors	-
	Surface Treatment	Clear, Hard Coating	-
Electrical & Interface	Interface	Single‑channel LVDS (1ch, 6/8‑bit), 20 Pins	-
	Supply Voltage (VDD)	3.3 (Typ.)	V
	Backlight Type	WLED (Edge‑Lit, Built‑in Driver)	-
	Backlight Lifetime	100,000 (Typ.)	Hours
	Frame Rate	60 (Typ.)	Hz
Mechanical & Environment	Active Area	211.2 (W) × 158.4 (H)	mm
	Outline Dimension	230.0 (W) × 180.2 (H) × 10.6 (D)	mm
	Weight	470 ± 10 (Typ.)	g
	Operating Temperature	-30 ~ +80	°C
	Storage Temperature	-30 ~ +80	°C
	Vibration Resistance	1.0G (9.8 m/s²)	-

Key Features Summary:

High Brightness: 600 cd/m² minimum brightness for enhanced visibility in bright environments.
Wide Temperature Range: Operates reliably from -30°C to +80°C for harsh industrial use.
Fast Response: 10/30 ms response time for smooth dynamic content display.
Built‑in LED Driver: Simplifies backlight control and system design.
Long Lifespan: 100,000‑hour backlight life for extended service life.
