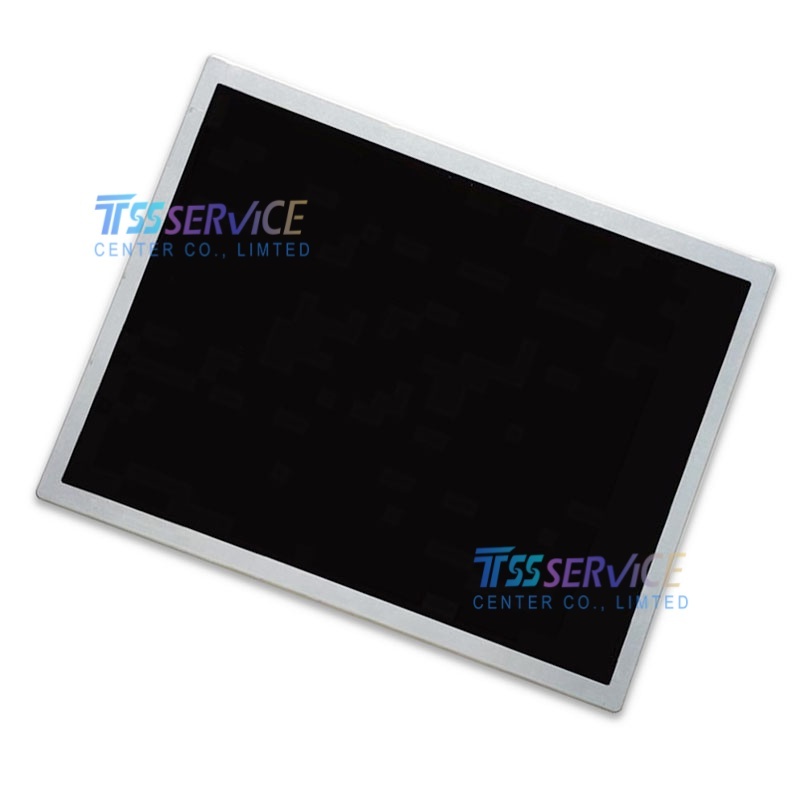

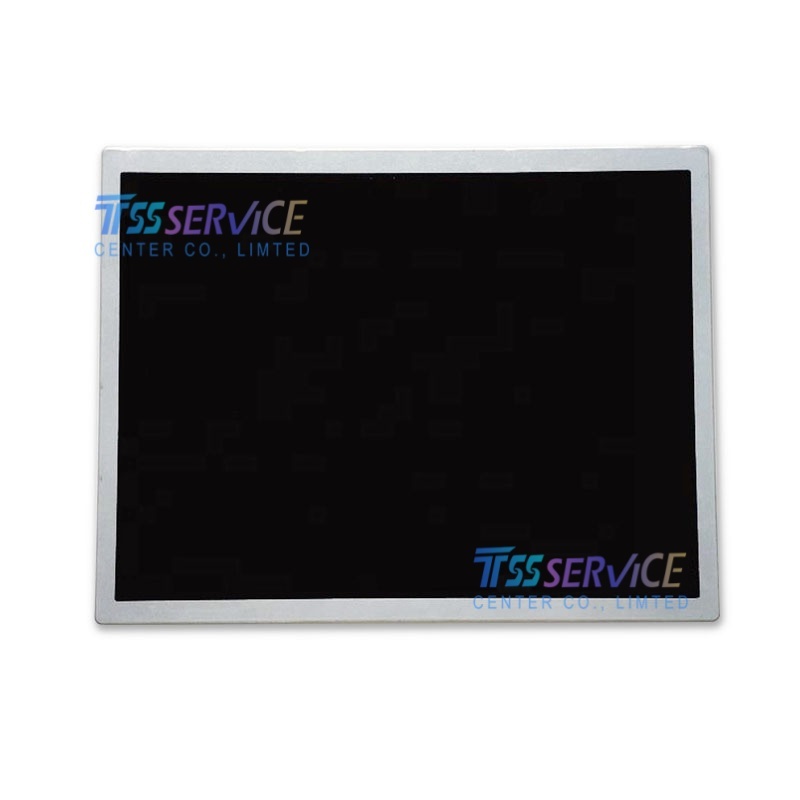

T-51513D104J-LW-A-ANN OPTREX 10.4" SVGA Industrial LCD Display for OPTREX

Name: T-51513D104J-LW-A-ANN OPTREX 10.4" SVGA Industrial LCD Display for OPTREX
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51513D104J-LW-A-ANN
Price: 300 USD
Availability: InStock

SKU: T-51513D104J-LW-A-ANN

1，Condition: New，Grade A

2，Description: T-51513D104J-LW-A-ANN 10.4inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$310.00~~ $300.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The T-51513D104J-LW-A-ANN is a 10.4-inch a-Si TFT-LCD module originally manufactured by OPTREX (now part of Mitsubishi Electric) . This model is also known by the alternative part number AA104SJ02 from Mitsubishi. It is a high-performance industrial LCD display designed for demanding applications requiring excellent optical performance and rugged reliability .

Parameter	Description
Brand	OPTREX
Model P/N	T-51513D104J-LW-A-ANN
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Outline Dim.	230(H)×180.2(V)×10(D) mm
Luminance	600 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	262K/16.7M 72% NTSC
Light Source	WLED, 100K hours, With LED Driver
Weight	450g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit) Connector
Power Supply	3.3V (Typ.)
Operating Temperature	-30 ~ 80 °C
Storage Temperature	-30 ~ 80 °C

Typical Applications:

Industrial Automation: Human-Machine Interface (HMI) terminals and control panels
Outdoor Kiosks: Information terminals exposed to wide temperature variations
Marine and Transportation: Navigation displays and vehicle-mounted systems
Medical Equipment: Patient monitors and diagnostic devices
Digital Signage: Professional indoor and semi-outdoor displays
