Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..

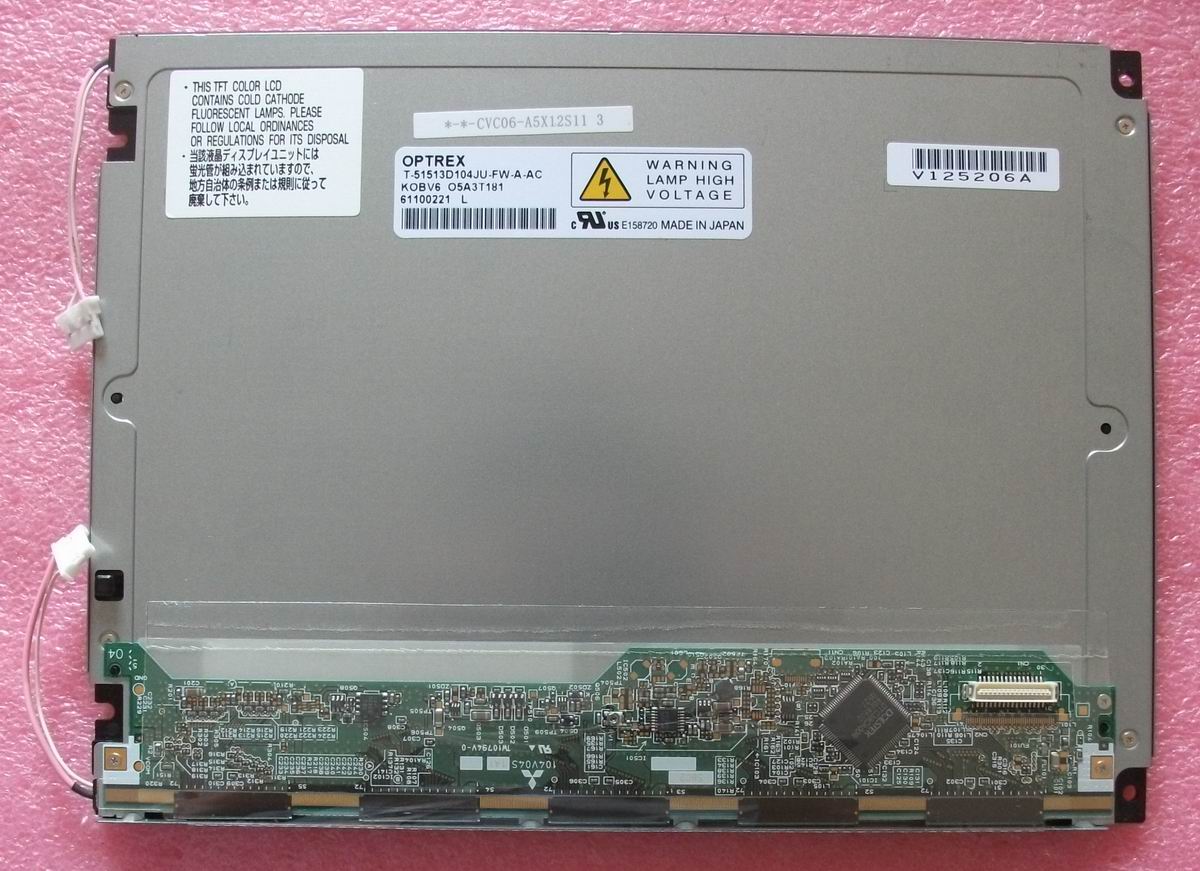

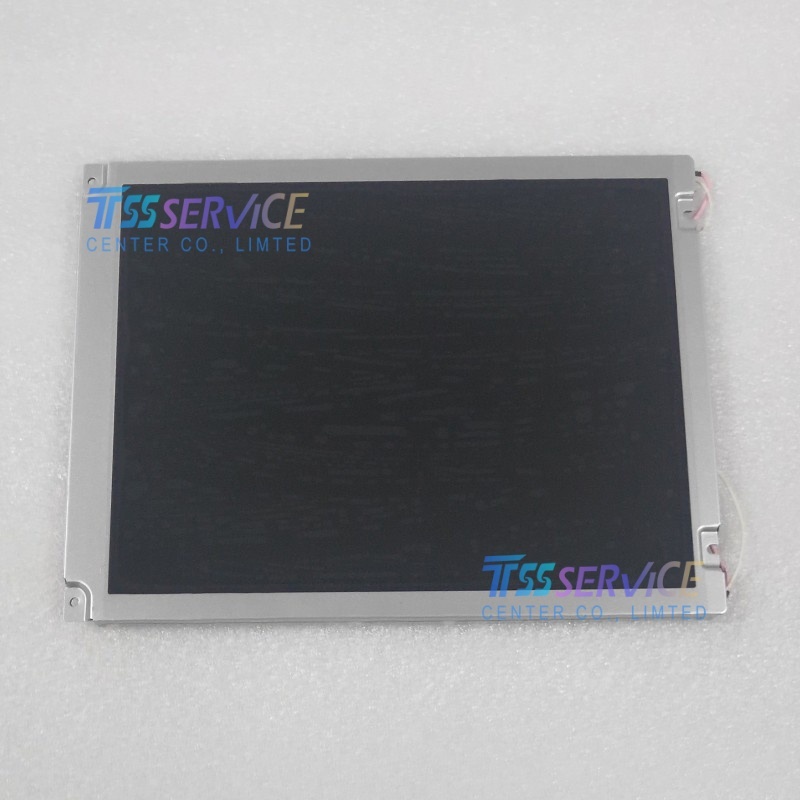

| Brand | OPTREX |
| Model P/N | T-51513D104JU-FW-A-AC |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm |
| Outline Dim. | 243(H)×181.6(V)×12.7(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 430 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/65/45 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 40% NTSC |
| Light Source | CCFL [2 pcs], 50K hours, W/O Driver |
| Weight | 540g (Typ.) |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | CMOS (1 ch, 6-bit), 31 pins Connector |
| Power Supply | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating Temperature: -20 ~70 °C; Storage Temperature: -20 ~80 °C |
