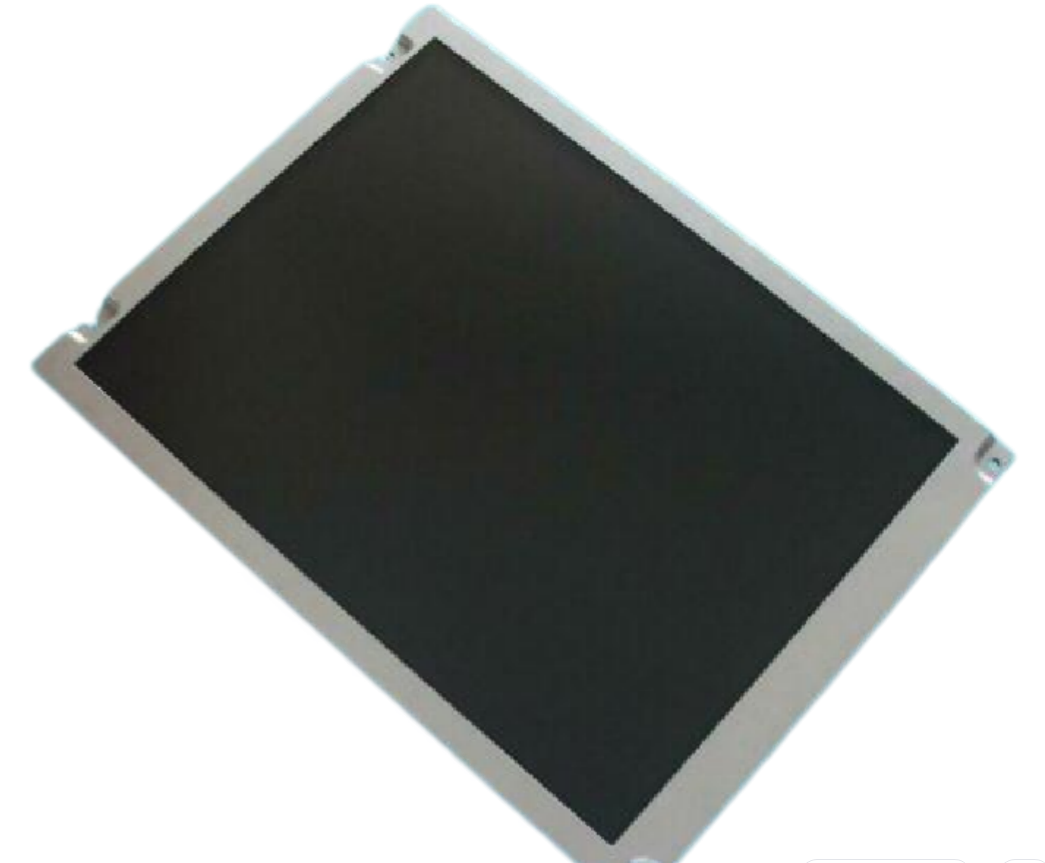

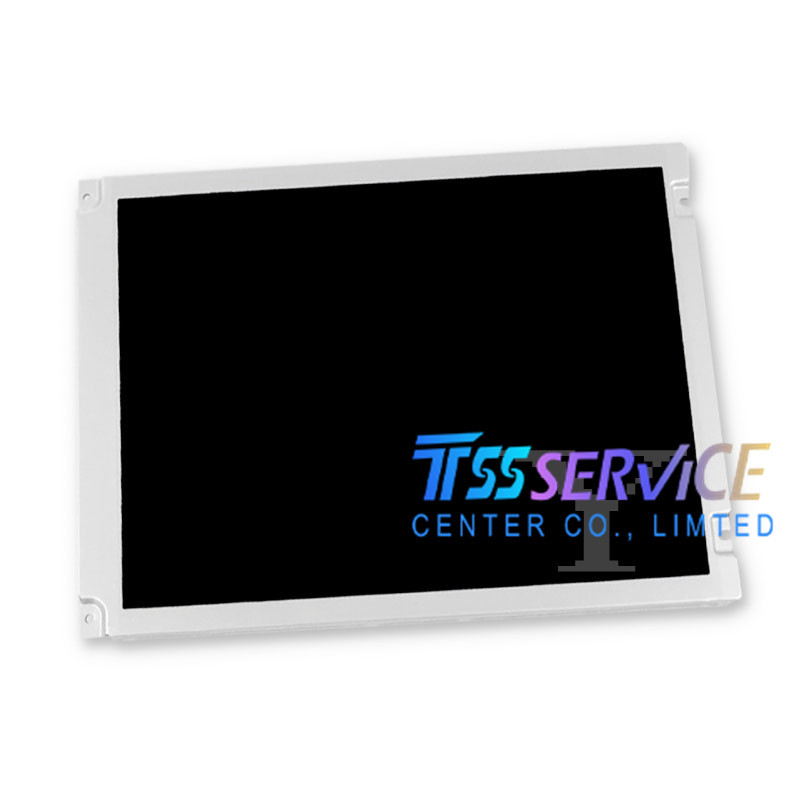

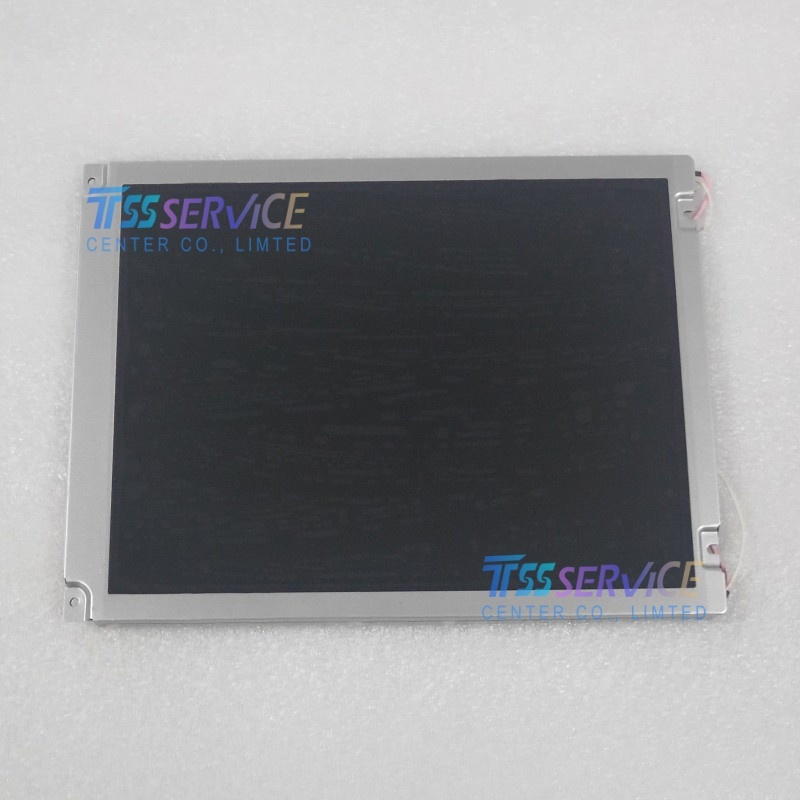

OPTREX T-51513D104JU-FW-A-AHN 10.4 Inch 640×480 Industrial TFT LCD Panel

Name: OPTREX T-51513D104JU-FW-A-AHN 10.4 Inch 640×480 Industrial TFT LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51513D104JU-FW-A-AHN
Price: 180 USD
Availability: InStock

SKU: T-51513D104JU-FW-A-AHN

Model No.: T-51513D104JU-FW-A-AHN
Diagonal Size: 10.4 inch
Display Type: a-Si TFT-LCD LCM, TN Normally White, Transflective
Resolution: 640(RGB) × 480 (VGA, 4:3), RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$185.00~~ $180.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

OPTREX T-51513D104JU-FW-A-AHN 10.4 Inch 640×480 Industrial TFT LCD Panel

Parameter Item	Specific Specification
Model No.	T-51513D104JU-FW-A-AHN
Brand	OPTREX
Diagonal Size	10.4 inch
Display Type	a-Si TFT-LCD LCM, TN Normally White, Transflective
Resolution	640(RGB) × 480 (VGA, 4:3), RGB Vertical Stripe
Active Area	211.2(H) × 158.4(V) mm
Dot Pitch	0.33 × 0.33 mm
Overall Physical Size	243(H) × 181.6(V) × 12.7(D) mm
Typical Mass	570g
Surface Coating	Antiglare Hard Coating (3H)
Typical Luminance	430 cd/m²
Typical Contrast Ratio	600:1 (TM)
View Direction	12 o'clock
Response Time	Tr=6ms / Td=19ms (Typ.)
Viewing Angle (CR≥10)	Horizontal 60°/60°, Vertical 65°/45°
Display Color	262K Colors, 40% NTSC
Typical Power Consumption	6.5W
Backlight	2 pcs CCFL, 50,000hrs lifespan, No built-in driver (External inverter required)
Frame Rate	60Hz
Touch Panel	Without Touch Glass
Interface Type	CMOS Single Channel 6-bit, 31 Pins Connector
Supply Voltage	3.3V (Typ.)
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-20℃ ~ +80℃

Application

Outdoor CNC, construction machinery & forklift on-board control terminals (sunlight readable transflective screen)
Vintage CNC lathe, milling, EDM machine original control panel replacement
Outdoor charging pile, factory outdoor assembly line monitoring HMI
Injection molding, textile, packaging automation operation display
Portable field medical diagnostic instruments & outdoor test measuring equipment
Laboratory visual inspection devices, industrial flaw detection terminals
Printing, welding, marine small monitoring embedded display modules
Old-generation PLC cabinet human-machine interface, legacy industrial control computers
