T-51866D121J-FW-A-ABN 12.1inch 800×600 LCD Display Panel for OPTREX

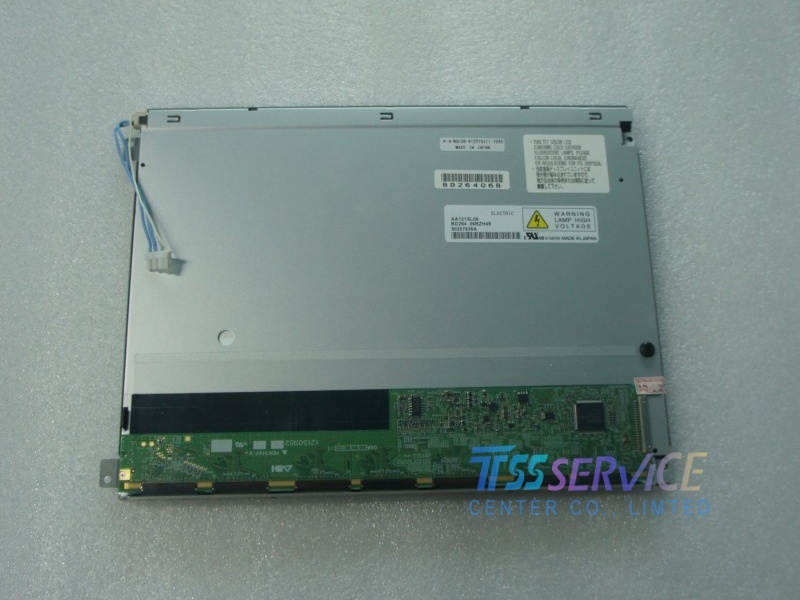

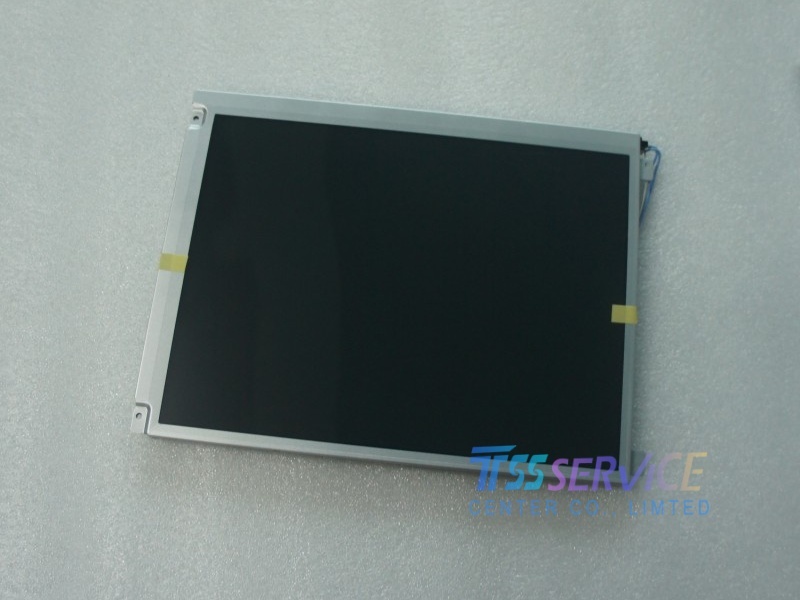

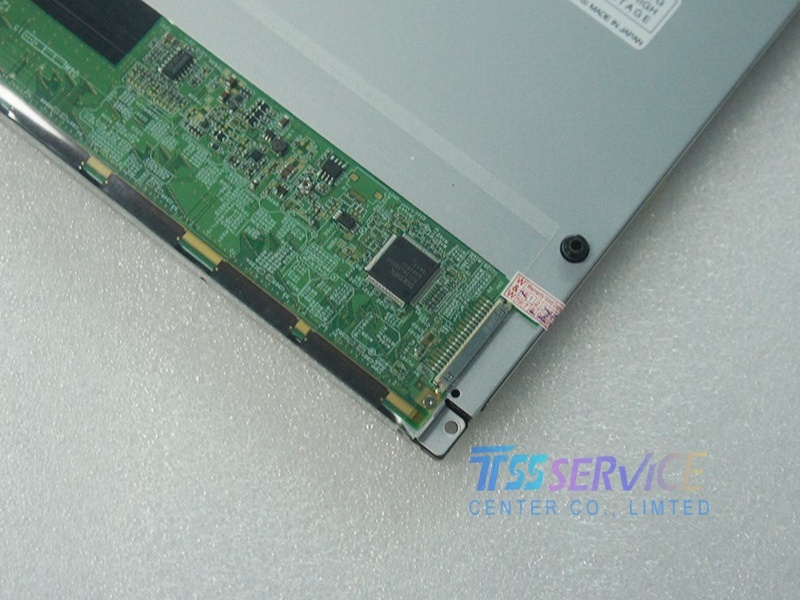

Name: T-51866D121J-FW-A-ABN 12.1inch 800×600 LCD Display Panel for OPTREX
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51866D121J-FW-A-ABN
Price: 85 USD
Availability: InStock

SKU: T-51866D121J-FW-A-ABN

1，Condition: New，Grade A

2，Item: T-51866D121J-FW-A-ABN 12.1 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $85.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The T-51866D121J-FW-A-ABN is a 12.1-inch a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module, originally manufactured by OPTREX and now associated with Kyocera Display America, Inc. . This industrial-grade display module is designed for demanding applications requiring reliable performance and clear visibility.

Brand	OPTREX
Model P/N	T-51866D121J-FW-A-ABN
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA, 82 PPI
Pixel Format	RGB Vertical Stripe
Active Area	246(W) × 184.5(H) mm
Bezel Opening	249.0(W) × 187.5(H) mm
Outline Size	280(W) × 210(H) × 12.5(D) mm
Surface	Hard coating (2H), Antireflection
Brightness	400 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	60/60/45/75 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	6/19 (Typ.)(Tr/Td) ms
Display Colors	262K/16.7M, 40% NTSC
Lamp Type	2 pcs CCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	720g (Typ.)
Signal Interface	LVDS (1 ch, 6/8-bit), 20-pin Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70°C; Storage Temp.: -20 ~ 80°C
