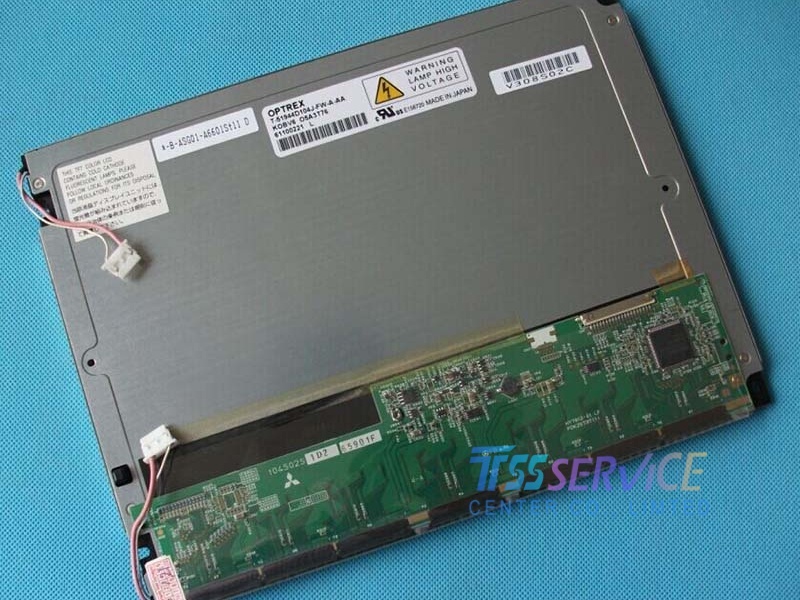

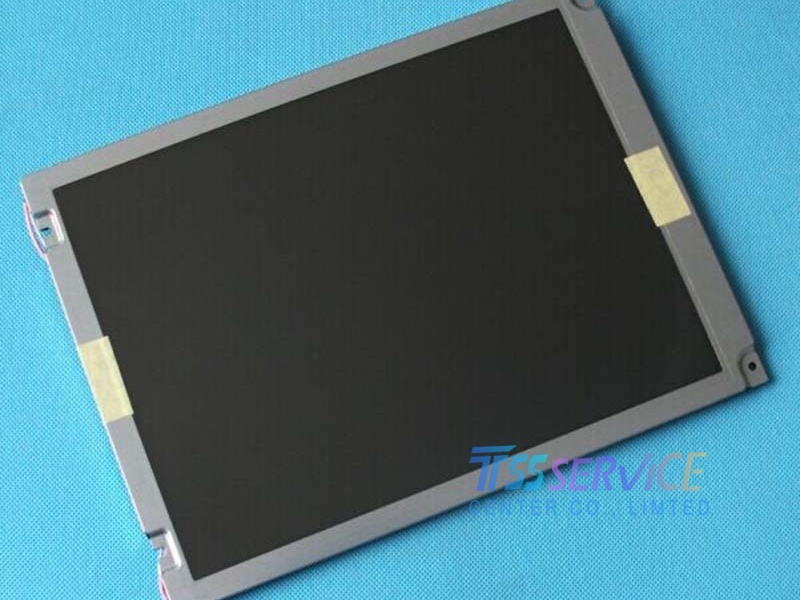

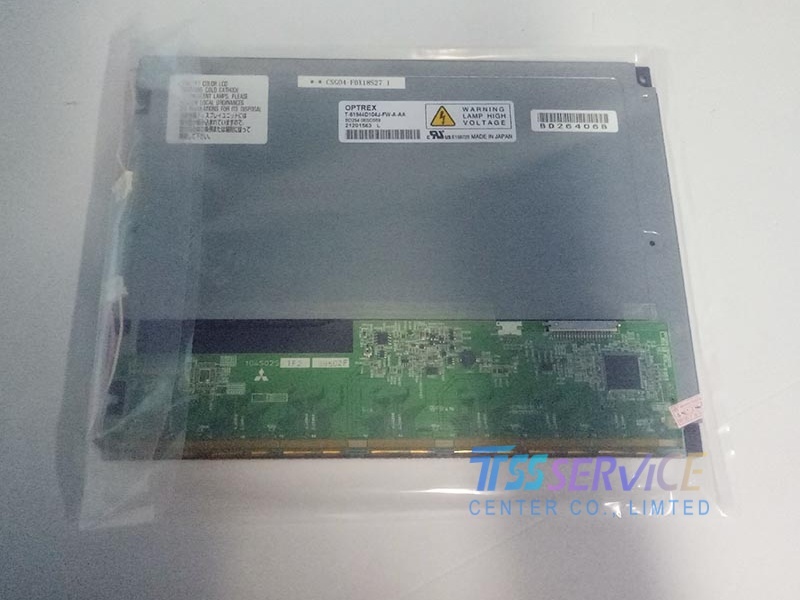

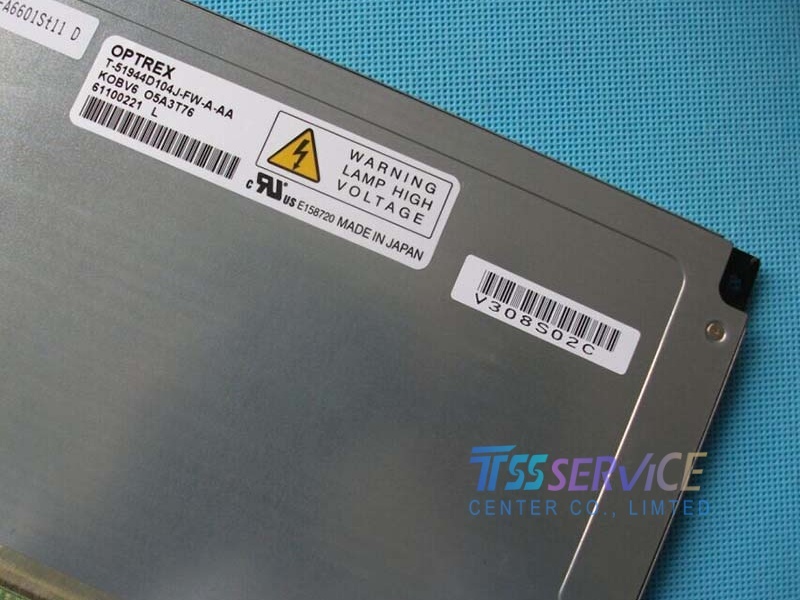

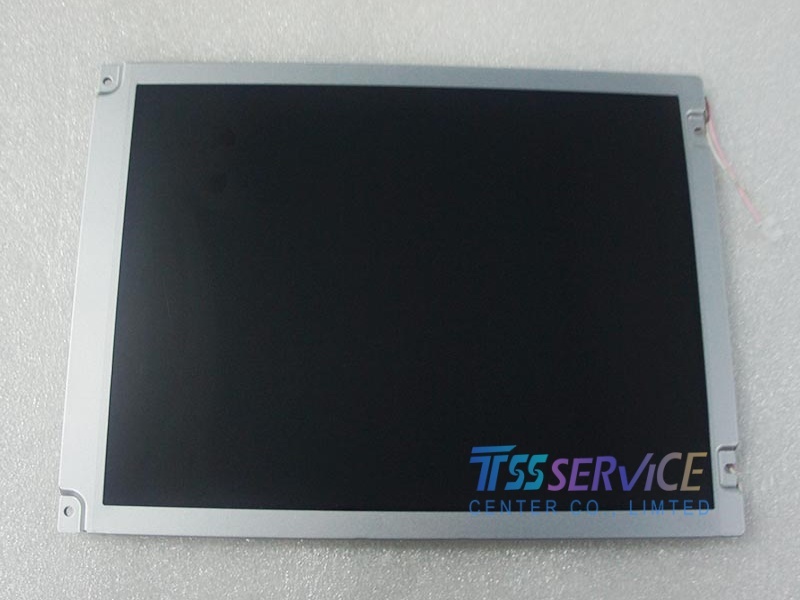

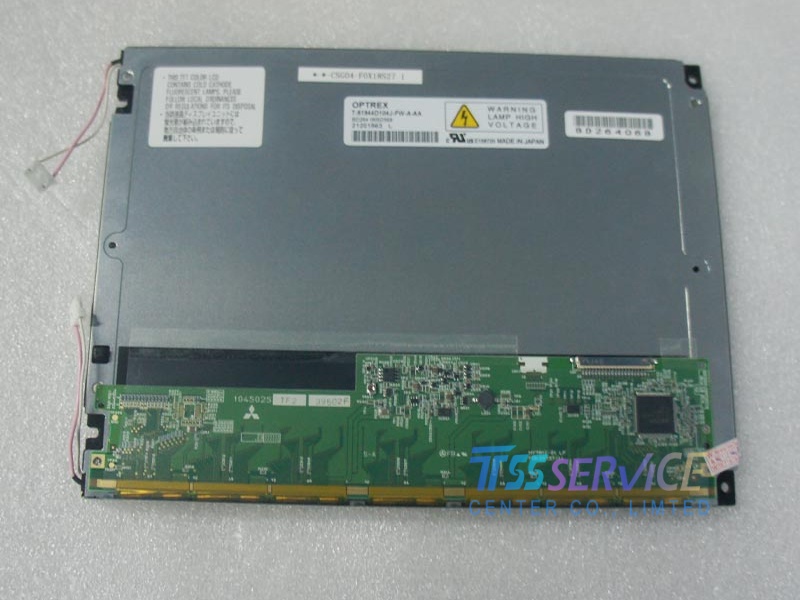

Part no : T-51944D104J-FW-A-AA
Brand : OPTREX
INCH : 10.4 Inch
Resolution 800x600
LCD Panel for Industrial Machine
| Parameter | Specification |
|---|---|
| Model Number | T-51944D104J-FW-A-AA (Alternative: AA104SG01) |
| Manufacturer | Optrex / Mitsubishi Electric / Kyocera |
| Display Type | 10.4-inch TFT LCD (Thin Film Transistor) |
| Resolution | 800 x 600 pixels (VGA) |
| Pixel Pitch | approx. 0.264 mm (H) x 0.264 mm (V) |
| Display Mode | Normally White, Transmissive |
| Color Depth | 262K colors (6-bit) or 16.7M colors (depending on specific driver config) |
| Interface Type | TTL (Transistor-Transistor Logic) Parallel Interface |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) |
| Brightness | Typically 100 ~ 300 cd/m² (nits) |
| Contrast Ratio | Approx. 400:1 to 500:1 |
| Viewing Angle | 12 o'clock direction (Top view optimized) or Wide View |
| Operating Temperature | -20°C to +70°C (Standard); Wide temp versions available |
| Storage Temperature | -30°C to +80°C |
| Outline Dimensions | Approx. 247.0 x 190.0 x 12.5 mm (varies slightly by revision) |
| Active Area | 211.2 x 158.4 mm |
| Mounting | Screw holes on bezel for secure panel mounting |
