OPTREX 6.5 inch 640×480 T-51952D065J-FW-A-ADN LCD Display Screen For Industrial

Name: OPTREX 6.5 inch 640×480 T-51952D065J-FW-A-ADN LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51952D065J-FW-A-ADN
Price: 168 USD
Availability: InStock

SKU: T-51952D065J-FW-A-ADN

Model No.: T-51952D065J-FW-A-ADN
Screen Size: 6.5 inch
Screen Type: a-Si TFT-LCD, LCM
Number of dots: 640(RGB)×480, 4:3, VGA
Pixel Structure: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$175.00~~ $168.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

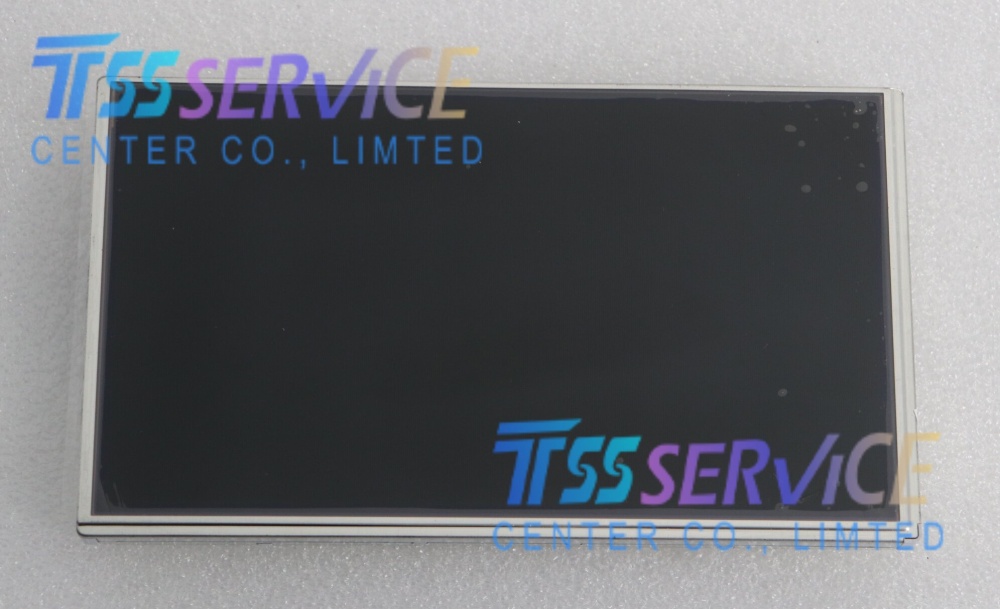

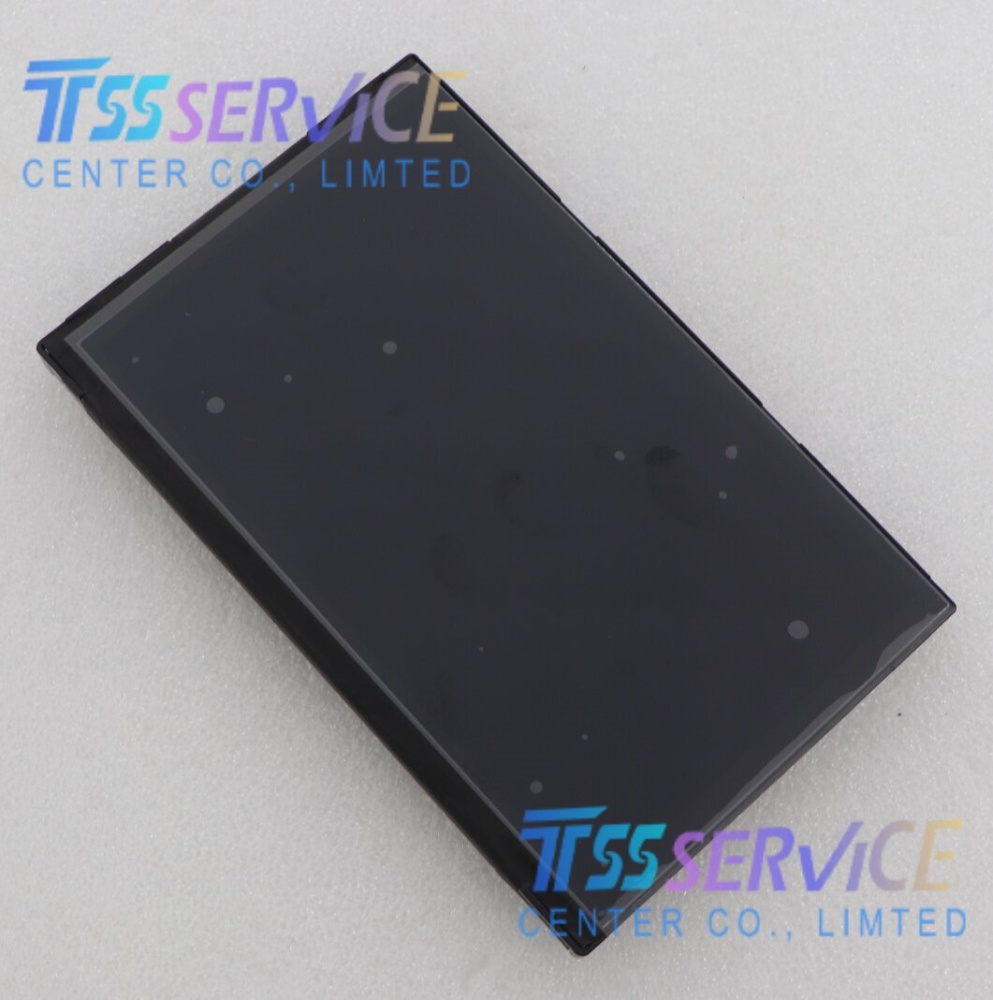

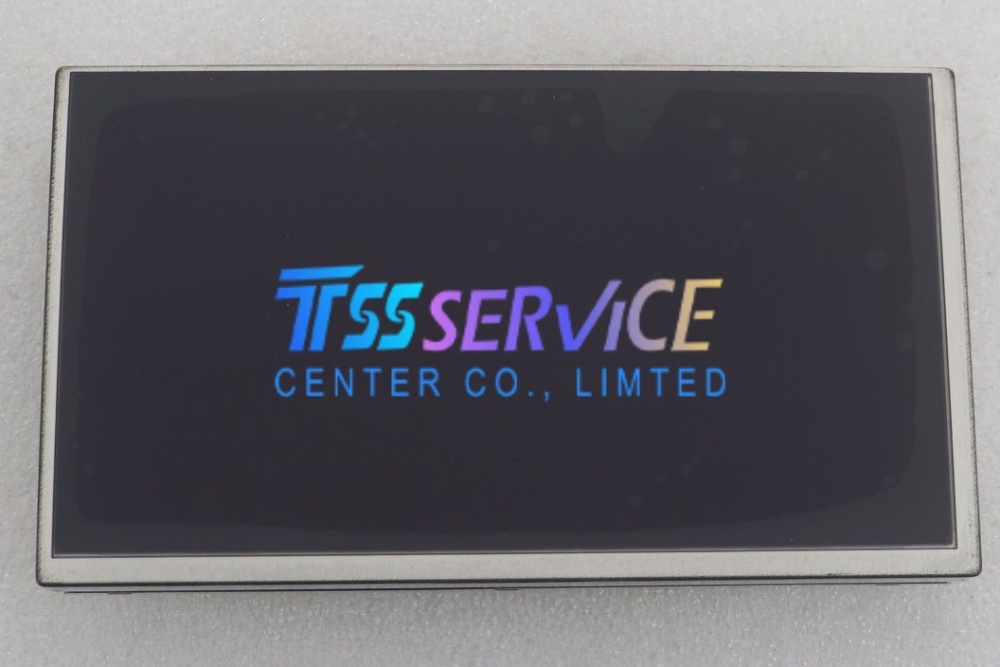

OPTREX 6.5 inch 640×480 T-51952D065J-FW-A-ADN LCD Display Screen For Industrial

Parameter	Specification
Model	T-51952D065J-FW-A-ADN
Brand	Kyocera（OPTREX）
Size	6.5 inches
Display Type	a‑Si TFT‑LCD, TN, Normally White, Transmissive
Resolution	640 × 480 pixels（VGA）, 122PPI
Active Area	132.48 × 99.36 mm
Outline Dimensions	154 × 121 × 12 mm
Brightness	600 cd/m²（typical）
Contrast Ratio	700:1（typical）
Viewing Angle（L/R/U/D）	80°/80°/80°/60°（CR≥10）
Colors	262K（6‑bit RGB）
Backlight	CCFL（2 lamps）, 50,000 hrs lifespan
Interface	CMOS 31‑pin（1 ch 6‑bit, TTL level）
Supply Voltage	3.3V（VCC）
Response Time	6 ms（tr）/ 19 ms（td）
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-20°C ~ +80°C
Weight	205 g（typical）
Features	High brightness, industrial grade, wide temperature, matte hard coating（3H）, RoHS compliant

Typical Applications

Industrial HMI & Control: CNC, PLC panels, factory automation, robotic interfaces
Medical Equipment: Patient monitors, diagnostic devices, ultrasound machines
Test & Measurement: Oscilloscopes, data loggers, industrial meters
Marine & Outdoor: Marine navigation, outdoor monitoring, agricultural/construction machinery
Rugged Displays: Vehicle dashboards, military/industrial terminals
