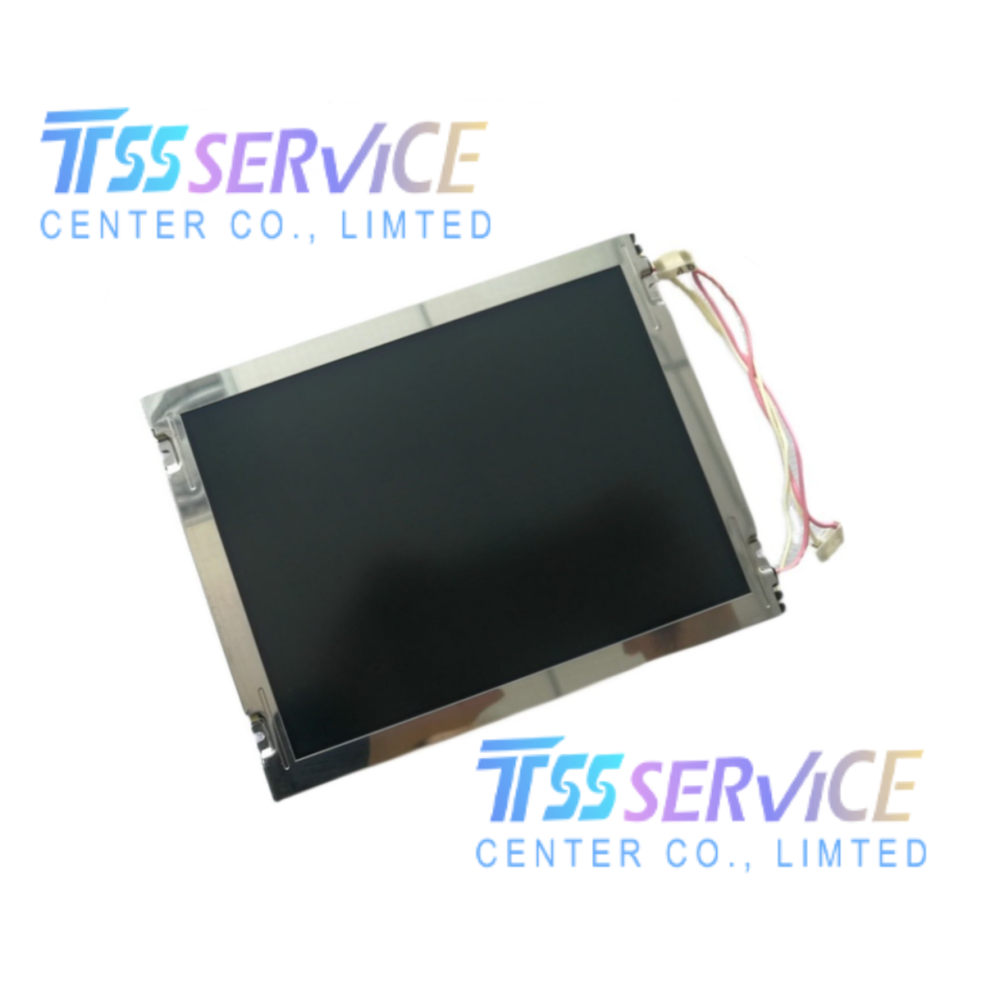

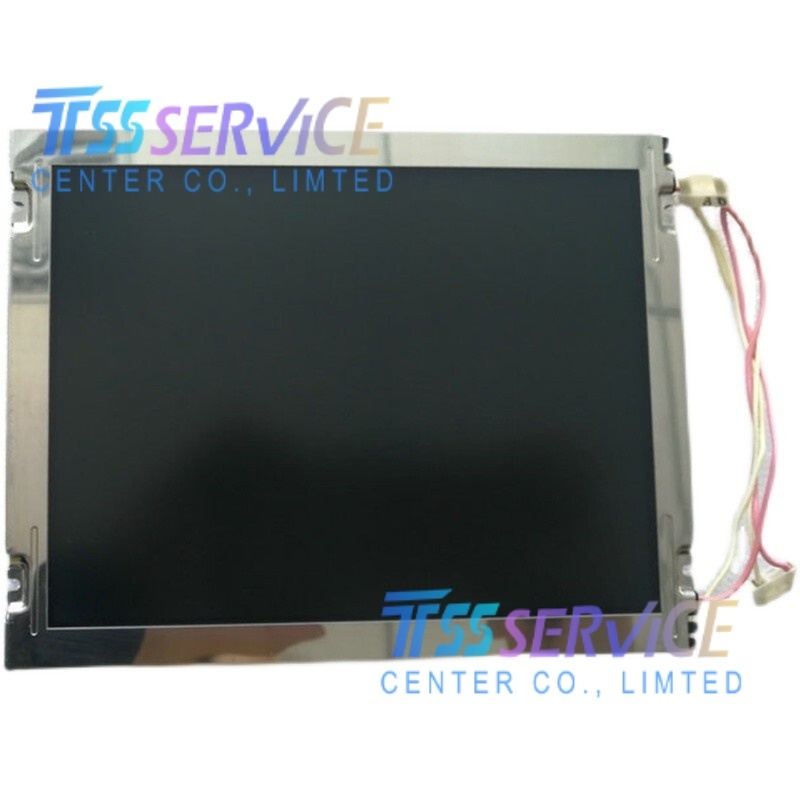

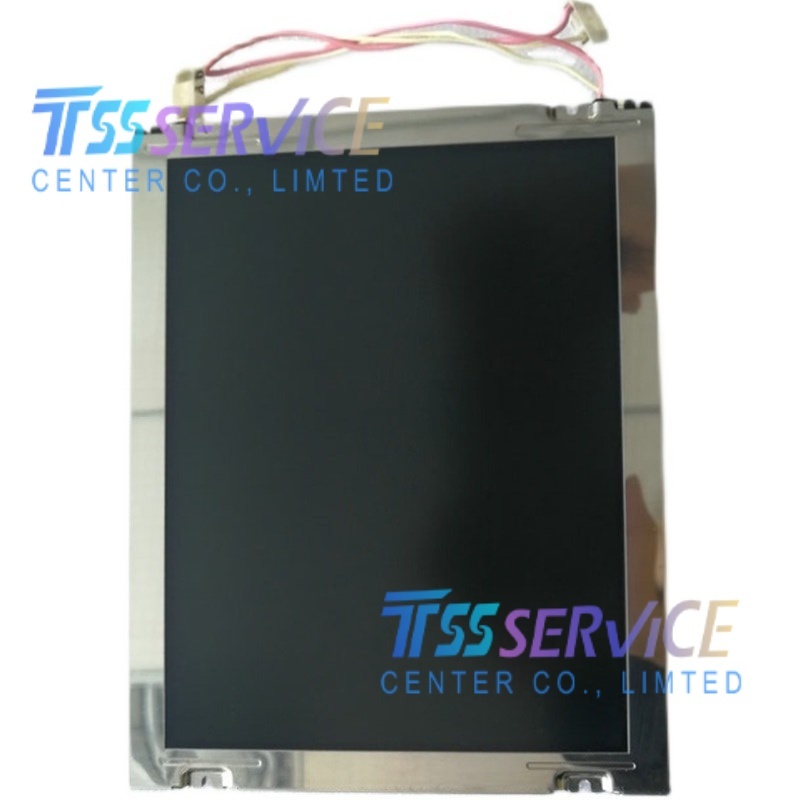

Kyocera/OPTREX T-51952D065J-FW-A-AND 6.5 inch LCD Display Screen For Industrial

Name: Kyocera/OPTREX T-51952D065J-FW-A-AND 6.5 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51952D065J-FW-A-AND
Price: 145 USD
Availability: InStock

SKU: T-51952D065J-FW-A-AND

Model: T-51952D065J-FW-A-AND
Diagonal Size: 6.5 inch
Resolution: 640×480 VGA (4:3)
Panel Type: a-Si TFT-LCD, TN, Normally White, Transmissive

0.0 (0 Reviews)

0 Sold

~~$147.00~~ $145.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera/OPTREX T-51952D065J-FW-A-AND 6.5 inch LCD Display Screen For Industrial

Parameter	Specification
Model	T-51952D065J-FW-A-AND (Kyocera/OPTREX)
Diagonal Size	6.5 inch
Resolution	640×480 VGA (4:3)
Panel Type	a-Si TFT-LCD, TN, Normally White, Transmissive
Brightness	600 cd/m² (Typ.)
Contrast Ratio	750:1 (Typ.)
Viewing Angle	65/65/50/60 (L/R/U/D, CR≥10)
Active Area	132.48 × 99.36 mm
Outline Dimension	154.0 × 121.0 × 10.5 mm (approx.)
Dot Pitch	0.207 × 0.207 mm
Color Depth	262K colors (6-bit)
Interface	CMOS (1 ch, 6-bit), 31-pin connector
Backlight	CCFL (2 lamps), 50,000 hrs lifespan, no driver
Operating Temp	−20°C ~ +70°C
Storage Temp	−30°C ~ +80°C
Surface Treatment	Hard coating (2H), Anti-Reflective (AR)
Touch Panel	Without touch
Compliance	RoHS certified
Weight	205g (Typ.)

Applications

Industrial HMI & Control: PLC panels, CNC machine tools, factory automation terminals。
Medical Devices: Diagnostic equipment, patient monitors, laboratory analyzers。
Smart Transportation: Vehicle dashboards, fleet management displays, railway control panels。
Retail & Kiosks: Industrial POS, vending machines, self-service ticketing systems。
Instrumentation & Testing: Industrial meters, data loggers, environmental monitoring devices。
Marine & Rugged Systems: Boat instrumentation, outdoor industrial terminals (sheltered)。
