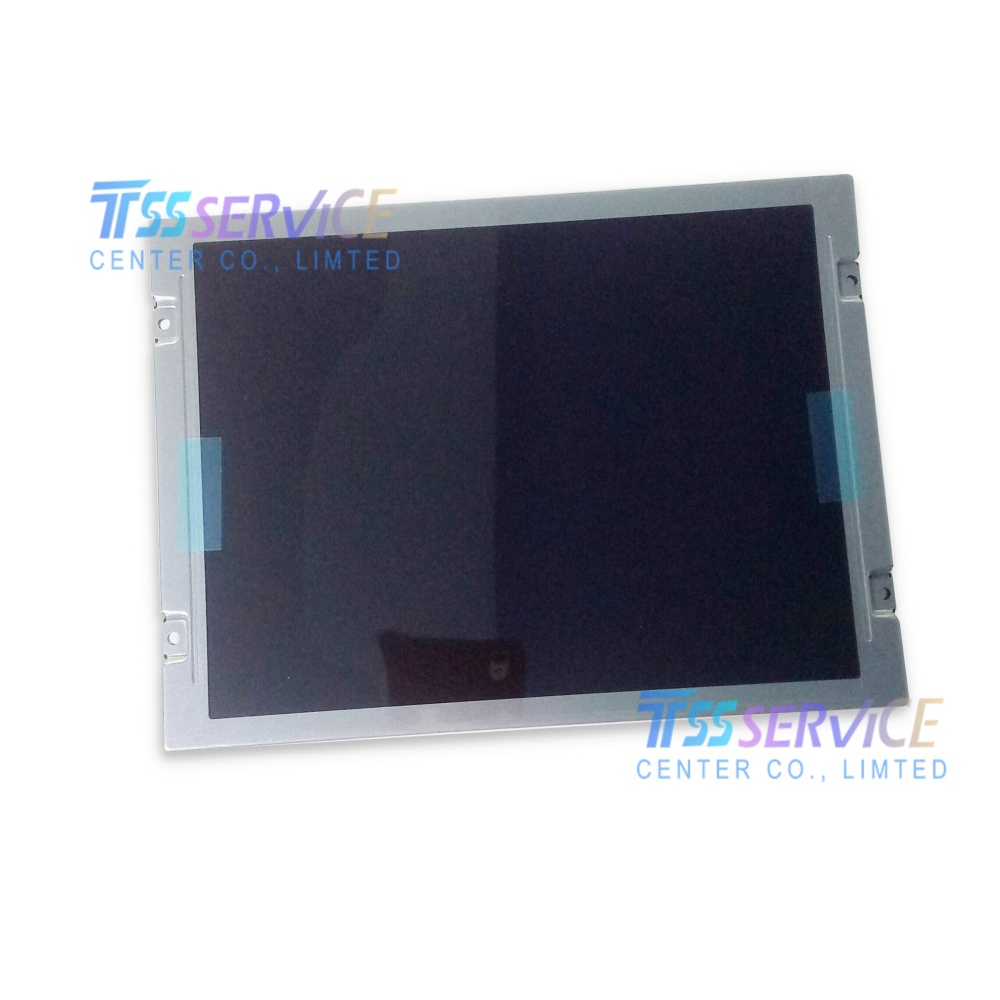

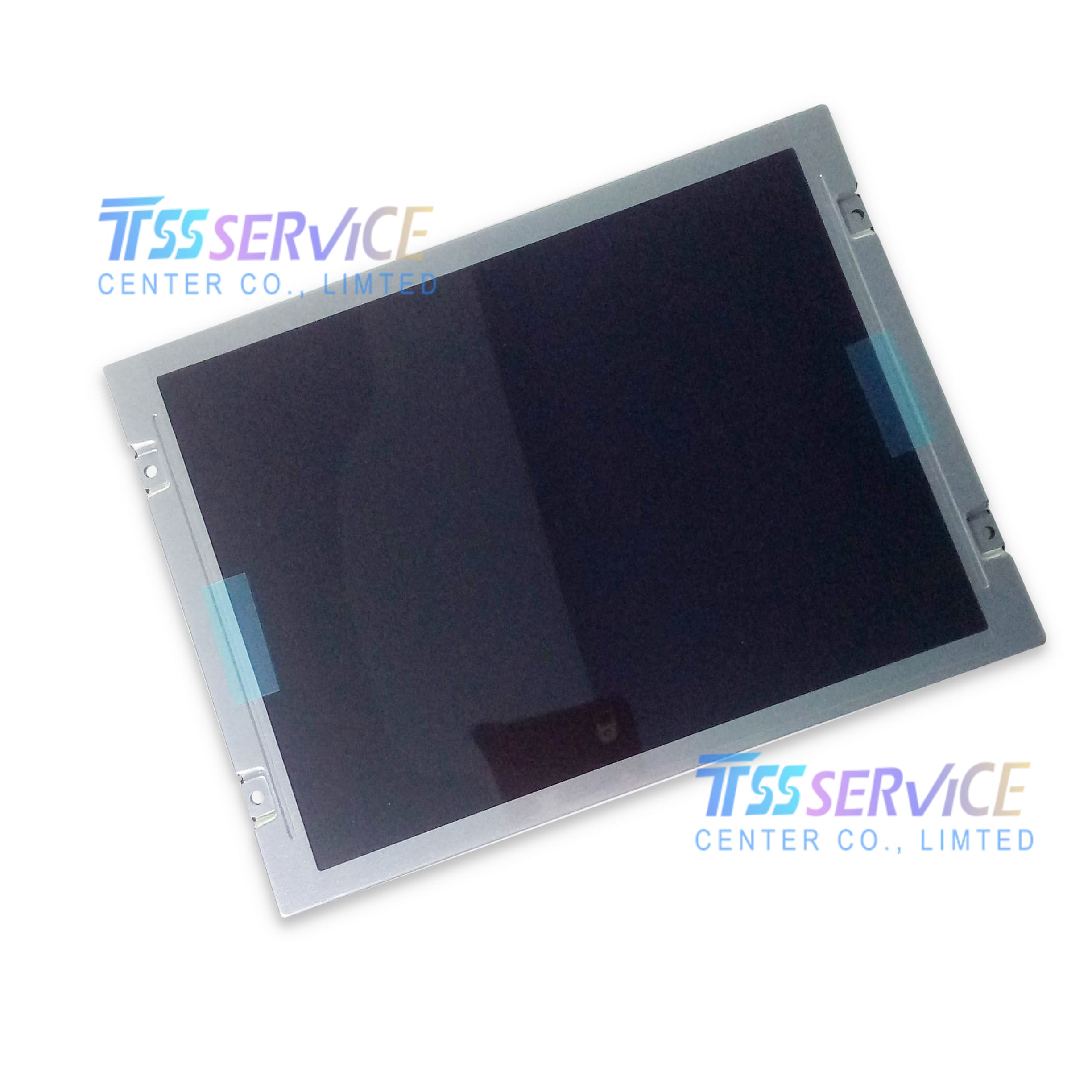

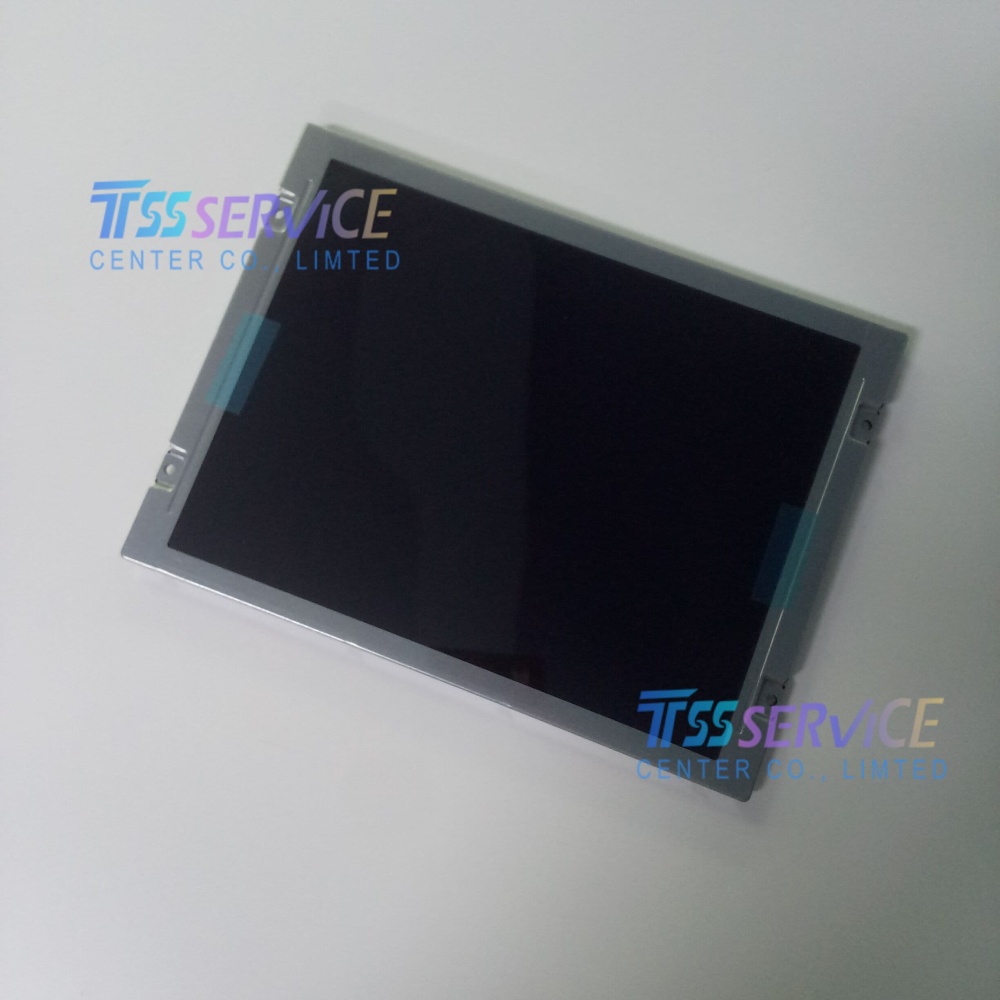

Kyocera (Optrex) T-55308D084J-FW-A-AAN 8.4 Inch 800×600 LCD Display Panel For Industrial

Name: Kyocera (Optrex) T-55308D084J-FW-A-AAN 8.4 Inch 800×600 LCD Display Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-55308D084J-FW-A-AAN
Price: 168 USD
Availability: InStock

SKU: T-55308D084J-FW-A-AAN

Model P/N: T-55308D084J-FW-A-AAN
Diagonal Size: 8.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA 119PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$170.00~~ $168.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera (Optrex) T-55308D084J-FW-A-AAN 8.4 Inch 800×600 LCD Display Panel For Industrial

Parameter	Specification	Unit
Manufacturer	Kyocera (Optrex)	-
Model Number	T-55308D084J-FW-A-AAN	-
Panel Type	a‑Si TFT‑LCD, TN, Normally White, Transmissive	-
Diagonal Size	8.4	inch
Resolution	800 (H) × 600 (V)	pixels (SVGA)
Pixel Pitch	0.213 × 0.213	mm
Pixel Arrangement	RGB Vertical Stripe	-
Active Area	170.4 (H) × 127.8 (V)	mm
Outline Dimensions	199.5 (W) × 149.0 (H) × 11.5 (D)	mm
Weight	TBD	g
Surface Treatment	Anti‑glare (AG), Hard Coating (3H)	-
Brightness	400	cd/m² (Typ.)
Contrast Ratio	600:1	(Typ.)
Response Time	4/12	ms (Typ.)
Viewing Angle	80/80/80/60	(L/R/U/D, Typ., CR≥10)
Color Depth	6‑bit / 8‑bit	262K / 16.7M colors
Backlight	CCFL, 2‑tube, Edge‑lit, Replaceable	-
Backlight Lifetime	50,000	hrs (Typ.)
Interface	LVDS (1 ch, 6/8‑bit), 20‑pin	-
Input Voltage	3.3 ± 0.3	V
Power Consumption	Panel: ~1.4W (Typ.)	W
Operating Temp.	-20 ~ +70	°C
Storage Temp.	-20 ~ +80	°C
Compliance	RoHS	-

Specific Applications

Industrial HMI & Control Panels: Factory automation, PLC interfaces, and machinery control systems.
Industrial Panel PCs & Embedded Displays: Integrated into rugged industrial computers and embedded systems.
Test & Measurement Instruments: Data acquisition, oscilloscopes, and laboratory analyzers.
Office & Commercial Equipment: Printers, copiers, and point‑of‑sale (POS) terminals.
Transportation Displays: In‑vehicle monitors, marine navigation, and railway control panels.
Medical & Laboratory Devices: Non‑critical diagnostic and analytical equipment.
Communication Equipment: Routers, switches, and network management interfaces.
