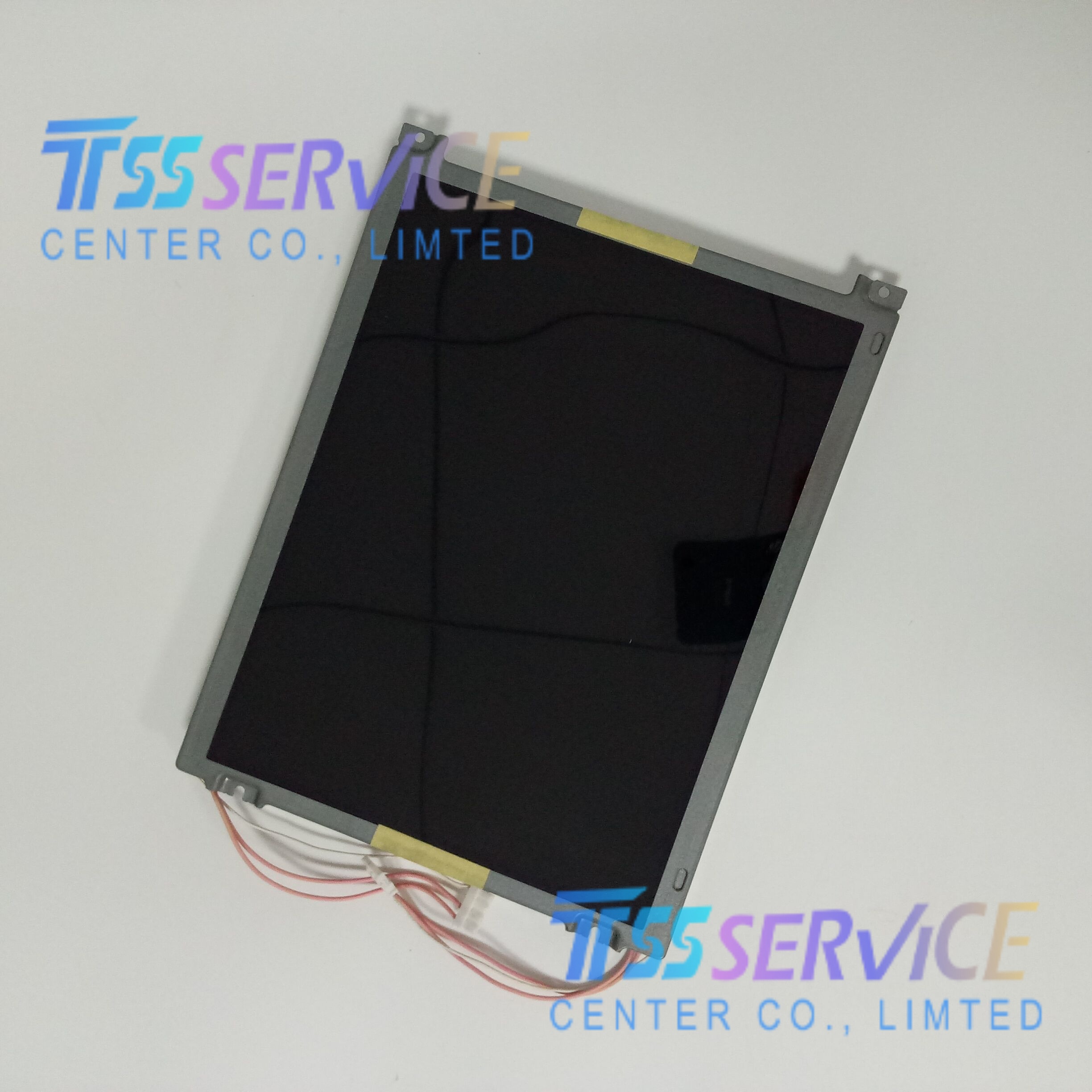

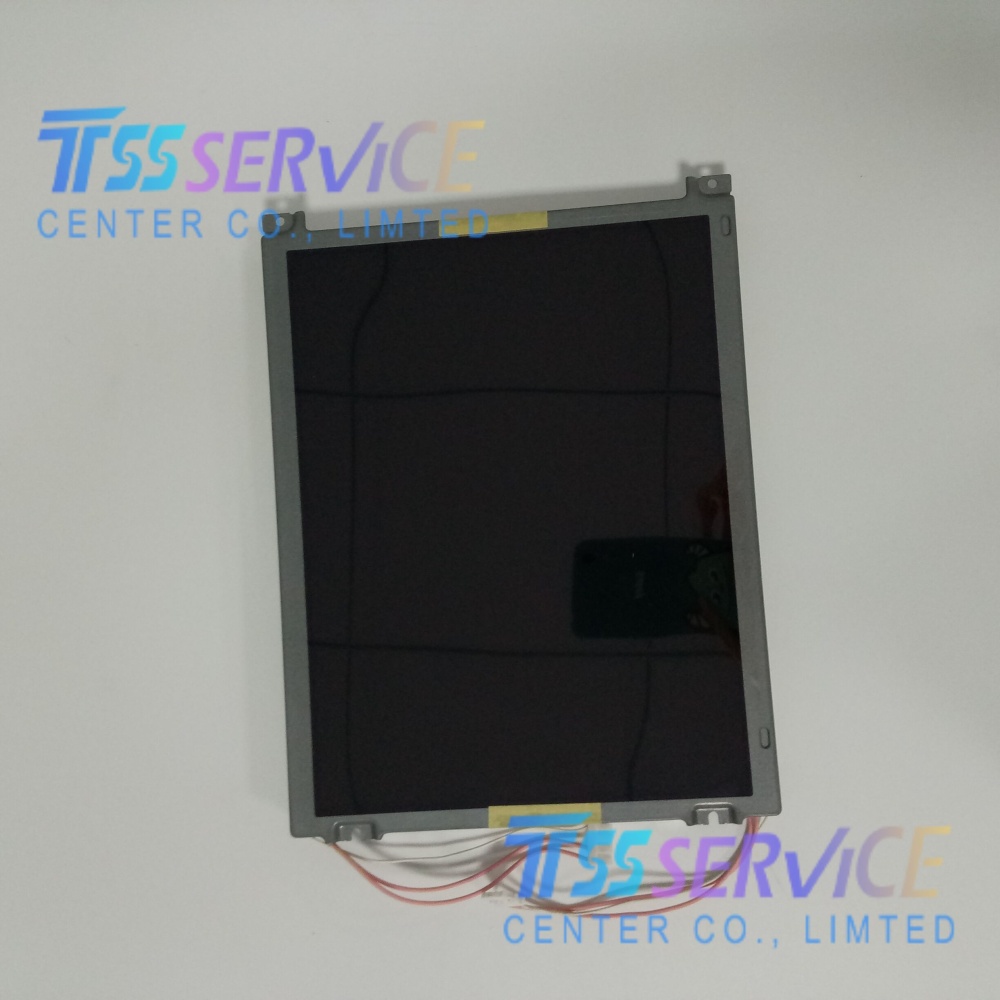

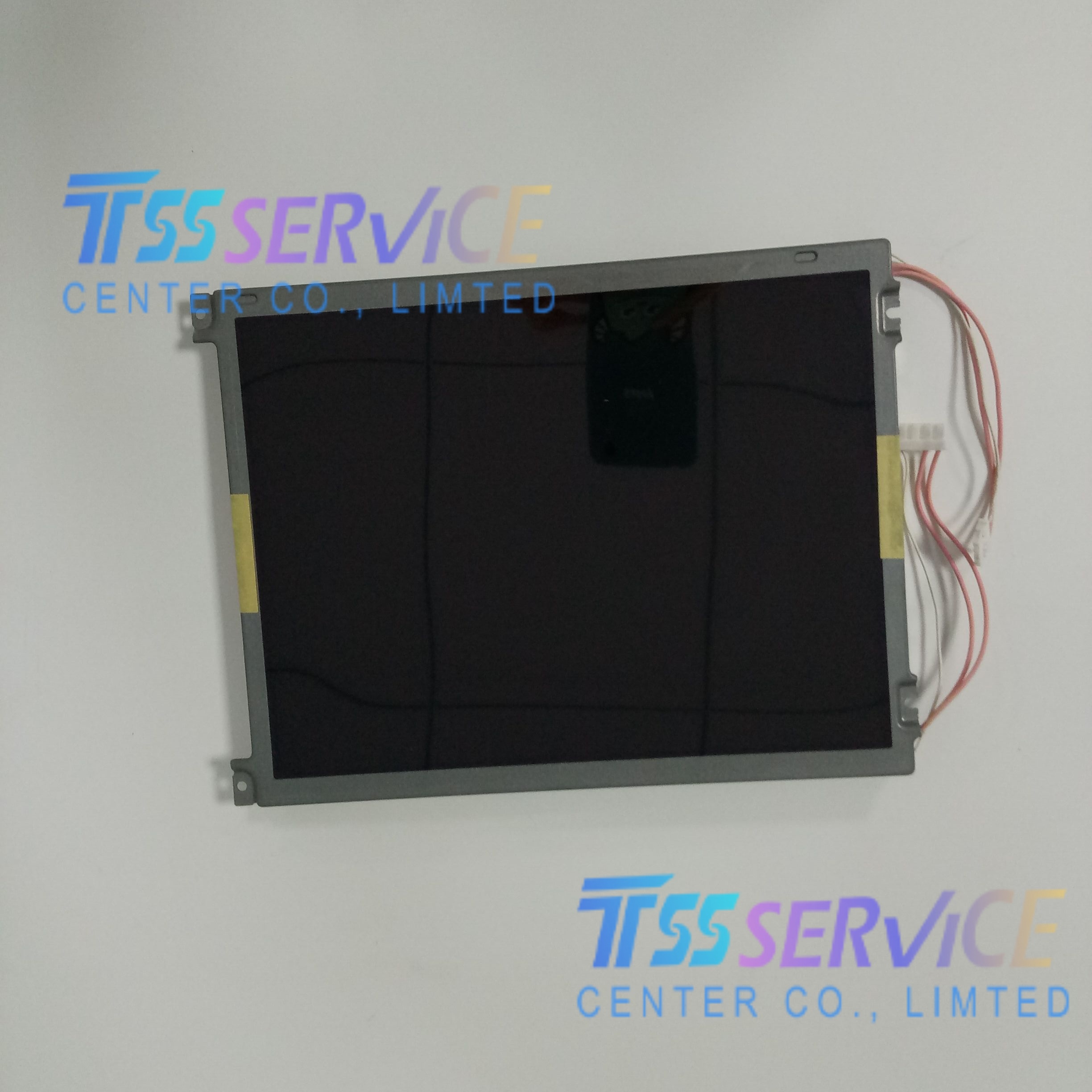

T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial

SKU: T-55334GD104J-FW-A-AAN
Model P/N: T-55334GD104J-FW-A-AAN
Diagonal Size: 10.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480, VGA  76PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$230.00 $228.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial
  • T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial
  • T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial
  • T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial
  • T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial
  • T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial
1/1
  • T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial
  • T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial
  • T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial
  • Description
T-55334GD104J-FW-A-AAN OPTREX 10.4 inch 640×480 LCD Panel Screen for Industrial
Parameter Specification
Part Number T-55334GD104J-FW-A-AAN
Manufacturer Kyocera (Optrex)
Display Type a‑Si TFT‑LCD, TN, Normally White, Transmissive
Diagonal Size 10.4 inches
Resolution 640 × 480 (VGA)
Pixel Format RGB Vertical Stripe
Pixel Pitch 0.33 × 0.33 mm
Active Area 211.2 × 158.4 mm
Outline Dimensions 241 × 181.6 × 16.5 mm
Brightness 1500 cd/m² (Typical)
Contrast Ratio 700:1 (Typical)
Viewing Angle 70°(U) / 70°(D) / 65°(L) / 65°(R) @ CR≥10:1
Response Time 4 ms (Tr), 12 ms (Td)
Refresh Rate 60 Hz
Display Colors 262K colors (6‑bit)
Backlight 4‑lamp CCFL, 50,000 hrs lifetime
Driver IC CMOS 1‑channel 6‑bit
Interface 31‑pin connector
Supply Voltage 3.3V
Operating Temperature -20°C ~ +70°C
Storage Temperature -20°C ~ +80°C
Surface Treatment Anti‑glare, Hard coating (3H)
Weight Approx. 650 g

Typical Applications

  • Industrial control panels and HMI terminals
  • Medical diagnostic and monitoring equipment
  • Test and measurement instruments
  • Vehicle-mounted and marine displays
  • Outdoor and semi-outdoor information terminals
  • Factory automation and industrial equipment
  • Transportation and public display systems
