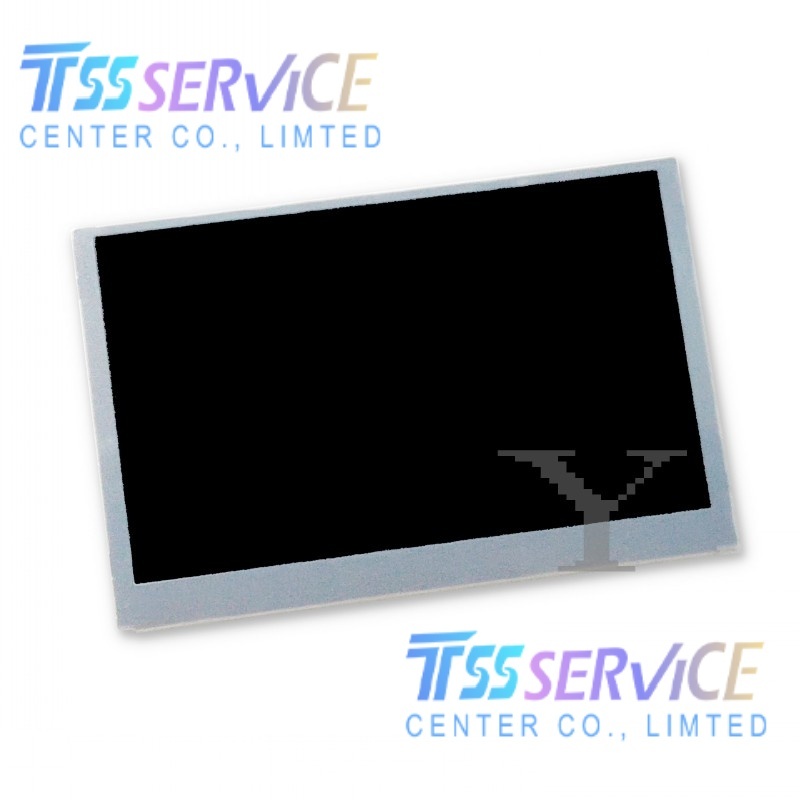

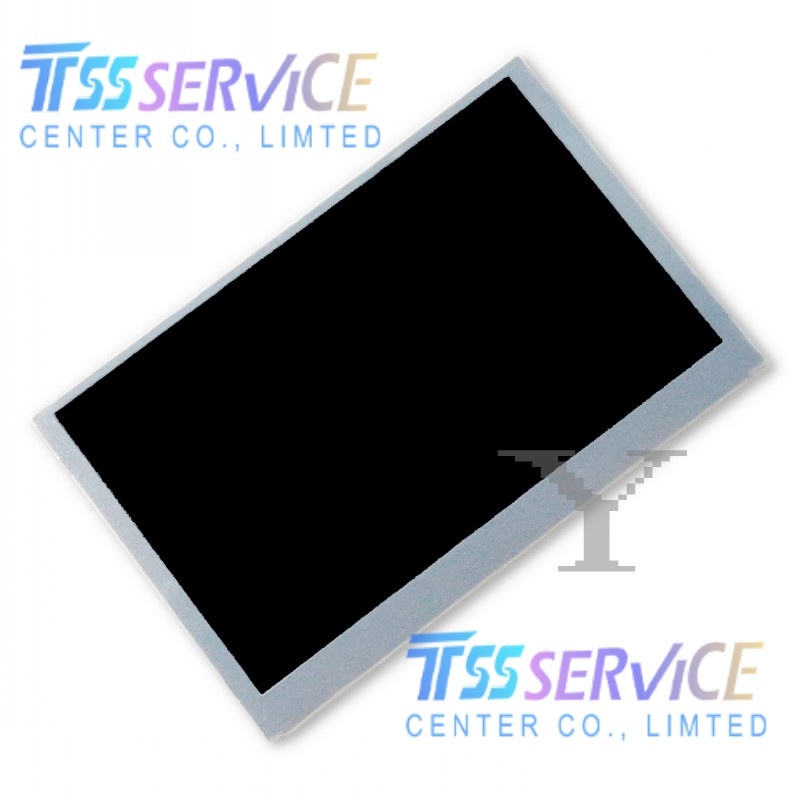

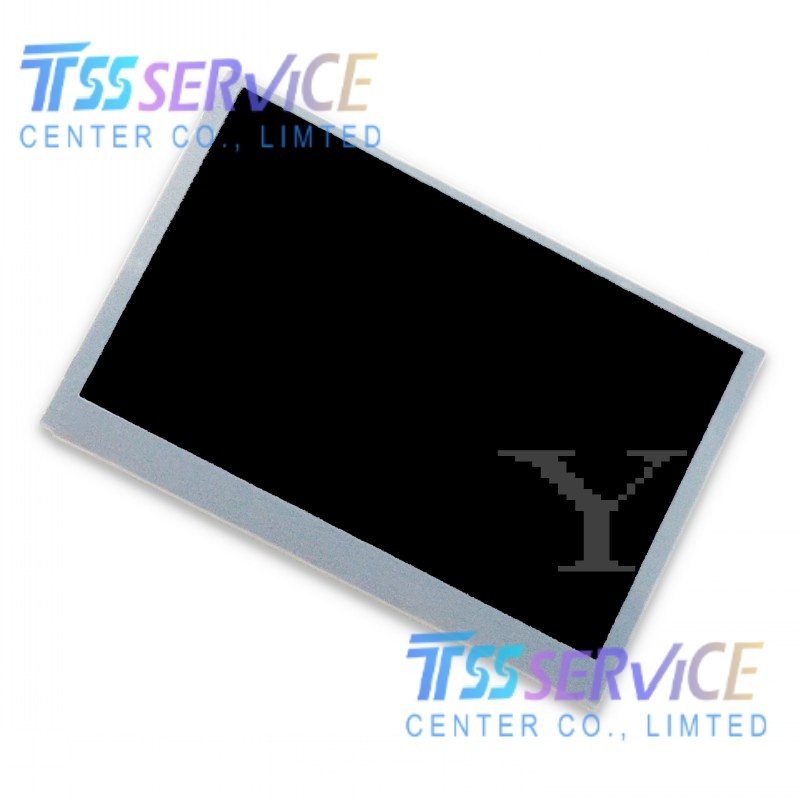

T-55423GD050J-LW-A-ABN OPTREX 5.0 inch 800×480 IPS TFT LCD for HMI & Automation

Name: T-55423GD050J-LW-A-ABN OPTREX 5.0 inch 800×480 IPS TFT LCD for HMI & Automation
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-55423GD050J-LW-A-ABN
Price: 195 USD
Availability: InStock

SKU: T-55423GD050J-LW-A-ABN

Model: T-55423GD050J-LW-A-ABN
Manufacturer: OPTREX (Kyocera)
Screen Size: 5.0 inch
Resolution: 800(RGB)×480 (WVGA, 15:9)
Display Type: a-Si TFT-LCD, IPS (Normally Black, Transmissive)

0.0 (0 Reviews)

0 Sold

~~$200.00~~ $195.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

T-55423GD050J-LW-A-ABN OPTREX 5.0 inch 800×480 IPS TFT LCD for HMI & Automation

Item	Parameter
Model	T-55423GD050J-LW-A-ABN
Manufacturer	OPTREX (Kyocera)
Screen Size	5.0 inch
Resolution	800(RGB)×480 (WVGA, 15:9)
Display Type	a-Si TFT-LCD, IPS (Normally Black, Transmissive)
Active Area	108 × 64.8 mm (H×V)
Physical Dimensions	118.5 × 77.8 × 5.4 mm (H×V×D)
Weight	70.0 g (Typ.)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.)
Viewing Angle	85/85/85/85 (Typ., CR≥10)
Response Time	25/25 ms (Tr/Td, Typ.)
Colors	16.7M, 50% NTSC
Backlight	2 strings WLED, long lifespan
Signal Interface	CMOS (1 ch, 8-bit), 45-pin FPC connector
Refresh Rate	60 Hz
Power Supply	3.3/5.0 V (Typ., VCC/AVDD)
Operating Temperature	-20 ~ +60 °C
Storage Temperature	-30 ~ +80 °C
Surface Feature	Clear, Hard coating (2H)
Touch Panel	Without
Warranty	12 Months
