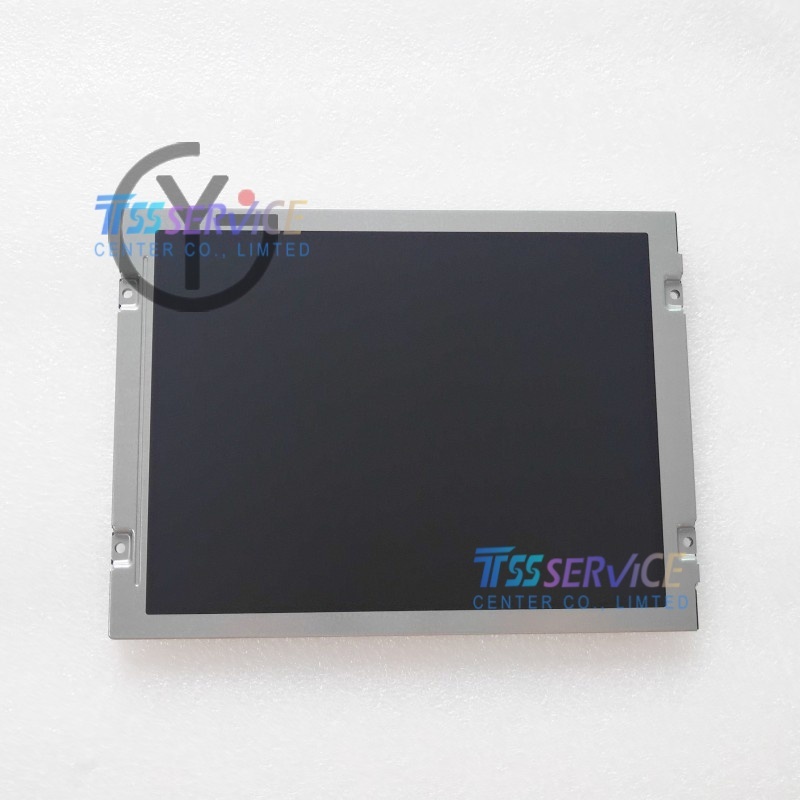

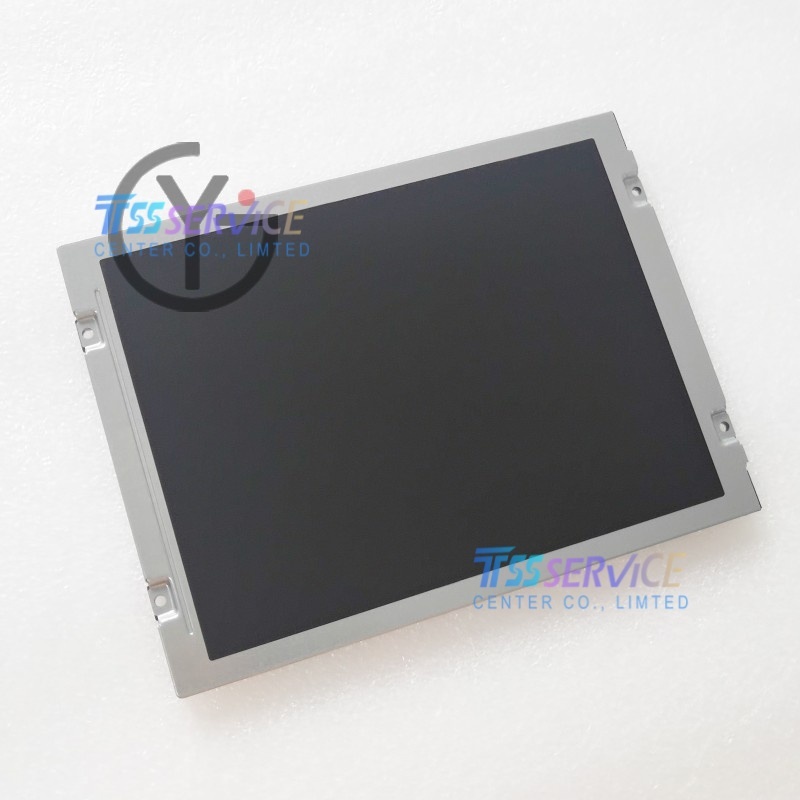

Kyocera/Optrex T-55466D084J-LW-A-ABN 8.4 Inch 800×600 LCD Display Screen For Industrial

Name: Kyocera/Optrex T-55466D084J-LW-A-ABN 8.4 Inch 800×600 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-55466D084J-LW-A-ABN
Price: 194 USD
Availability: InStock

SKU: T-55466D084J-LW-A-ABN

Model P/N: T-55466D084J-LW-A-ABN
Diagonal Size: 8.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA 119PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$198.00~~ $194.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera/Optrex T-55466D084J-LW-A-ABN 8.4 Inch 800×600 LCD Display Screen For Industrial

Parameter	Specification
Brand & Model	Kyocera (Optrex) T-55466D084J-LW-A-ABN
Diagonal Size	8.4 inches
Resolution	800 × 600 (SVGA) RGB
Display Mode	TN, Normally White, Transmissive
Active Area	170.88 (H) × 128.16 (V) mm
Pixel Pitch	0.2136 × 0.2136 mm
Brightness (Typ.)	480 cd/m²
Contrast Ratio (Typ.)	600:1
Viewing Angle (CR≥10)	±65° (H), ±65° (V)
Response Time (Typ.)	25 ms (Tr+Td)
Color Depth	6/8-bit, 262K / 16.7M colors
Interface	LVDS (1 channel, 6/8-bit), 20-pin connector
Logic Voltage	3.3 VDC (Typ., 3.0–3.6 V)
Backlight	WLED (2 strings), side-lit; Lifetime: 60,000 hrs
Backlight Driver	Not integrated (external driver required)
Backlight Current	70 mA (Typ.)
Outline Dimensions	188.0 (W) × 146.0 (H) × 10.0 (D) mm
Surface Treatment	Anti-glare (Matte), Hard Coating (3H)
Operating Temp.	-20°C to +70°C
Storage Temp.	-30°C to +80°C
RoHS	Compliant

Key Features:

Industrial Robustness: Wide temperature range, anti-glare hard coating, and long-life LED backlight for harsh environments.
Compact LVDS Interface: 20-pin LVDS (1 ch, 6/8-bit) simplifies integration with embedded systems; supports both 6-bit and 8-bit color modes.
TN Mode Performance: Fast response time suitable for dynamic content; balanced brightness and contrast for indoor/outdoor industrial use.
Long-Term Reliability: 60,000-hour LED backlight ensures minimal maintenance in industrial deployments.
