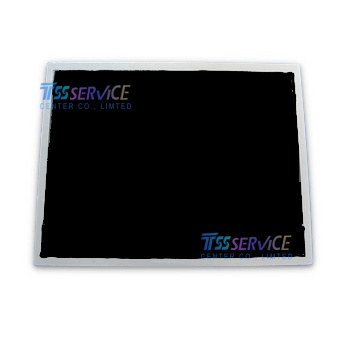

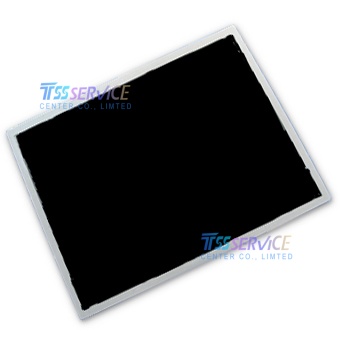

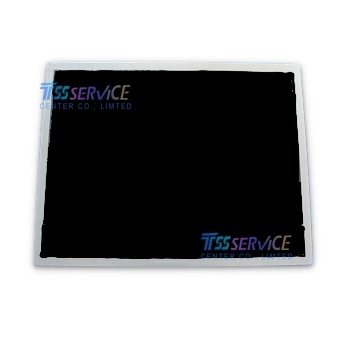

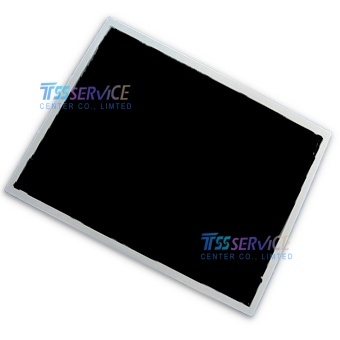

T-55533D104J-LW-A-ABN 1024×768 10.4 inch LCD Panel Display For Industrial
| Parameter |
Specifications |
| Manufacturer |
Kyocera (Optrex) |
| Part Number |
T-55533D104J-LW-A-ABN |
| Panel Type |
a-Si TFT-LCD, TN, Normally White, Transmissive |
| Diagonal Size |
10.4 inches |
| Resolution |
1024 (RGB) × 768 (XGA, Landscape) |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
210.4 mm (W) × 157.8 mm (H) |
| Outline Dimensions |
230 mm (W) × 180.2 mm (H) × 11 mm (T) |
| Surface Treatment |
Antiglare (AG), Hard Coating (3H) |
| Brightness (cd/m²) |
1000 cd/m² (Typical) |
| Contrast Ratio |
700:1 (Typical, Transmissive) |
| Color Depth |
262K colors (6-bit) / 16.7M colors (8-bit) |
| Response Time (Tr+Td) |
30 ms (Typical) |
| Viewing Angle (CR≥10) |
80° (L) / 80° (R) / 65° (U) / 65° (D) |
| Refresh Rate |
60 Hz |
| Backlight |
WLED (White LED), Edge type, Long Life, No Driver IC |
| Driver IC |
Integrated |
| Signal Interface |
LVDS (2-channel, 6/8-bit) |
| Supply Voltage |
3.3V (Typical) |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Touch Screen |
No |
| Status |
Obsolete (Discontinued) |
|
|
|
The T-55533D104J-LW-A-ABN is a 10.4-inch high-brightness industrial LCD module designed for outdoor and high ambient light environments. Its key applications are:
- Industrial HMI (Human-Machine Interface): Operator panels for factory automation, PLC systems, and machinery control.
- Industrial Computers & Panel PCs: Rugged embedded computers for industrial environments.
- Machine Tools & CNC Equipment: Displays for machining centers, lathes, and laser cutters.
- Portable Medical Devices: Ultrasound scanners, patient monitors, and diagnostic equipment.
- Medical Cart Displays: High-brightness screens for mobile medical workstations.
- In-Vehicle Displays: Dashboard and infotainment systems for commercial vehicles, buses, and trains.
- Marine Navigation: High-visibility displays for shipboard GPS and radar systems.
- Outdoor Kiosks & Ticket Vending Machines: Sunlight-readable screens for public terminals.
- Test & Measurement Instruments: Portable oscilloscopes, signal analyzers, and data loggers.
- Military & Aerospace: Rugged displays for field equipment and avionics.
- 1000 cd/m² High Brightness: Excellent sunlight readability for outdoor use.
- Wide Temperature Range: Operates reliably in extreme industrial environments (-20°C to +70°C).
- LVDS Interface: Stable, long-distance signal transmission ideal for industrial setups.
- Antiglare Surface: Reduces reflections, improving visibility in bright conditions.
- Robust Construction: Built for long-term, 24/7 operation in demanding applications.
