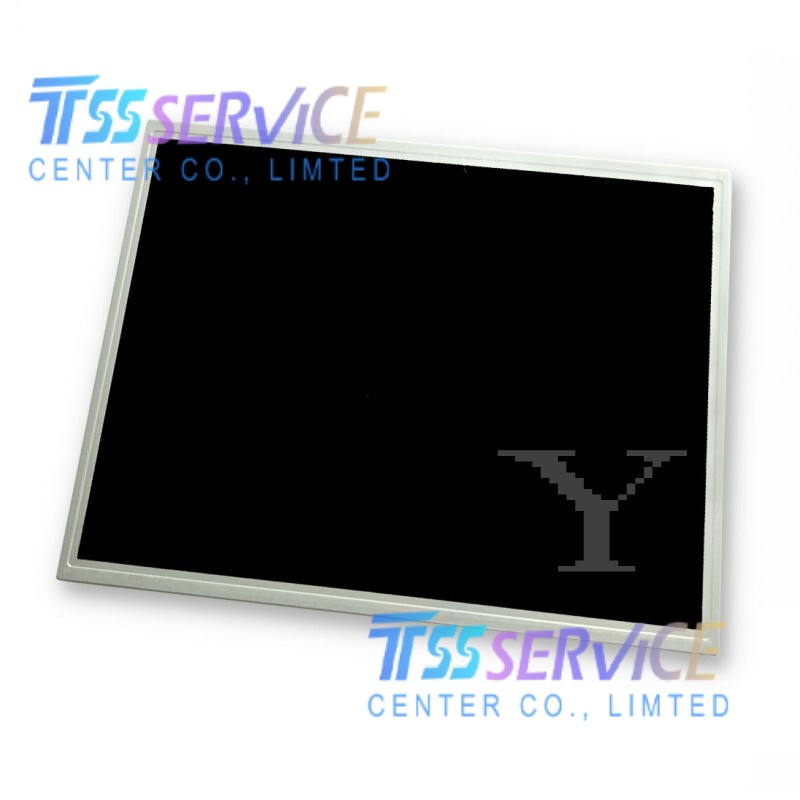

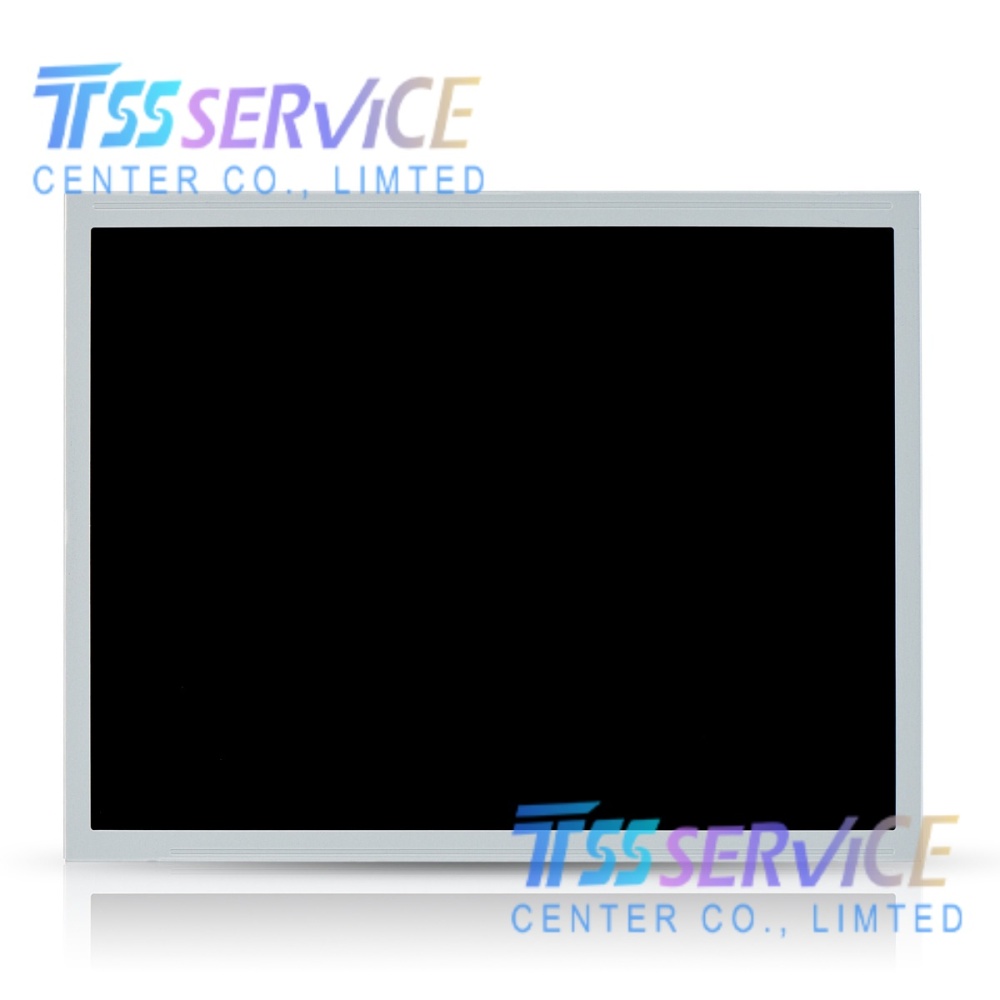

OPTREX 15 INCH 1024×768 LCD Panel T-55534D150J-LW-A-ABN For Industrial
| Item |
Specification |
Unit |
| Model |
T-55534D150J-LW-A-ABN |
– |
| Display Type |
a-Si TFT‑LCD, LCM (TN, Normally White, Transmissive) |
– |
| Diagonal Size |
15.0 |
inch |
| Resolution |
1024(RGB) × 768 (XGA), 85 PPI |
– |
| Active Area (W×H) |
304.128 × 228.096 |
mm |
| Outline Dimension |
326 × 255 × 17.1 |
mm |
| Brightness |
1500 (Typ.) |
cd/m² |
| Contrast Ratio |
800:1 (Typ.) |
– |
| Viewing Angle (CR≥10) |
80/80/60/80 (L/R/U/D) |
° |
| Display Colors |
262K / 16.7M (50% CIE1931) |
– |
| Backlight |
WLED (7S4P×2), 100,000 hrs (25°C, no driver) |
– |
| Interface |
LVDS (1ch 6/8‑bit), 20‑pin connector |
– |
| Supply Voltage |
3.3 (Typ.) |
V |
| Operating Temperature |
‑20 ~ +70 |
°C |
| Storage Temperature |
‑20 ~ +80 |
°C |
| Surface Treatment |
AG (Anti‑Glare) + Hard Coating (3H) |
– |
| Weight |
Approx. 1.27 |
kg |
| Compliance |
RoHS |
– |
Typical Applications（English）
- Outdoor & Sunlight‑Readable Displays: Kiosks, outdoor signage, parking systems (1500nit + AG coating)
- Industrial HMI & Factory Automation: CNC, PLC panels, test equipment (wide temp + high brightness)
- Medical Imaging & Diagnostic Devices: Patient monitors, surgical displays (stable, long backlight life)
- Marine & Heavy‑Duty Vehicles: Ship bridges, construction machinery, agricultural equipment (rugged, vibration‑resistant)
- Retail & POS Systems: ATMs, self‑service terminals, vending machines (anti‑glare for bright lighting)
