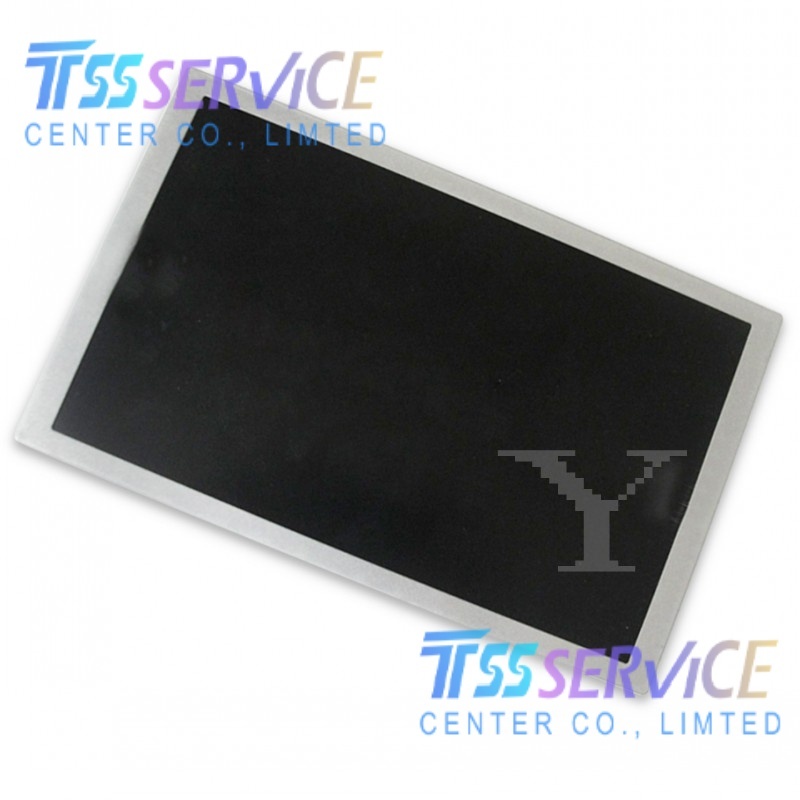

Optrex T-55561D090J-LW-A-AAN 9 inch LCD Display Screen For Industrial

Name: Optrex T-55561D090J-LW-A-AAN 9 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-55561D090J-LW-A-AAN
Price: 96 USD
Availability: InStock

SKU: T-55561D090J-LW-A-AAN

Model: T‑55561D090J‑LW‑A‑AAN
Diagonal Size: 9.0 inch
Display Type: a‑Si TFT‑LCD, LCM
Resolution: 800(RGB)×480 (WVGA), 103 PPI
Pixel Arrangement: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $96.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Optrex T-55561D090J-LW-A-AAN 9 inch LCD Display Screen For Industrial

Parameter	Value
Model	T‑55561D090J‑LW‑A‑AAN
Brand	Kyocera (Optrex)
Diagonal Size	9.0 inch
Display Type	a‑Si TFT‑LCD, LCM
Resolution	800(RGB)×480 (WVGA), 103 PPI
Pixel Arrangement	RGB Vertical Stripe
Brightness	400 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.)
Viewing Angle	85/85/85/85 (Typ., CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	4/12 ms (Typ., Tr/Td)
Color Depth	262K / 16.7M colors (6/8‑bit)
Backlight	WLED, 100,000 hours, w/o driver
Touch Screen	None (no touch)
Interface	LVDS (1 ch, 6/8‑bit), 20‑pin
Input Voltage	3.3V (Typ.)
Active Area	196.8 (W) × 118.08 (H) mm
Outline Dimension	219 (W) × 136.2 (H) × 8.6 (D) mm
Weight	340 g (Typ.)
Operating Temperature	–30°C ~ +80°C
Storage Temperature	–30°C ~ +80°C
Vibration Resistance	1.0G (9.8 m/s²)
Surface Treatment	Anti‑glare (3H hard coat)
RoHS	Compliant
Status	Discontinued (EOL)
