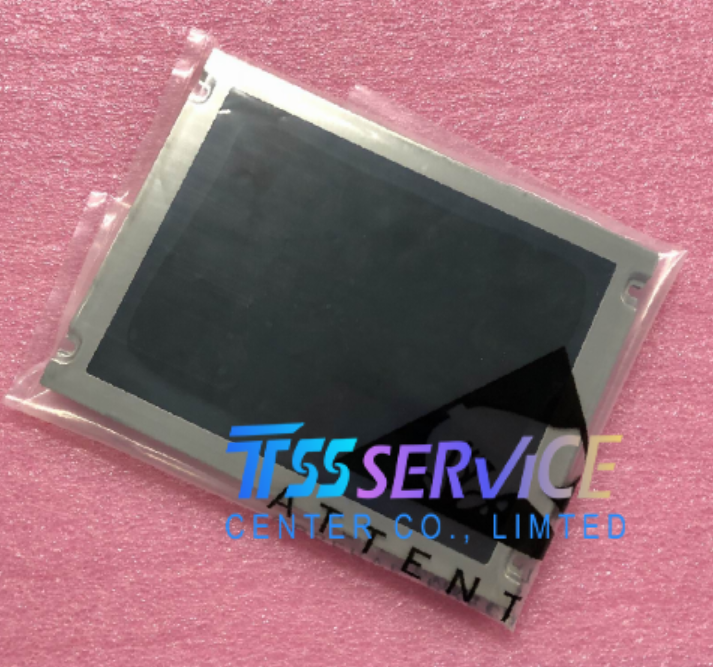

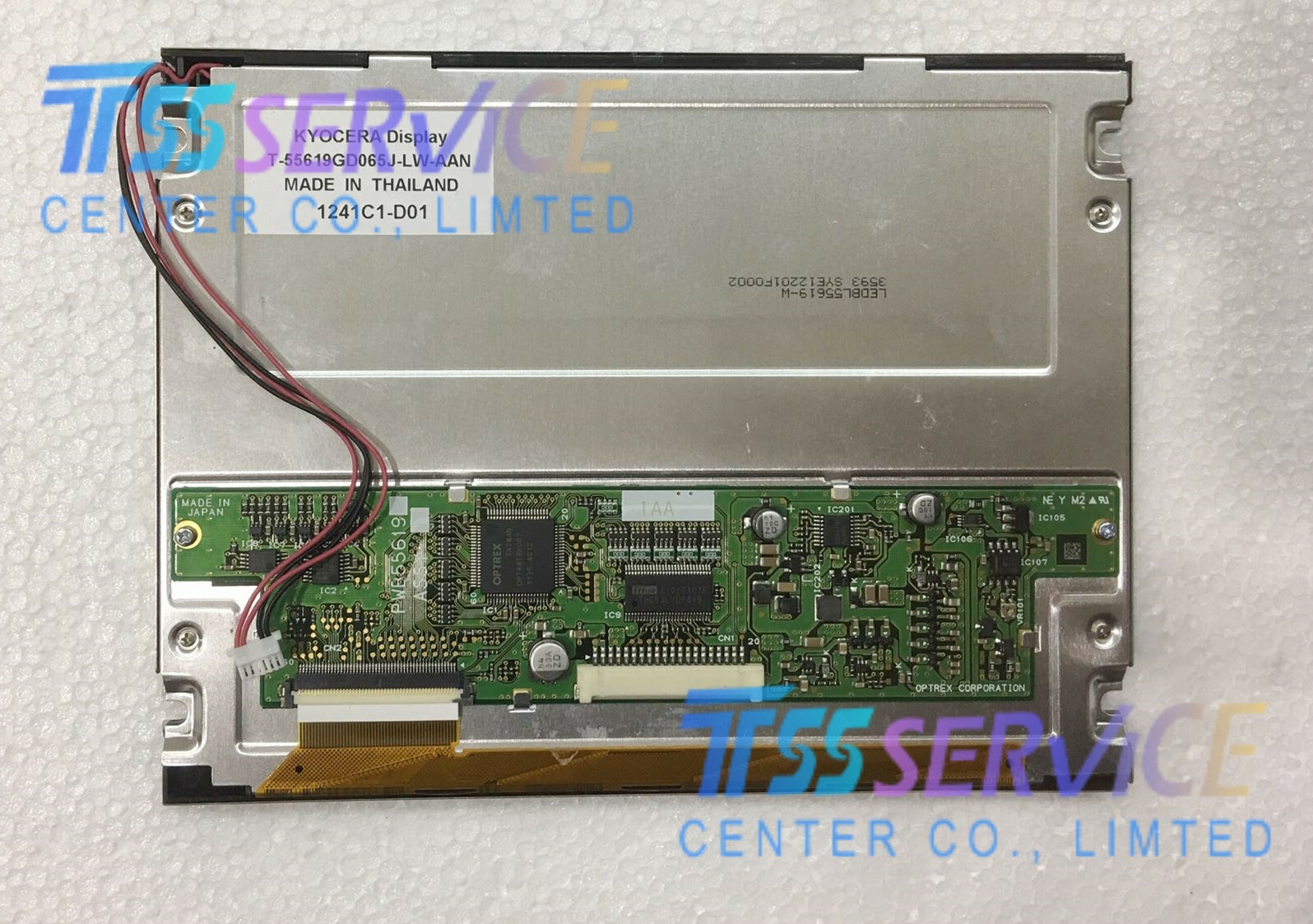

Kyocera T-55619GD065J-LW-AAN 6.5 Inch VGA 640×480 Industrial TFT LCD Screen Display for Industrial HMI & Medical Equipment

Name: Kyocera T-55619GD065J-LW-AAN 6.5 Inch VGA 640×480 Industrial TFT LCD Screen Display for Industrial HMI & Medical Equipment
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-55619GD065J-LW-AAN
Price: 130 USD
Availability: InStock

SKU: T-55619GD065J-LW-AAN

Model: T-55619GD065J-LW-AAN
Size: 6.5 inch
Resolution: 640(RGB)×480 VGA, Aspect Ratio 4:3
Display Type: a-Si TFT-LCD, TN Normally White, Transmissive

0.0 (0 Reviews)

0 Sold

~~$135.00~~ $130.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera T-55619GD065J-LW-AAN 6.5 Inch VGA 640×480 Industrial TFT LCD Screen Display for Industrial HMI & Medical Equipment

Item	Technical Parameter
Model	T-55619GD065J-LW-AAN
Brand	Kyocera (OPTREX)
Size	6.5 inch
Resolution	640(RGB)×480 VGA, Aspect Ratio 4:3
Display Type	a-Si TFT-LCD, TN Normally White, Transmissive
Active Area	132.48×99.36 mm
Overall Outline	158×120.36×10.5 mm
Max Weight	230g
Brightness	750 cd/m² (Typical)
Contrast Ratio	300:1 (Typical)
View Angle	L/R/U/D:55/55/30/60 (CR≥10), Optimal viewing at 6 o'clock
Response Time	Tr=15ms / Td=16ms
Color	262K Colors, 38% NTSC
Backlight	6S2P WLED, 50000H lifespan, no extra driver
Signal Interface	Single-channel LVDS 6-bit, 20Pin Connector
Supply Voltage	3.3V (Typ.)
Refresh Rate	60Hz
Surface Finish	Anti-Glare Matte
Touch Function	Without Touchscreen
Operating Temp	-20℃ ~ +70℃
Storage Temp	-20℃ ~ +70℃

Application

Industrial Automation & CNC HMI
Replacement display for discontinued Weinview/Mitsubishi/Siemens HMI touch panel, CNC lathe/machining center operation screen, injection molding machine controller, frequency converter & servo driver operating terminal, factory PLC automation control host.
Medical Diagnostic Equipment
Bedside patient monitor, portable blood biochemical analyzer, clinical lab analytical instrument, rehabilitation therapy equipment control LCD screen.
Precision Test & Measuring Instrument
Oscilloscope, environmental gas/particle detector, portable field calibration tester, laboratory precision measuring equipment operation panel.
Engineering Vehicle & Special Machinery
Forklift, small excavator cab control monitor, industrial mobile test equipment onboard display, special mechanical equipment operating screen.
