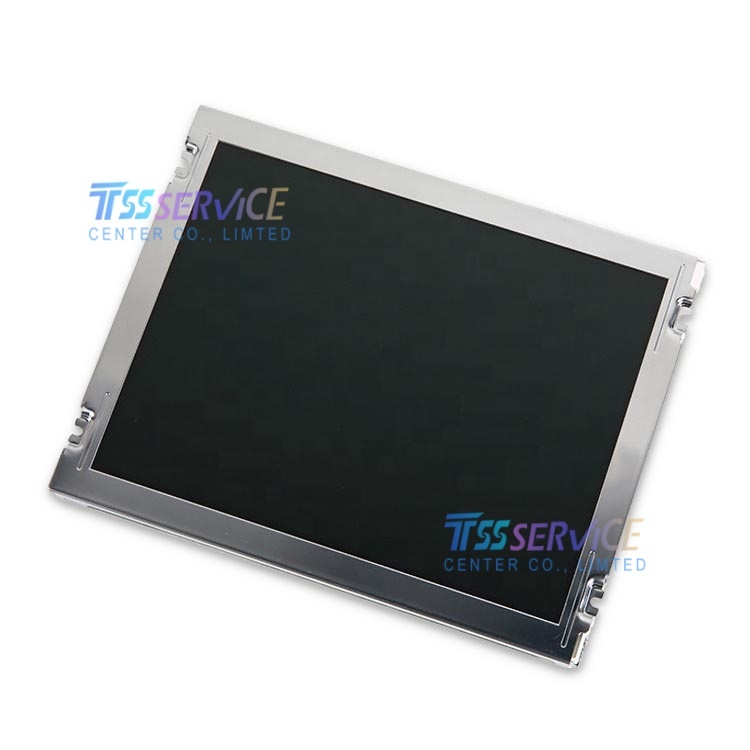

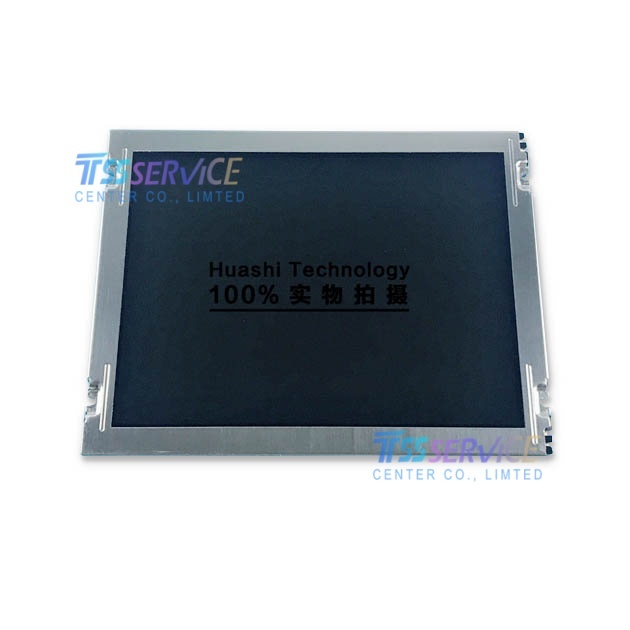

T-55629D065J-LW-A-ABN 6.5 Inch Kyocera (Optrex) 640x480 LCD Panel Screen For Industrial

Name: T-55629D065J-LW-A-ABN 6.5 Inch Kyocera (Optrex) 640x480 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-55629D065J-LW-A-ABN
Price: 210 USD
Availability: InStock

SKU: T-55629D065J-LW-A-ABN

Model: T-55629D065J-LW-A-ABN
Diagonal Size: 6.5 inch
Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480 (VGA, 4:3)
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$220.00~~ $210.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

T-55629D065J-LW-A-ABN 6.5 Inch Kyocera (Optrex) 640x480 LCD Panel Screen For Industrial

Parameter	Details
Brand	Kyocera (Optrex)
Model	T-55629D065J-LW-A-ABN
Diagonal Size	6.5 inch
Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480 (VGA, 4:3)
Pixel Format	RGB Vertical Stripe
Active Area	132.48 (H) × 99.36 (V) mm / 5.22" × 3.91"
Outline Size	154 (H) × 121 (V) mm / 6.06" × 4.76"
Weight	185g (Typ.) / 0.41 lb
Brightness	1200 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.)
Response Time	6/19 ms (Typ.) (Tr/Td)
View Direction	6 o'clock
Viewing Angle	80°/80°/80°/60° (Typ., CR≥10)
Display Mode	TN, Normally White, Transmissive
Display Colors	262K / 16.7M
Backlight	WLED (2 strings), 100,000 hrs lifespan, Without Driver
Refresh Rate	60Hz
Touch Panel	Without Touchscreen
Interface	LVDS (1 ch, 6/8-bit), 20-pin Connector
Input Voltage	3.3V (Typ.)
Operating Temperature	-30 ~ +80 °C
Storage Temperature	-30 ~ +80 °C
Surface Feature	Matte (Anti-Glare)

Applications

Outdoor & Marine Displays: Marine navigation, outdoor monitoring terminals, construction machinery.
Automotive HMI: In-vehicle dashboards, heavy-duty vehicle displays, agricultural machinery.
Industrial Control Panels: Factory automation, rugged HMI, industrial terminals requiring high brightness.
Kiosks & Digital Signage: Outdoor self-service kiosks, bright retail signage.
