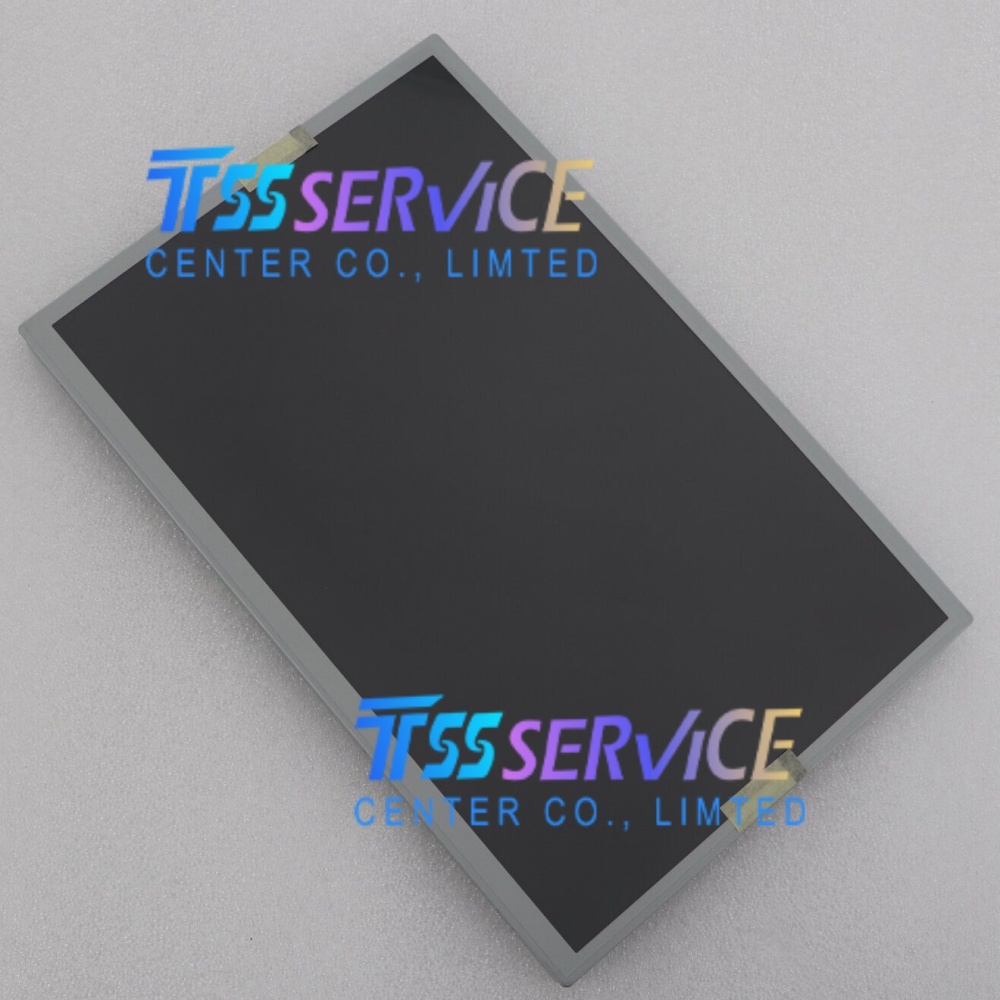

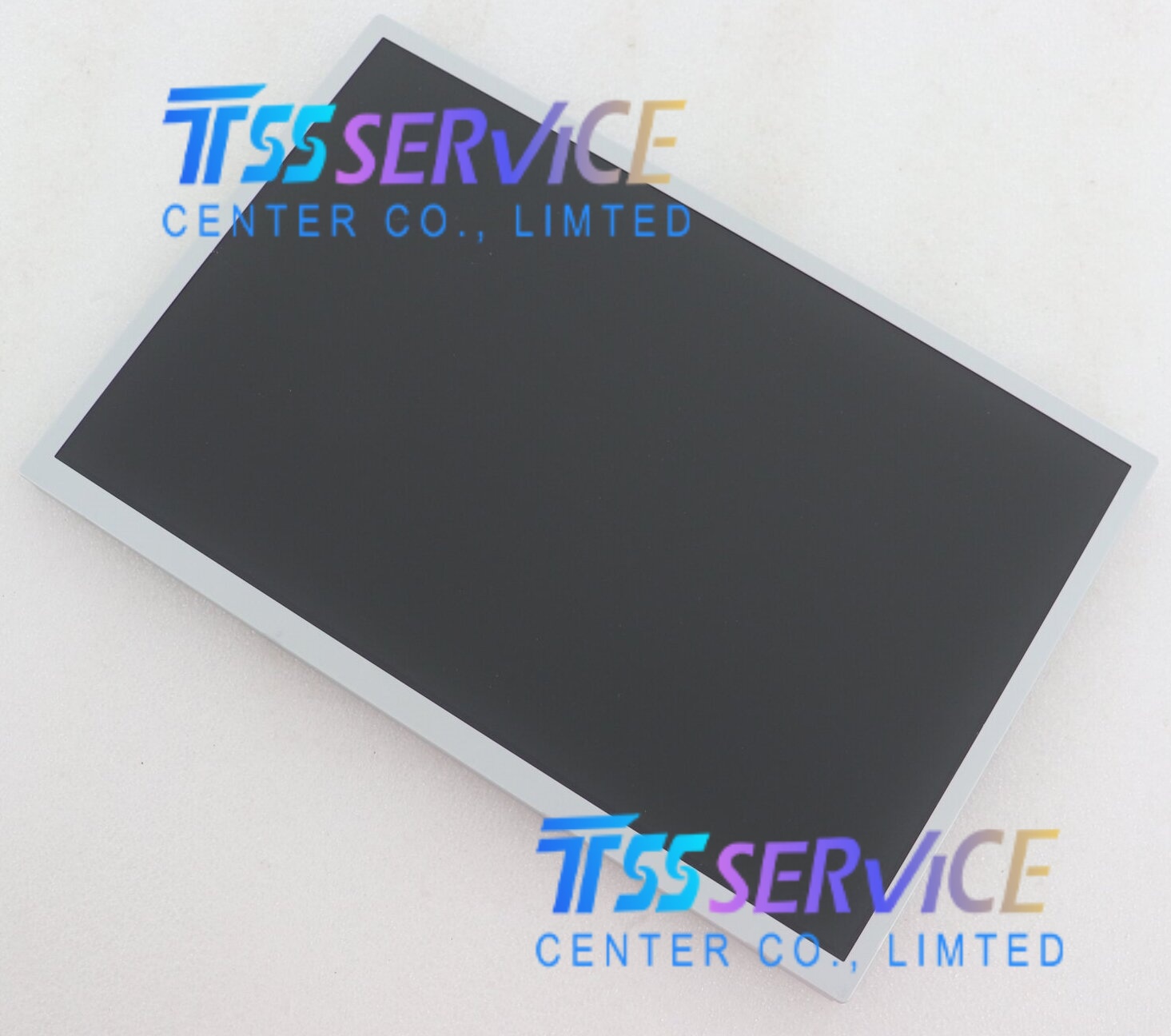

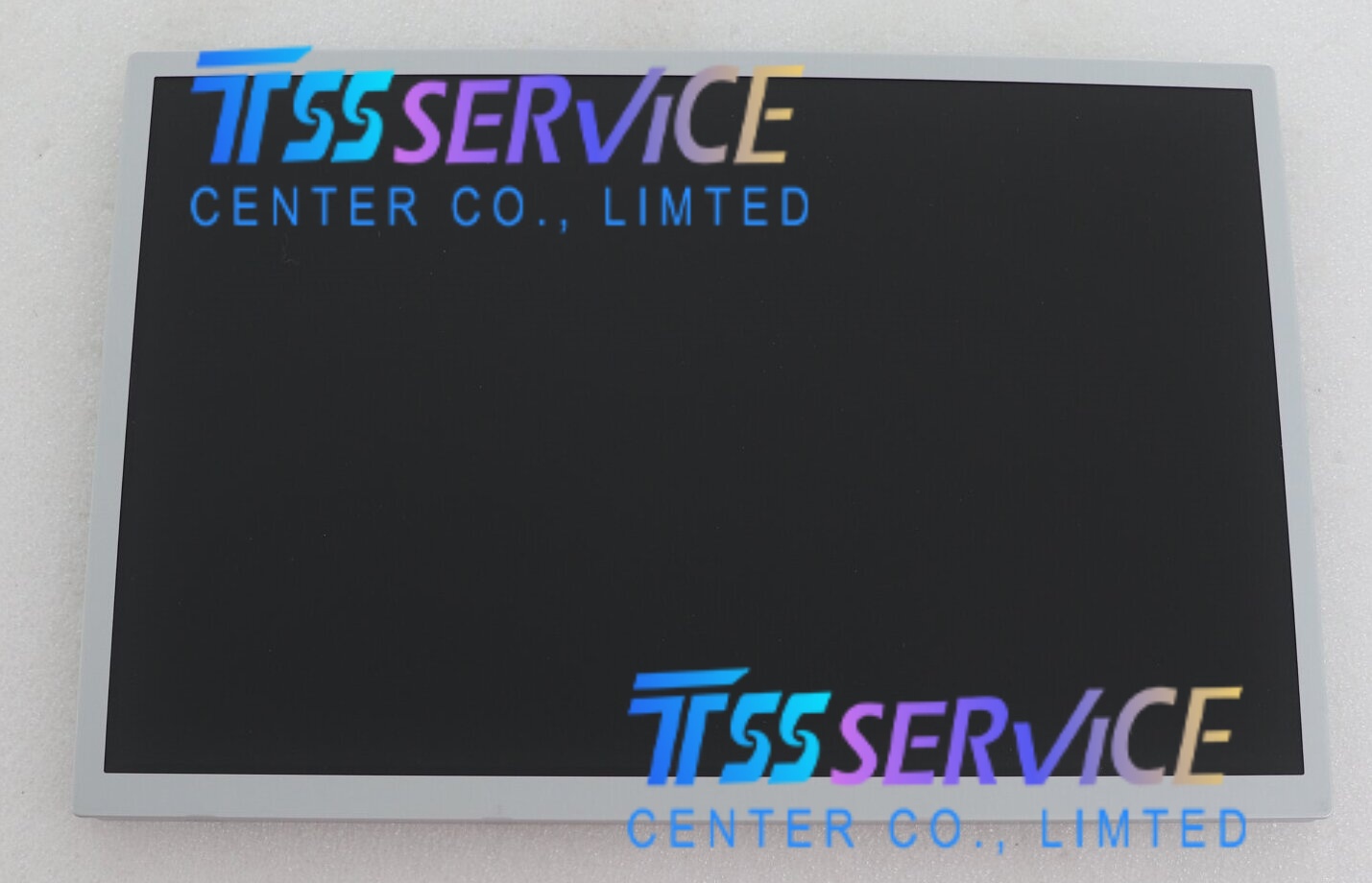

Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial

SKU: T-55708D121J-LW-A-AAN
Model P/N: T-55708D121J-LW-A-AAN
Diagonal Size: 12.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA  82PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$199.00 $194.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial
  • Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial
  • Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial
  • Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial
  • Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial
  • Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial
1/1
  • Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial
  • Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial
  • Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial
  • Description
Kyocera T-55708D121J-LW-A-AAN 12.1 inch 800×600 LCD Panel For Industrial
Parameter Value Unit Note
Manufacturer Kyocera (OPTREX)
Model T-55708D121J-LW-A-AAN
Diagonal Size 12.1 inch
Resolution 800(RGB) × 600 pixels SVGA format
Panel Type a‑Si TFT‑LCD, IPS
Display Mode Normally Black
Surface Treatment Anti‑Glare (AG)
Brightness (Typ.) 600 cd/m²
Contrast Ratio (Typ.) 1000:1
Viewing Angle (Typ.) 85/85/85/85 ° U/D/L/R
Color Depth 16.7M colors 24‑bit RGB
Backlight WLED
Interface LVDS
Active Area 246.0 × 184.5 mm
Outline Dimension 260.5(W) × 203(H) × 10(D) mm
Pixel Pitch 0.1025 × 0.3075 mm
Weight ≤ 650 g
Operating Temp. −30 to +80 °C Wide industrial temp range
Storage Temp. −30 to +80 °C
Power Supply 3.3V (logic), 12V (backlight) V
Compliance RoHS

This 12.1‑inch IPS LCD module is widely used in industrial control, automotive, medical, and outdoor rugged systems due to its wide temperature range, wide viewing angles, and high reliability.
