Kyocera 8.4 inch 800×600 Industrial LCD Display Screen T-55712D084J-LW-A-AAN

Name: Kyocera 8.4 inch 800×600 Industrial LCD Display Screen T-55712D084J-LW-A-AAN
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-55712D084J-LW-A-AAN
Price: 148 USD
Availability: InStock

SKU: T-55712D084J-LW-A-AAN

Model P/N: T-55712D084J-LW-A-AAN
Diagonal Size: 8.4"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 800(RGB)×600, SVGA, 4:3
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$150.00~~ $148.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

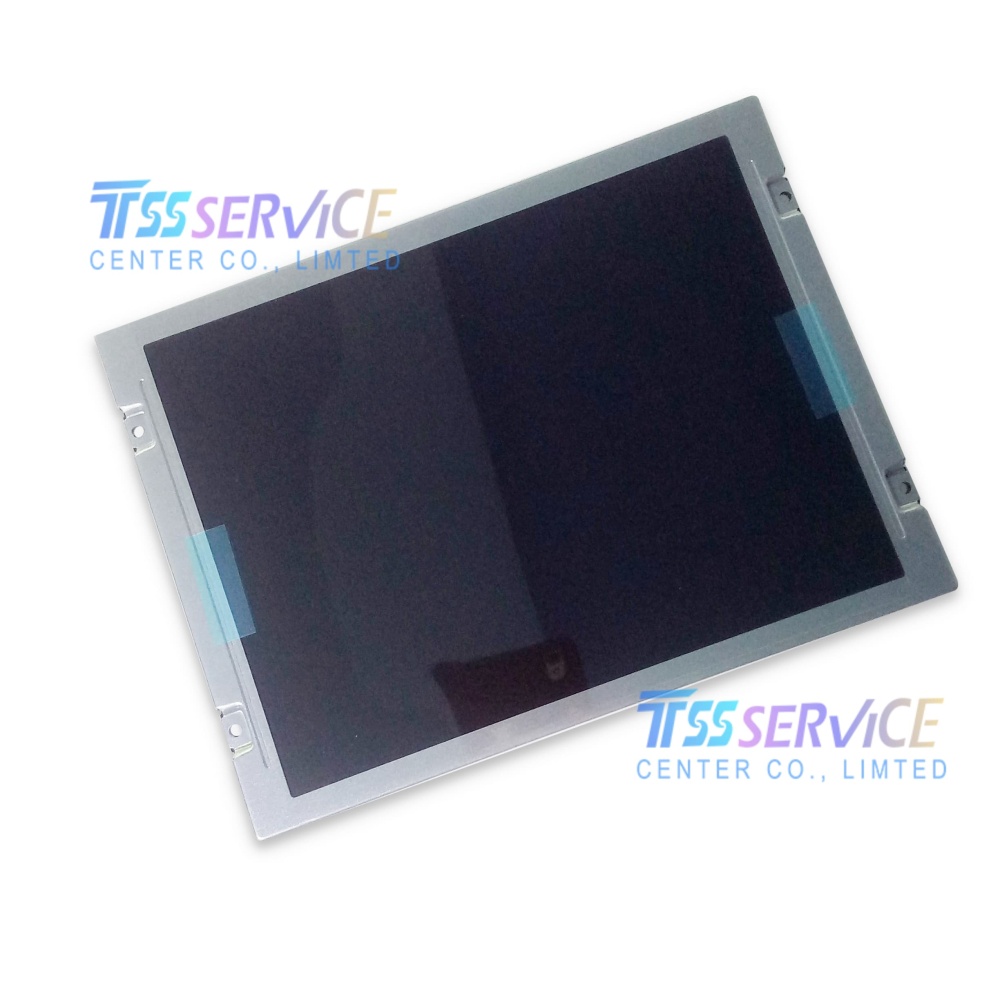

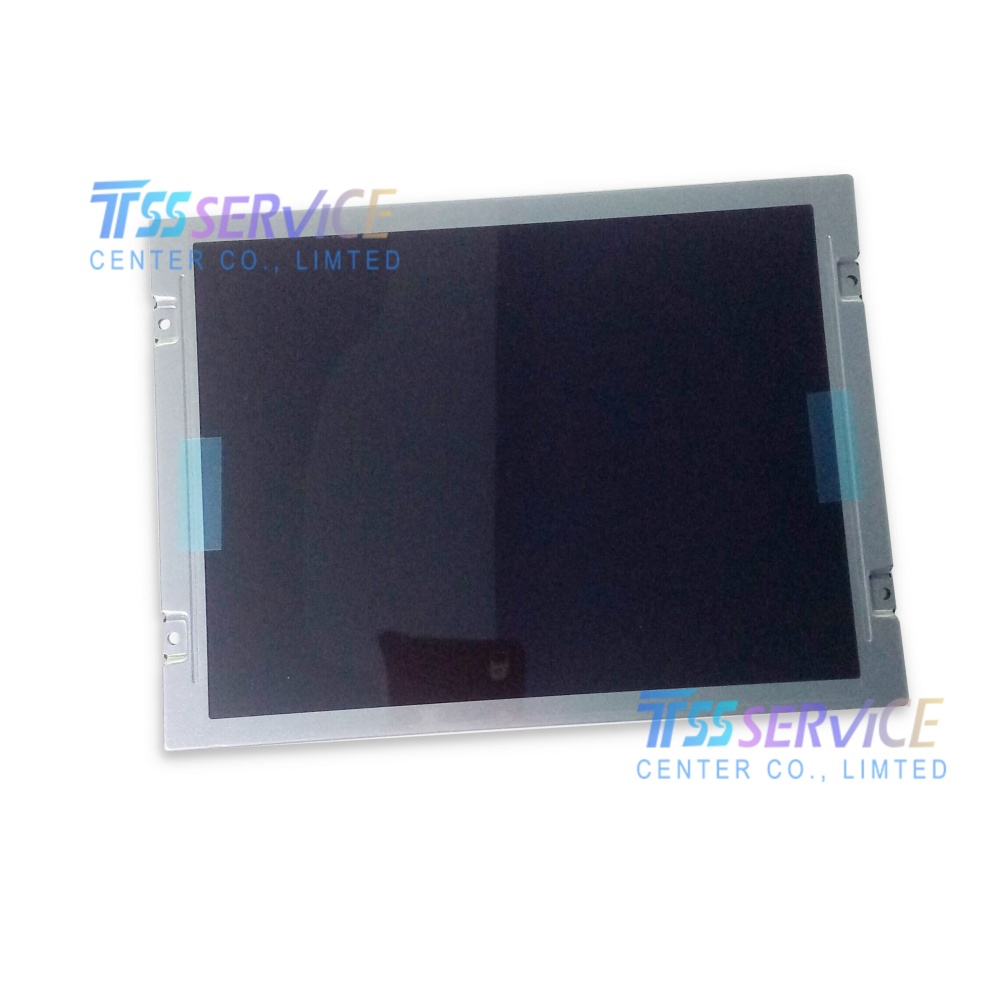

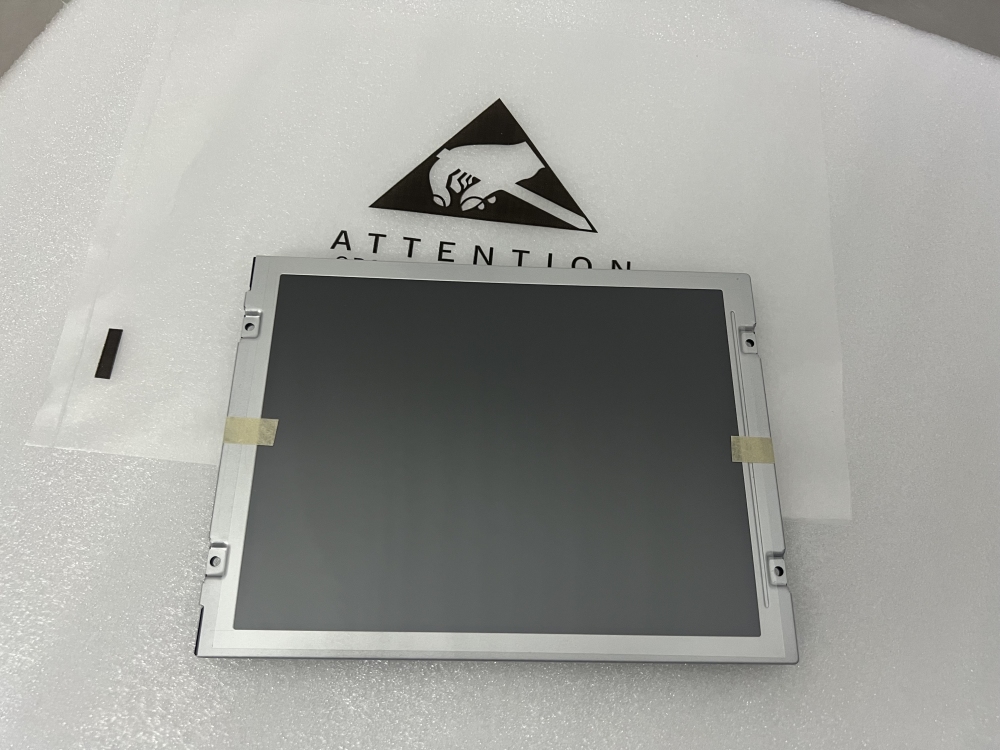

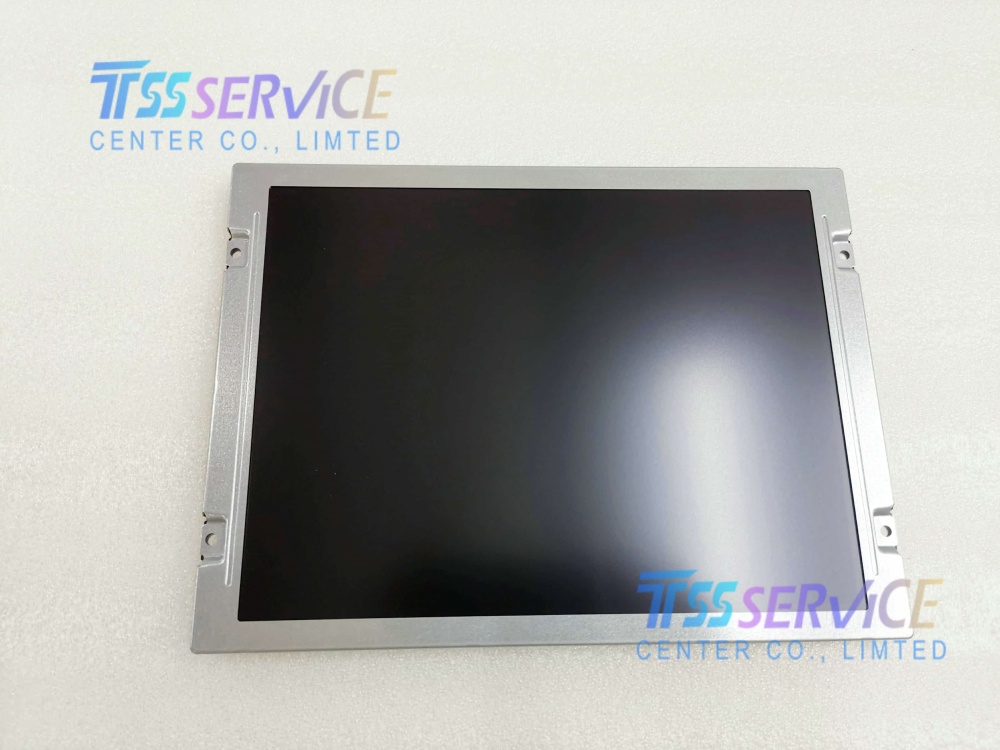

Kyocera 8.4 inch 800×600 Industrial LCD Display Screen T-55712D084J-LW-A-AAN

Item	Specification
Brand	Kyocera (OPTREX)
Model	T-55712D084J-LW-A-AAN
Size	8.4 inch
Type	a-Si TFT-LCD, LCM, Normally White, Transmissive
Resolution	800(RGB)×600 (SVGA), 119 PPI
Active Area	170.4 (W) × 127.8 (H) mm
Brightness	600 cd/m² (Typ., High Brightness)
Contrast Ratio	1000:1 (Typ.)
Viewing Angle (CR≥10)	85/85/85/85 (Typ.)(CR≥10)
Display Colors	262K (6-bit) / 16.7M (8-bit, with FRC)
Backlight	WLED, long lifespan, no inverter needed
Interface	LVDS (6/8-bit, 20 pins)
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C
Outline Size	174.9 (W) × 132.2 (H) × 10.5 (D) mm
Surface Treatment	Hard coating (3H), Anti-glare
Production Status	In production

Applications

Industrial HMI & Control Panels: Factory automation, PLC interfaces, CNC machinery, and production line monitoring systems.
Medical Equipment: Patient monitors, diagnostic devices, and portable medical instruments (requires high reliability).
Smart Building & HVAC: Central control panels for building automation, security, and environmental monitoring systems.
Outdoor & Kiosk Displays: Self-service kiosks, vending machines, and outdoor information terminals (high brightness for sunlight readability).
Transportation & Special Machinery: Railway on-board displays, industrial vehicle dashboards, and marine control panels.
