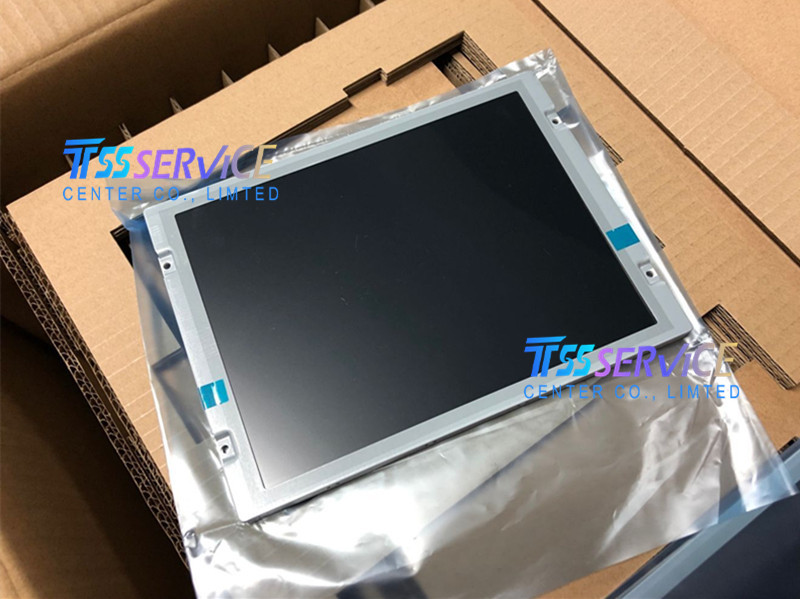

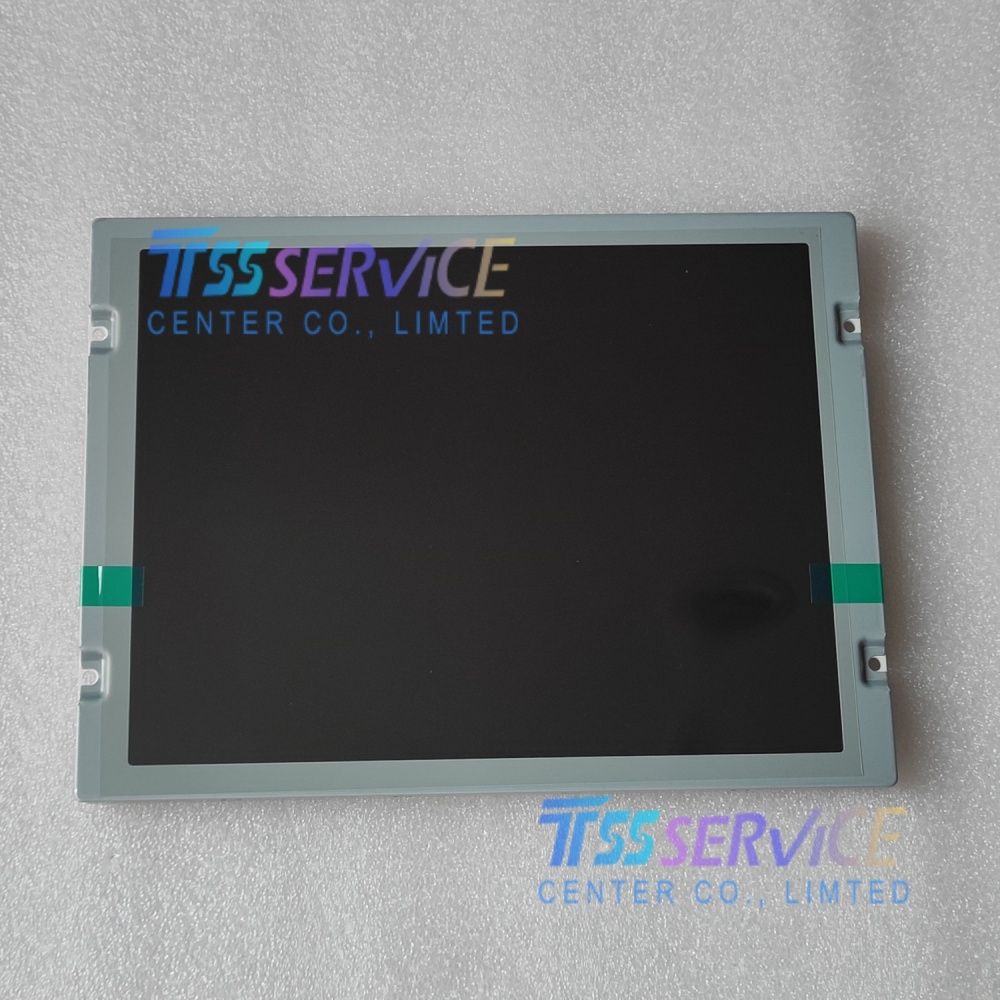

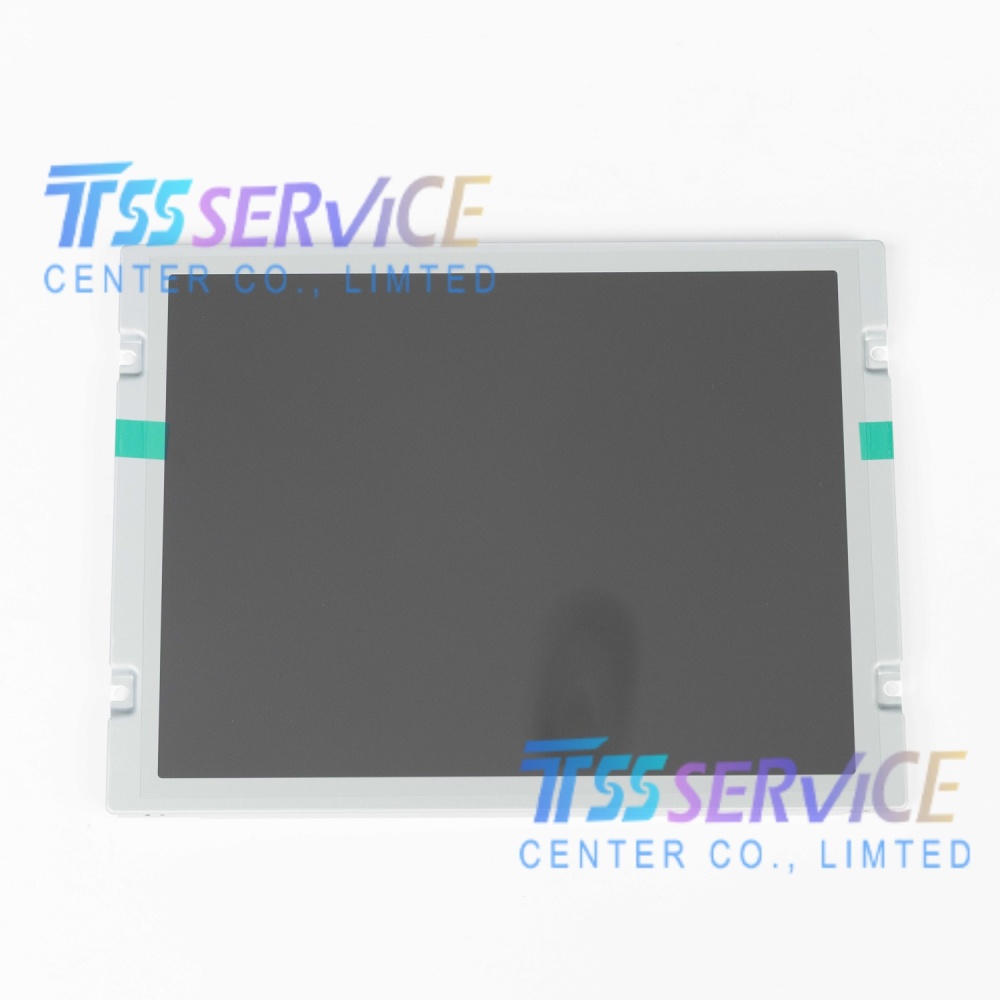

OPTREX T-55786GD084J-LW-ACN 8.4 Inch 800×600 LCD Panel For Industrial
| Parameter |
Value |
Unit |
Notes |
| Part Number |
T-55786GD084J-LW-ACN |
- |
Kyocera 8.4-inch TFT-LCD Module |
| Display Type |
Transmissive Color TFT-LCD, Active Matrix, Normally White (a-Si) |
- |
LCM, SVGA Format |
| Diagonal Size |
8.4 |
inch |
- |
| Resolution |
800(RGB) × 600 |
dots |
SVGA, 119 PPI |
| Pixel Arrangement |
RGB Vertical Stripe |
- |
- |
| Active Display Area |
170.4(W) × 127.8(H) |
mm |
- |
| Outline Dimension |
199.5(W) × 149.0(H) × ~12.8(D) |
mm |
Excl. mounting brackets |
| Dot Pitch |
0.213(W) × 0.213(H) |
mm |
- |
| Color Depth |
16.2M |
colors |
8-bit LVDS input |
| Brightness |
1200 (Typ.) |
cd/m² |
Ultra-high brightness for outdoor use |
| Contrast Ratio |
750:1 (Typ.) |
- |
- |
| Response Time |
18/12 (Typ.)(Tr/Td) ms |
ms |
Tr+Td |
| Viewing Angle |
85/85/85/85 (Typ.) |
deg |
CR≥10 (Left/Right/Up/Down) |
| Viewing Direction |
Symmetry |
- |
- |
| Surface Treatment |
Anti-glare (AG) + Hard-coating (3H) |
- |
Reduces reflection in bright environments |
| Backlight |
White LED (WLED, Edge-lit) |
- |
Built-in constant current circuit |
| Interface |
LVDS (1 channel, 8-bit), 30-pin FPC |
- |
JAE FI-X30SSLA-HF connector |
| Driver IC |
- |
- |
- |
| Supply Voltage |
VCC = 3.3 (Typ.) |
V |
Logic power |
| Supply Current |
270 (Typ.) / 350 (Max.) |
mA |
- |
| Operating Temp. |
-20 ~ +70 |
°C |
Industrial grade |
| Storage Temp. |
-30 ~ +80 |
°C |
- |
| Weight |
~480 |
g |
- |
| Production Status |
Discontinued (EOL) |
- |
- |
T-55786GD084J-LW-ACN is a rugged, ultra-high-brightness 8.4-inch SVGA TFT-LCD optimized for outdoor/bright indoor industrial, medical, transportation, and public display systems requiring excellent visibility in high ambient light conditions.
Key Application Scenarios
- Industrial Control & HMI: Factory operator panels, PLC displays, process monitors, industrial automation systems, outdoor industrial terminals
- Test & Measurement: Outdoor oscilloscopes, field signal analyzers, portable data loggers, rugged laboratory instruments
- Medical Equipment: Outdoor patient monitors, emergency medical devices, diagnostic imaging displays, clinical workstations
- Transportation: Automotive infotainment, marine navigation systems, railway control panels, avionics displays, vehicle-mounted terminals
- Public & Commercial Displays: Digital signage, kiosks, ticketing systems, POS terminals, retail store displays, airport/ subway information boards
- Specialized: Military systems, aerospace equipment, outdoor safety monitoring, construction site displays, marine equipment
Design Advantages for Applications
- Ultra-High Brightness: 1200 cd/m² ensures clear readability in direct sunlight and bright indoor environments
- Wide Viewing Angle: 170° horizontal/vertical viewing for multi-user visibility in public/industrial setups
- Anti-Glare Surface: Minimizes reflection, enhancing visibility in high-light conditions
- LVDS Interface: Long-distance, noise-resistant signal transmission ideal for industrial cabling
- Wide Temp Range: -20°C to +70°C operation for reliable performance in extreme outdoor/industrial environments
- Rugged Construction: Designed for vibration and shock resistance in transportation/industrial applications
- SVGA Resolution: Balances detail and compatibility for industrial HMI and public display systems
