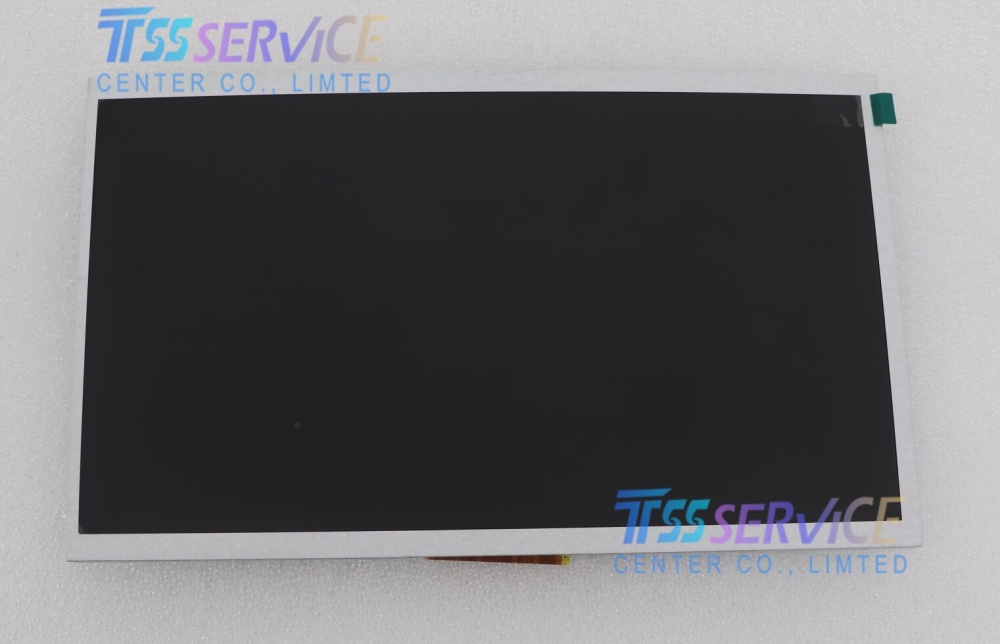

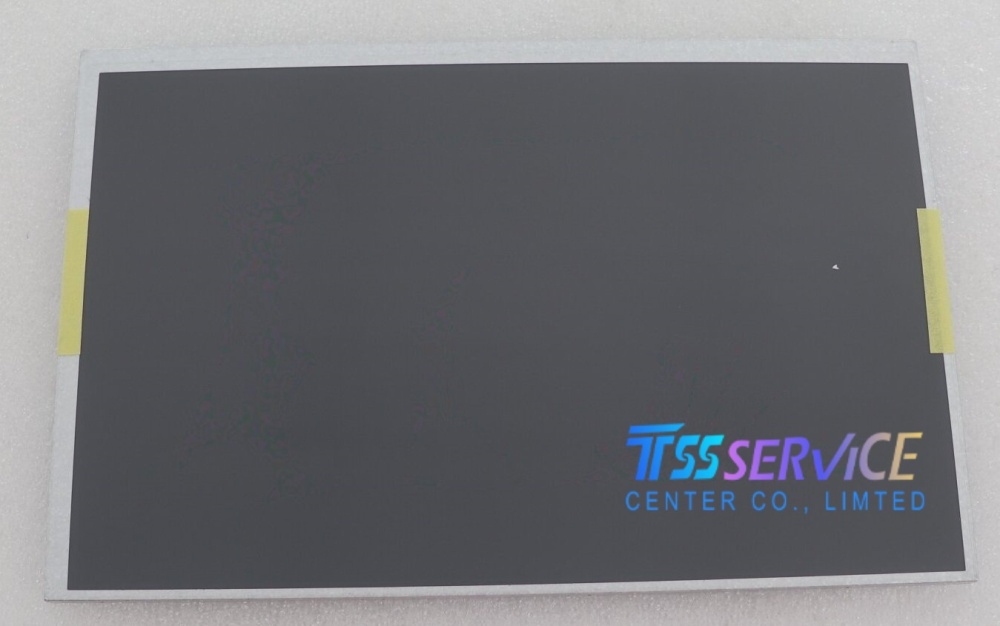

TC101BM02-08E 10.1 inch LCD Display Screen For Industrial

Name: TC101BM02-08E 10.1 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TC101BM02-08E
Price: 40 USD
Availability: InStock

SKU: TC101BM02-08E

Model: TC101BM02-08E
Size: 10.1 inches (diagonal)
Panel Type: a‑Si TFT‑LCD (TN)
Resolution: 1024 × 600 (WSVGA), 16:10

0.0 (0 Reviews)

0 Sold

~~$42.00~~ $40.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TC101BM02-08E 10.1 inch LCD Display Screen For Industrial

Parameter	Specification

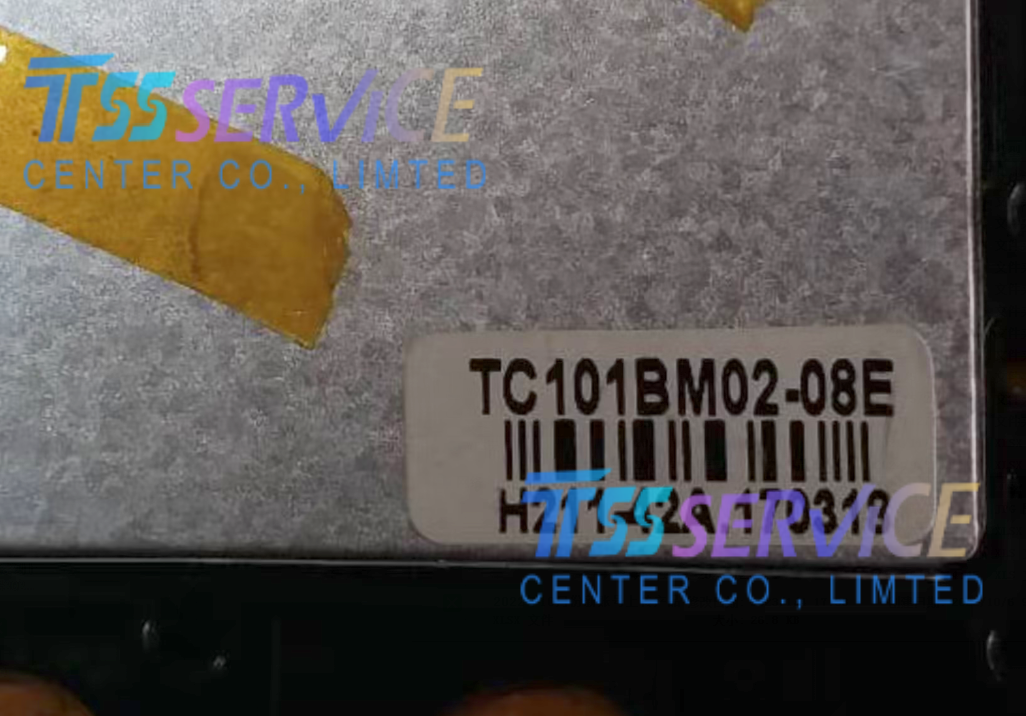

Model	TC101BM02-08E
Manufacturer	Samsung Display
Size	10.1 inches (diagonal)
Panel Type	a‑Si TFT‑LCD (TN)
Resolution	1024 × 600 (WSVGA), 16:10
Active Area	216.96 × 135.6 mm
Outline Size	243.5 × 162.5 × 4.5 mm (max)
Weight	~300 g
Brightness	300 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	50°/70°/60°/70° (L/R/U/D, CR≥10)
Color Depth	6‑bit, 262K colors
Backlight	WLED, edge‑lit, ≥20,000 hrs
Interface	LVDS (1 ch, 6‑bit)
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C
Surface	Anti‑Glare (AG)

Typical Applications

Industrial HMI & Control Panels：CNC machinery, PLC workstations, factory automation, industrial PCs.
Medical Devices：Patient monitors, diagnostic equipment, portable medical displays.
Marine & Automotive：Ship navigation, vehicle terminals, rugged instrumentation.
POS & Kiosk：ATM, vending machines, retail POS, self‑service terminals.
Smart Home & IoT：Industrial monitors, intelligent terminals, outdoor signage.
