Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..
| Brand | Kyocera |

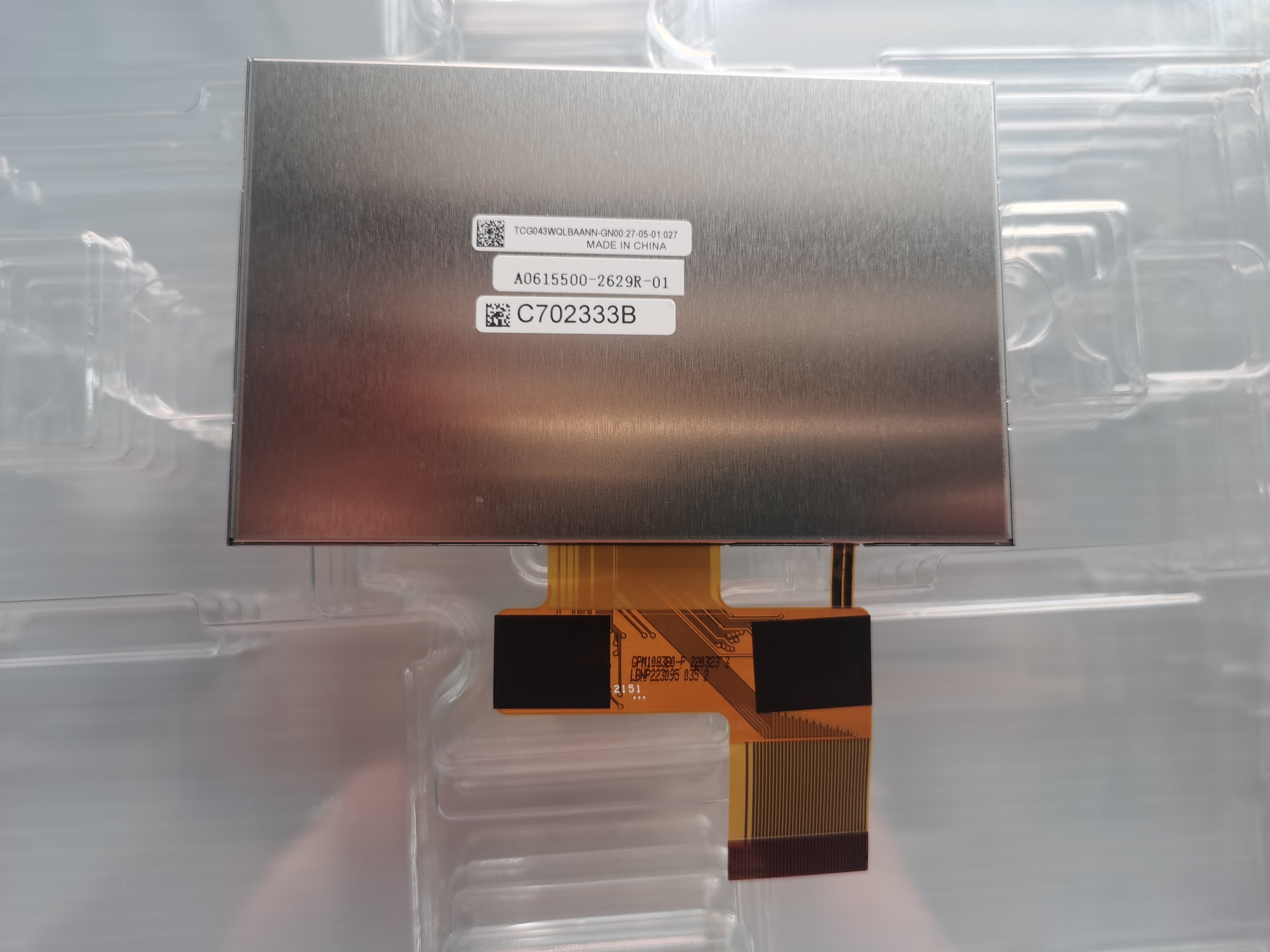

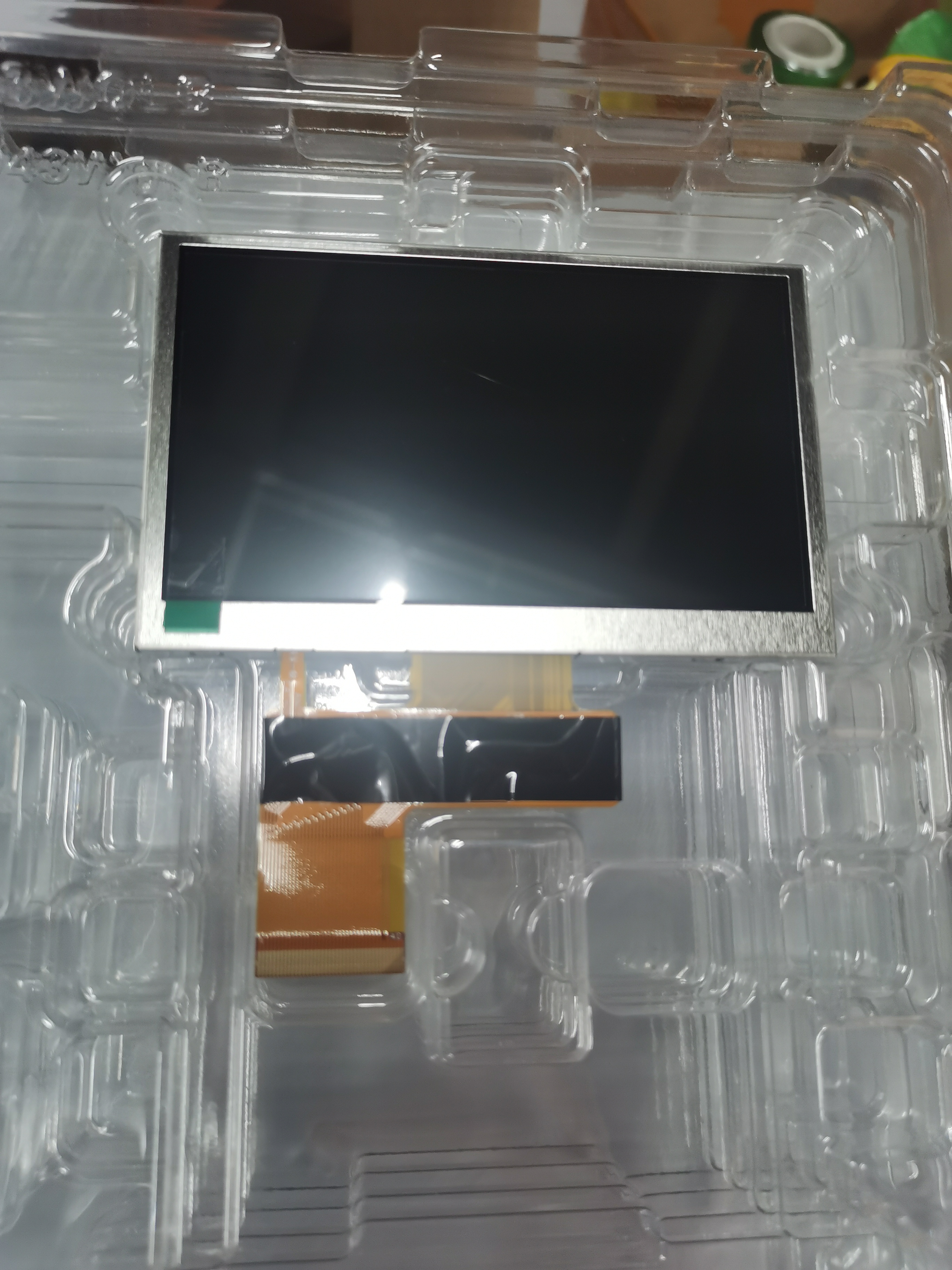

| Model P/N | TCG043WQLBAANN-GN00 |
| Diagonal Size | 4.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×272, WQVGA 128PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 95.04(W)×53.856(H) mm |
| Bezel Opening | 98.7(W)×57.5(H) mm |
| Outline (mm) | 105.5×67.2×6.2 (H×V×D) |
| Treatment | Glare (Haze 0%) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 350:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/65 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.2M 46% NTSC |
| Backlight | WLED, 70K hours, No Driver |
| Mass | 75.0g |
| Used for | Industrial Control HMI, Automotive Displays, Embedded Terminals, Handheld Devices |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 8-bit), FPC 40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C ; Operating Temp.: -20 ~ 70 °C |
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
Q: What if the product doesn't work ?
A: Please test the product as soon as you receive it. If it does not work, take clear photos and videos of the issue and contact us immediately. We will then provide technical support or arrange a return or exchange.
