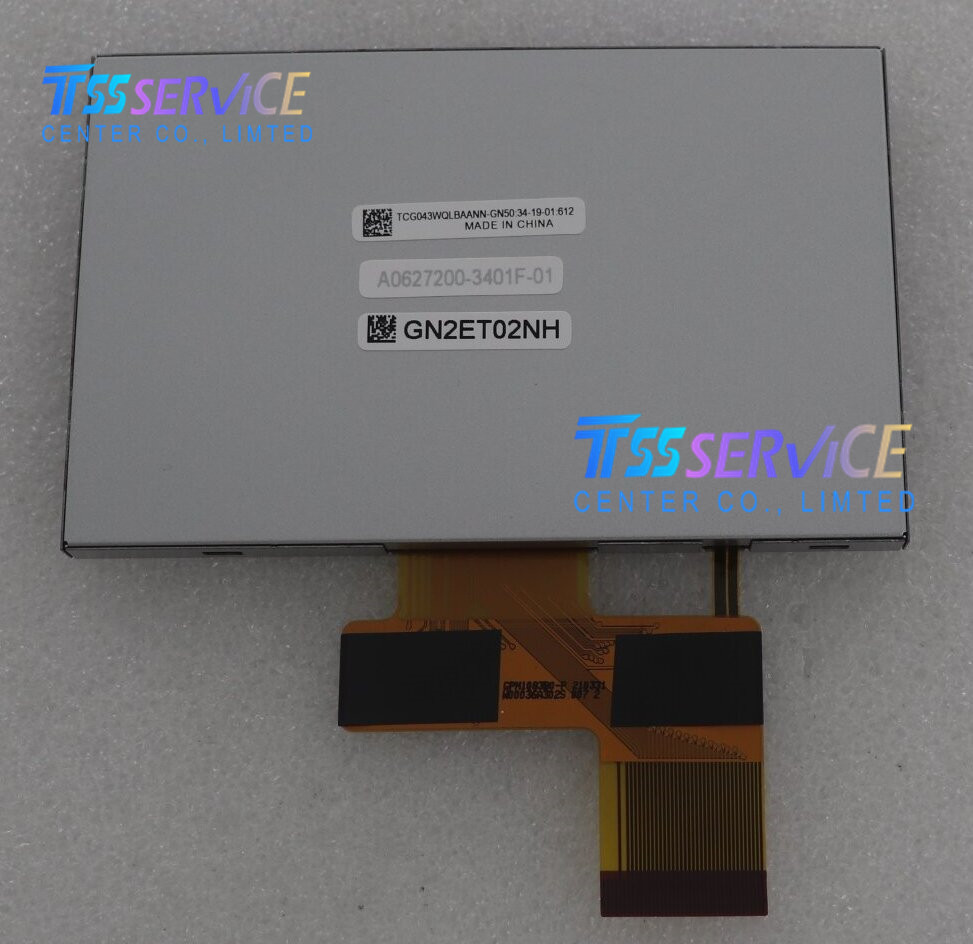

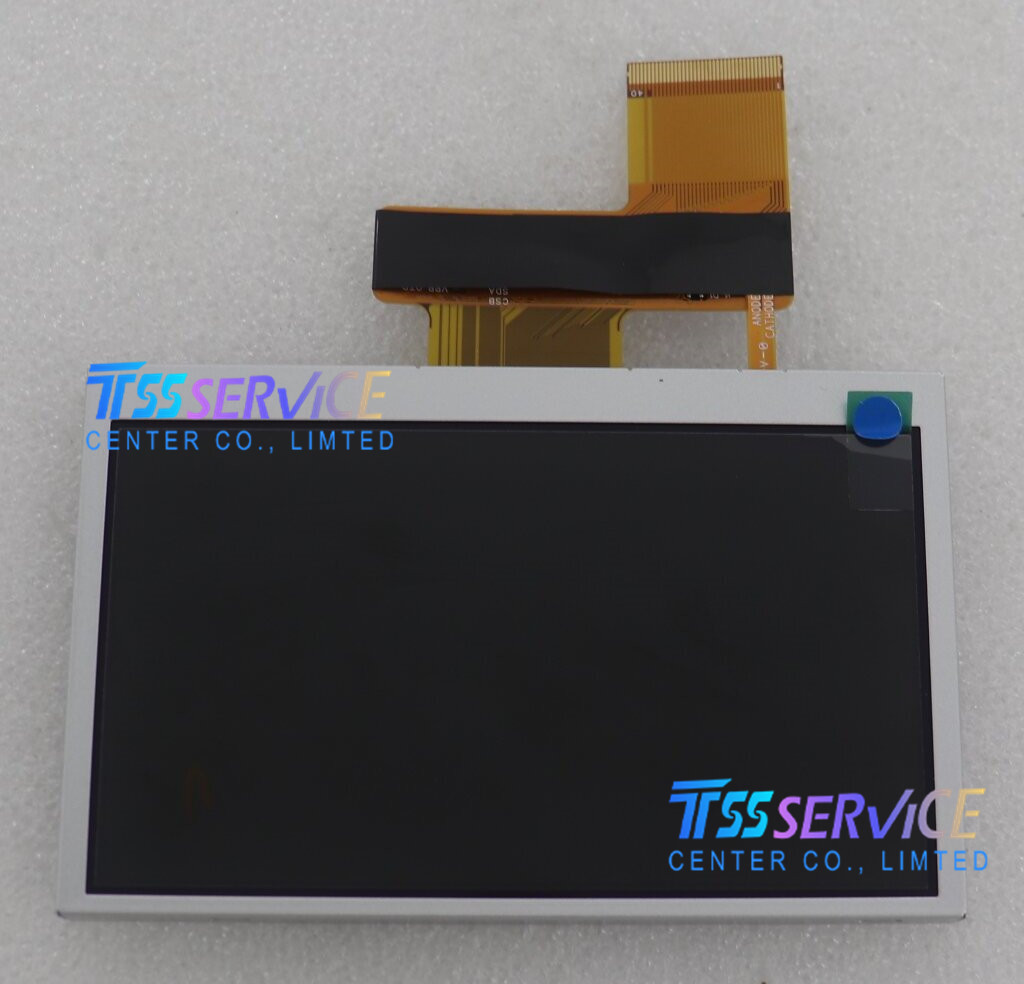

Kyocera 4.3inch LCD Panel Display TCG043WQLBAANN-GN50 For Industrial

Name: Kyocera 4.3inch LCD Panel Display TCG043WQLBAANN-GN50 For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG043WQLBAANN-GN50
Price: 75 USD
Availability: InStock

SKU: TCG043WQLBAANN-GN50

Condition: New Original
Warranty: 90 days
Shipping: DHL/ Fedex/ 4PX express/ SF express
Lead time: 1-3 days
Packaging: Bubble pad+Paper box

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $75.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TCG043WQLBAANN-GN50 LCD Display is a 4.3-inch LCD screen from Kyocera brand without touch. It has a resolution of 480x272 pixels (WQVGA), a brightness of 800 cd/m ², a input voltage of 3.3V, and a working frequency of 60Hz. With a contrast ratio of 350:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.

SPECIFICATION

Active Area	95.04(W)×53.856(H) mm	Bezel Opening	98.7(W)×57.5(H) mm
Outline(mm)	105.5 × 67.2 × 6.1 (H×V×D)	Treatment	Glare (Haze 0%)
Luminance	800 cd/m² (Typ.)	Contrast Ratio	350 : 1 (Typ.) (TM)
Viewing Angle	70/70/60/65 (Typ.)(CR≥10)	Response	25 (Typ.)(Tr+Td) ms
