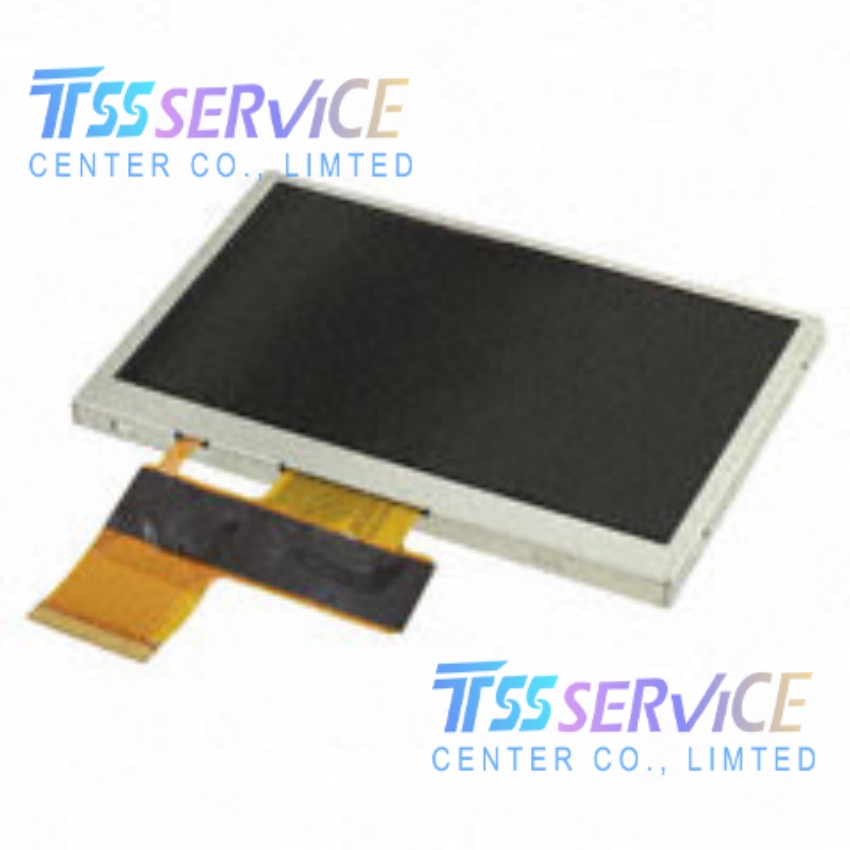

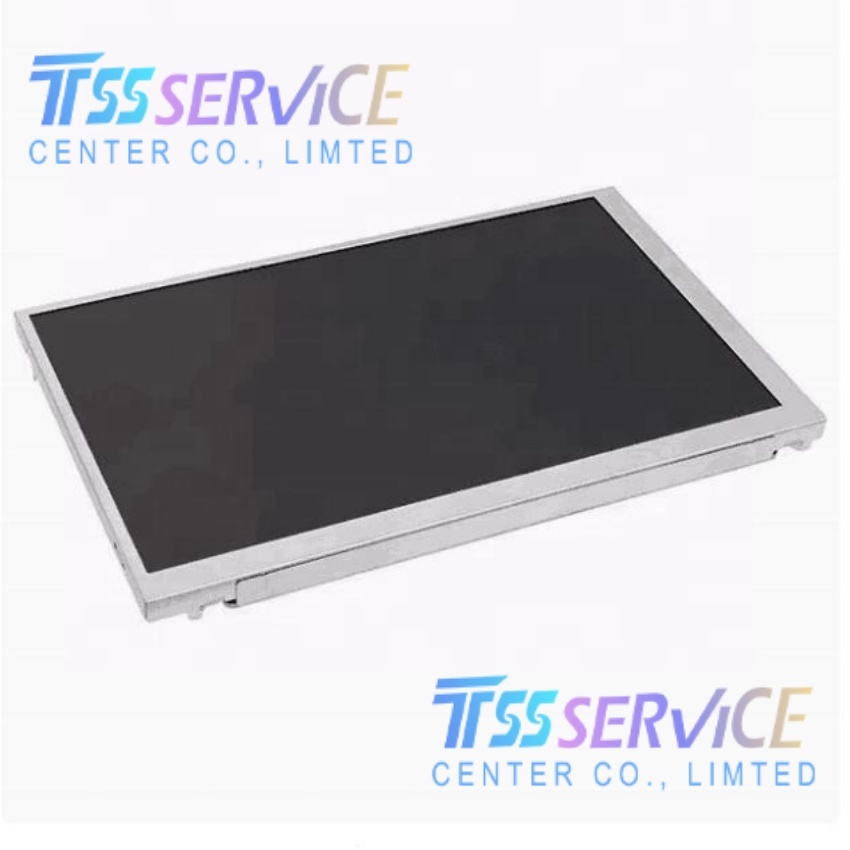

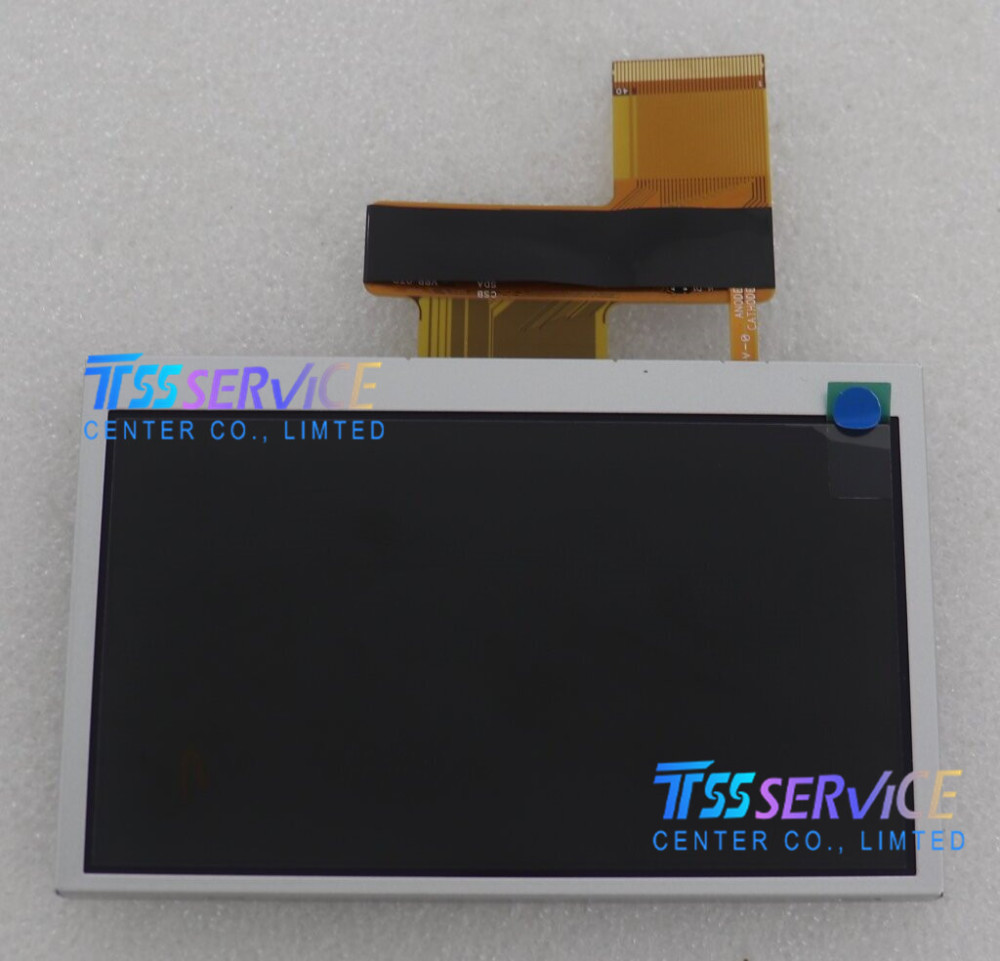

4.3 Inch Kyocera TCG043WQLBBANN-GN50 Industrial TFT LCD Screen Display Panel for Industrial

Name: 4.3 Inch Kyocera TCG043WQLBBANN-GN50 Industrial TFT LCD Screen Display Panel for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG043WQLBBANN-GN50
Price: 75 USD
Availability: InStock

SKU: TCG043WQLBBANN-GN50

Model Number: TCG043WQLBBANN-GN50
Brand: KYOCERA Industrial TFT-LCD
Diagonal Size: 4.3 Inch
Native Resolution: 480(RGB) × 272 WQVGA, 16:9 Aspect Ratio
Panel Technology: a-Si TN TFT-LCD

0.0 (0 Reviews)

0 Sold

~~$78.00~~ $75.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

4.3 Inch Kyocera TCG043WQLBBANN-GN50 Industrial TFT LCD Screen Display Panel for Industrial

Item	Specification Parameter
Model Number	TCG043WQLBBANN-GN50
Brand	KYOCERA Industrial TFT-LCD
Diagonal Size	4.3 Inch
Native Resolution	480(RGB) × 272 WQVGA, 16:9 Aspect Ratio
Panel Technology	a-Si TN TFT-LCD, Normally White Transmissive
Backlight	Built-in WLED, Lifespan ≥100,000 Hours, No extra driver needed
Typical Brightness	800 cd/m² Ultra High Bright
Contrast Ratio	350:1 (Typical)
Viewing Angle L/R/U/D (CR≥10)	70° / 70° / 60° / 65°
Response Time Tr+Td	25 ms (Typical)
Refresh Rate	60Hz
Color Depth	16.2M True Color (6-bit + FRC)
Signal Interface	Single Channel Parallel RGB 24-bit, 40Pin FPC Connector
Logic Supply Voltage	3.3V Standard Industrial Voltage
Active Display Area	95.04 (W) × 53.856 (H) mm
Overall Outline Dimension	105.5 (W) × 67.2 (H) × 5.9~6.1 (T) mm
Net Weight	Approx 75g
Surface Treatment	Glossy Clear Hard Coating (Haze 0%)
Touch Function	Without touch digitizer (Resistive/Capacitive touch glass optional)
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
RoHS Compliance	Lead-Free Environmental Standard
Quality Grade	Original New Grade A, Full Aging & Function Tested Before Shipment

Applications

Outdoor Portable Industrial Handheld HMI & Field Terminals
Field inspection data collectors, portable industrial debugging controllers, construction site handheld monitoring devices, agricultural field handheld parameter terminals, battery-powered outdoor industrial detectors.
Portable Medical Diagnostic Equipment
Handheld vital sign monitors, portable blood testing analyzers, field ECG diagnostic devices, mobile veterinary inspection instruments, portable infusion control panels.
Portable Precision Test & Measuring Instruments
Handheld gas leak detection analyzers, portable power quality testers, optical field measuring equipment, pipeline inspection handheld monitors, environmental portable data loggers.
Light On-board & Small Engineering Auxiliary Displays
Mini forklift handheld parameter screens, portable agricultural machinery control units, small engineering vehicle portable diagnostic display modules, construction machinery wireless handheld terminals.
Commercial Portable Smart Devices & Compact Kiosks
Portable charging pile parameter screens, handheld access verification terminals, small outdoor industrial vending control modules, handheld industrial barcode data recording equipment.
