Condition: New
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL ,FedEx, EMS , SF express or by air.
| Parameter | Specification |
|---|---|

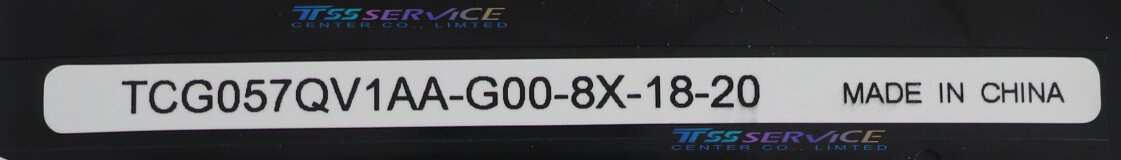

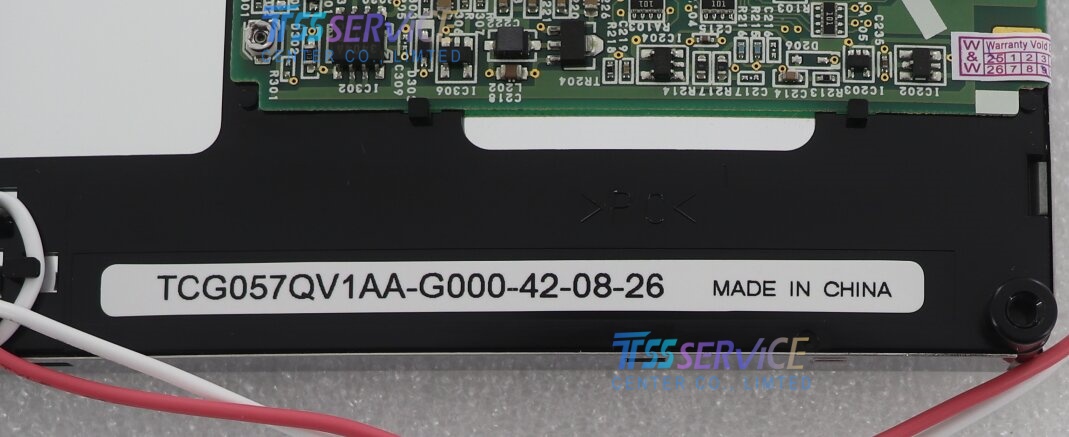

| Model Number | TCG057QV1AA-G00 |
| Manufacturer | Kyocera Display Solutions |

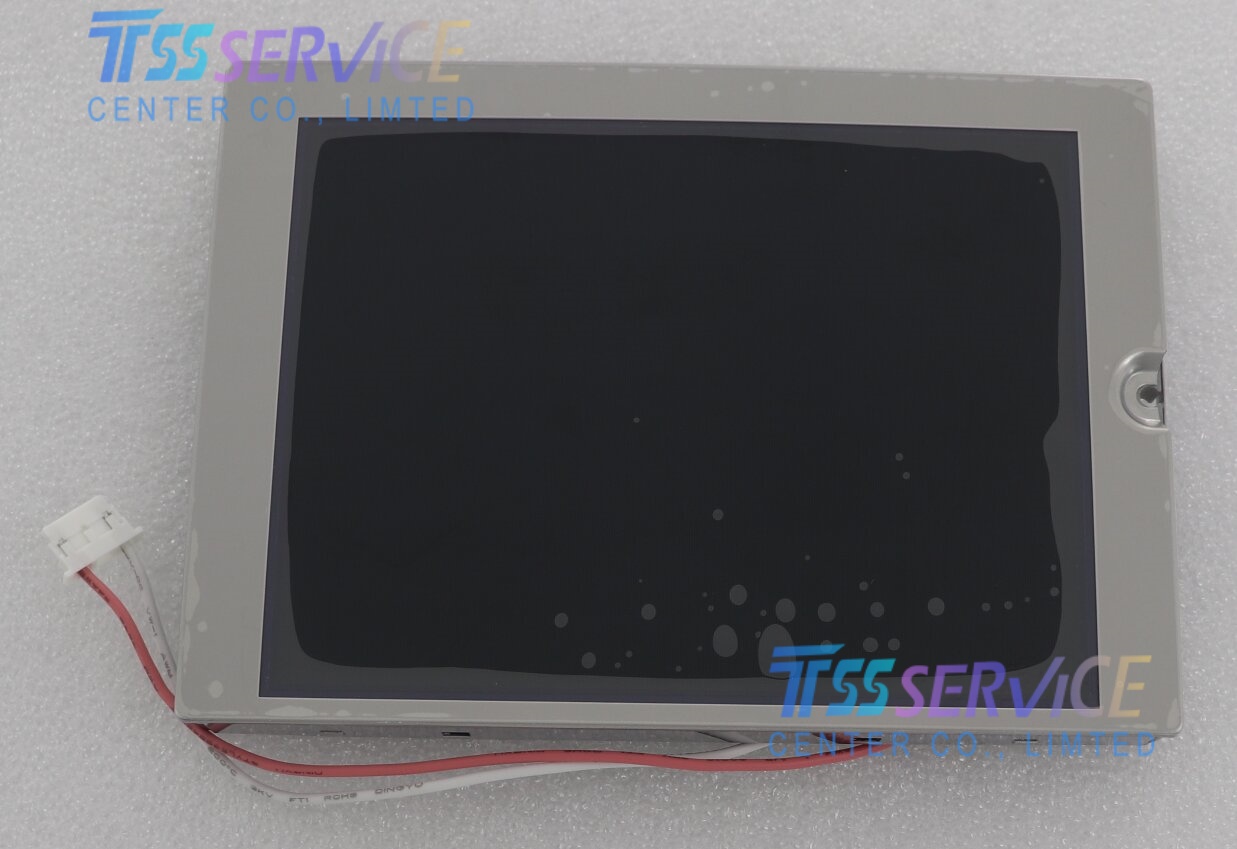

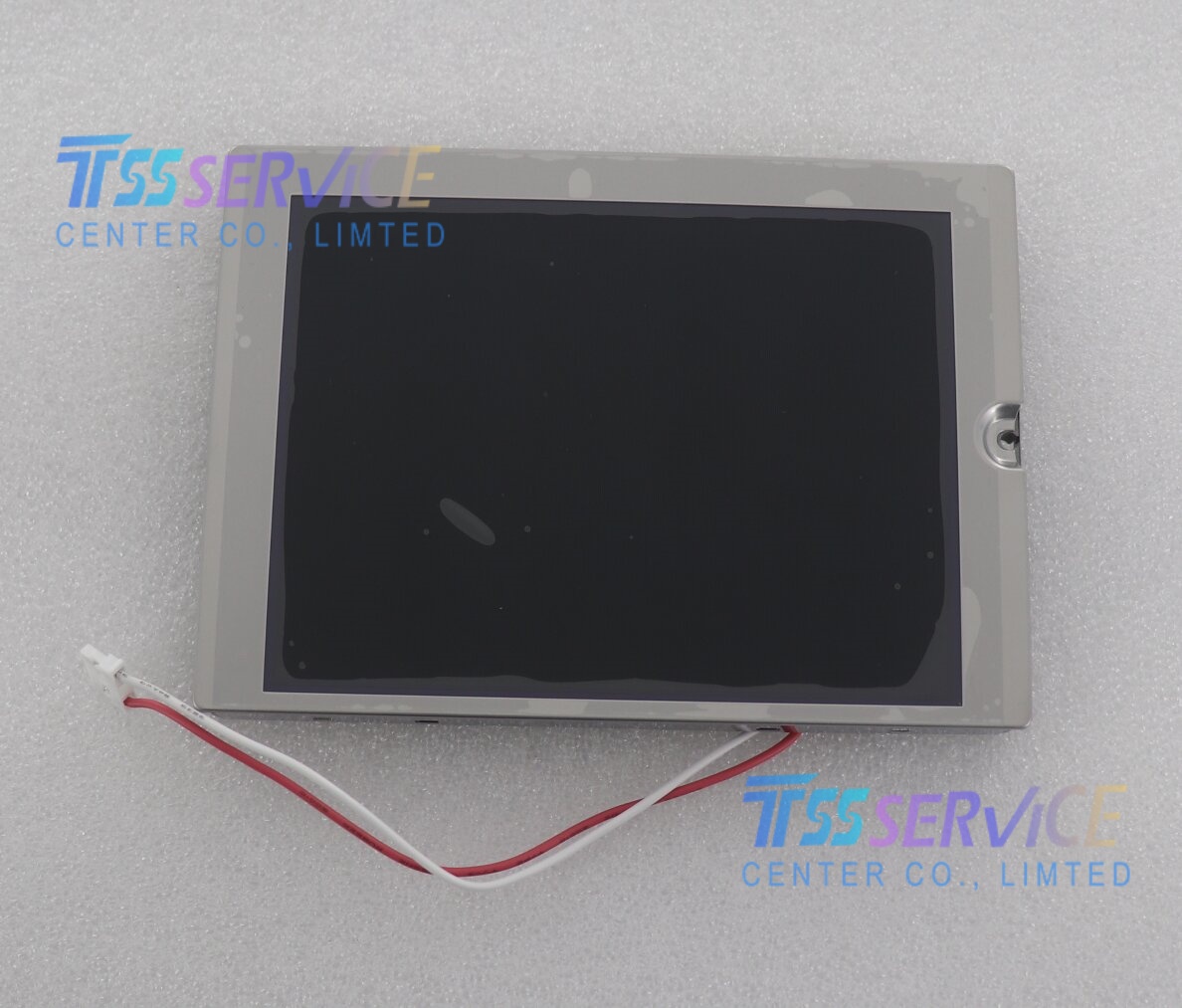

| Display Type | 5.7" TFT Active Matrix LCD |
| Resolution | 320 (RGB) × 240 pixels (QVGA) |
| Aspect Ratio | 4:3 |
| Active Area (AA) | 115.20 × 86.40 mm |
| Outline Dimensions | Approx. 144.0 × 104.0 × 12.9 mm |
| Pixel Pitch | 0.360 × 0.360 mm |
| Brightness | 500 cd/m² (Typical) – High Brightness |
| Contrast Ratio | 350:1 (Typical) |
| Color Depth | 262,144 Colors (6-bit RGB) |
| Viewing Angle | 12 o'clock direction (Top); Wide viewing angle |
| Backlight | White LED (Mercury-free) |
| Interface | TTL Parallel Interface (24-bit/18-bit color data) |
| Operating Temperature | -30°C to +80°C (Wide Temperature Range) |
| Storage Temperature | -40°C to +90°C |
| Power Supply | 3.3V ± 0.3V (Logic); Backlight driven by constant current |
| Touch Panel | Not integrated (Designed for external overlay) |
| Compliance | RoHS Compliant (Specific version depends on G00 batch date) |
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
