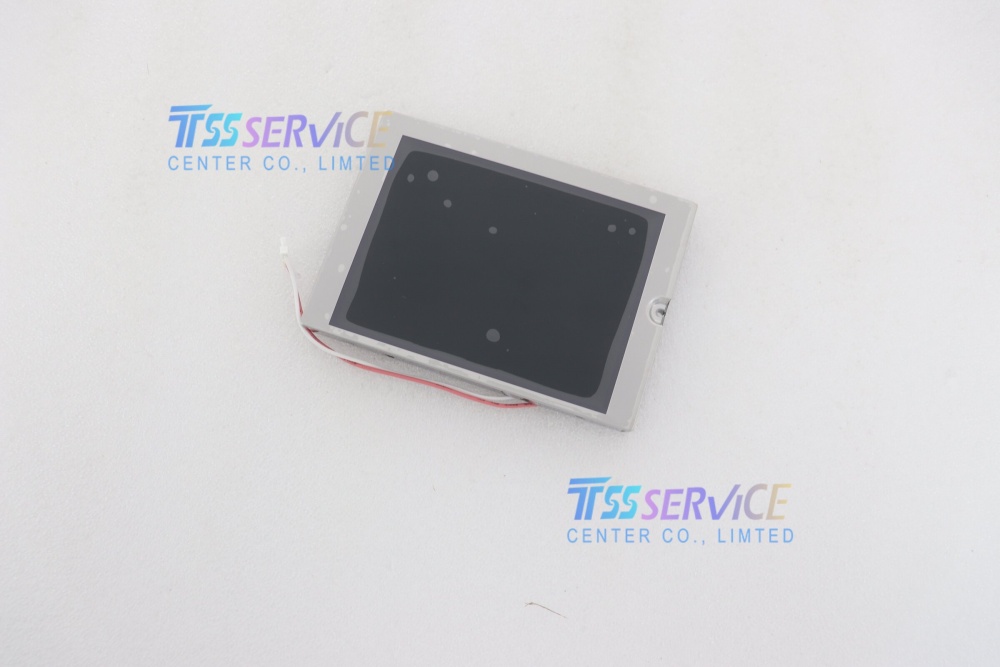

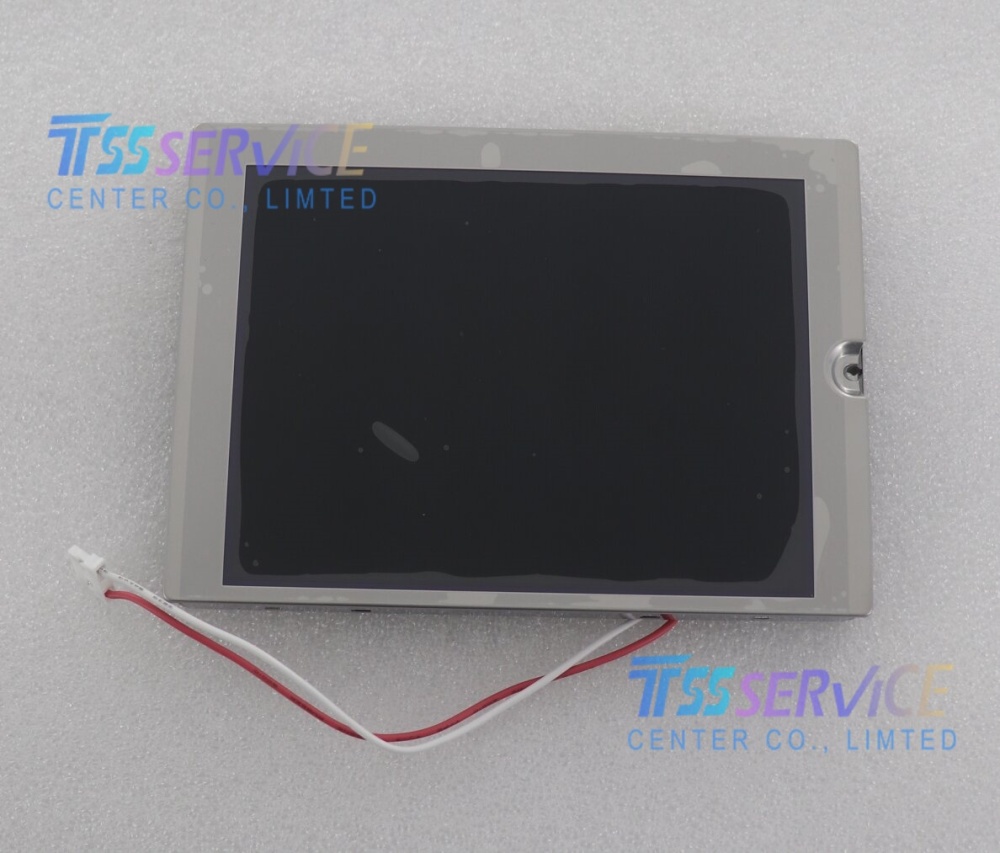

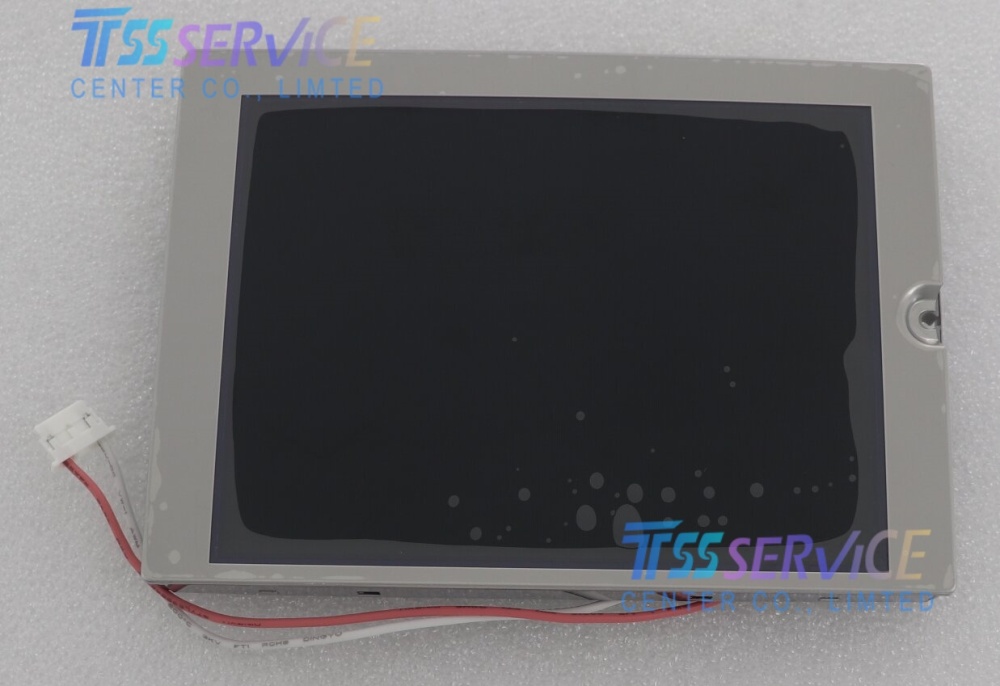

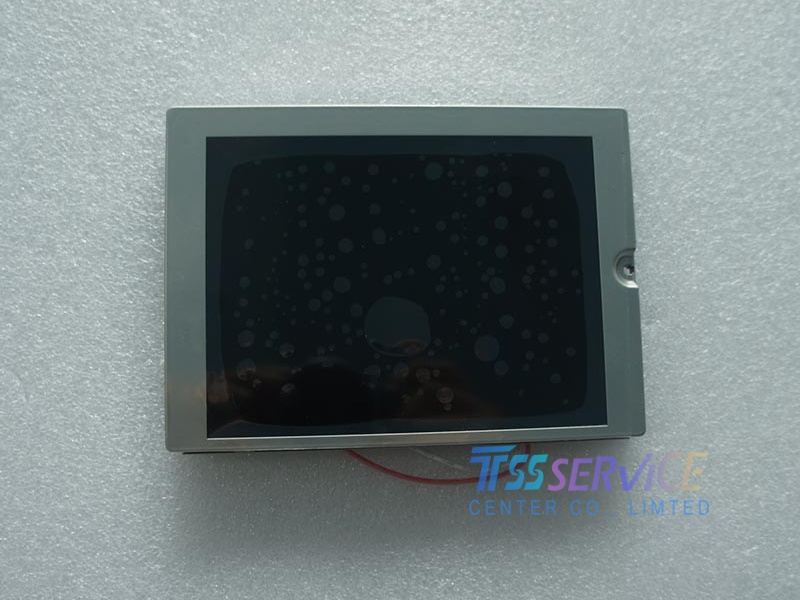

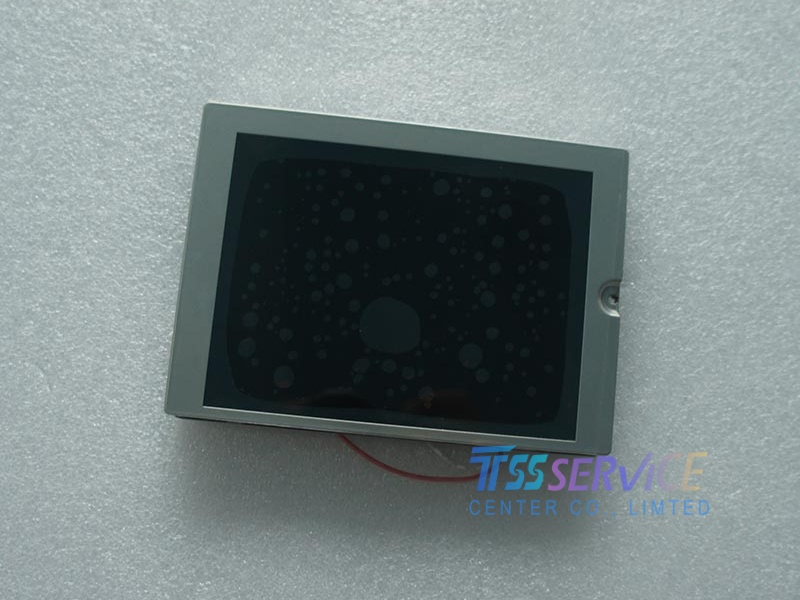

TCG057QV1AA-G11P Kyocera 5.7 inch LCD Panel for Industrial Machine
| Parameter |
Details |
| Manufacturer |
Kyocera (京瓷) |
| Model |
TCG057QV1AA-G11P |
| Screen Size |
5.7-inch diagonal |
| Resolution |
320 × 240 pixels (QVGA) |
| Display Type |
Color TFT-LCD (TN type) |
| Color Depth |
262,144 colors (18-bit RGB) |
| Brightness |
400 cd/m² (typical) |
| Contrast Ratio |
450:1 (typical) |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp) |
| Interface |
TTL (Parallel) digital interface |
| Viewing Angle |
70°(L)/70°(R)/70°(U)/50°(D) |
| Operating Voltage |
DC 5V |
| Operating Temp. |
-10°C ~ +60°C |
| Application |
Industrial CNC, FANUC systems, machine tools |
The TCG057QV1AA-G11P is a widely-used 5.7-inch color TFT LCD module designed for industrial HMI (Human-Machine Interface) and legacy CNC equipment.
Key Applications:
-
FANUC CNC Systems
- Replacement display for FANUC 0i-A/B, 15i, 16i, 18i, 21i series controllers.
- Used in CNC lathes, machining centers, grinders, and milling machines.
-
Industrial Machinery
- Injection molding machines
- Textile manufacturing equipment
- Printing and packaging machinery
- Industrial automation control panels
-
Legacy Equipment Upgrade
- Direct replacement for discontinued displays in older industrial equipment
- Compatible with TTL interface controllers requiring 320x240 resolution
